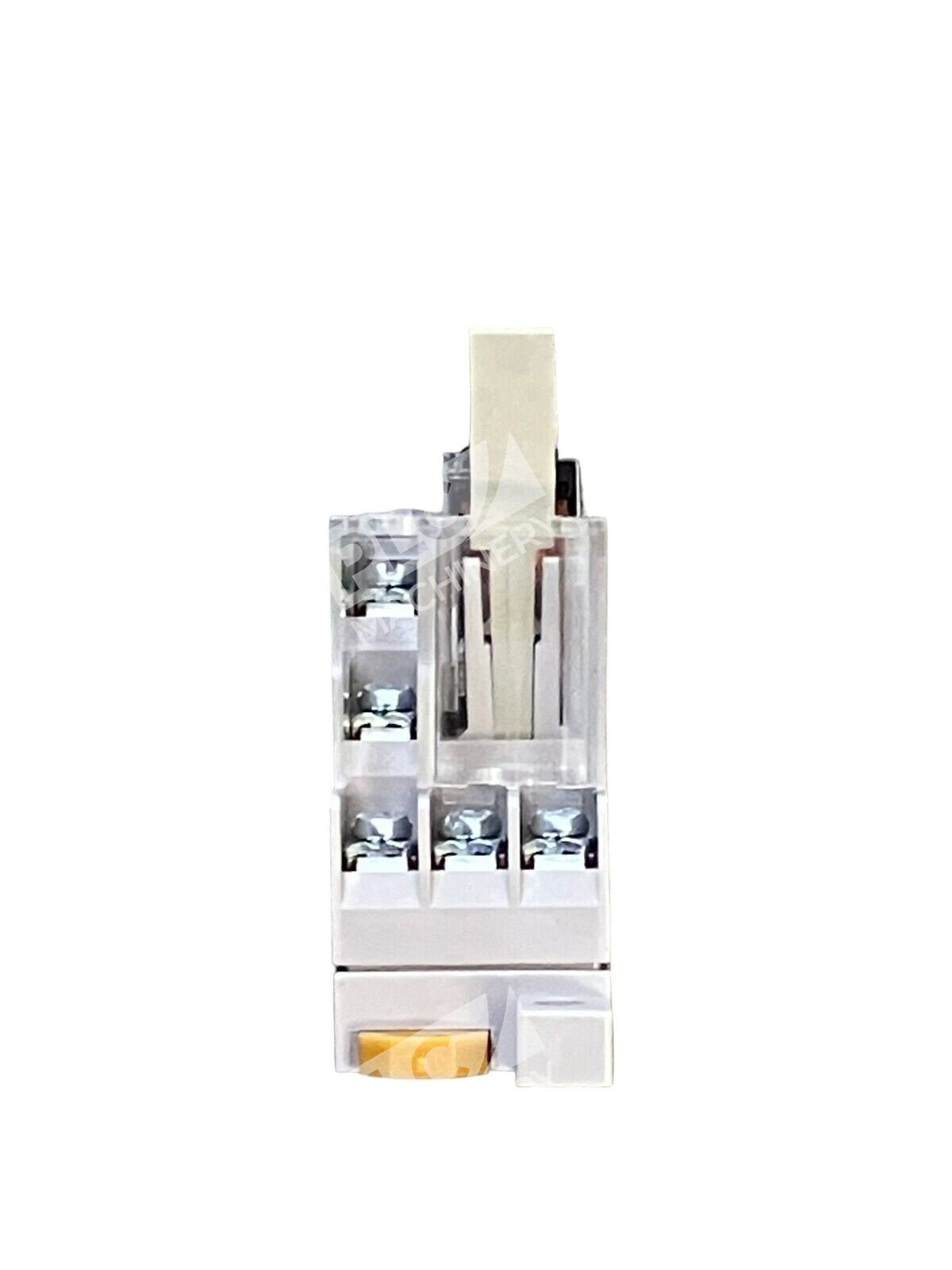

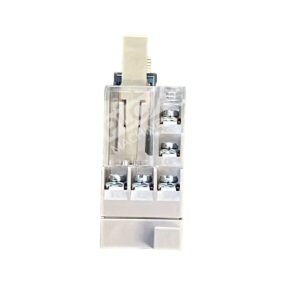

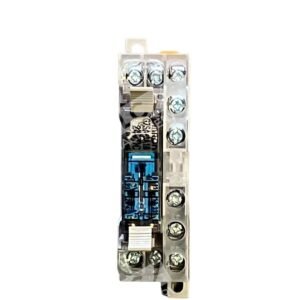

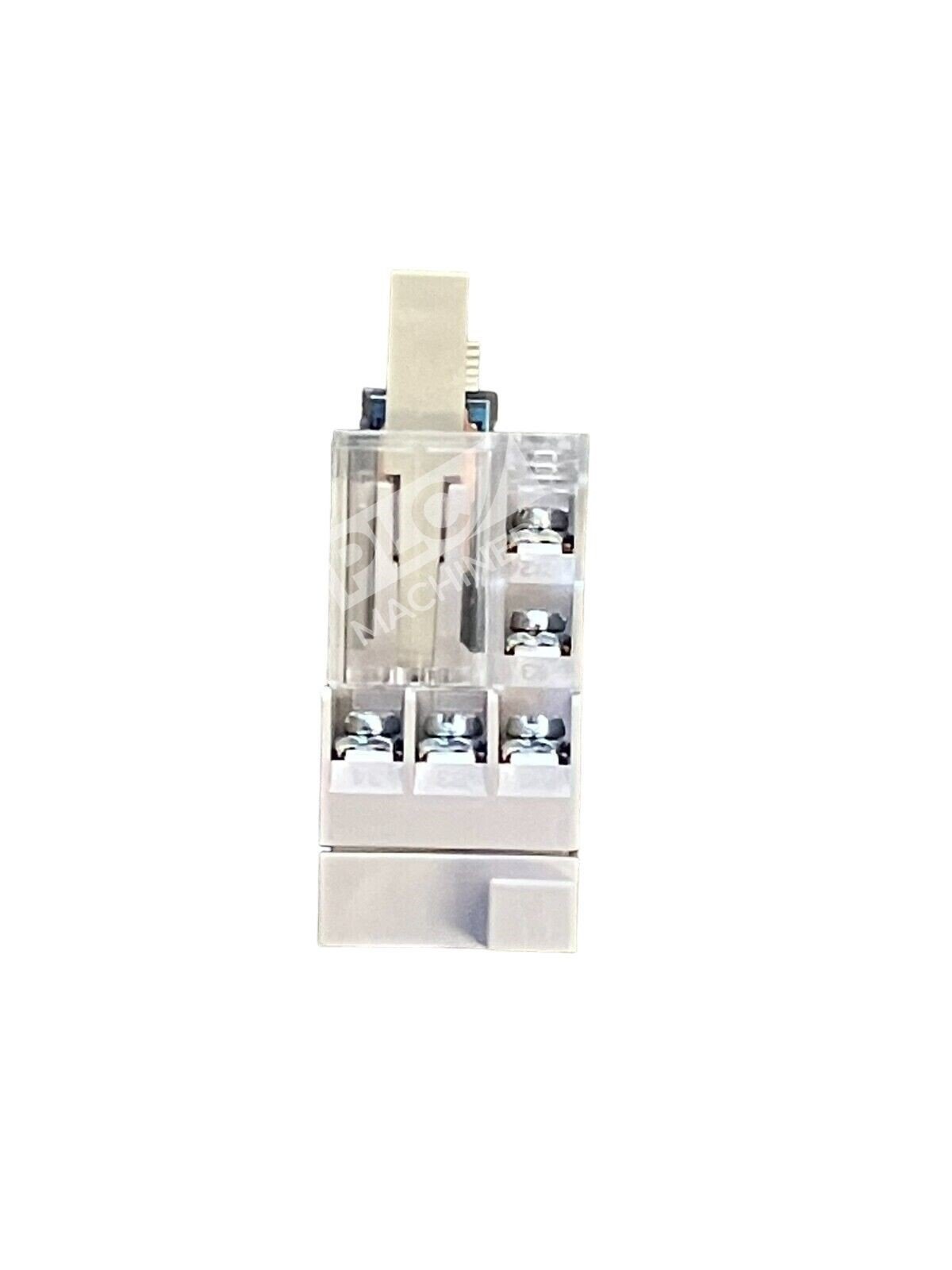

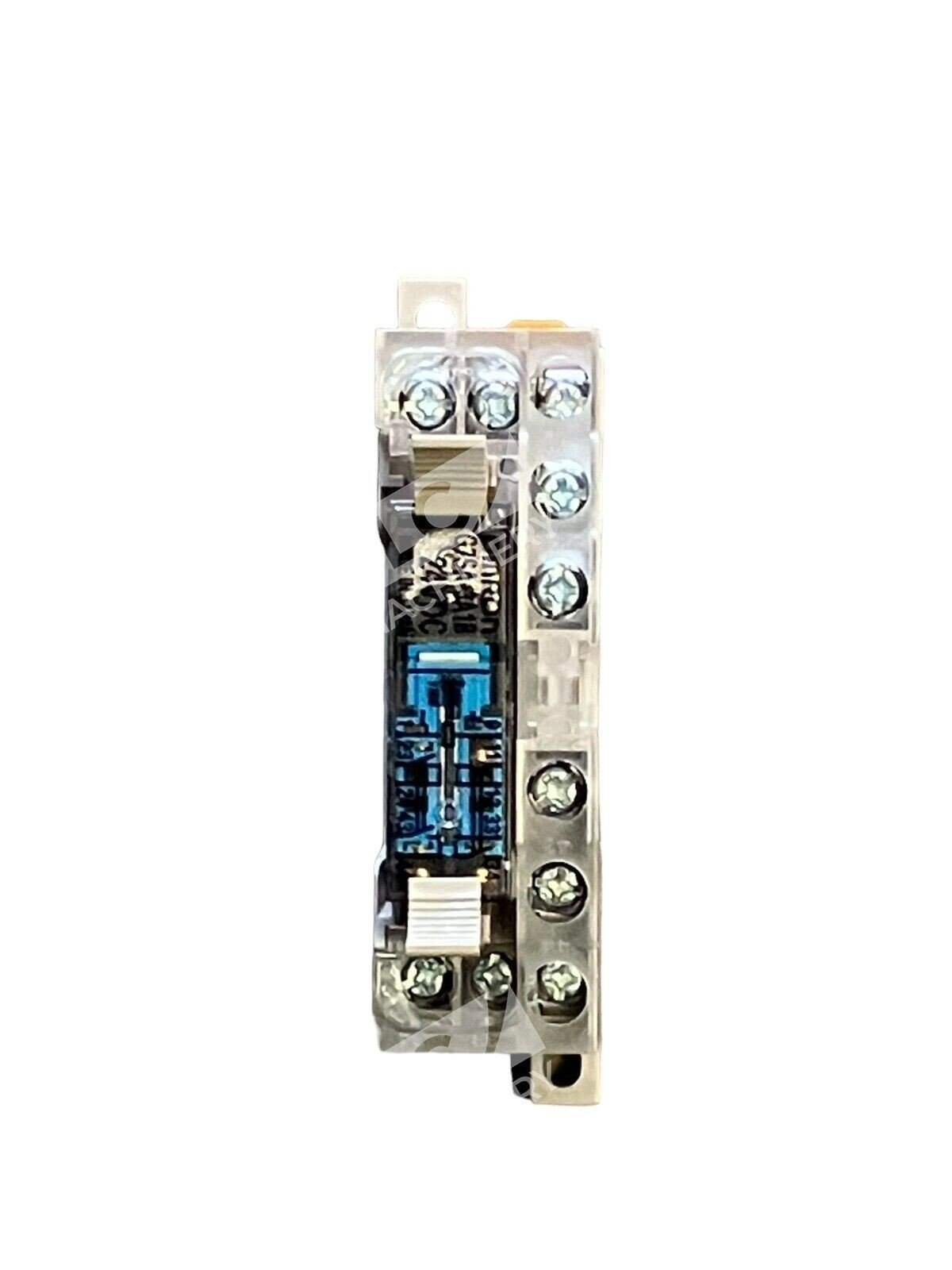

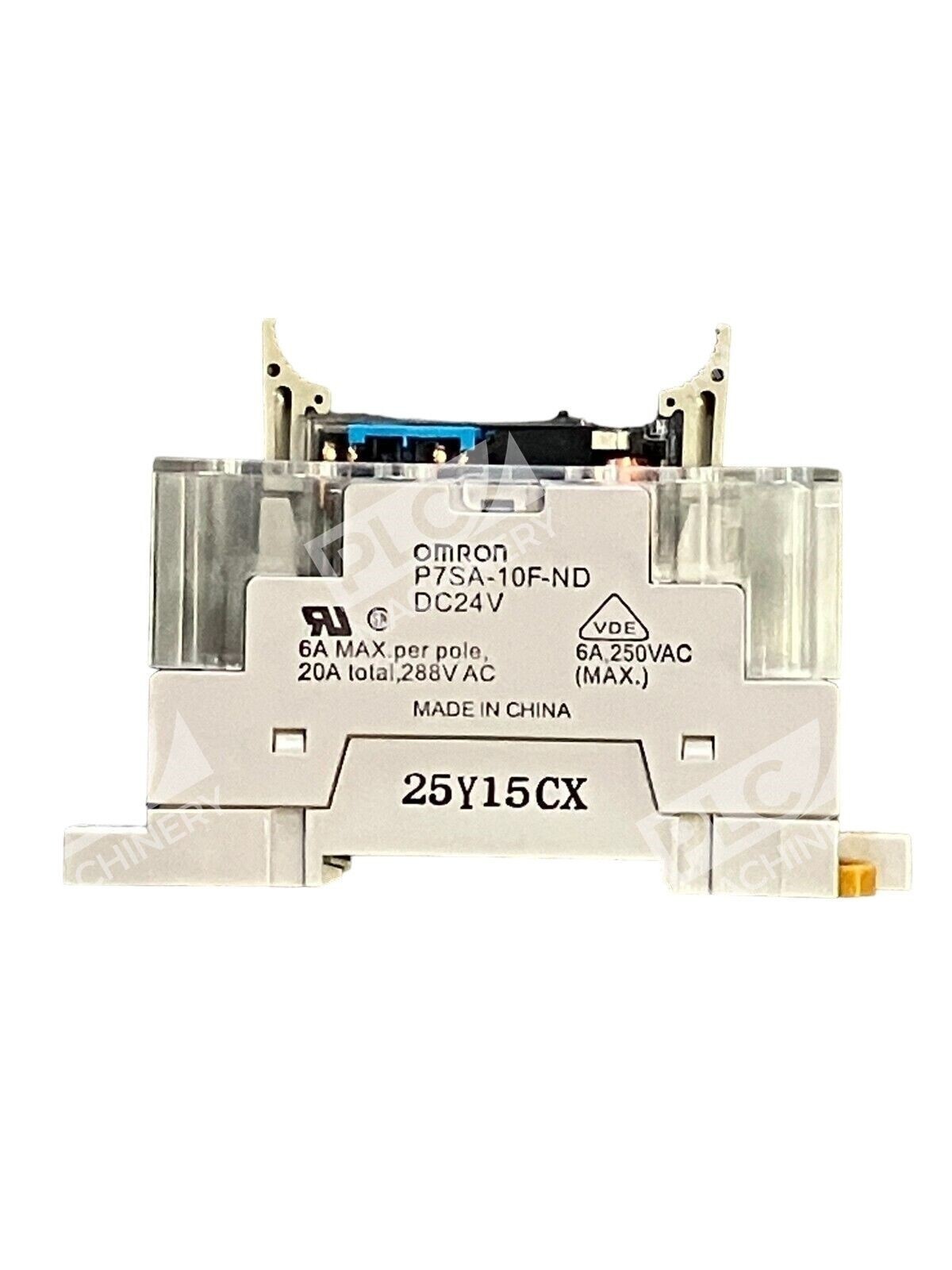

The Omron P7SA-10F-ND Safety Relay Base is a high-quality socket designed to accommodate Omron’s G7SA series 4-pole safety relays. Engineered for reliability and safety, this relay base is ideal for critical control circuits in industrial applications.

Key Features

• 10-Pin Screw Terminals: Ensures secure and stable connections for optimal performance.
• DIN Rail or Surface Mounting: Offers flexibility in installation to suit various control panel configurations.
• LED Indicator: Provides clear visual status of the relay coil, enhancing operational monitoring.
• Built-in Surge Diode: Protects the relay coil from voltage spikes, extending the lifespan of connected components.
• Finger-Safe Construction: Enhances safety by preventing accidental contact with live terminals.

Specifications

• Product Type: Relay Socket
• Model Number: P7SA-10F-ND
• Compatible Relays: G7SA 4-pole safety relays (2NO+2NC, 3NO+1NC)
• Number of Pins: 10
• Termination Type: Screw terminals (M3)
• Mounting Options: DIN rail or surface mounting
• Current Rating: 6A per circuit
• Voltage Rating: 24VDC (coil indicator LED and diode)
• Insulation Resistance: Minimum of 1000 MΩ
• Operating Temperature Range: -20°C to 70°C
• Design Features: Reinforced insulation, flux-tight, finger-safe

Certifications and Compliance

The P7SA-10F-ND Relay Base meets multiple international safety and quality standards, ensuring its suitability for global use in safety-critical systems.

Applications

This relay base is designed for safety and control applications where reliability is paramount. Its compatibility with G7SA safety relays makes it ideal for:

• Emergency stop (E-stop) circuits
• Safety gate and door interlocks
• Light curtain safety systems
• Elevator safety controls
• Robotics and automated lines

In all these cases, the socket ensures that the G7SA relay functions reliably within compact, space-saving control panels.

Why Choose the Omron P7SA-10F-ND Relay Base?

Opting for the Omron P7SA-10F-ND Relay Base offers several advantages:

• Safety: Reinforced insulation and forcibly guided contacts reduce failure risks.
• Reliability: High insulation resistance and robust screw terminals ensure secure performance.
• Compact Design: At only 22.5 mm wide, it saves space in control panels.
• Ease of Maintenance: Plug-in relays can be replaced without disturbing wiring.
• Visual Indication: Built-in LED helps operators instantly see relay coil status.

The Omron P7SA-10F-ND Safety Relay Base is an essential component for ensuring safety and reliability in industrial control systems. With its reinforced insulation, LED indication, and global certifications, it is trusted in industries ranging from robotics to elevators.
