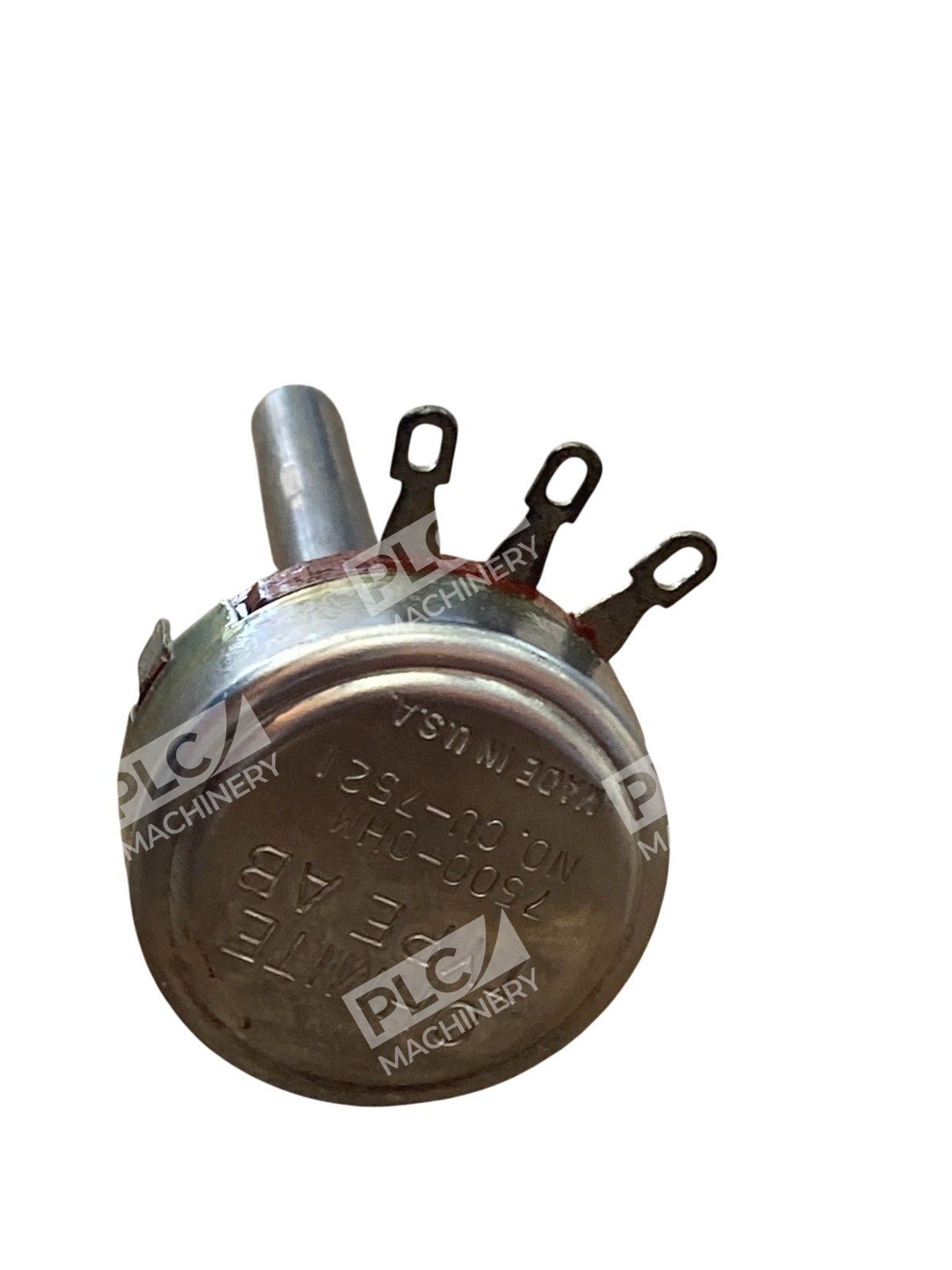

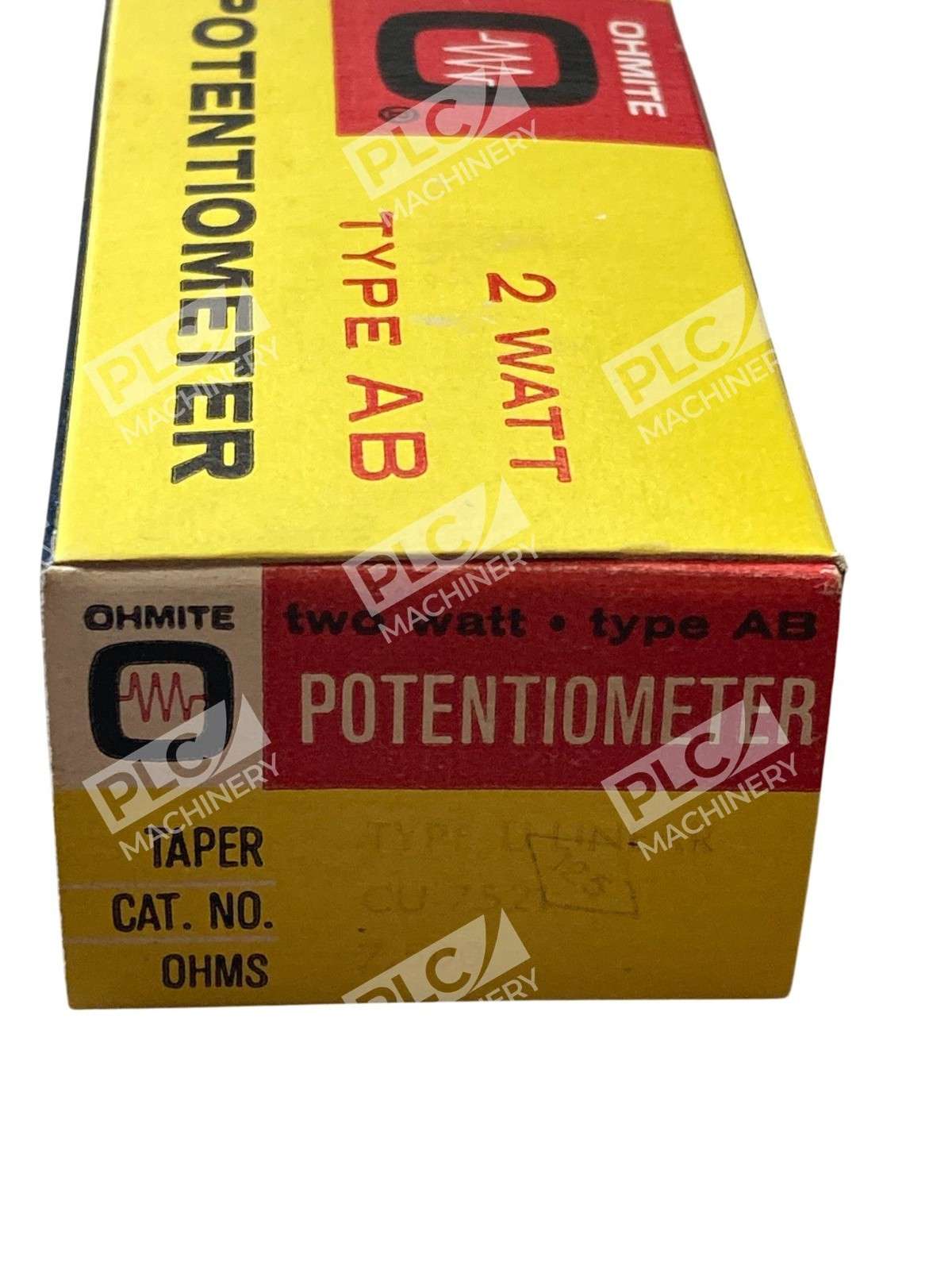

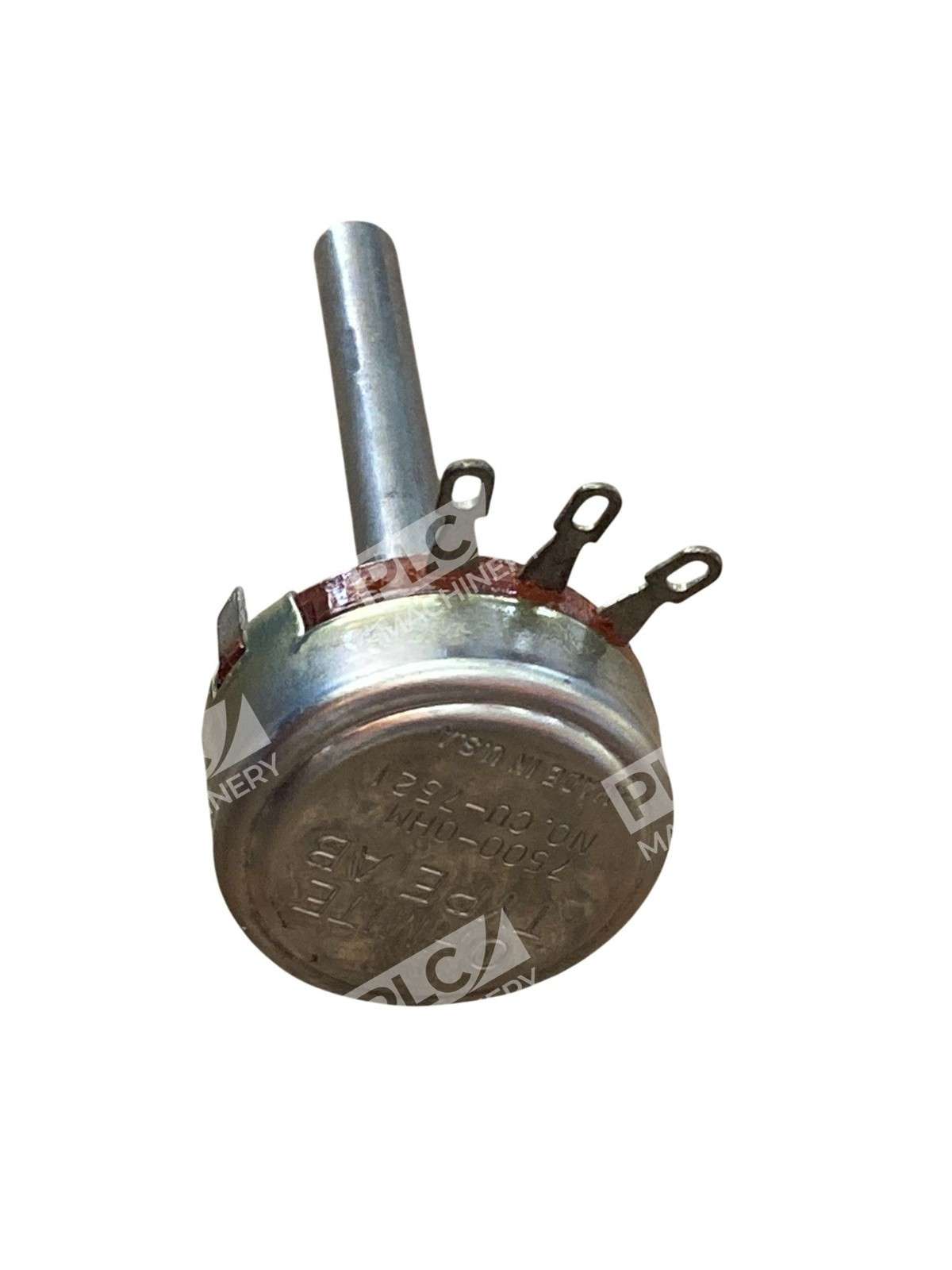

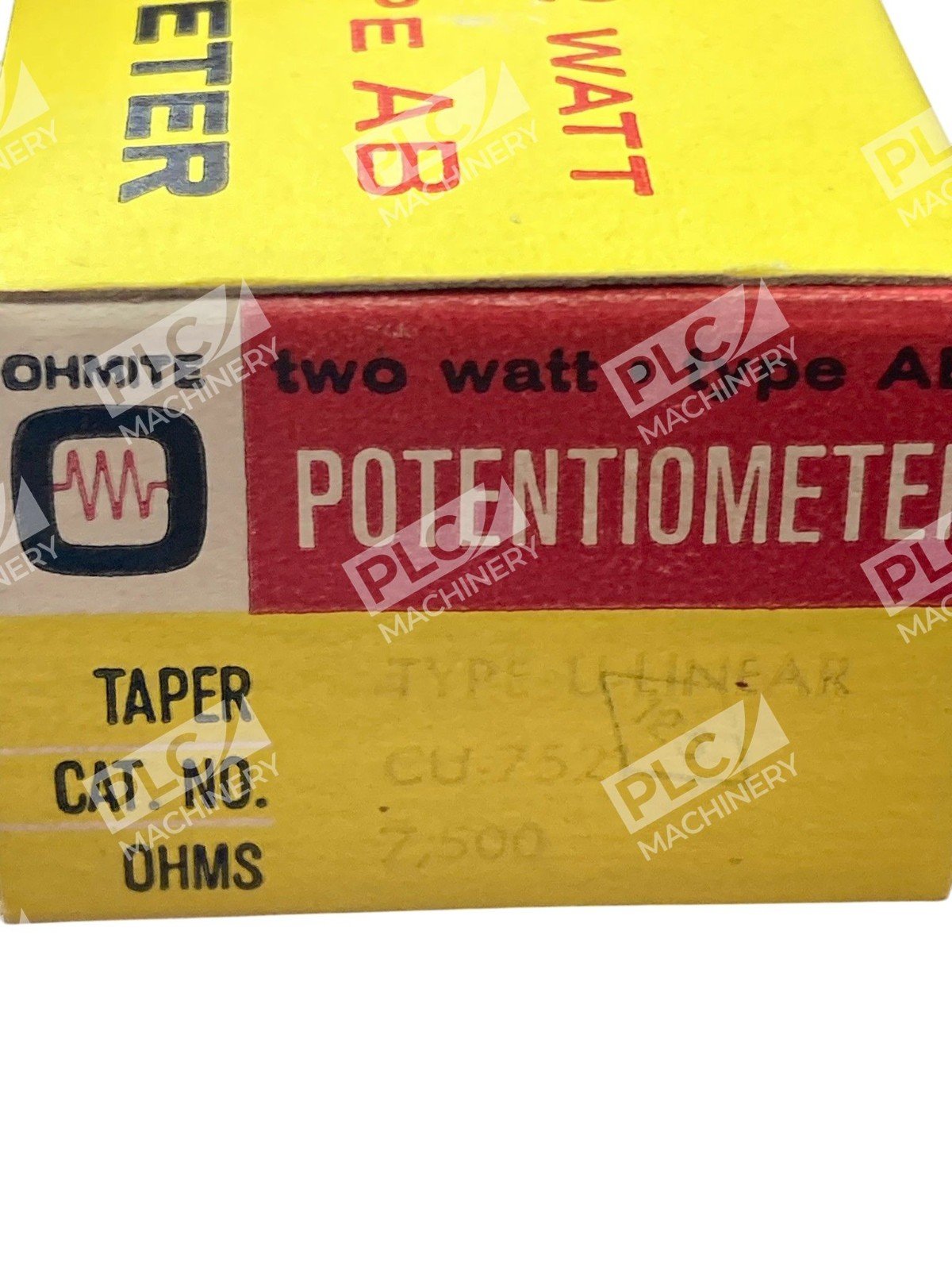

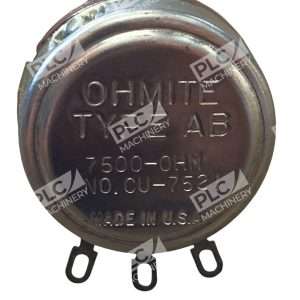

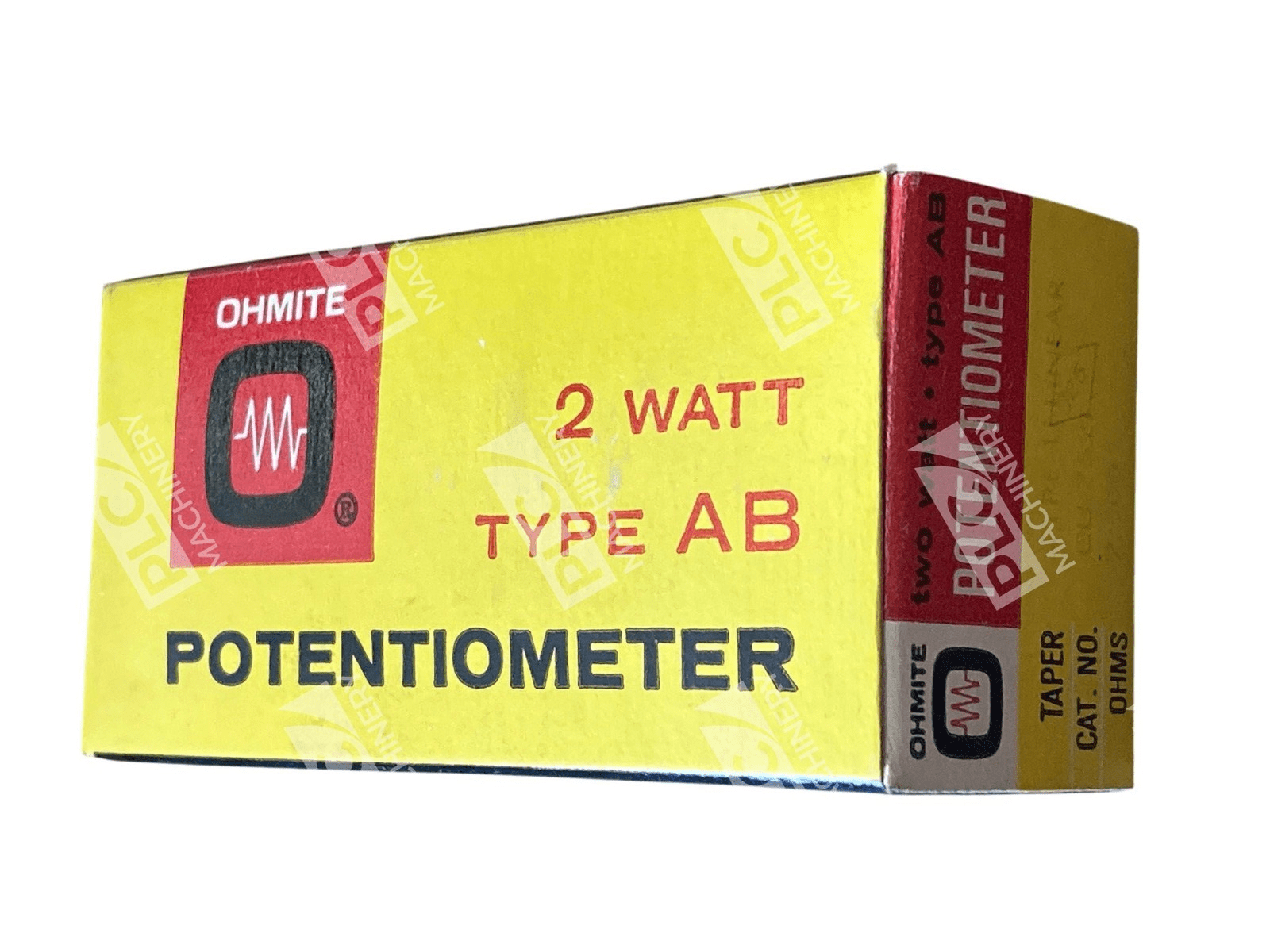

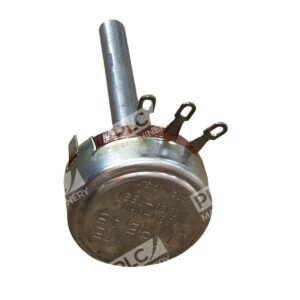

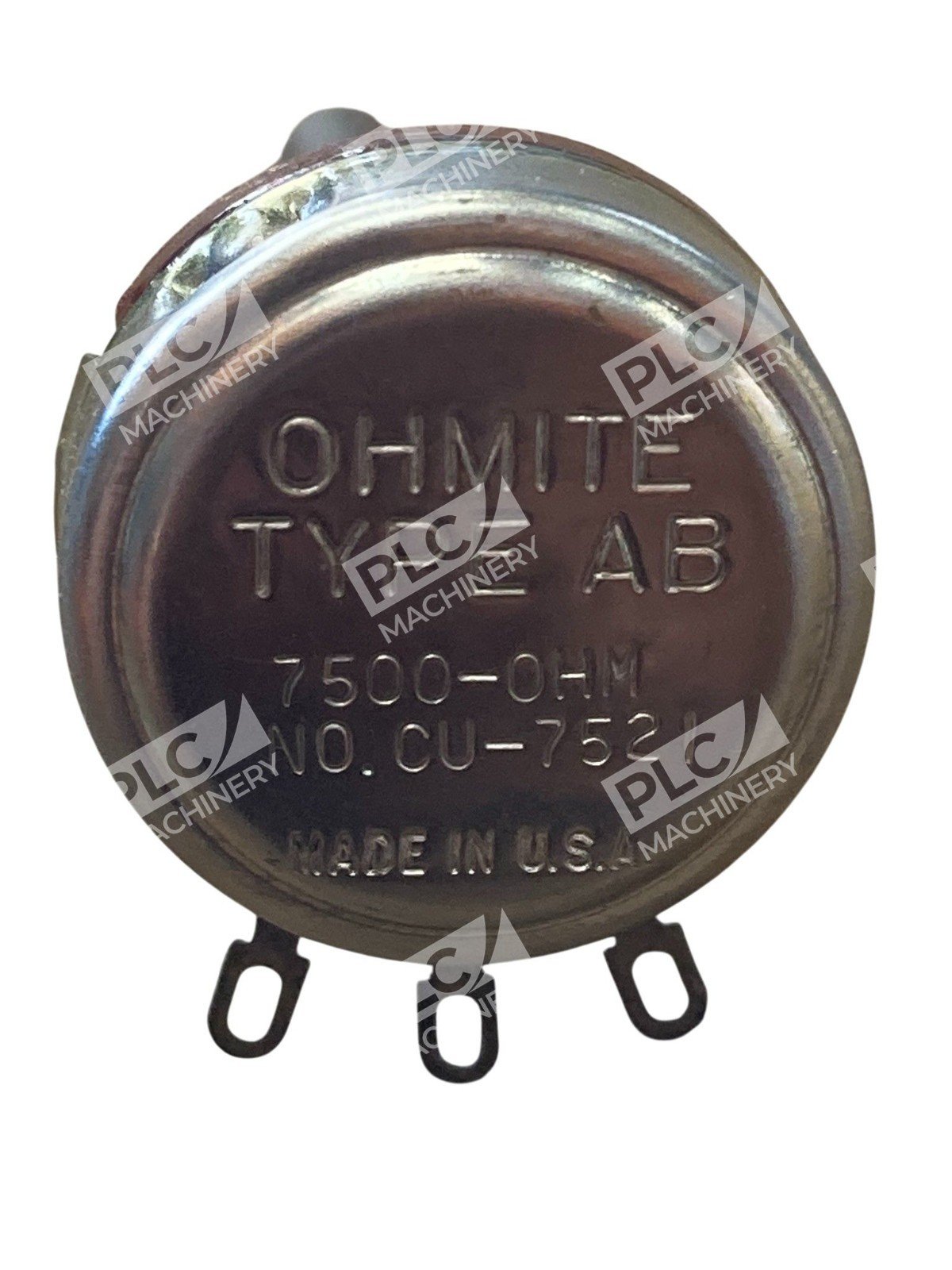

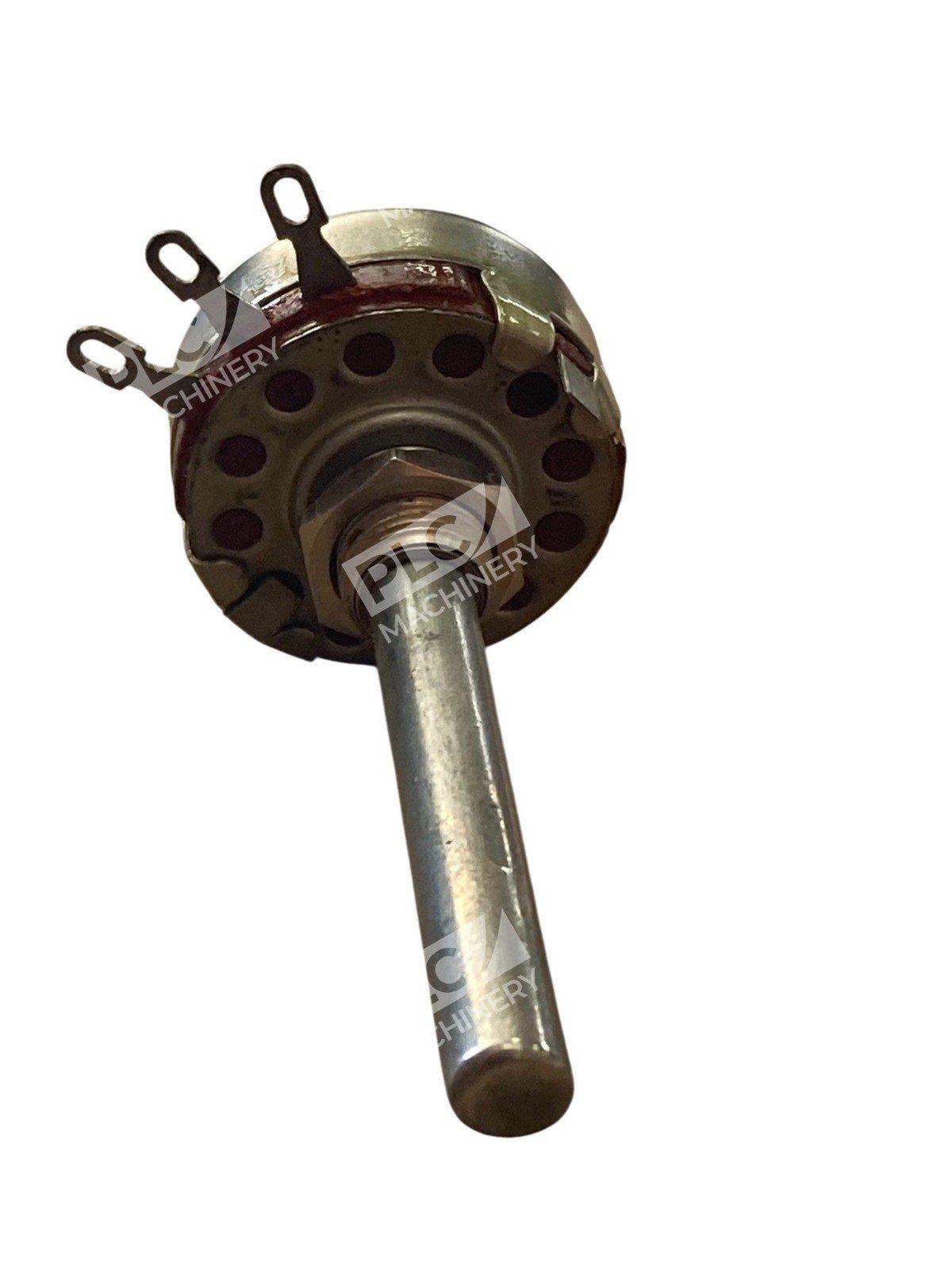

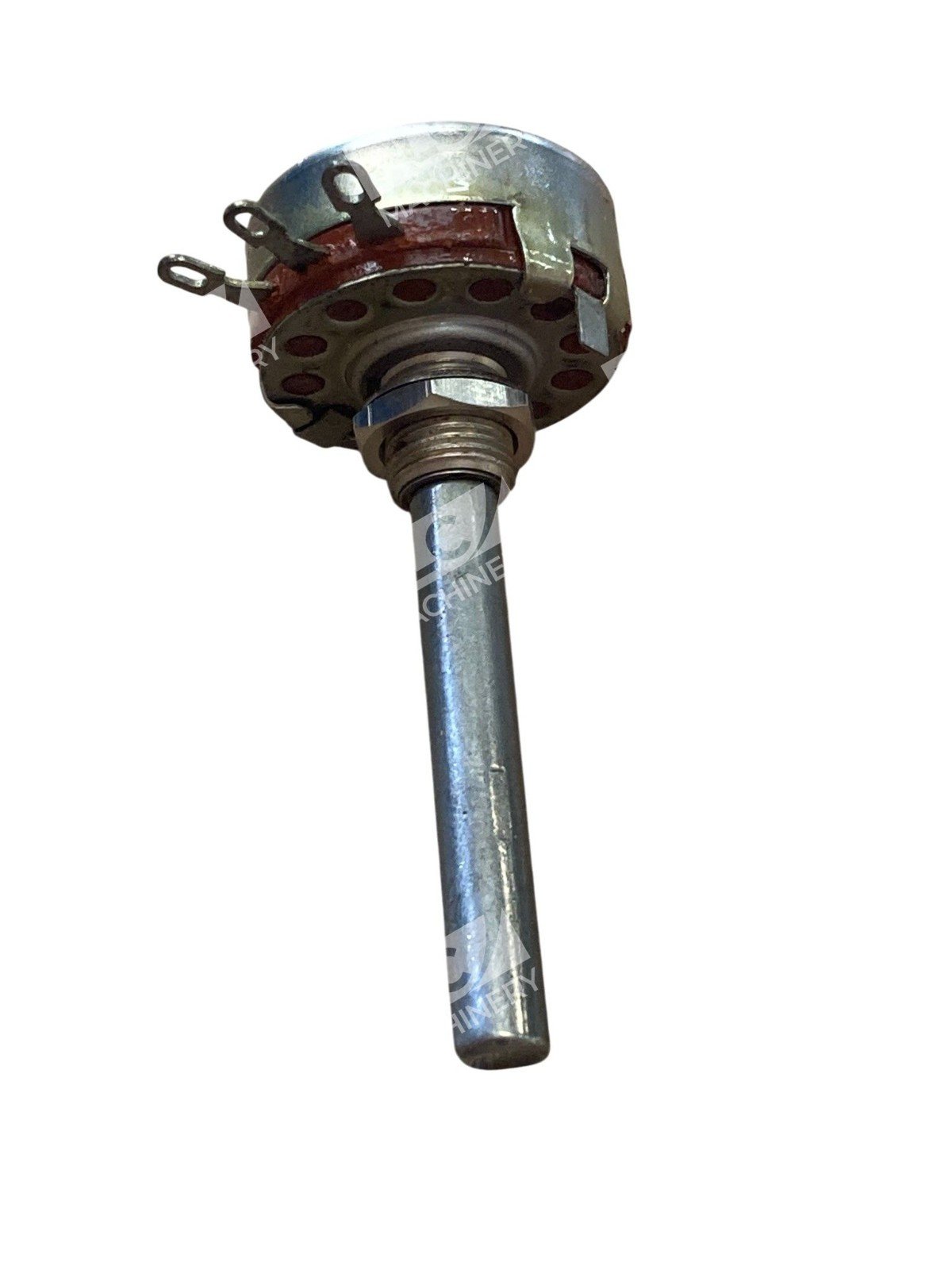

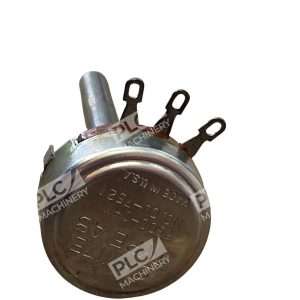

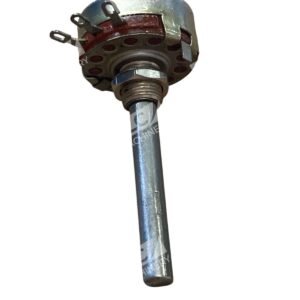

Ohmite CU-7521 Type AB Potentiometer 7.5K Ohm 2W U-Linear Wirewound Panel Mount
The Ohmite CU-7521 is a high-quality potentiometer designed for precise control in various electronic applications. With a resistance of 7.5K Ohms and a power rating of 2 watts, this component ensures reliable performance and durability.
Key Features
- Resistance: 7.5K Ohms
- Power Rating: 2 Watts
- Tolerance: ±10%
- Technology: Molded Composition
- Mounting Type: Panel Mount
- Rotation: 312° ±3%
- Voltage Rating: 500V
- Taper: Linear
- Termination Style: Solder Lug
Design and Dimensions
The CU-7521 features a robust design with the following dimensions:
- Body Diameter: 1.16 inches (29.4mm)
- Depth Behind Panel: 0.625 inches (15.9mm)
- Shaft Length: 2 inches (50.8mm)
- Shaft Diameter: 0.25 inches (6.35mm)
- Bushing Thread: 0.375-32
The long shaft design facilitates easy adjustments, making it suitable for various panel-mounted applications.
Applications
This potentiometer is ideal for use in:
- Industrial control systems
- Audio equipment
- Instrumentation
- Other electronic devices requiring precise resistance adjustments
Its linear taper ensures consistent and predictable performance across its entire range.
Installation and Compatibility
The CU-7521 is designed for panel mounting and features solder lug terminals for secure and reliable connections. It is compatible with standard panel cutouts and can be easily integrated into existing systems.
For detailed technical specifications, please refer to the manufacturer’s datasheet.
