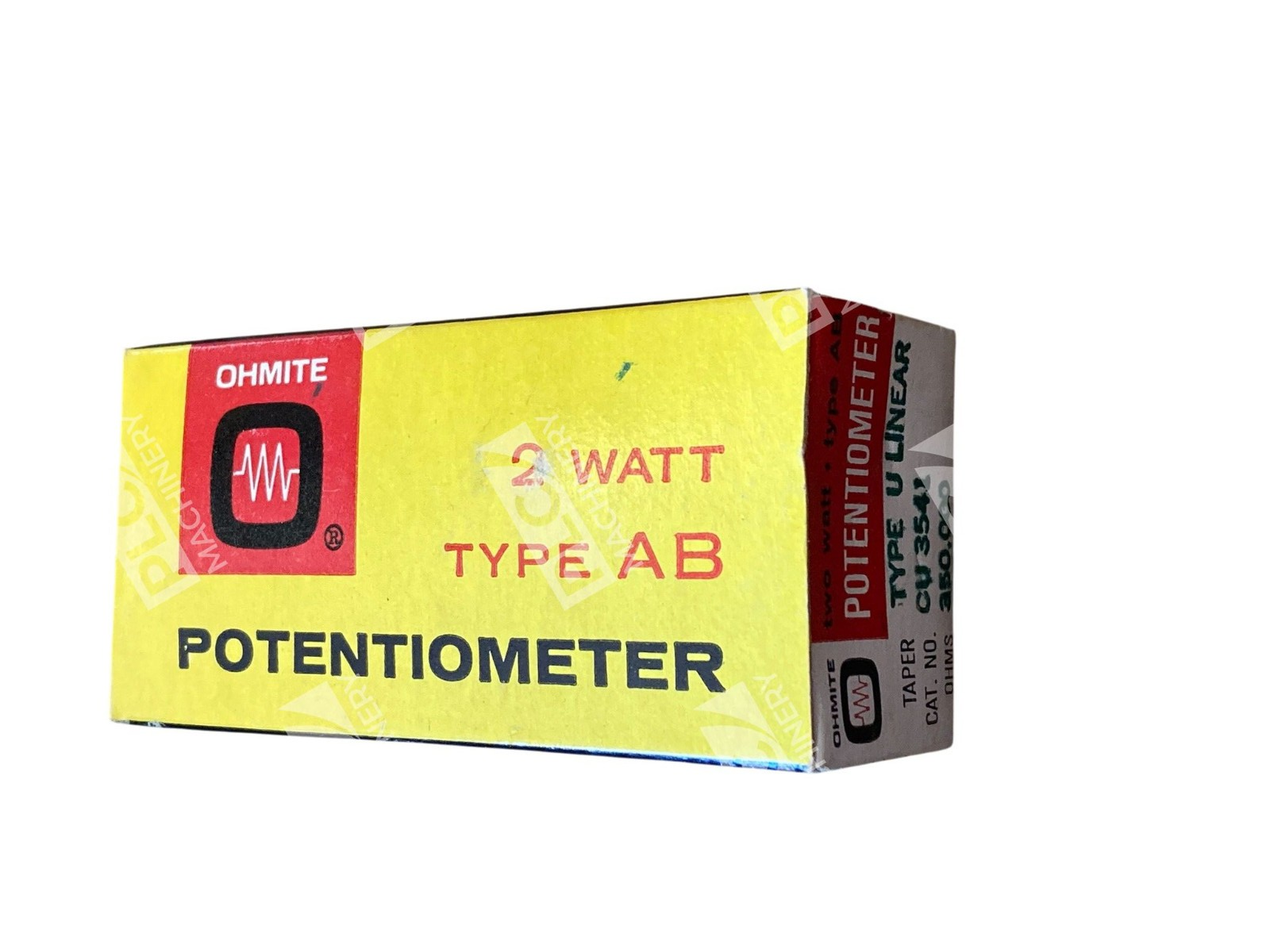

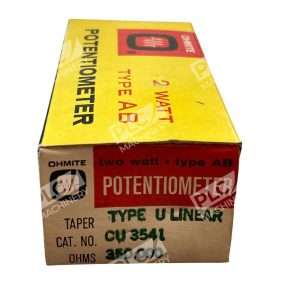

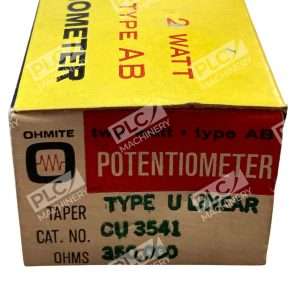

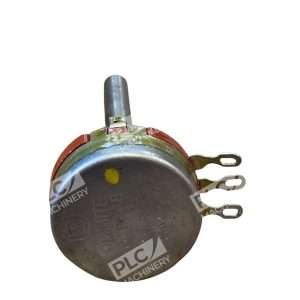

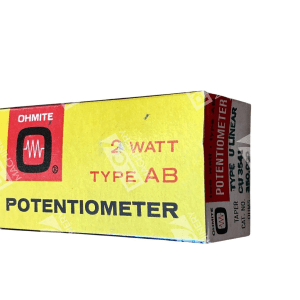

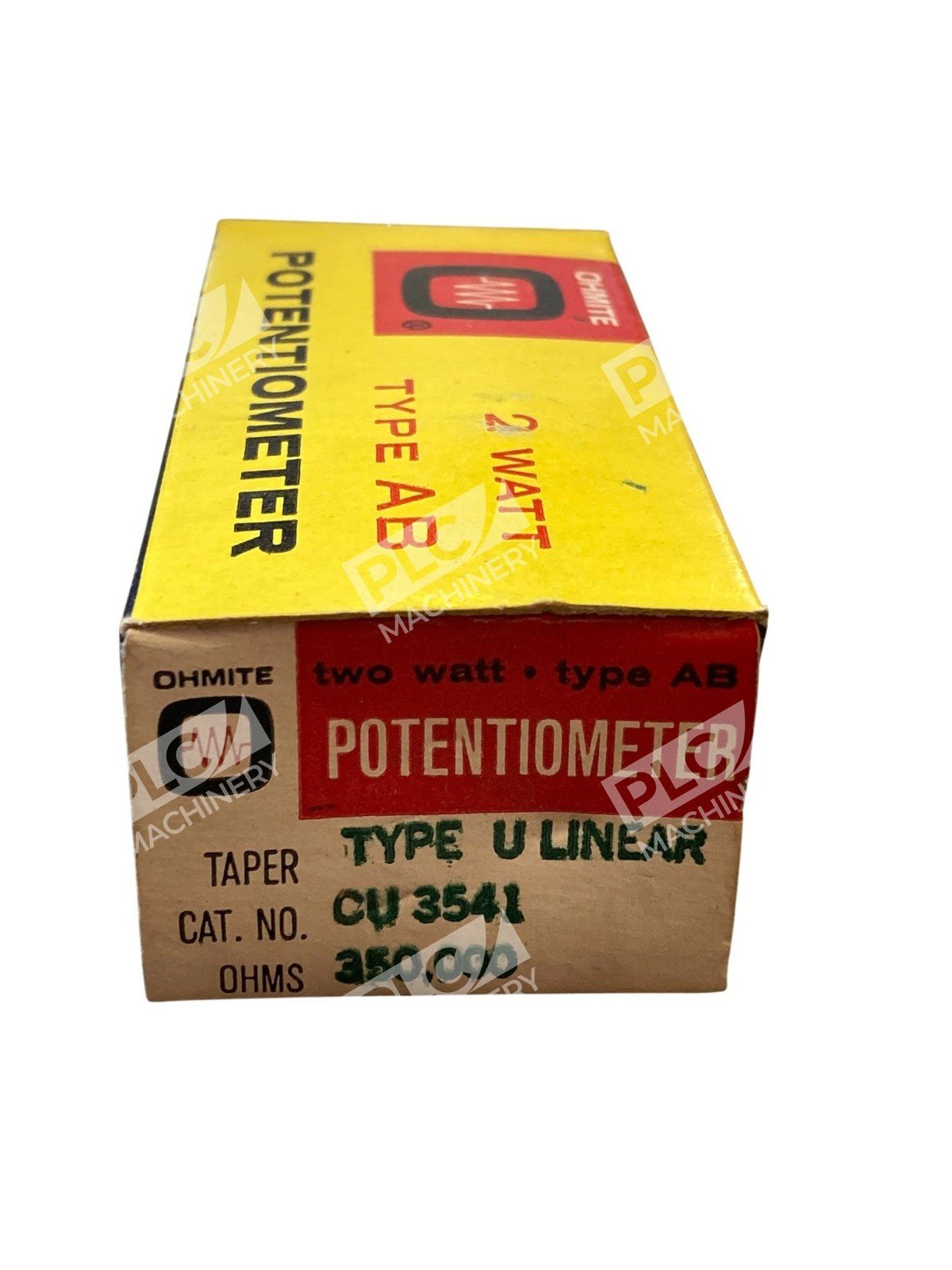

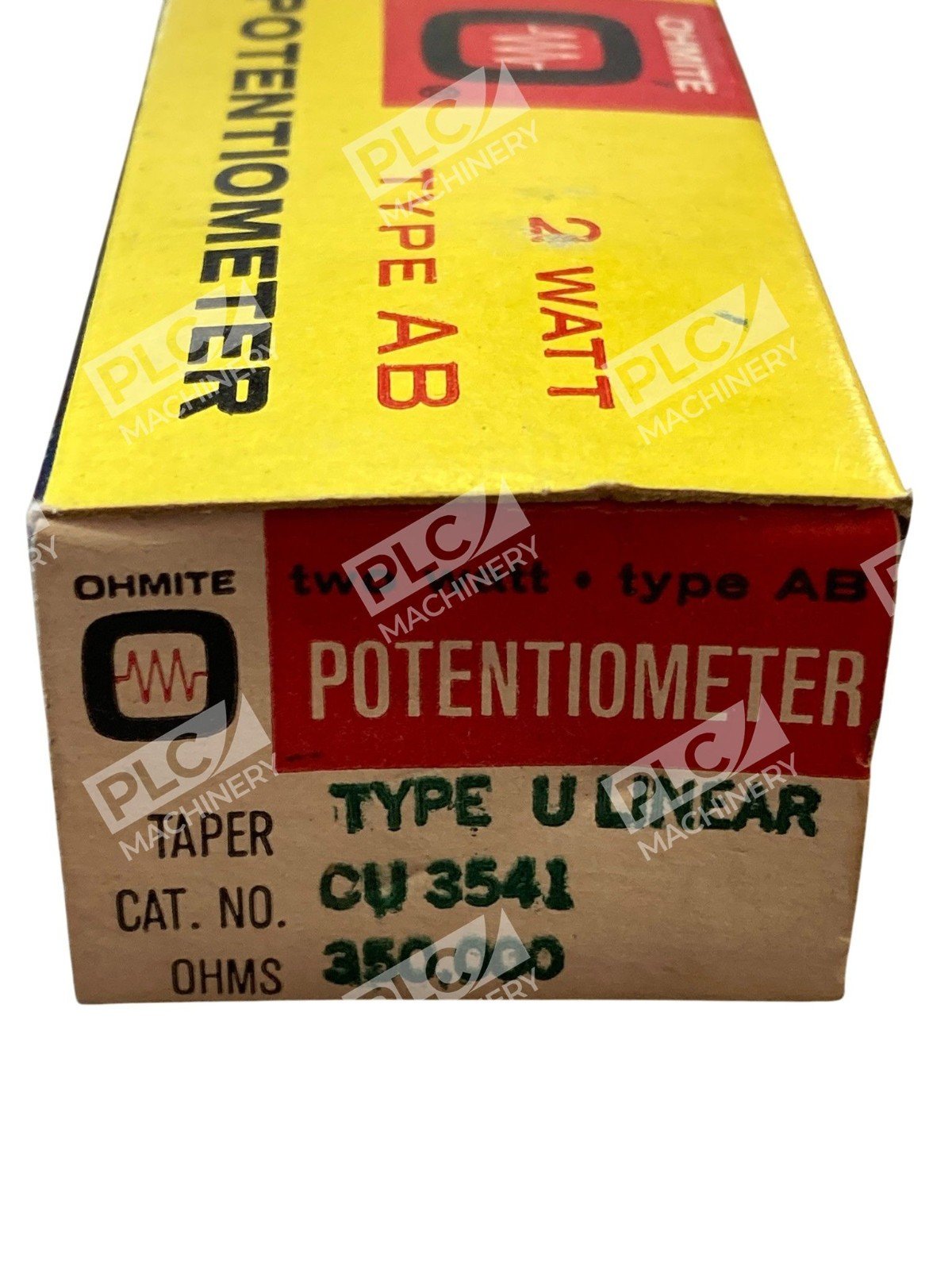

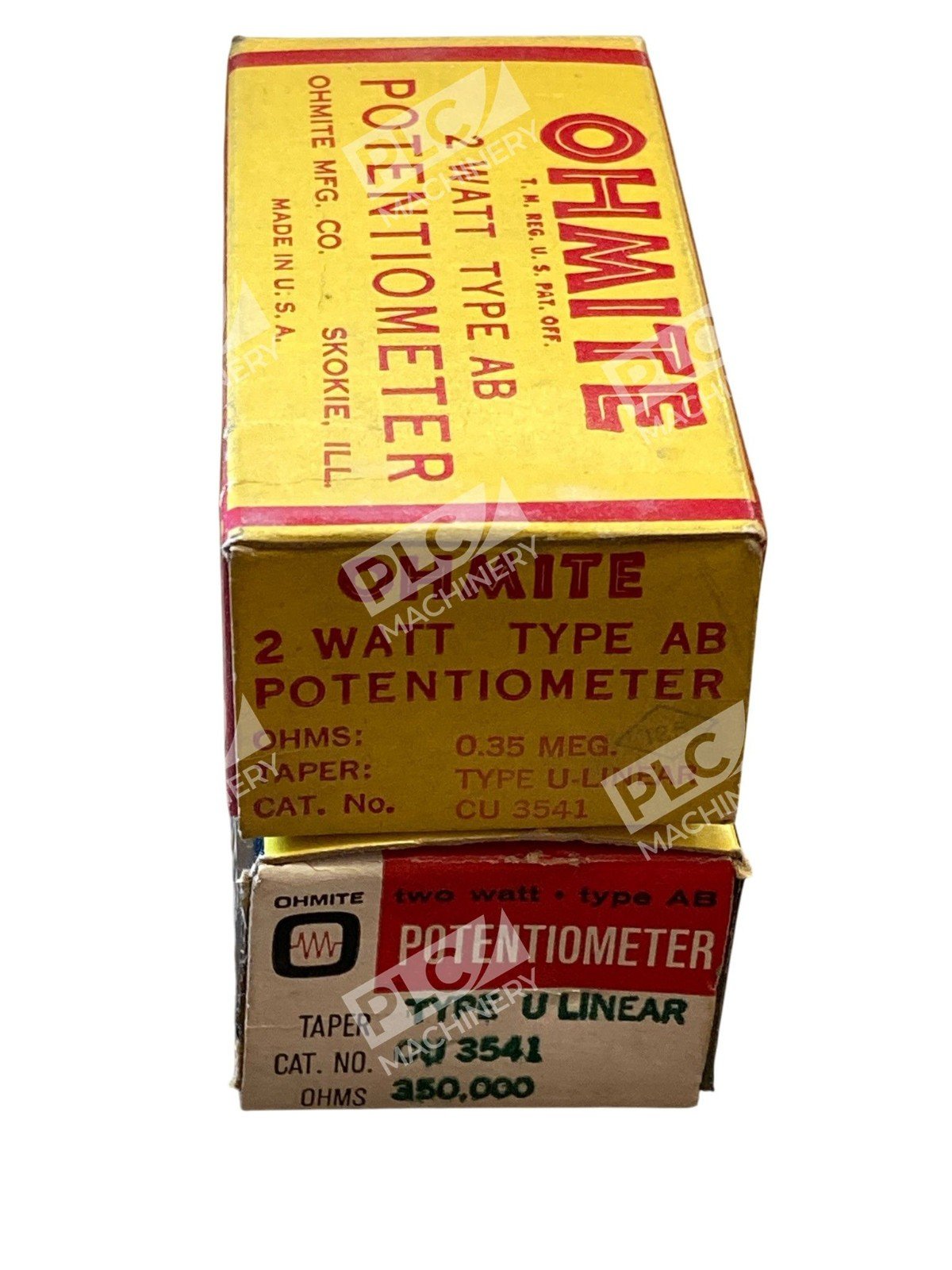

Ohmite CU-3541 Type AB U-Linear 350K Ohms 2W Potentiometer (Box of 2)

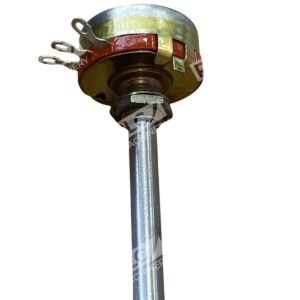

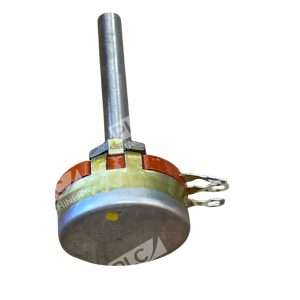

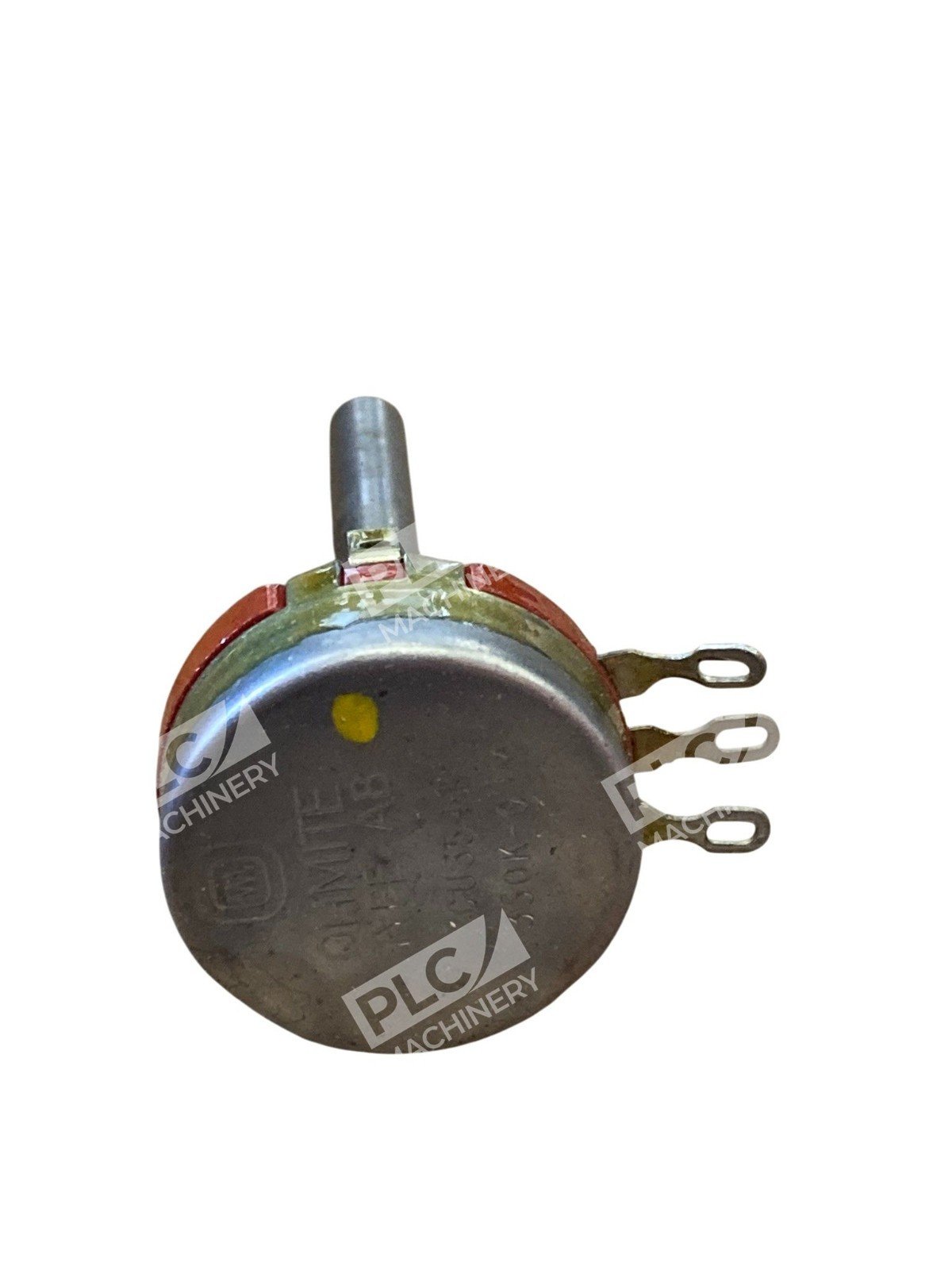

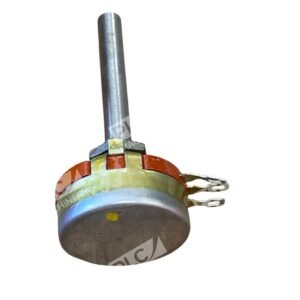

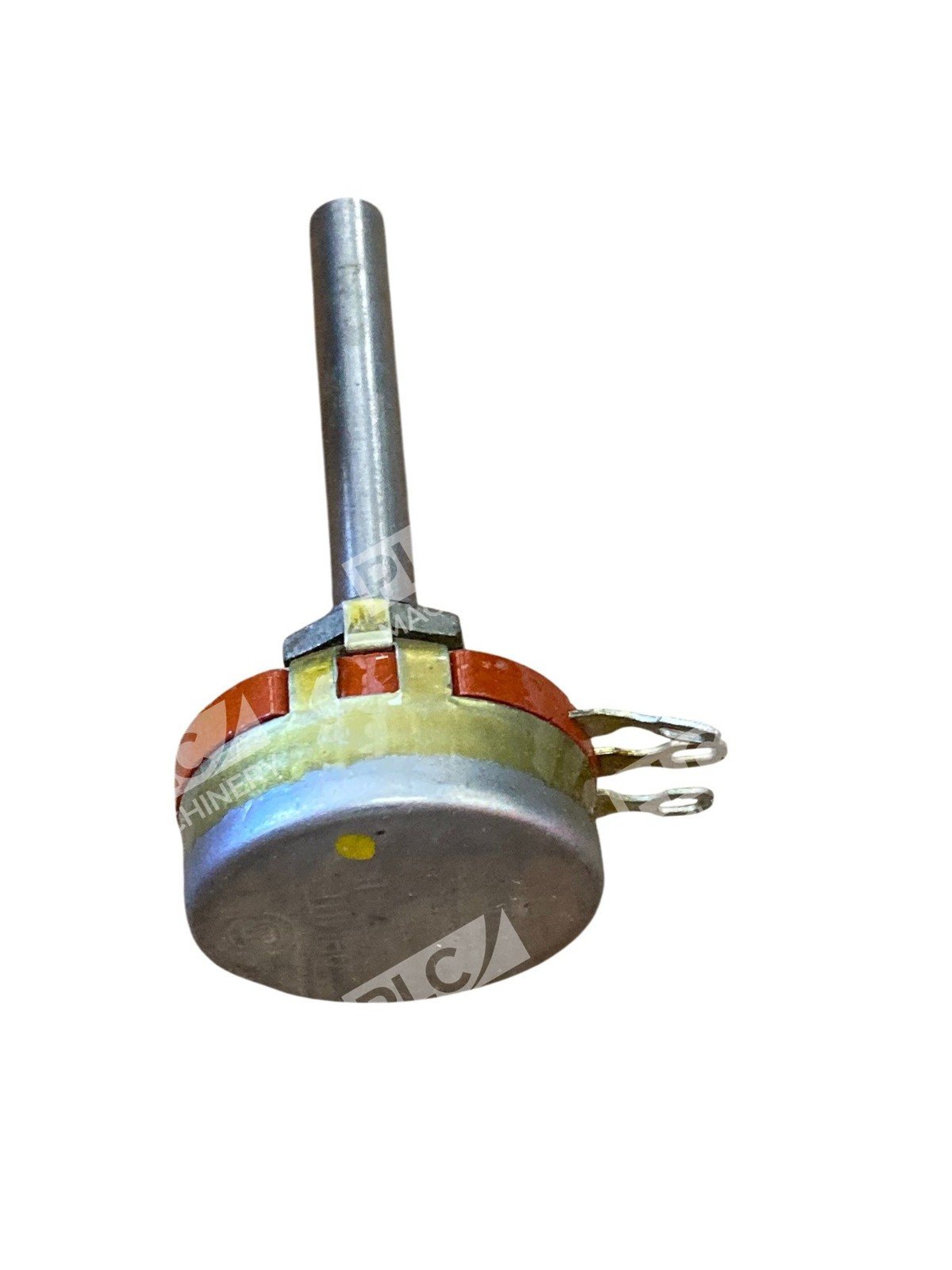

The Ohmite CU-3541 Type AB U-Linear Potentiometer is a high-quality variable resistor designed for precise control in electronic circuits. This package includes two potentiometers, each offering a resistance of 350,000 ohms (350KΩ) and a power rating of 2 watts, making them suitable for various applications requiring reliable performance.
Key Features
- Resistance Value: 350KΩ
- Power Rating: 2 watts at 70°C, derated to 0 watts at 120°C
- Taper: Linear
- Resistance Tolerance: ±10%
- Mechanical Rotation: 312°
- Insulation Resistance: 10K MegΩ (Dry), 100K MegΩ (Wet)
- Dielectric Strength: 900V RMS at sea level
- Operating Voltage: 500V, subject to power rating
Mechanical Specifications
- Shaft Diameter: 0.25 inches (6.35mm)
- Shaft Length: 2 inches (50.8mm), including bushing
- Bushing Thread: 3/8-32
- Mounting Type: Panel Mount
- Termination Style: Solder Lug
- Body Diameter: 1.16 inches (29.4mm)
- Body Depth Behind Panel: 0.625 inches (15.9mm)
These potentiometers are constructed with a carbon element, ensuring durability and consistent performance. They are ideal for applications in audio equipment, instrumentation, and other electronic devices where precise resistance adjustment is required.
For detailed technical specifications, please refer to the manufacturer’s datasheet.
