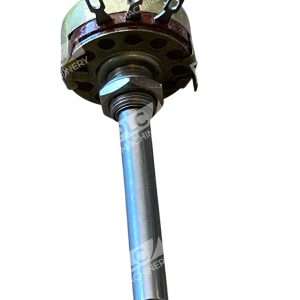

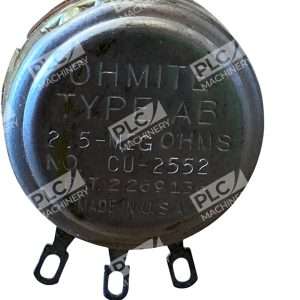

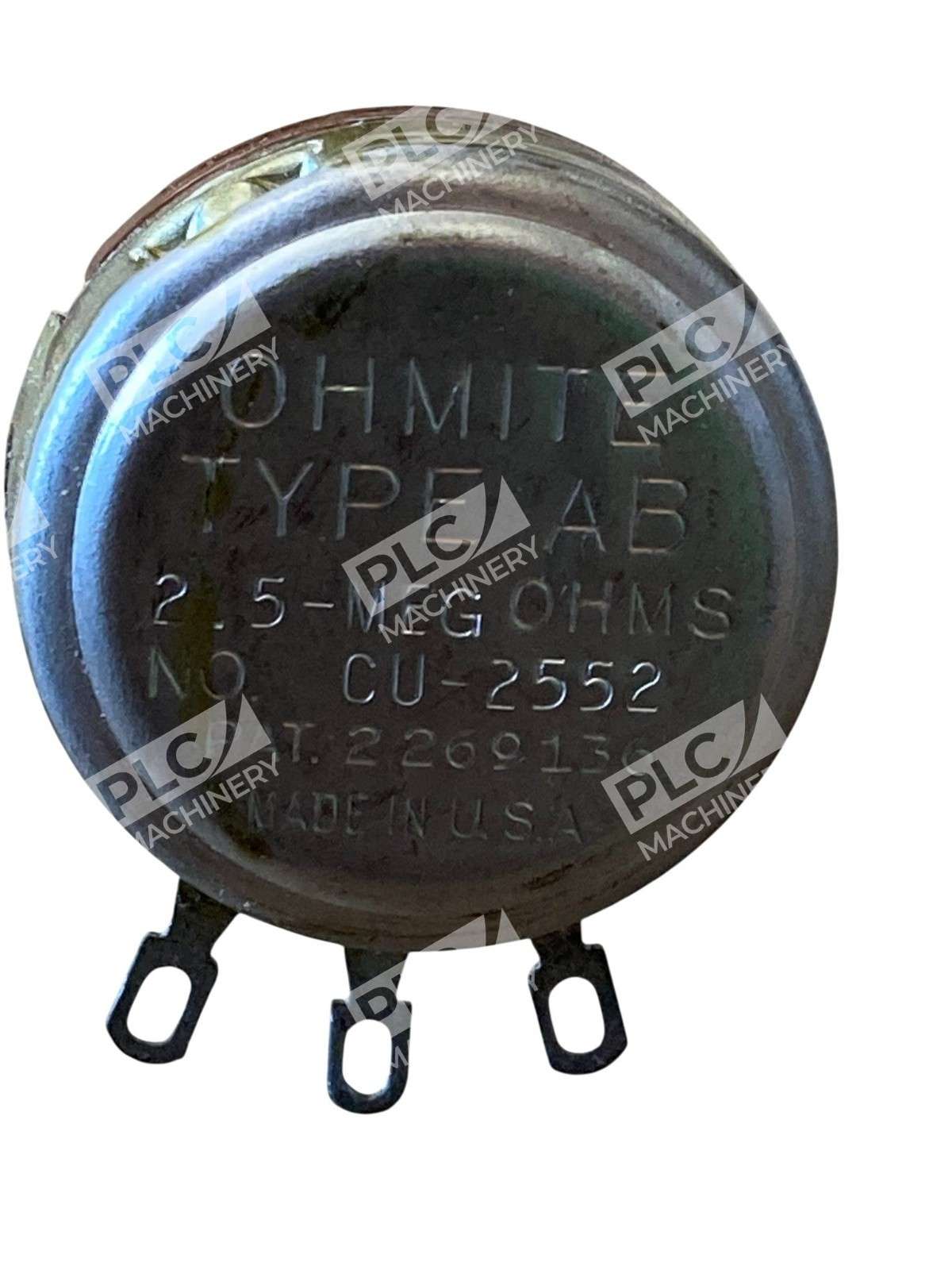

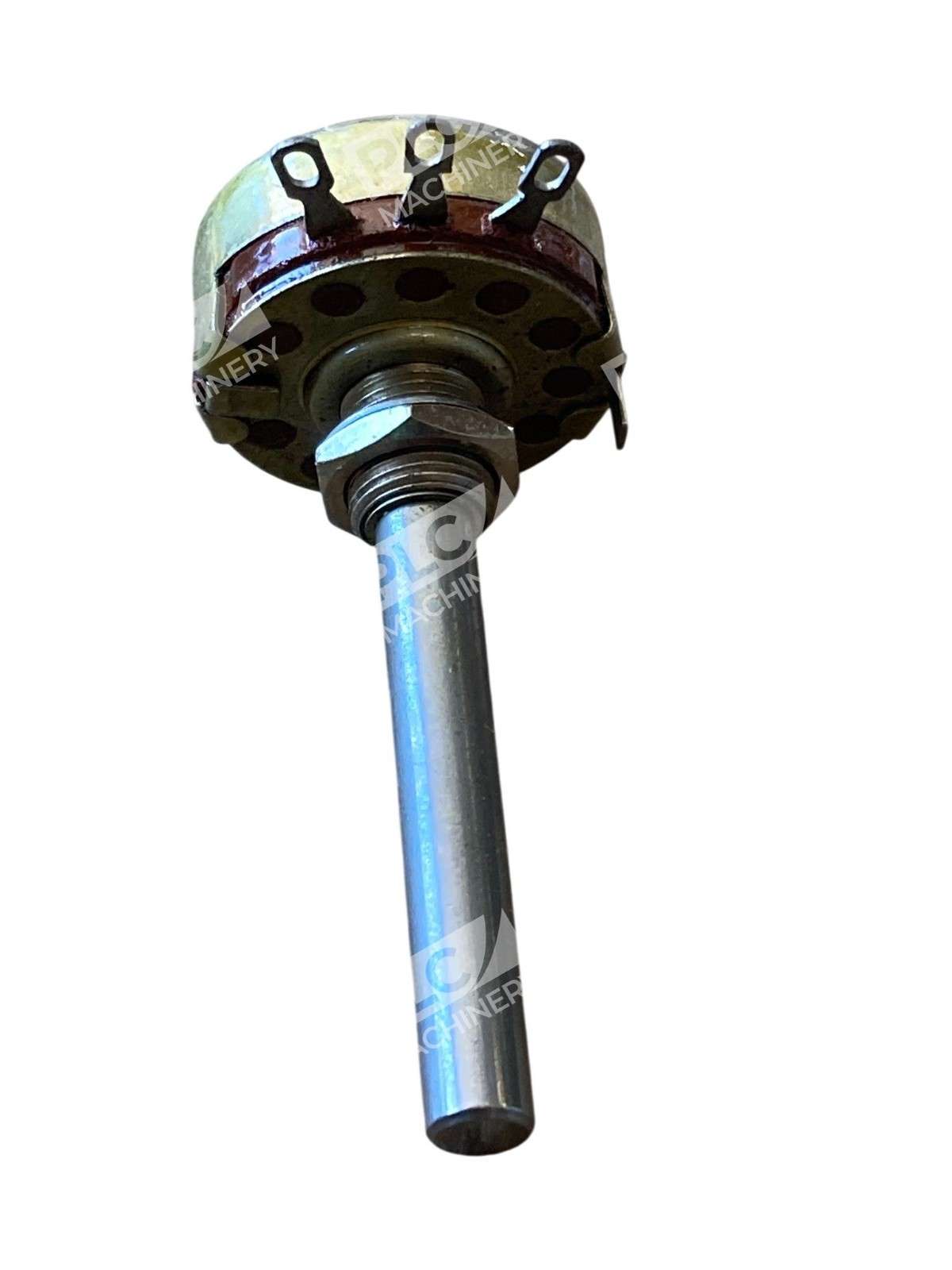

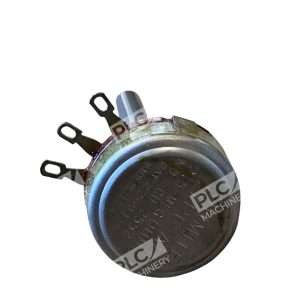

Ohmite CU-2552 Potentiometer 2.5 MΩ 2W Panel-Mount U-Linear Type AB
The Ohmite CU-2552 is a high-quality potentiometer designed for precise resistance control in various electronic applications. With a resistance of 2.5 megohms and a power rating of 2 watts, this panel-mount potentiometer offers reliable performance and durability.
Key Features
- Resistance: 2.5 MΩ
- Power Rating: 2W
- Taper: U-Linear (Type AB)
- Mounting Type: Panel Mount
- Termination Style: Solder Lug
- Rotation: 312° ±3°
- Actuator Type: Round Shaft
- Actuator Length: 2.000″ (50.80mm)
- Actuator Diameter: 0.250″ (6.35mm)
- Bushing Thread: 3/8-32
Applications
The CU-2552 potentiometer is suitable for a wide range of applications, including:
- Audio equipment
- Industrial controls
- Instrumentation
- Medical devices
Dimensions
The potentiometer features a compact design with the following dimensions:
- Body Diameter: 1.157″ (29.40mm)
- Body Height: 0.626″ (15.90mm)
Its panel-mount design ensures easy installation and integration into various systems.
Construction
Constructed with a carbon resistive element, the CU-2552 offers smooth operation and low noise, making it ideal for applications requiring precise and reliable resistance control.
For more detailed specifications and information, please refer to the manufacturer’s datasheet.
