NRR F207 Flange Mount Bearing UC207-23

NRR F207 Flange Mount Bearing UC207-23

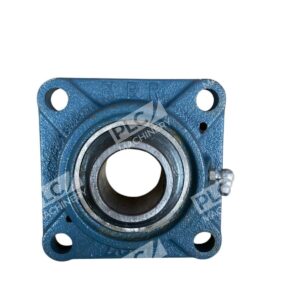

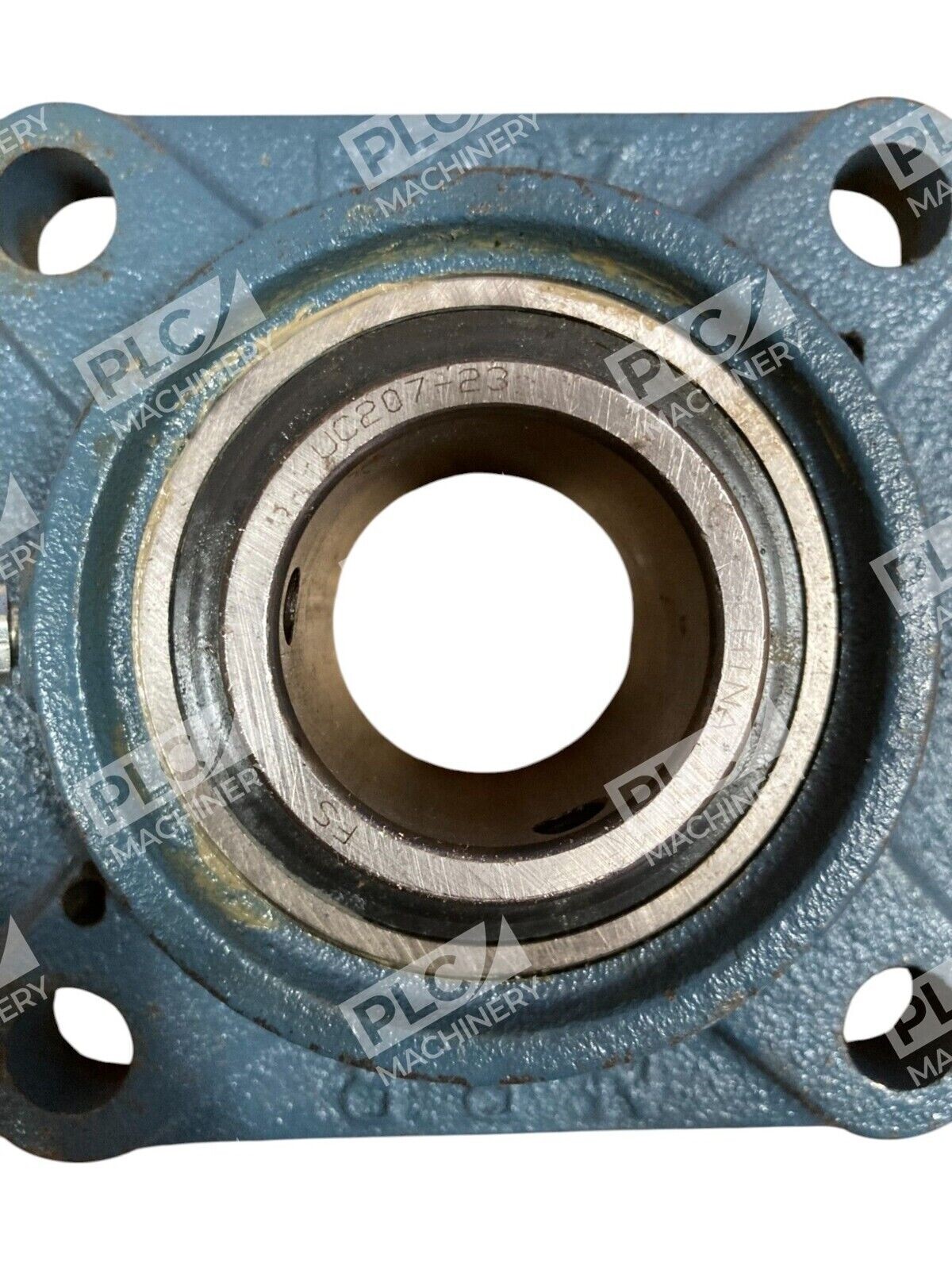

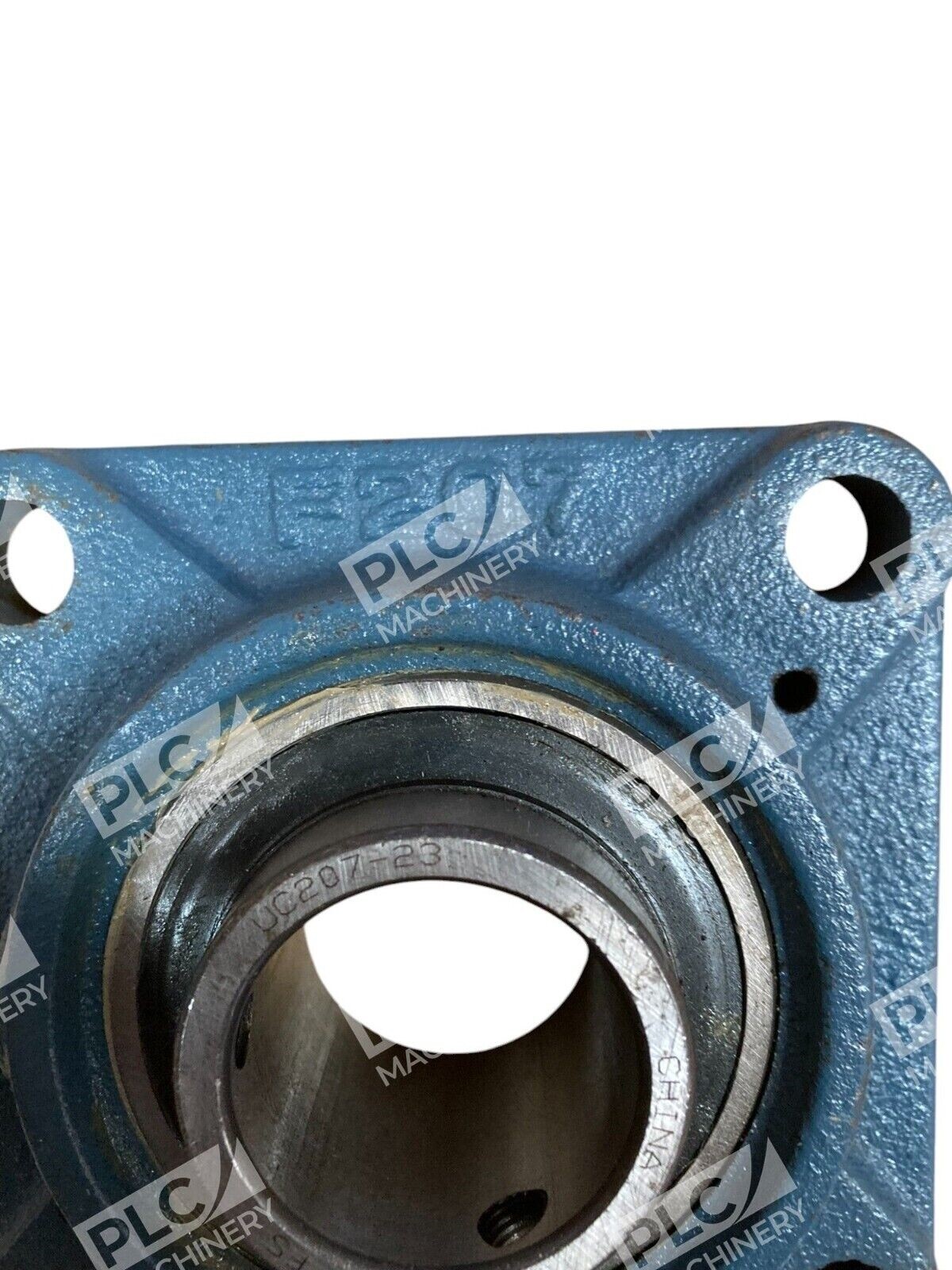

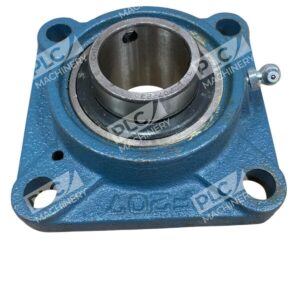

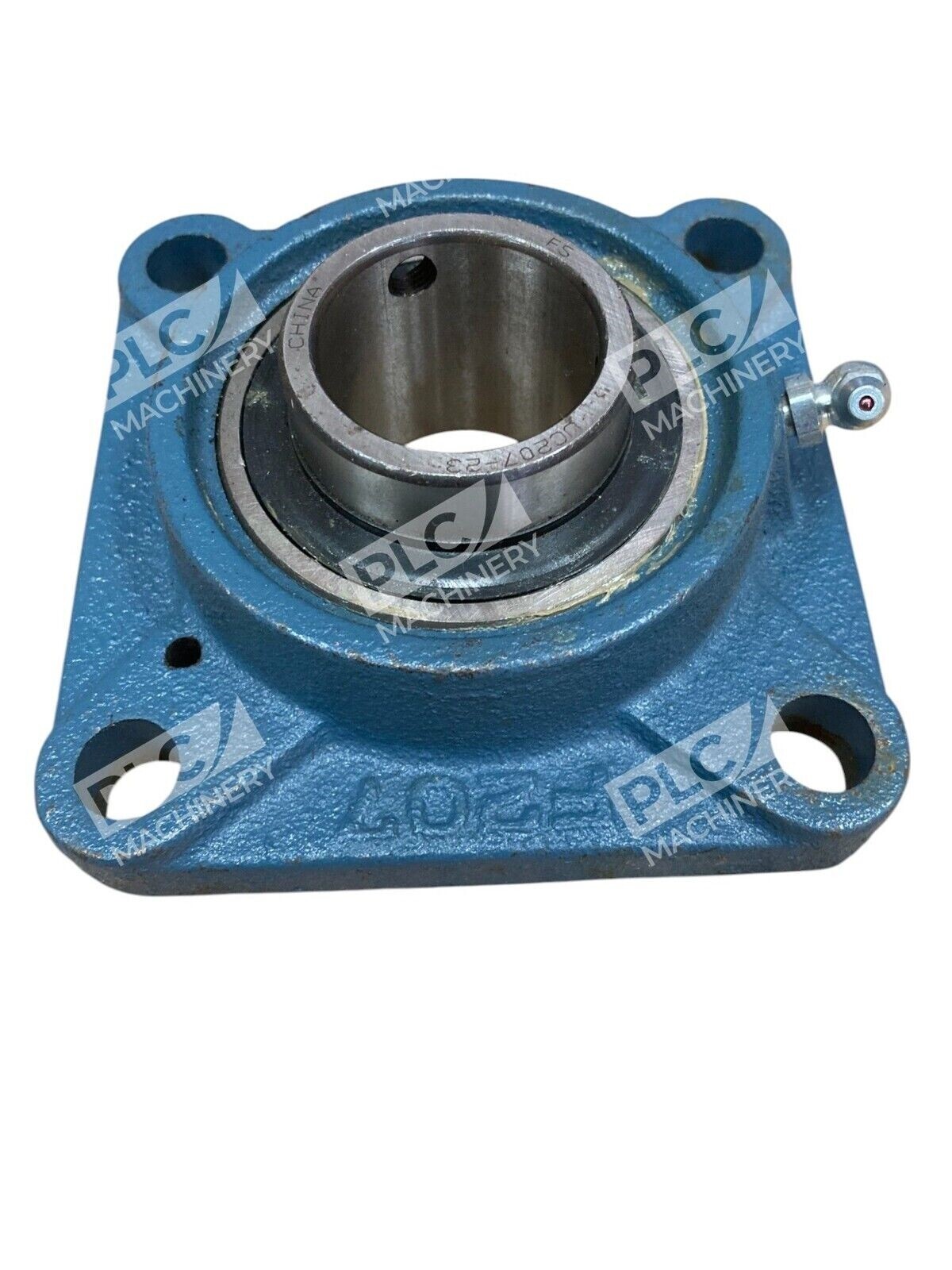

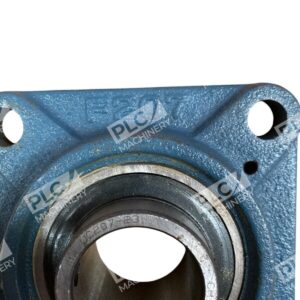

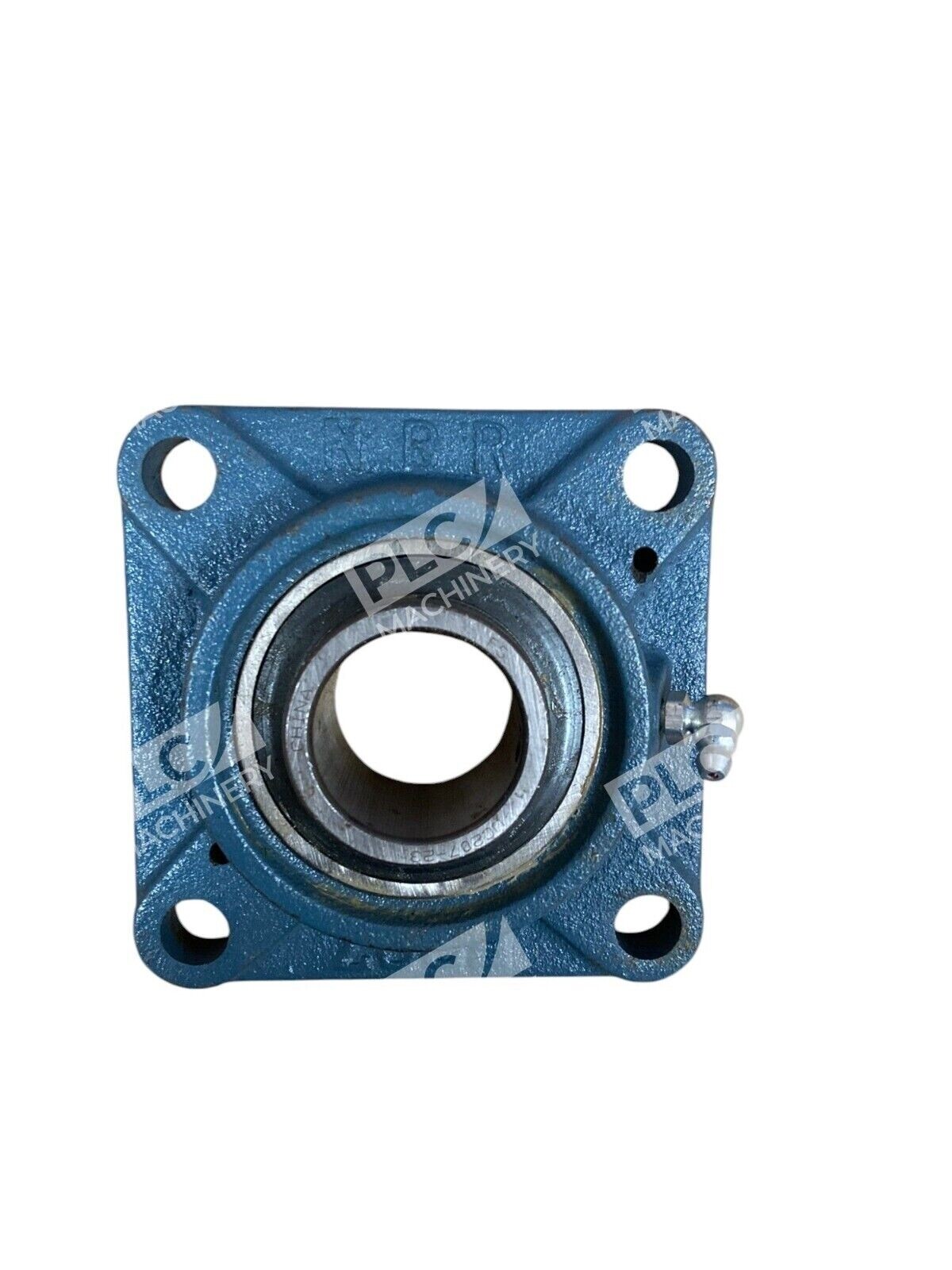

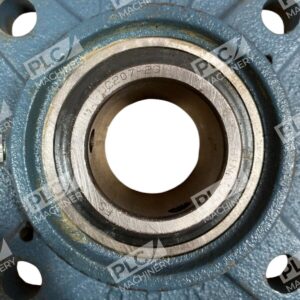

The NRR F207 Flange Mount Bearing UC207-23 is a robust and reliable bearing unit designed for various industrial applications. This assembly combines the UC207-23 insert bearing with the F207 four-bolt flange housing, providing a secure and efficient solution for supporting rotating shafts.

Key Features

• Durable Construction: The housing is made from high-quality cast iron, ensuring strength and longevity in demanding environments.
• Self-Aligning Capability: The bearing insert features a convex outer ring that works in conjunction with the concave inner surface of the housing, allowing for self-alignment and compensation for shaft misalignment.
• Secure Shaft Attachment: Equipped with set screws positioned 120° apart, the bearing insert can be firmly secured to the shaft, minimizing slippage during operation.
• Efficient Lubrication: The unit includes a grease fitting, facilitating easy re-lubrication to maintain optimal performance and extend service life.
• Versatile Applications: Suitable for use in various industries, including agriculture, manufacturing, and material handling, where reliable shaft support is essential.

Technical Specifications

• Shaft Diameter: 1-7/16 inches (36.513 mm)
• Housing Dimensions:
  • Length: 4.61 inches (117 mm)
  • Width: 4.61 inches (117 mm)
  • Height: 1.34 inches (34 mm)
• Mounting Hole Center-to-Center Distance: 3.62 inches (92 mm)
• Mounting Hole Diameter: 0.625 inches (16 mm)
• Dynamic Load Rating: 5,775 lbs (25.7 kN)
• Static Load Rating: 3,497 lbs (15.2 kN)
• Operating Temperature Range: -20°C to 100°C

The NRR F207 Flange Mount Bearing UC207-23 offers a combination of durability, ease of installation, and reliable performance, making it an excellent choice for applications requiring sturdy shaft support and alignment.
