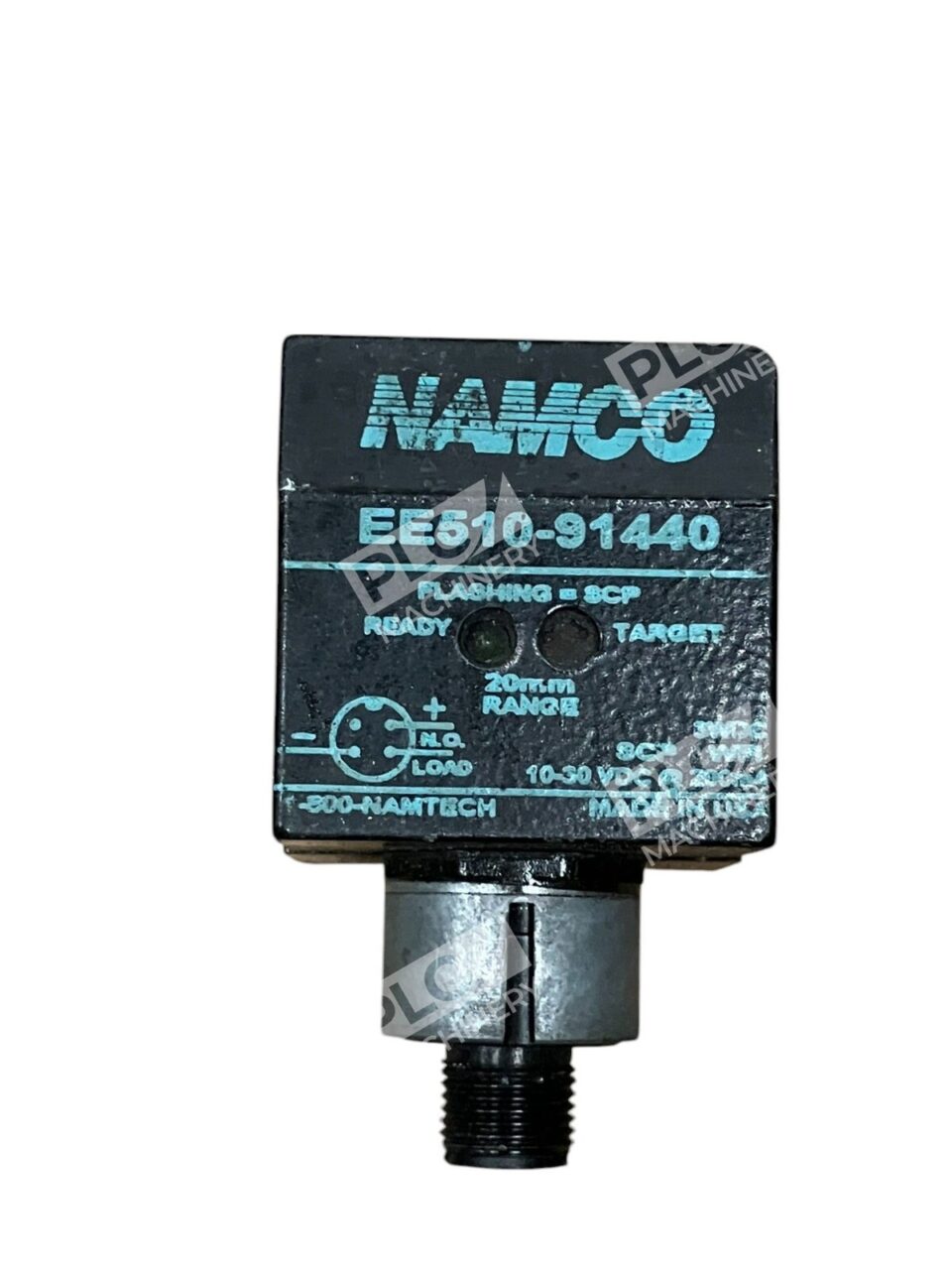

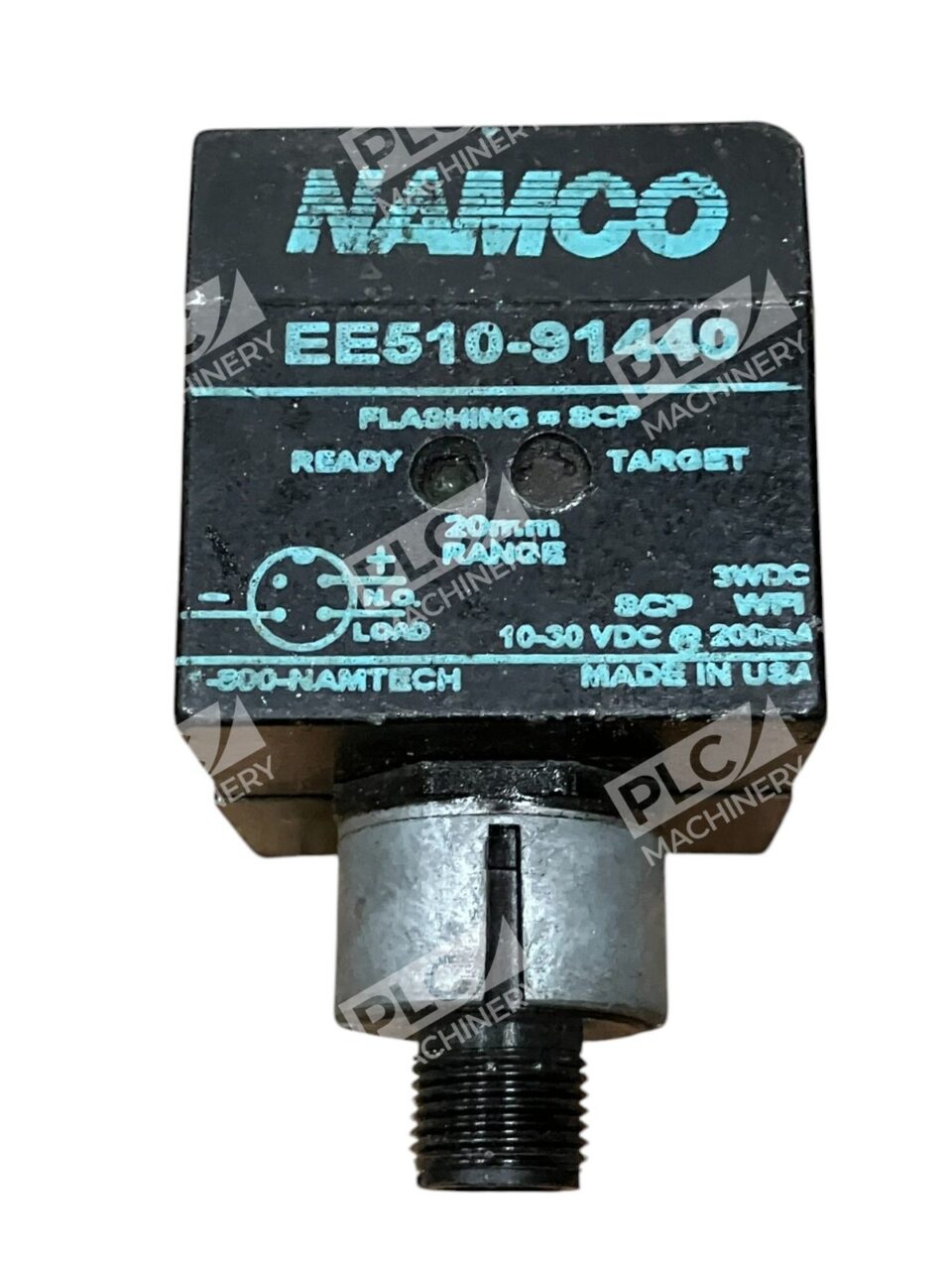

Namco EE510-91440 Inductive Proximity Sensor
The Namco EE510-91440 is a robust inductive proximity sensor designed for precise object detection in industrial environments. With a sensing range of 20mm, this sensor ensures reliable performance in various applications.
Key Features
- Sensing Range: 20mm
- Voltage: 10-30V DC
- Output Type: PNP, Normally Open
- Current Rating: 200mA
- Leakage Current: Less than 10µA
- Voltage Drop: 2.5V
- Short Circuit Protection: Yes
- Connector Type: 4-pin Euro
- Housing Dimensions: 40x40x68.5mm
Durability and Reliability
Encased in a rugged metal body with a clamp bracket, the EE510-91440 is built to withstand harsh industrial conditions. Its weld field immune circuitry allows operation within 1 inch of a resistance welding electrode carrying 20,000 Amperes RMS without changing state. Additionally, the sensor is designed to resist false turn-ons from RF noise sources like walkie-talkies.
Versatile Sensing Positions
The sensor offers nine-way position flexibility, enabling detection from the top, front, back, left, right, and four 45° side positions. This adaptability makes it suitable for a wide range of industrial applications.
Applications
The EE510-91440 is ideal for applications requiring precise and reliable object detection, including:
- Automated machinery control
- Conveyor belt monitoring
- Position indication in manufacturing processes
- Weld field environments
With its advanced features and durable design, the Namco EE510-91440 inductive proximity sensor is a dependable choice for enhancing operational efficiency in demanding industrial settings.
