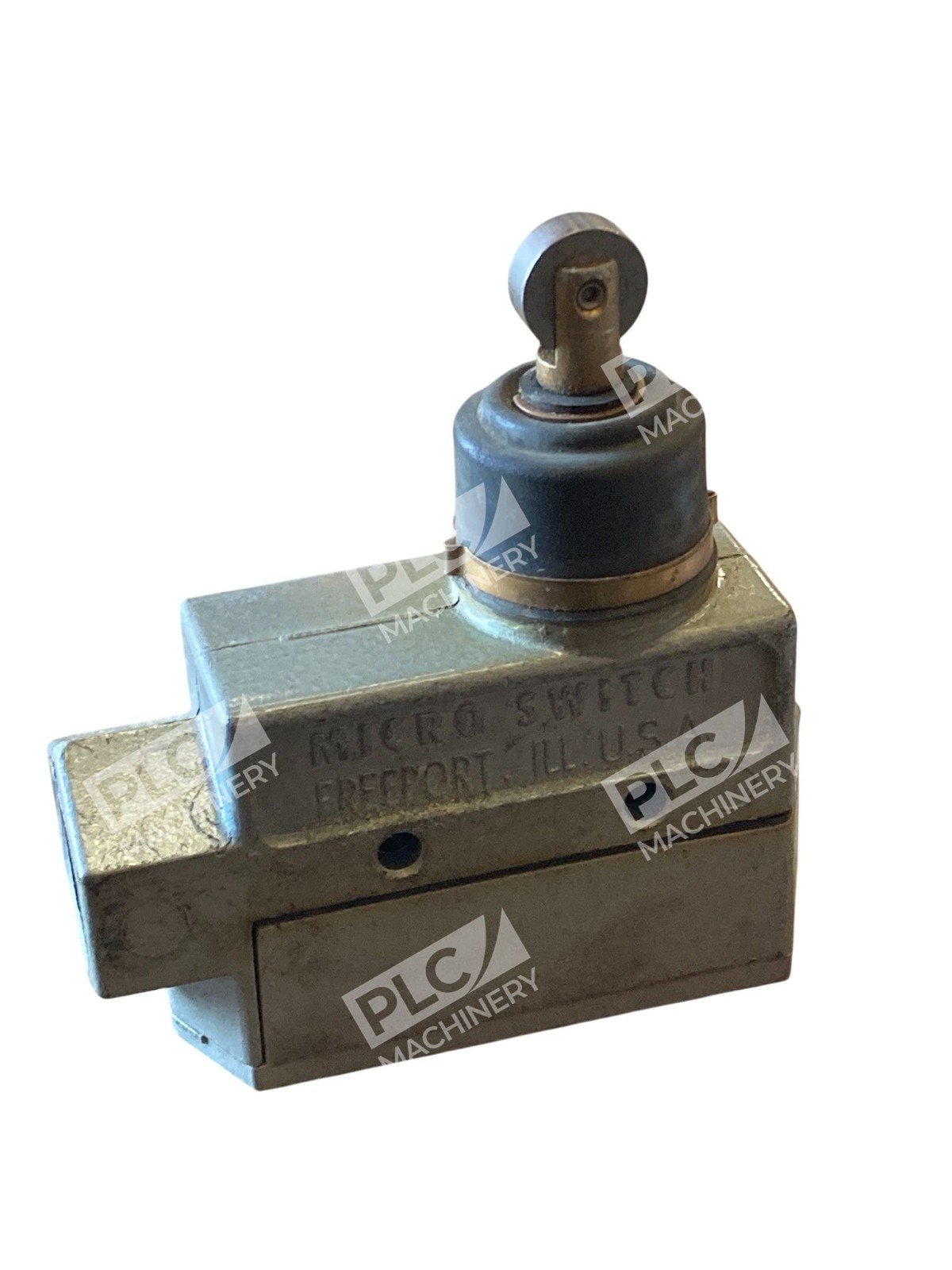

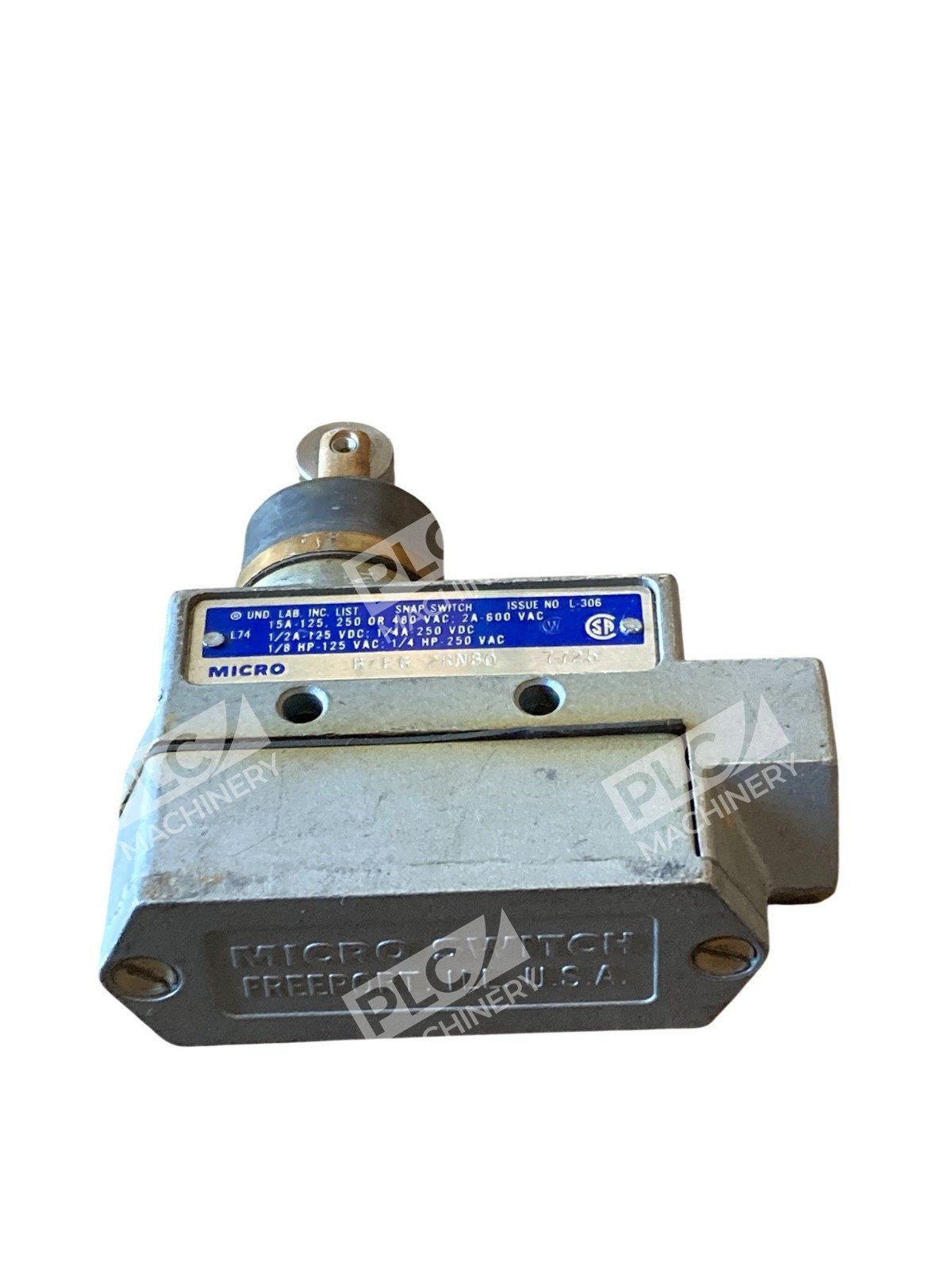

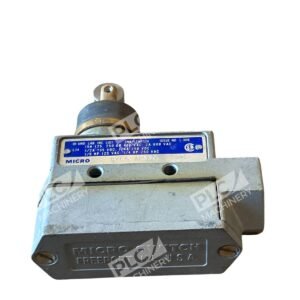

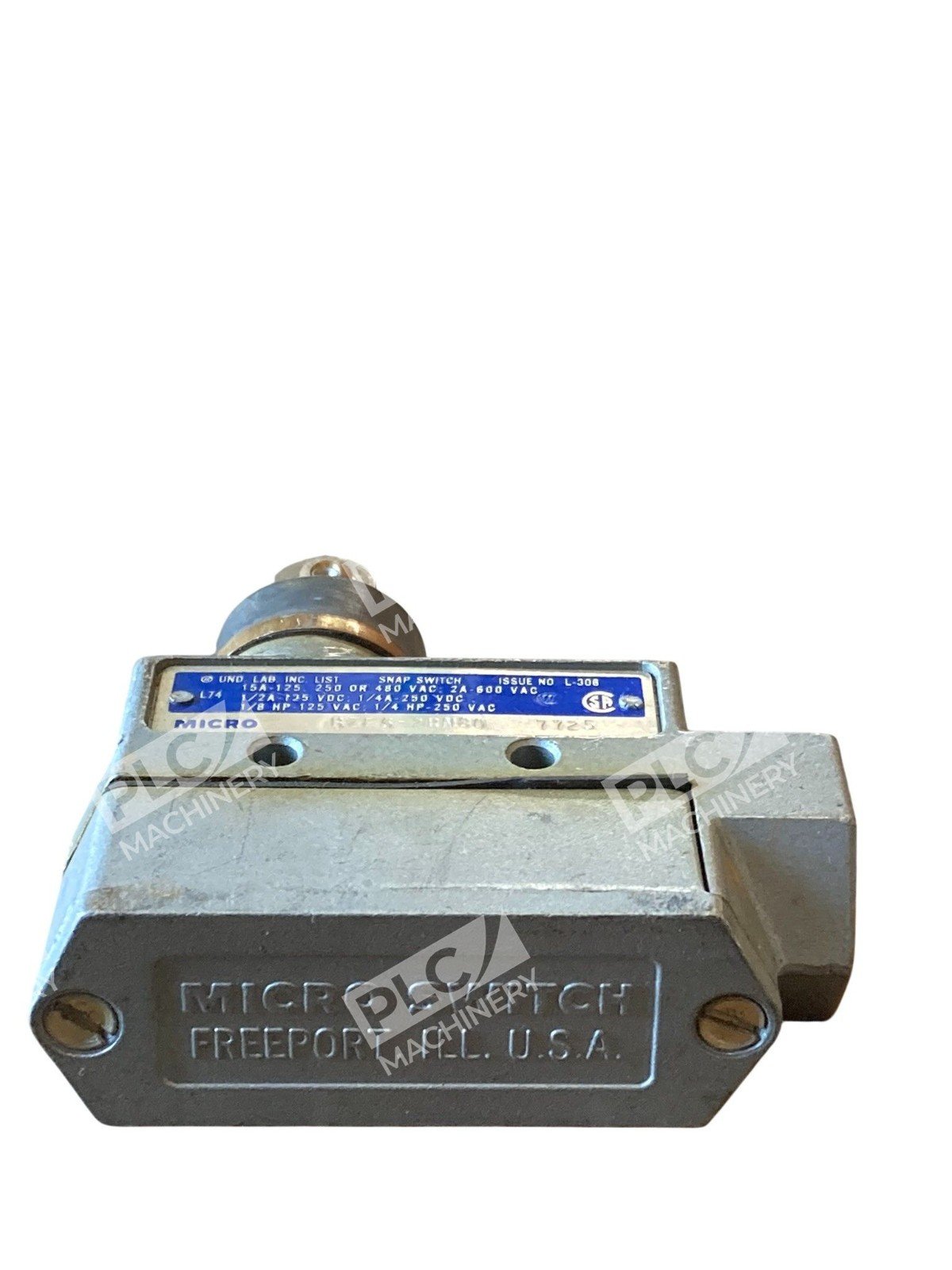

Honeywell BZE6-2RN80 Limit Switch
The Honeywell BZE6-2RN80 is a medium-duty limit switch designed for reliable performance in industrial applications. Featuring a top-mounted roller plunger actuator, this switch is suitable for environments requiring precise and consistent operation.
Key Features
- Actuator Type: Top Roller Plunger
- Contact Configuration: Single Pole Double Throw (SPDT) with 1 Normally Open (NO) and 1 Normally Closed (NC) contact
- Electrical Ratings: 15A at 600V AC; 2A at 250V DC
- Enclosure Rating: NEMA 1, 3, 4; IP66
- Housing Material: Zinc Die-Cast with Epoxy Coating
- Operating Temperature Range: -32°C to 71°C (-25°F to 160°F)

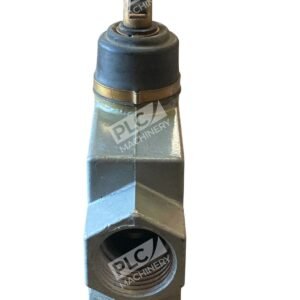

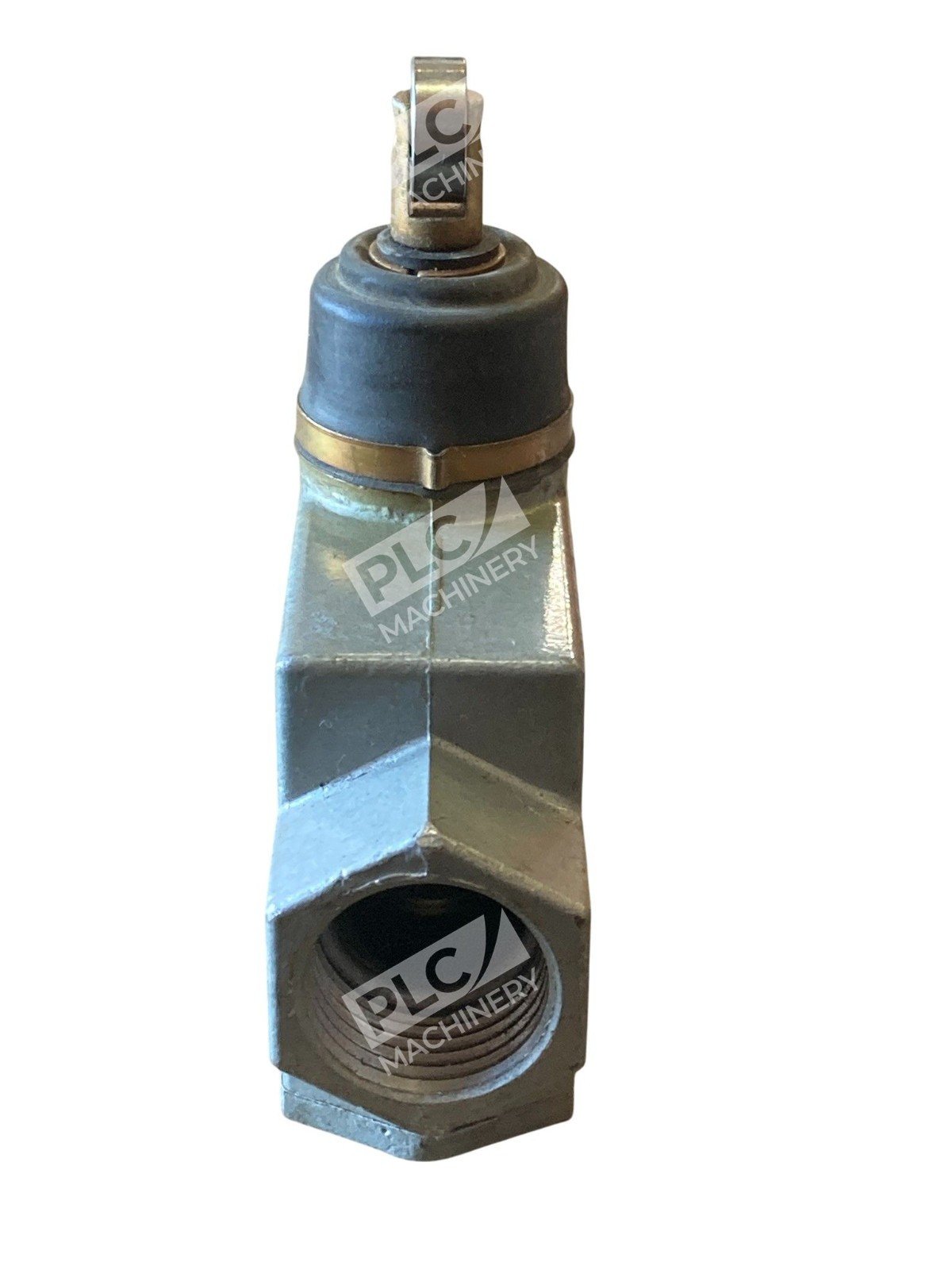

- Mounting: Side Mount with 1/2-inch NPT conduit entry
Dimensions
- Body Width: 3.04 inches (77.2 mm)
- Body Height: 1.75 inches (44.4 mm)
- Body Depth: 1.00 inch (25.4 mm)
- Actuator Length: 1.48 inches (37.6 mm)
- Roller Diameter: 0.5 inch (12.7 mm)
- Roller Width: 0.18 inch (4.6 mm)
Applications
The BZE6-2RN80 limit switch is ideal for use in various industrial settings, including:
- Packaging Equipment
- Special Machinery
- Textile Machinery
- Conveyors
- Construction Machinery and Equipment
- Printing Trades Machinery
- Overhead Cranes and Hoists
Additional Information
This limit switch is designed for durability and long service life, with an operating cycle rating of up to 5 million cycles. The boot-sealed actuator ensures protection against dust and water ingress, making it suitable for harsh environments.
For detailed technical specifications and installation guidelines, please refer to the manufacturer’s datasheet.
