Mencom 125V Panel Interface Connector DP-RJ45

Mencom 125V Panel Interface Connector DP-RJ45

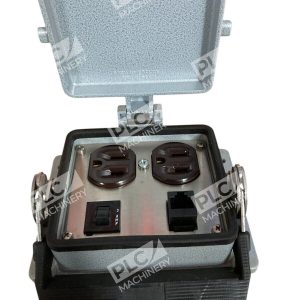

The Mencom DP-RJ45 Panel Interface Connector (PIC) is engineered to provide seamless access to PLCs or PACs without the need to open control cabinets, enhancing both safety and efficiency in industrial environments.

Key Features

• Power Port: Equipped with a 120V Duplex Receptacle, facilitating convenient power access.
• Ethernet Connectivity: Features a female-to-female RJ45 Ethernet port, ensuring reliable network connections.
• Resettable Fuse: Incorporates a 3 Amp resettable fuse, offering added protection against electrical surges.
• Housing: Constructed with a size 32 bulkhead housing, providing robust durability.
• Material Composition: The body is made of epoxy-coated die-cast aluminum, complemented by a thermoplastic elastomer gasket, polyamide handle, and stainless steel levers.
• Electrical Specifications: Rated for 125V and 3 Amps, with a Short Circuit Current Rating (SCCR) of 10kA.
• Ingress Protection: Achieves an IP66 rating, ensuring total protection from dust and high-pressure water jets from any direction.

Applications

Ideal for industrial settings where secure and efficient access to control systems is essential, the Mencom DP-RJ45 PIC simplifies maintenance and programming tasks by allowing external connections without compromising the integrity of the control panel.

Specifications

• Body Material: Epoxy-coated die-cast aluminum
• Gasket: Thermoplastic elastomer
• Handle: Polyamide
• Levers: Stainless steel
• Voltage: 125V
• Current: 3 Amps
• SCCR: 10kA
• Housing Size: 32 Bulkhead Housing
• Power Ports: 120V Duplex Receptacle
• Ethernet Port: Female-to-Female RJ45
• Fuse: 3 Amp Resettable
• Ingress Protection: IP66

By integrating the Mencom DP-RJ45 Panel Interface Connector into your control systems, you ensure a safer, more efficient, and reliable operation, minimizing downtime and enhancing overall productivity.
