Martin Sprocket 1610 1 Taper Bushing

Martin Sprocket 1610 1 Taper Bushing

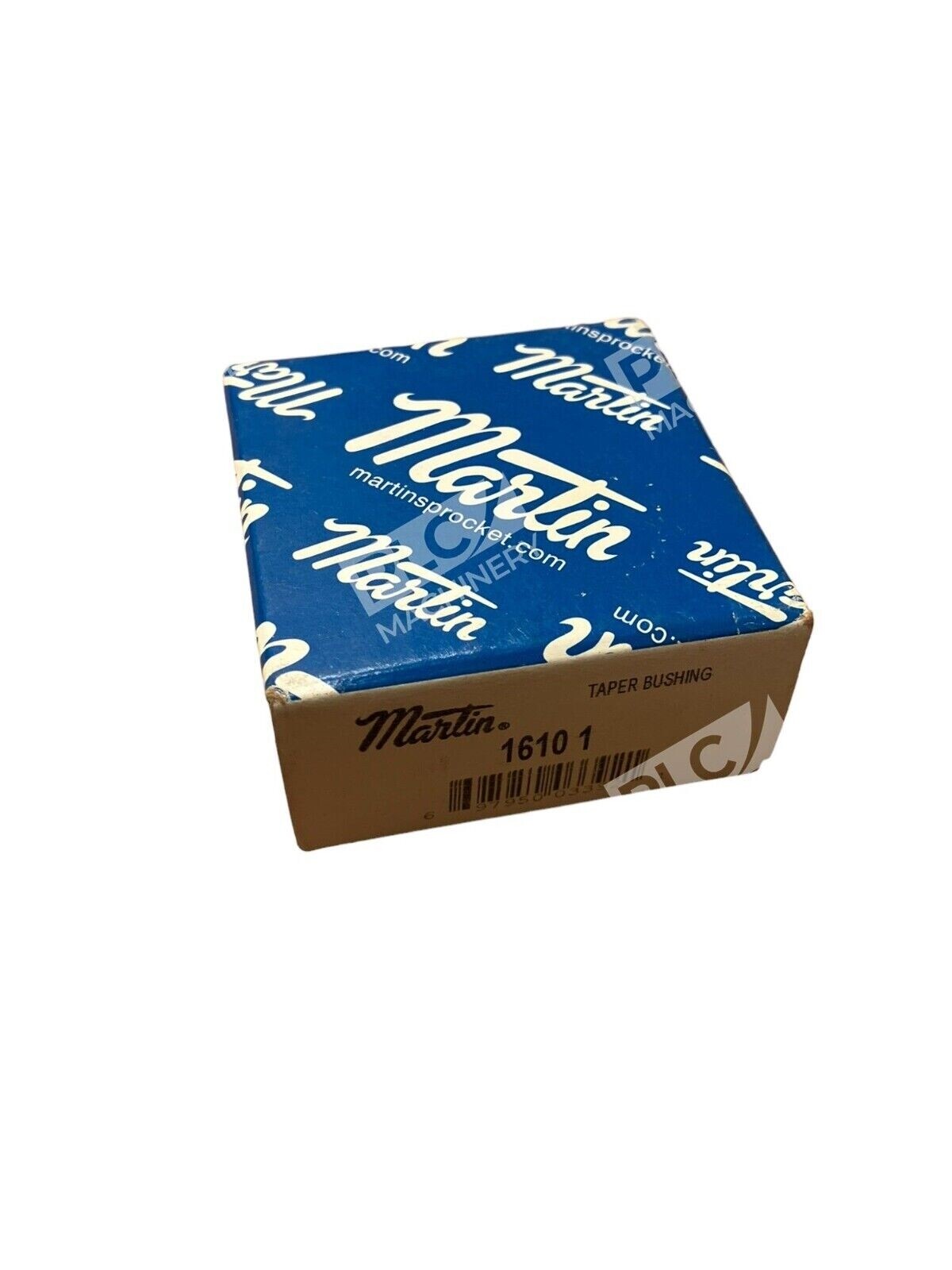

The Martin Sprocket 1610 1 Taper Bushing is a precision-engineered component designed to facilitate the secure mounting of pulleys, sprockets, and other power transmission products onto shafts. Its tapered design ensures a tight, concentric fit, enhancing the performance and longevity of mechanical systems.

Key Features

• Bore Diameter: 1 inch
• Outside Diameter: 2-1/4 inches
• Length Through Bore: 1 inch
• Bushing Series: 1610
• Material: High-quality steel
• Keyway: 1/4 inch x 1/8 inch
• Number of Bolt Holes: 2
• Bolt Circle Diameter: 2-1/8 inches
• Screw Size: 3/8-16 x 5/8 inch
• Torque Rating: 4,300 in-lb

Applications

This taper bushing is ideal for use in various industrial applications, including conveyors, pumps, mixers, and other machinery requiring reliable shaft attachment. Its robust construction and precise dimensions make it suitable for demanding environments.

Installation and Maintenance

The Martin 1610 1 Taper Bushing is designed for easy installation and removal, allowing for quick maintenance and replacement. Its flush-mounted design without a flange ensures a compact fit, reducing mounting width and providing a tight clamp to shafts.

Quality Assurance

Manufactured by Martin Sprocket & Gear, a reputable brand in the industry, this taper bushing meets high standards of quality and performance, ensuring durability and reliability in your mechanical systems.
