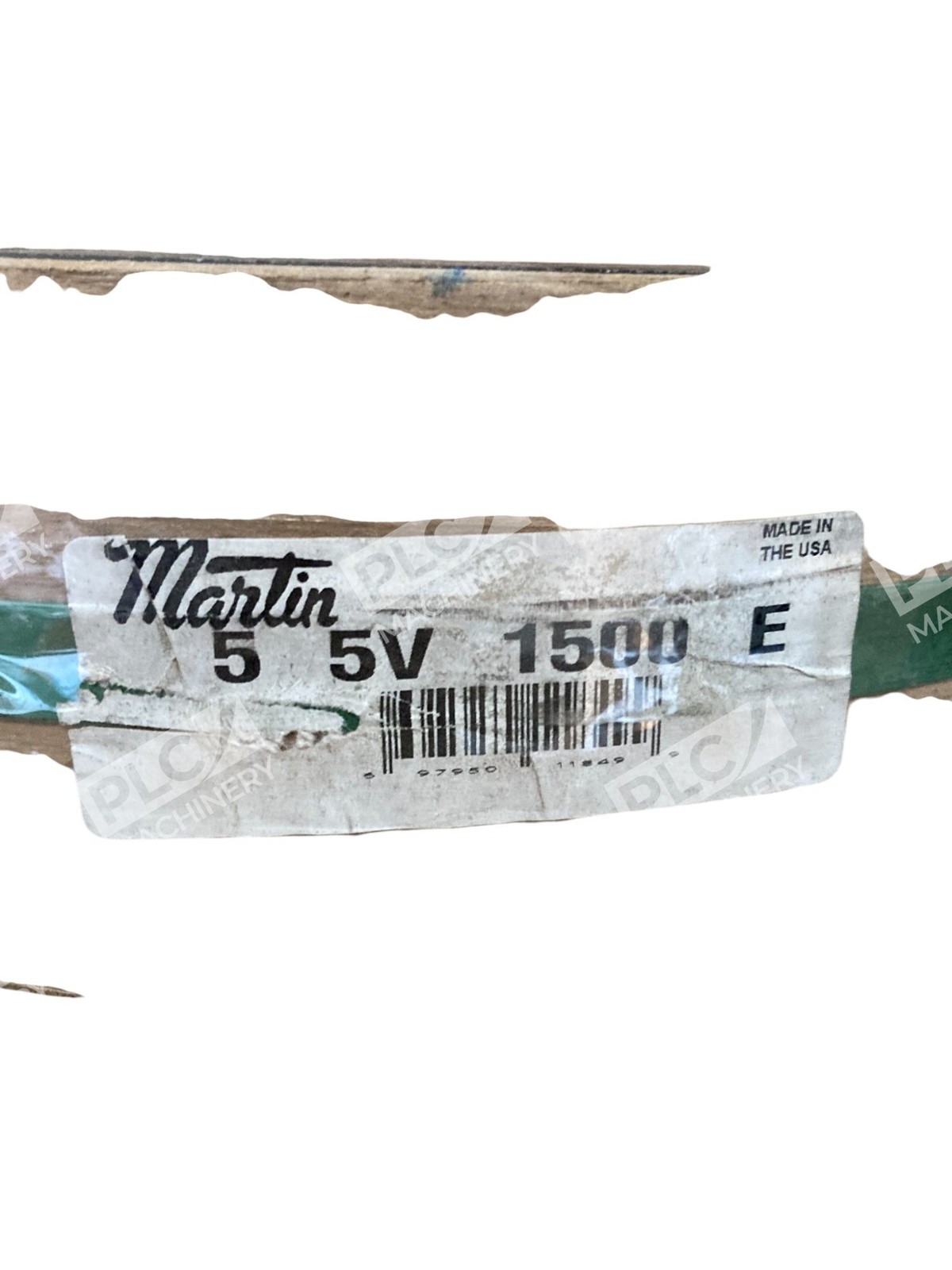

Martin 55V1500E Sheave 5 5V 1500 E

Martin 55V1500E Sheave 5 5V 1500 E

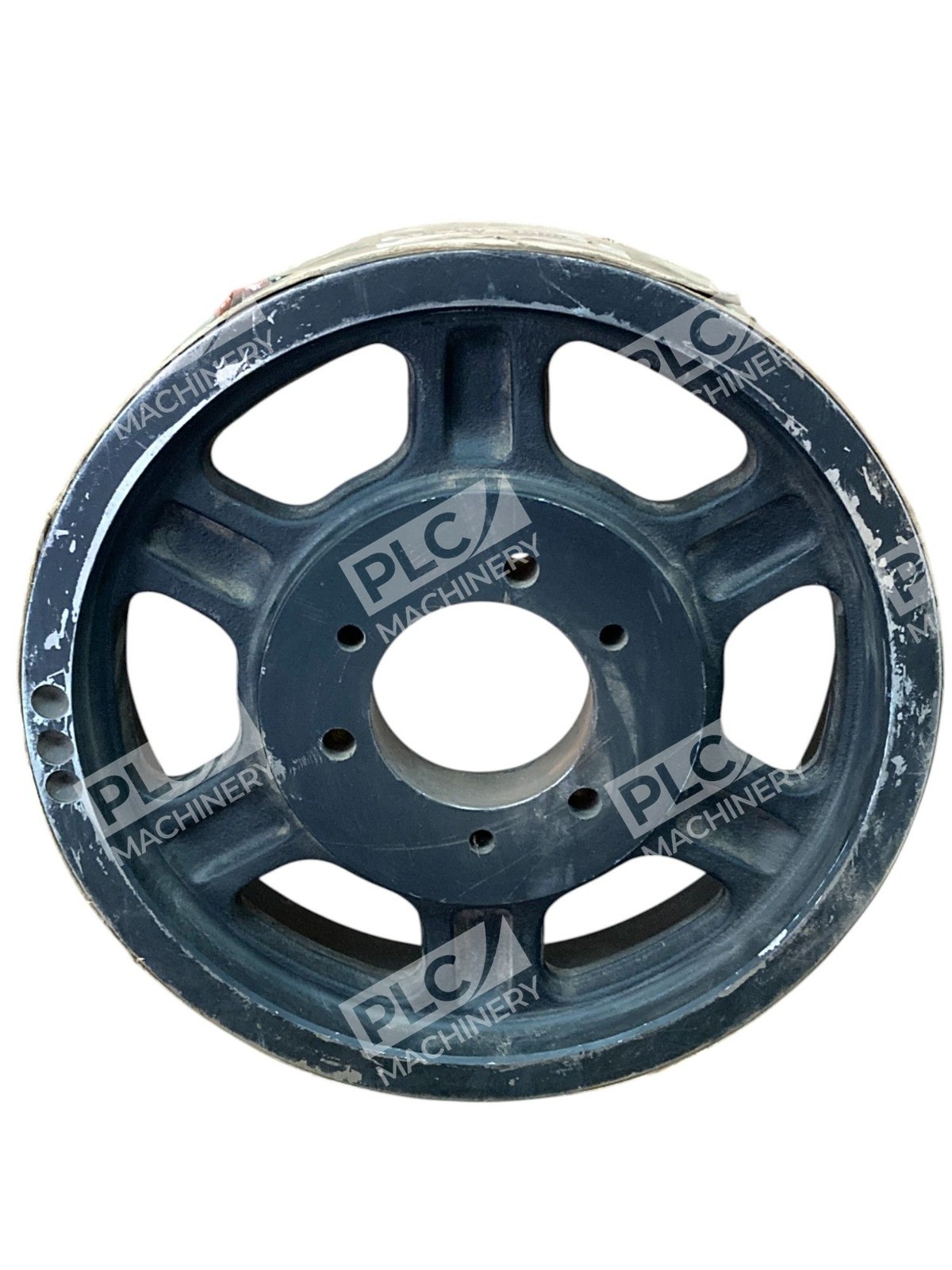

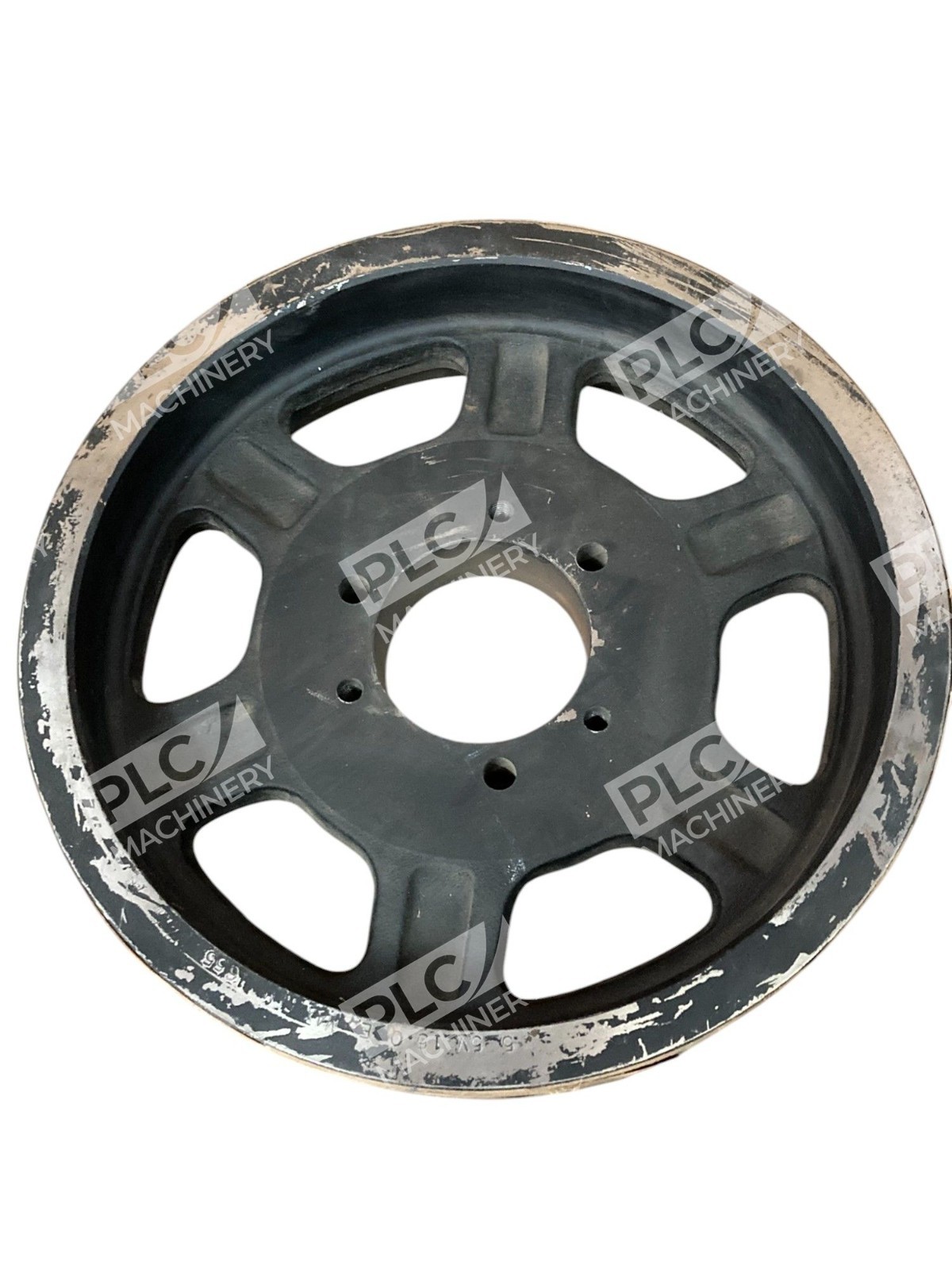

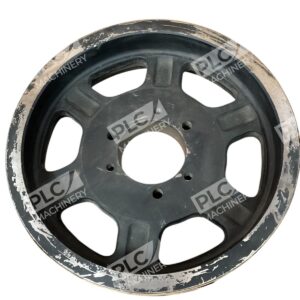

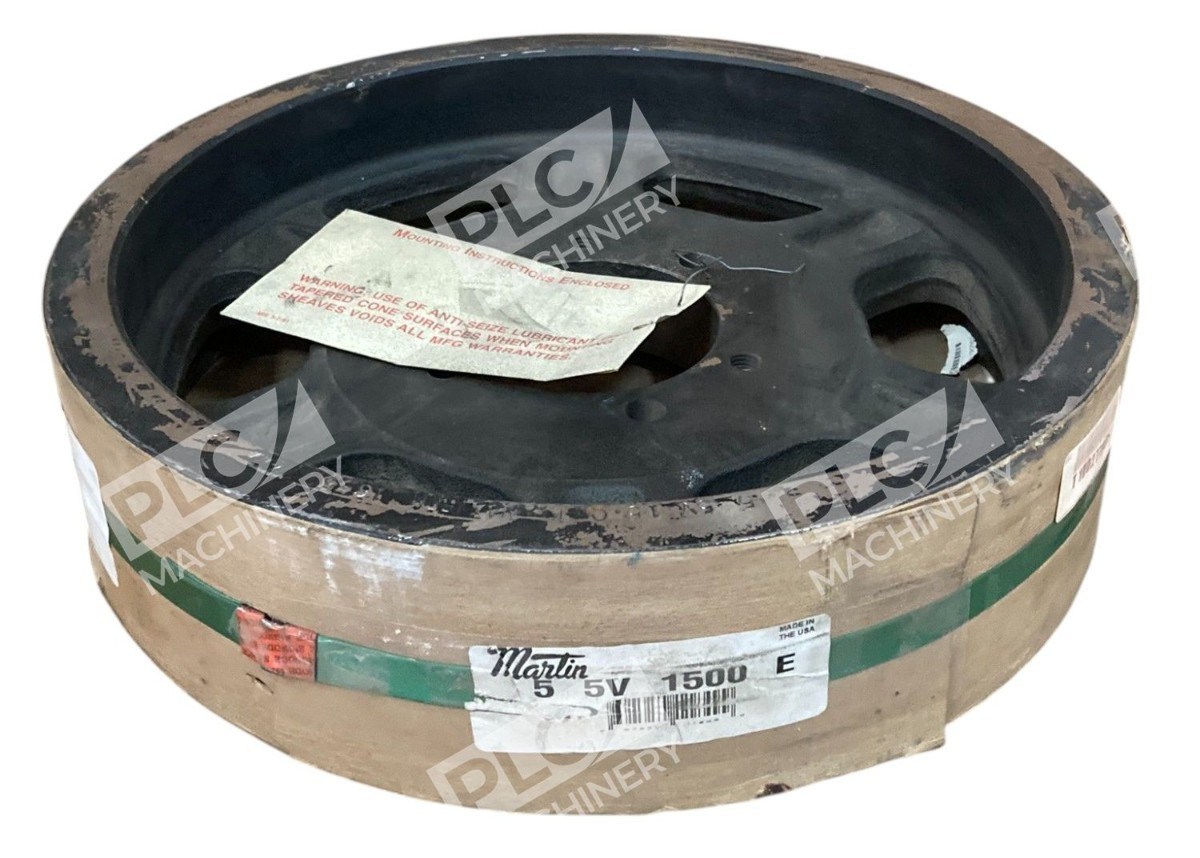

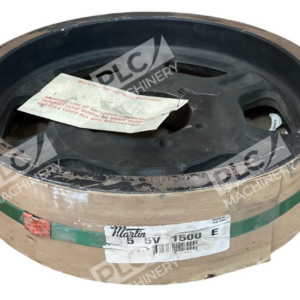

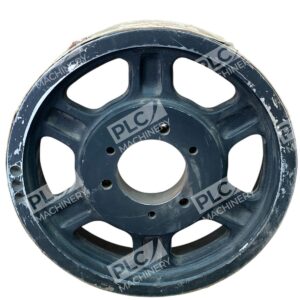

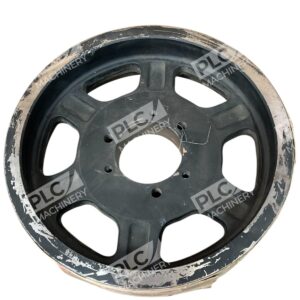

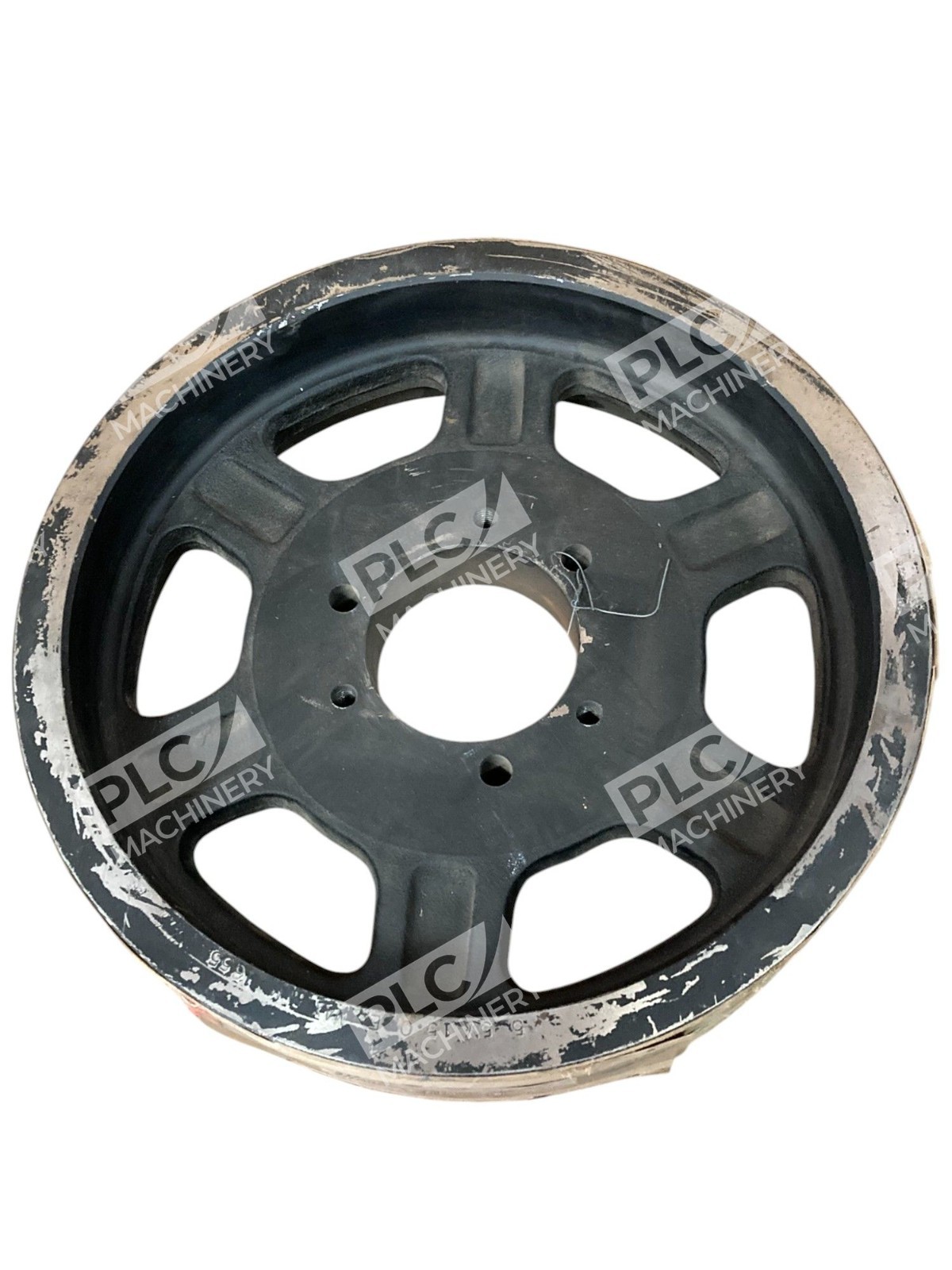

The Martin 55V1500E Sheave is a high-capacity, five-groove sheave designed for optimal performance in power transmission systems utilizing 5V cross-section V-belts. Engineered with precision, this sheave ensures efficient and reliable operation in various industrial applications.

Key Features

• Material: Constructed from Class 30 gray iron, offering a tensile strength of 30,000 psi, ensuring durability and longevity.
• Design: Arm/Spoke Type A-3 configuration provides structural integrity and balanced performance.
• Bore Type: Equipped with a Quick Detachable (QD) bushing system, facilitating easy installation and removal.
• Bore Diameter Range: Accommodates bore sizes from 7/8 inch to 8-7/8 inches, offering versatility for various shaft sizes.
• Outside Diameter: Measures 15 inches, with a pitch diameter of 14.9 inches, suitable for standard 5V belts.
• Face Width: Features a 3-3/4 inch face width, providing ample surface area for belt contact and power transmission.
• Number of Grooves: Designed with five grooves to support multiple belt configurations, enhancing load distribution and efficiency.
• Balancing: Statically balanced to minimize vibration, with a maximum rim speed marked for safe operation up to 6,500 feet per minute.

Applications

The Martin 55V1500E Sheave is ideal for use in various industrial machinery where efficient power transmission is critical. Its robust construction and precise engineering make it suitable for applications requiring high torque and reliable performance.

Installation and Maintenance

Utilizing the QD bushing system, the sheave allows for straightforward installation and removal, reducing downtime during maintenance. Regular inspection and proper alignment are recommended to maintain optimal performance and extend the lifespan of the sheave and associated components.

For more detailed specifications and compatibility information, please refer to the manufacturer’s documentation or consult with a qualified engineer to ensure suitability for your specific application.
