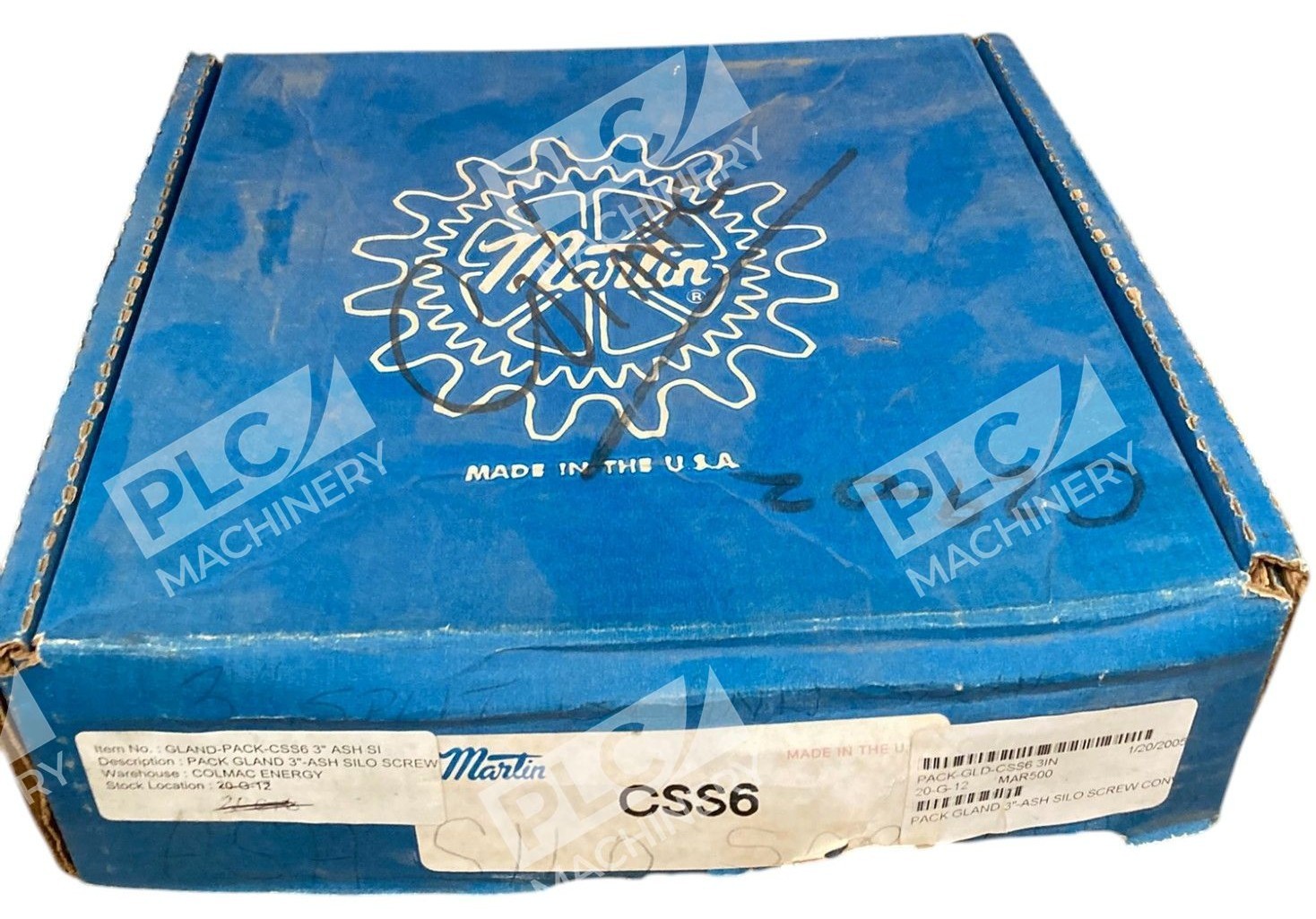

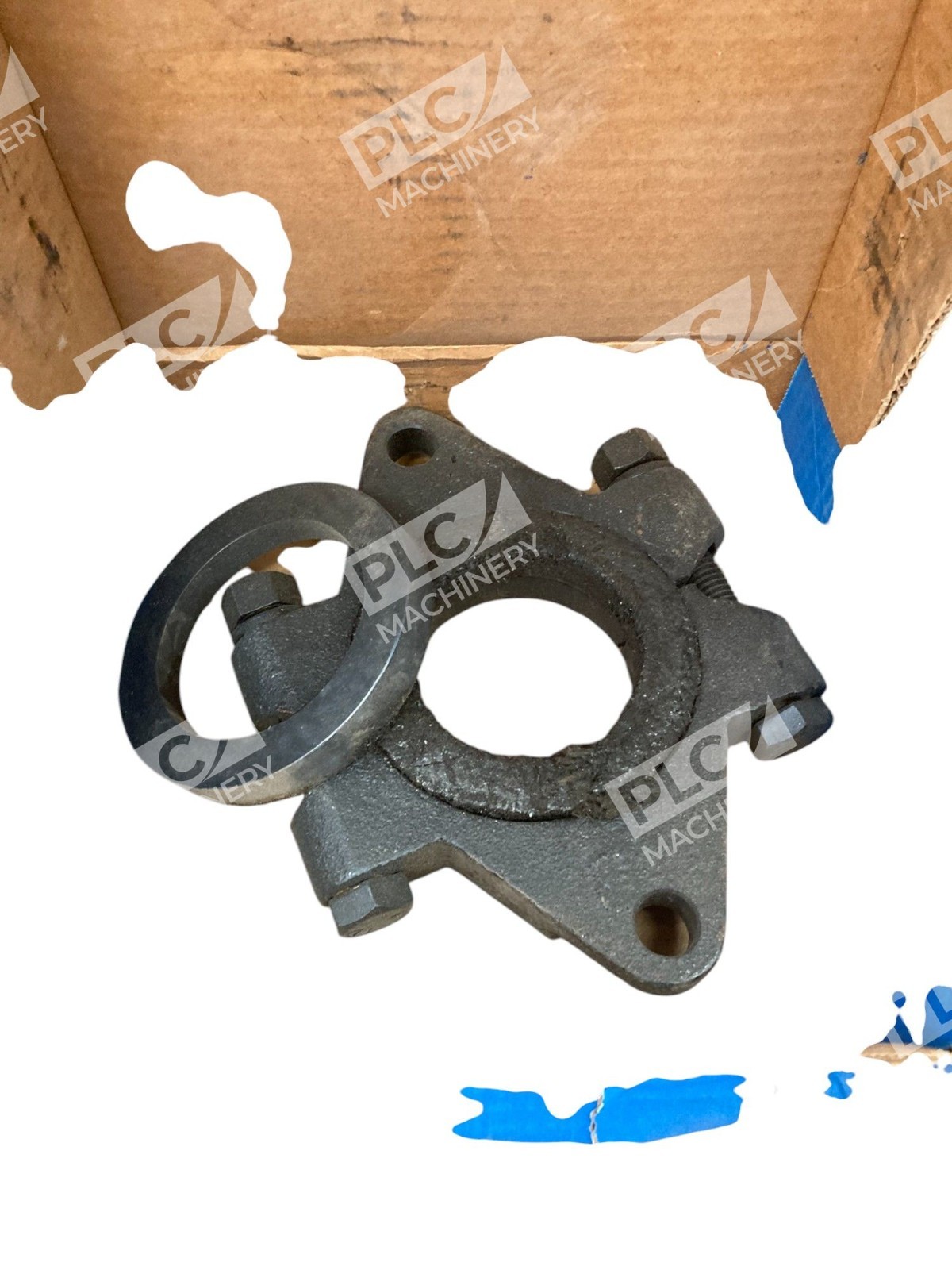

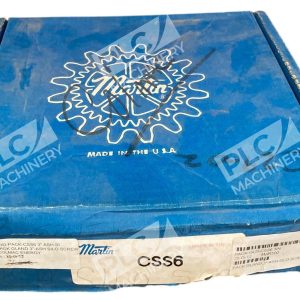

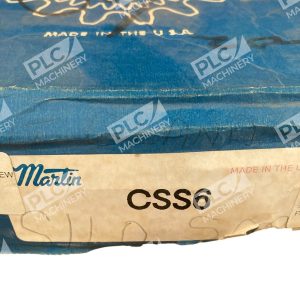

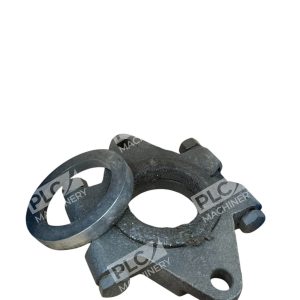

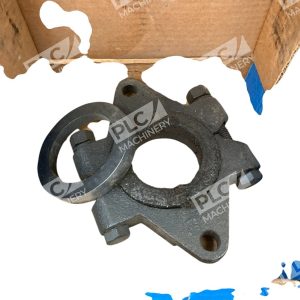

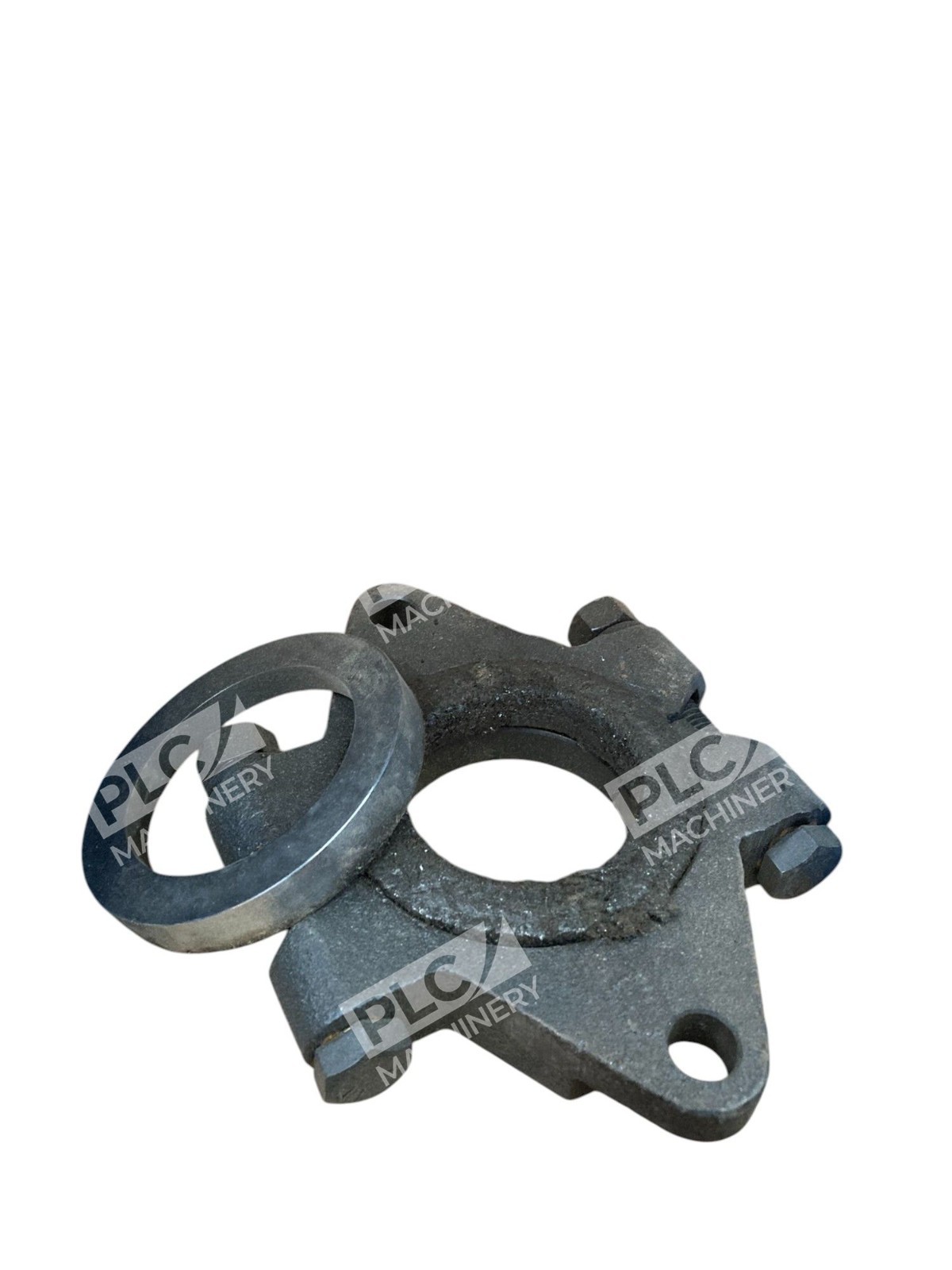

The Martin 3″ Split Gland Seal CSS6 is a robust and efficient sealing solution designed for screw conveyors with a 3-inch shaft diameter. Crafted from durable cast iron, this seal effectively prevents bulk material leaks, thereby reducing product loss, contamination, and bearing failure.
Key Features
- Material: Constructed from high-quality cast iron, ensuring longevity and resistance to wear.
- Design: Split gland compression type seal allows for easy replacement and adjustment of packing pressure on the shaft without removing the seal from the conveyor.
- Installation Flexibility: Can be installed on the inside or outside of the end plates, providing versatility in application.
Specifications
- Shaft Diameter: 3 inches
- Seal Width: 7.5 inches
- Seal Height: 8.625 inches
- Centerline of Shaft to Centerline of Mounting Bolt Hole: 3.563 inches
- Mounting Bolt Diameter: 5/8 inch
- Seal Housing Thickness: 1.25 inches
- Overall Length: 7.5 inches
- Overall Width: 8.625 inches
- Weight: Approximately 8.9 lbs
Benefits
- Leak Prevention: Effectively prevents bulk material leaks, reducing product loss and contamination.
- Maintenance Efficiency: Allows for easy replacement and adjustment without the need to remove the seal from the conveyor, minimizing downtime.
- Versatile Installation: Can be installed on either side of the end plates, accommodating various conveyor configurations.
The Martin 3″ Split Gland Seal CSS6 is an essential component for maintaining the integrity and efficiency of screw conveyor systems, ensuring optimal performance and longevity.
