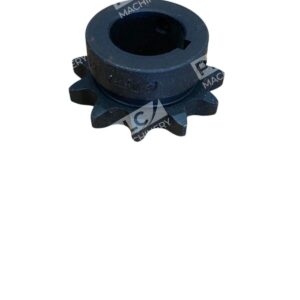

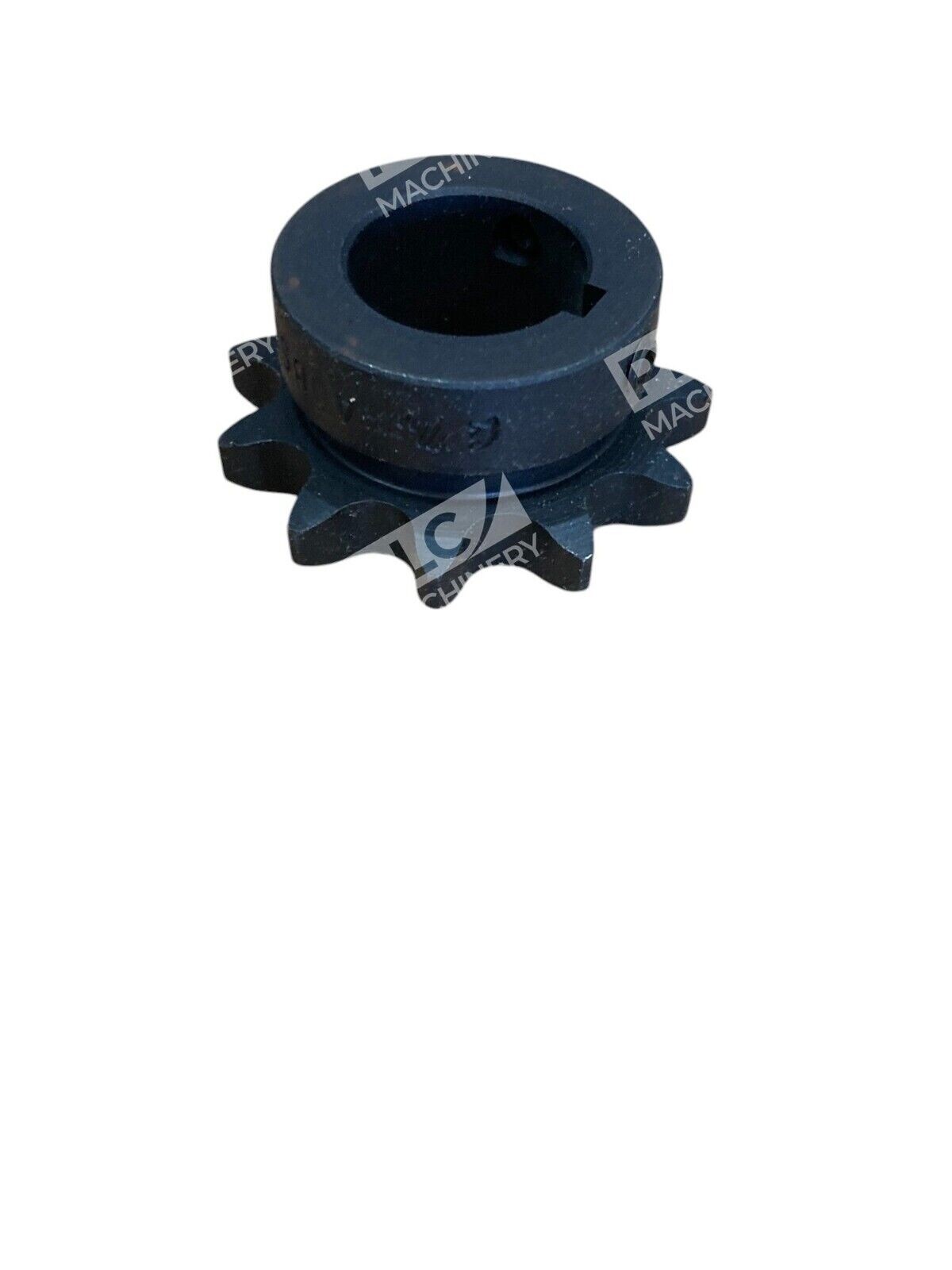

Martin 11-Tooth Bored-To-Size Sprocket 40BS11-7/8
The Martin 40BS11-7/8 is a precision-engineered sprocket designed for optimal performance in power transmission applications. This sprocket is tailored to fit #40 roller chains, making it a reliable component for various industrial machinery.
Key Features
- Chain Compatibility: Designed for #40 roller chains with a 1/2-inch pitch.
- Tooth Count: Equipped with 11 teeth to ensure smooth engagement with the chain.
- Bore Specifications: Features a finished bore diameter of 7/8 inch, complete with a 3/16 x 3/32 inch keyway and two set screws for secure attachment.
- Material Construction: Manufactured from high-carbon steel, offering durability and resistance to wear.
- Dimensions: The sprocket has an outside diameter of 2.003 inches and a pitch diameter of 1.775 inches.
- Hub Design: Incorporates a single hub with a diameter of 1-3/8 inches, providing robust support and stability.
- Teeth Hardness: The teeth are non-hardened, suitable for applications where standard wear resistance is sufficient.
Applications
This sprocket is ideal for use in conveyor systems, agricultural machinery, and other equipment requiring reliable chain-driven power transmission. Its precise machining ensures consistent performance, while the bored-to-size feature allows for easy installation on shafts with a 7/8-inch diameter.
Installation and Maintenance
For optimal performance, ensure the sprocket is properly aligned with the chain and securely fastened using the provided keyway and set screws. Regular inspection and lubrication of the chain and sprocket will extend the service life and maintain efficient operation.
Choose the Martin 40BS11-7/8 sprocket for a dependable and high-quality solution to your power transmission needs.
