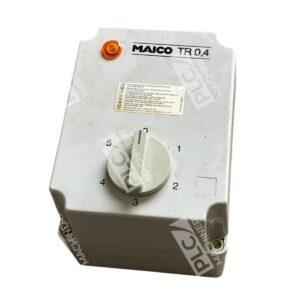

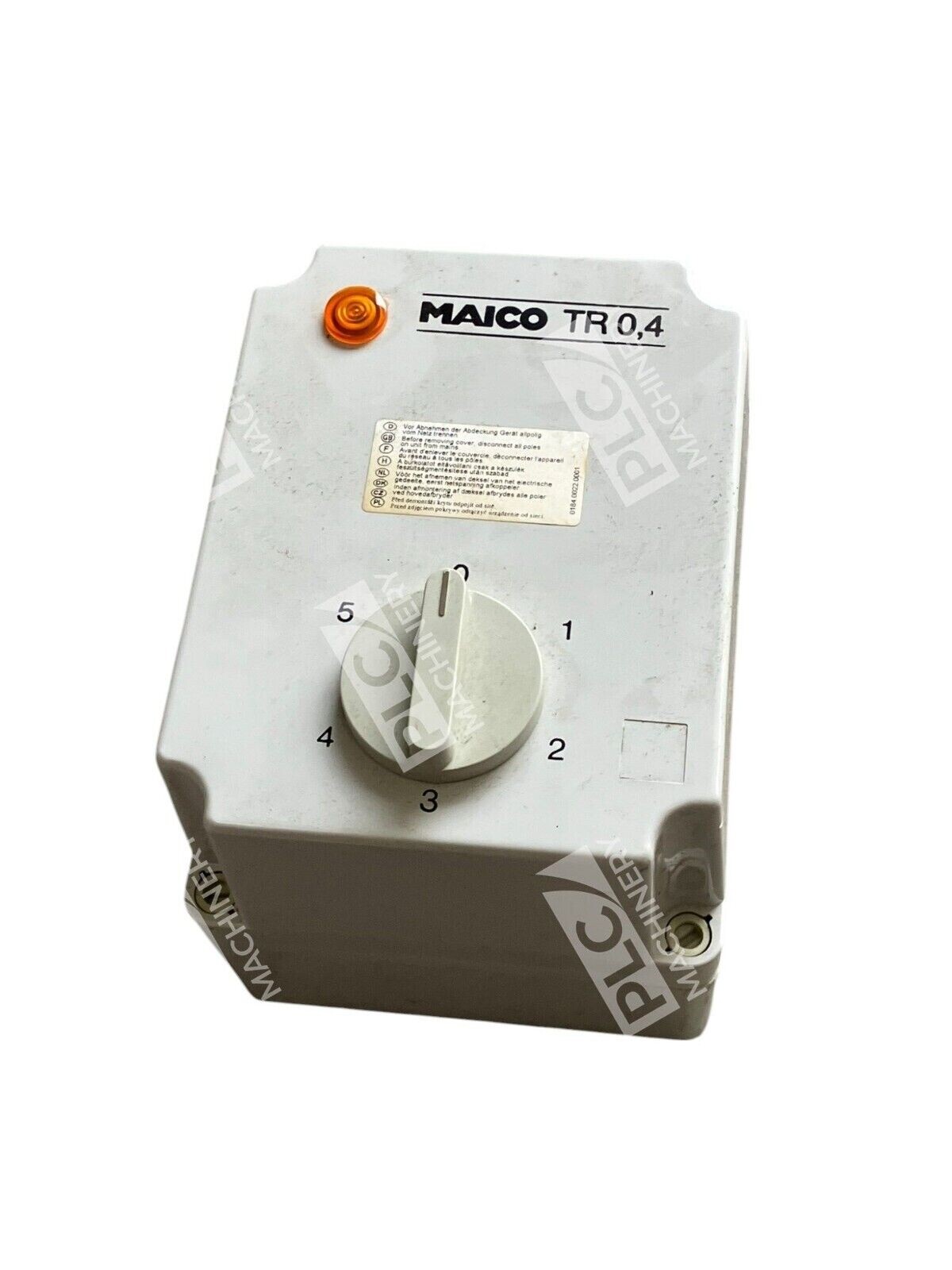

Maico Transformer TR0,4

Maico Transformer TR0,4

The Maico Transformer TR0,4 is a 5-stage transformer designed for precise speed control of three-phase fans. It ensures optimal performance and energy efficiency in various industrial applications.

Key Features

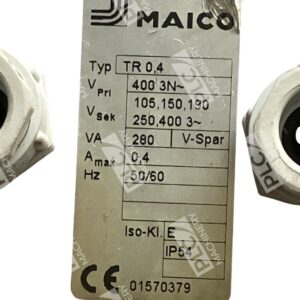

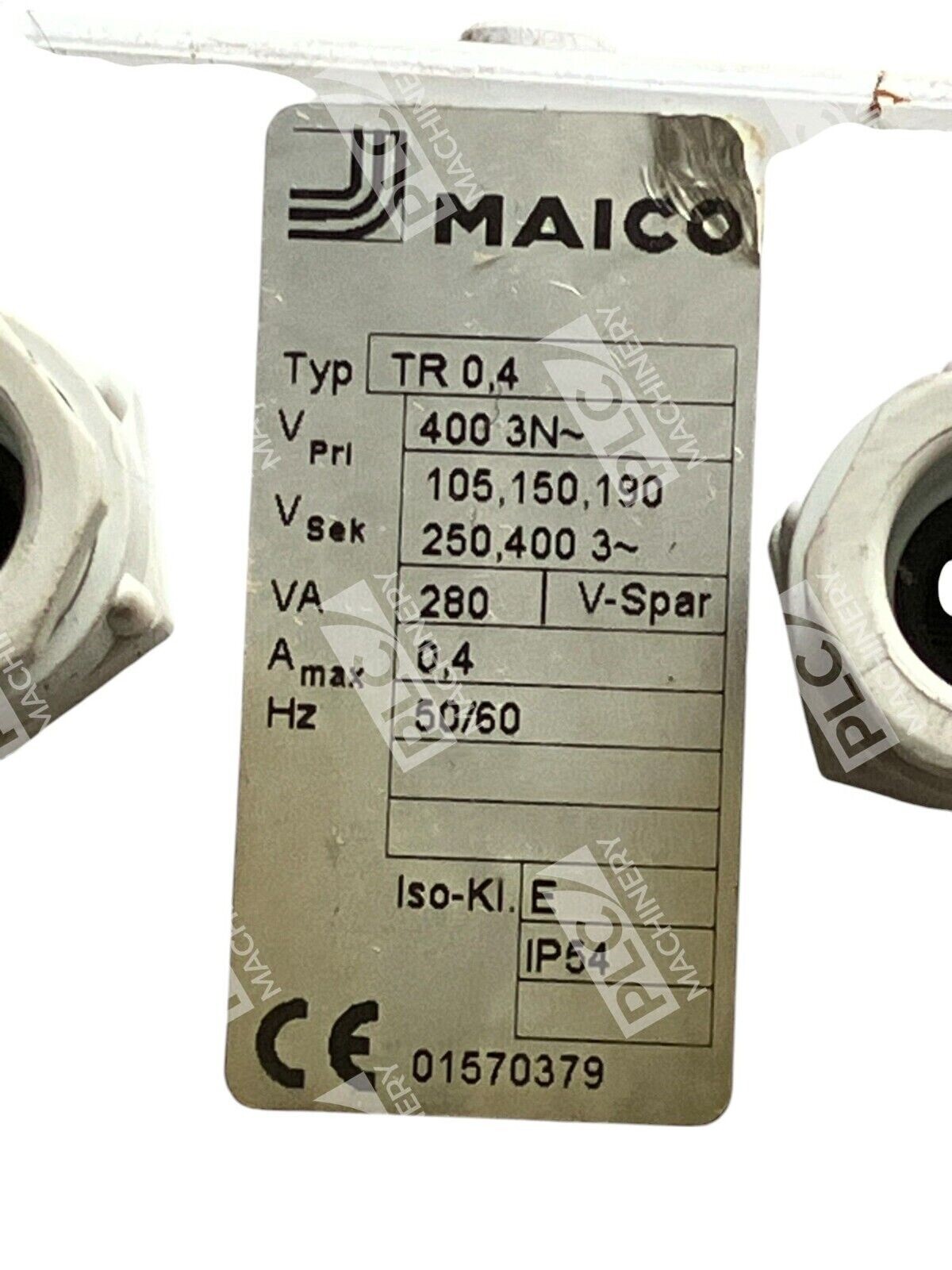

• Voltage Type: Three-phase current
• Rated Voltage: 400 V
• Mains Frequency: 50 Hz / 60 Hz
• Rated Power: 200 W
• Maximum Load: 0.4 A
• Protection Rating: IP 54
• Secondary Voltage Levels: 105 V / 150 V / 190 V / 250 V / 400 V
• Installation Type: Surface-mounted
• Housing Material: Plastic
• Color: Light grey, similar to RAL 7035
• Weight: 3.333 kg
• Dimensions (W x H x D): 248 mm x 195 mm x 205 mm
• Ambient Temperature Range: 0 °C to 40 °C

Additional Features

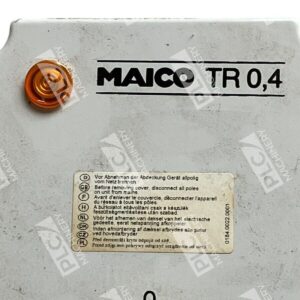

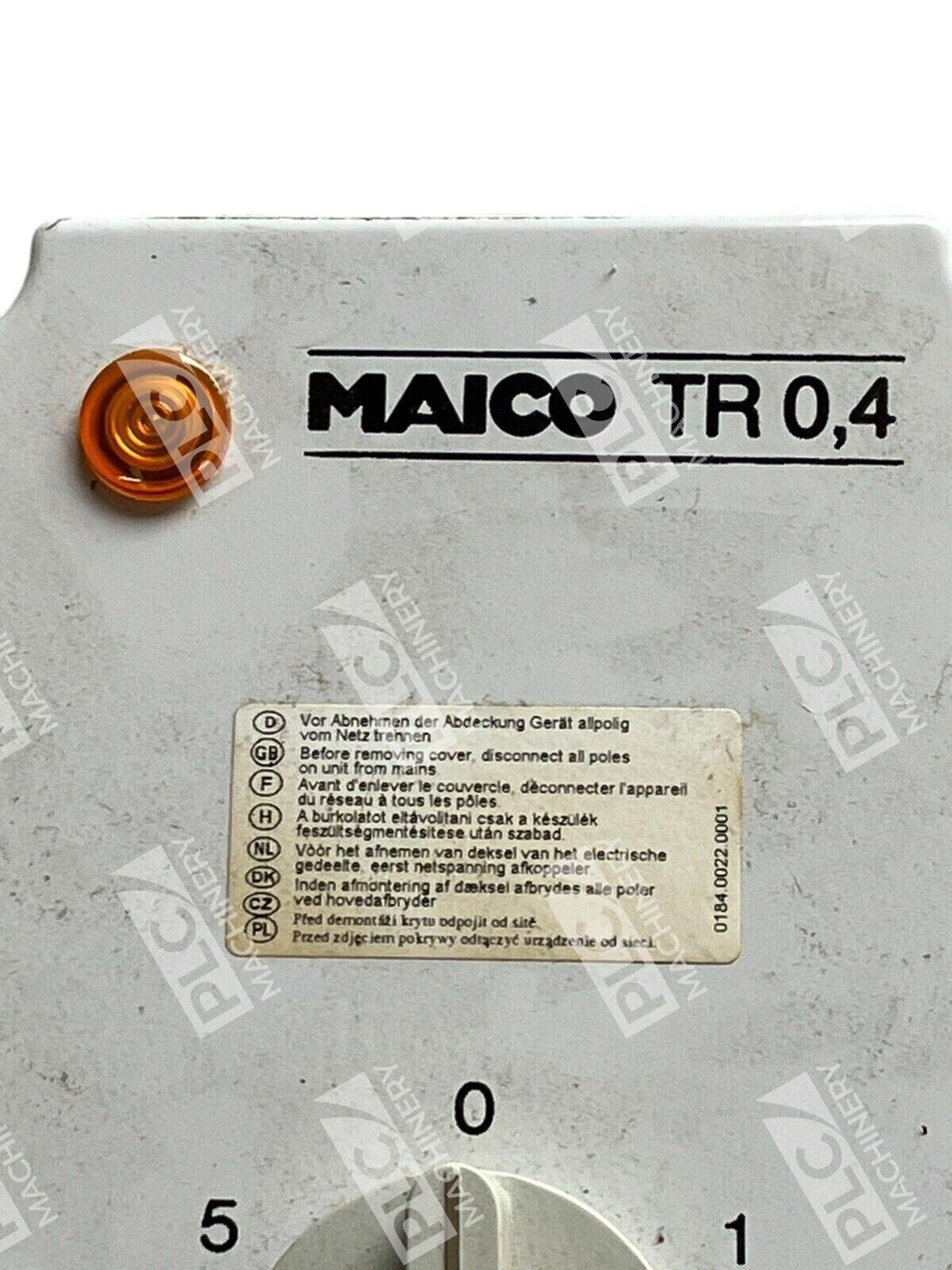

• Equipped with an operating indicator light for easy monitoring.
• Includes an additional 230 V switching contact, suitable for controlling devices such as dampers.

The Maico Transformer TR0,4 is engineered to provide reliable and efficient control over fan speeds, making it an essential component for maintaining optimal airflow and system performance in industrial settings.
