IFM EFECTOR RSC4/7P1 4/7 P1 Straight Male Connector
The IFM EFECTOR RSC4/7P1 4/7 P1 is a high-quality M12 field-attachable connector designed for reliable and secure connections in industrial automation systems. This straight male connector features a 4-pin configuration with A-coding, ensuring compatibility with standard sensor and actuator interfaces.
Key Features
- Connector Type: M12, male, straight
- Number of Pins: 4
- Coding: A-coded
- Voltage Rating: 250 V AC/DC
- Current Rating: 4 A
- Contact Resistance: ≤ 10 mΩ
- Insulation Resistance: > 10⁹ Ω
- Operating Temperature Range: -25°C to +85°C
- Protection Rating: IP65/IP67
Design and Construction

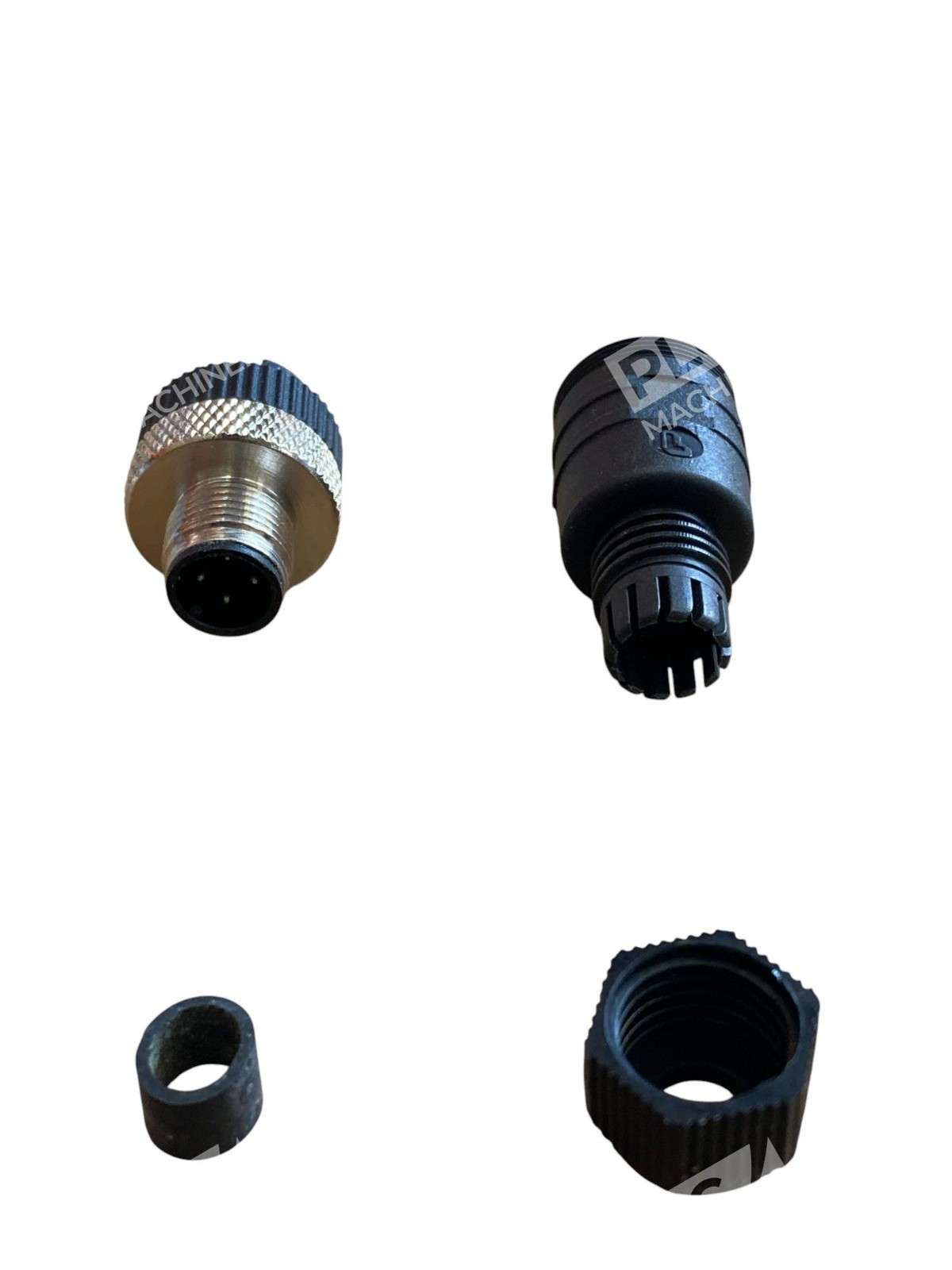

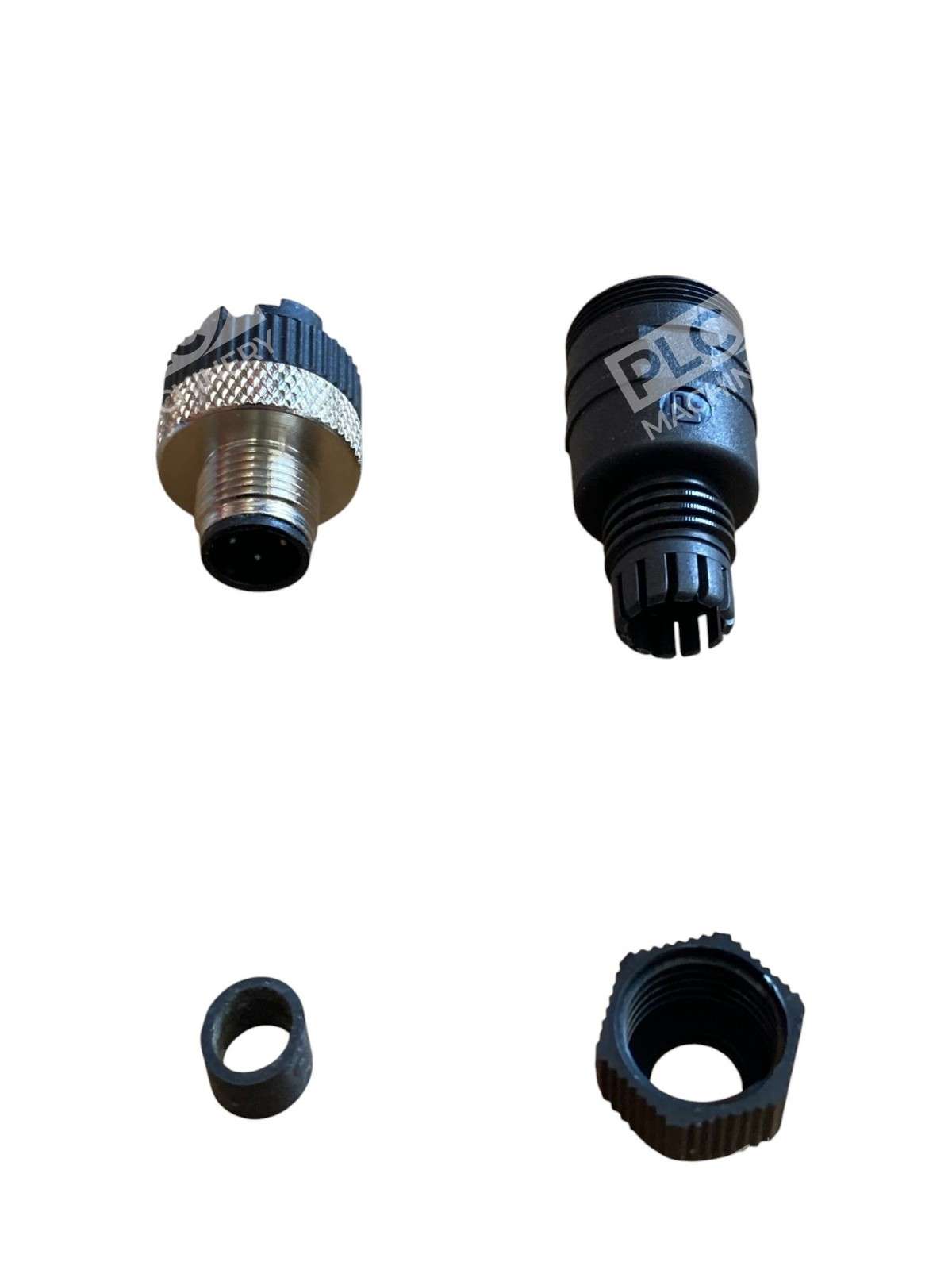

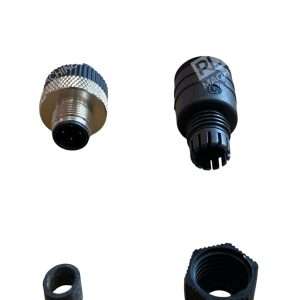

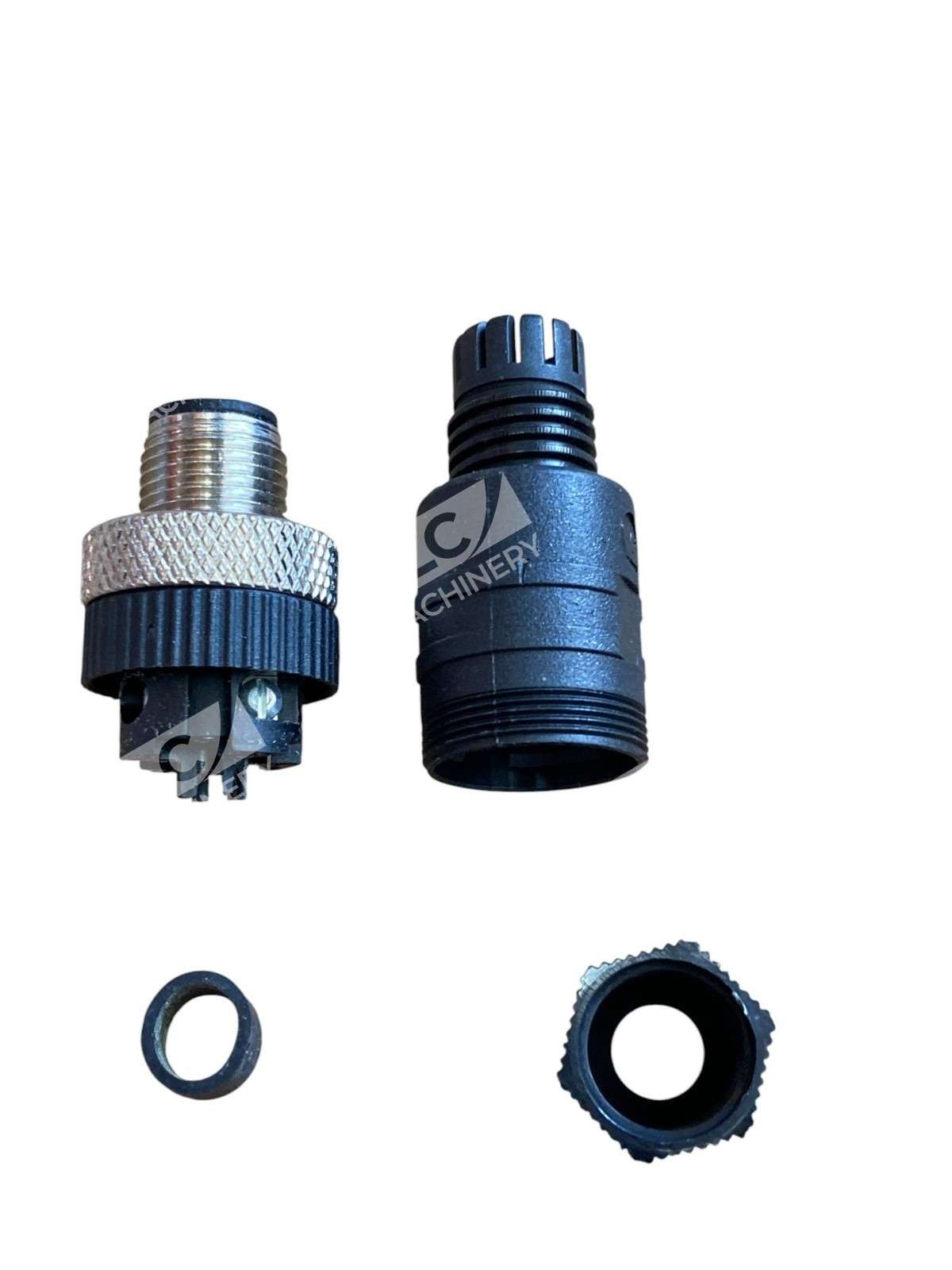

The connector is constructed with a durable black housing and utilizes a screw-type attachment for secure cable connections. It accommodates cables with diameters ranging from 4 mm to 6 mm, providing flexibility for various wiring requirements. The coupling screw ensures a firm and stable connection, enhancing the reliability of the system.
Applications
Ideal for use in industrial environments, the IFM EFECTOR RSC4/7P1 4/7 P1 connector is suitable for connecting sensors and actuators in automation systems. Its robust design and high protection rating make it well-suited for applications requiring dependable performance under challenging conditions.
Technical Specifications
- Rated Impulse Voltage: 2.5 kV
- Mating Cycles: ≤ 50
- Type of Connection: Screw terminal
- Maximum Wire Cross Section: 0.75 mm²
- Cable Gland: PG7
- Strain-Relief: Clamping cage
- Design Standard: IEC 61076-2-101
- Pollution Degree: 3 (according to DIN EN 60664-1)
- Overvoltage Category: II (according to DIN EN 60664-1)
With its combination of robust construction, reliable performance, and compliance with industry standards, the IFM EFECTOR RSC4/7P1 4/7 P1 straight male connector is an excellent choice for professionals seeking quality connectivity solutions in industrial automation.
