Littelfuse Powr-Pro 600A 75-600VAC/DC Fuse IDSR600

Littelfuse Powr-Pro 600A 75-600VAC/DC Fuse IDSR600

The Littelfuse IDSR600 is a high-performance, time-delay fuse designed to provide reliable overcurrent protection in both AC and DC circuits. As part of the Powr-Pro series, this 600-ampere, 600-volt fuse is engineered to safeguard electrical systems from short circuits and overloads, ensuring operational safety and equipment longevity.

Key Features

• Dual Voltage Rating: Capable of handling up to 600 volts AC and 600 volts DC, making it versatile for various applications.
• High Interrupting Capacity: Rated at 200,000 amperes interrupting capacity (AIC) at 600 VAC and 20,000 AIC at 600 VDC, providing robust protection against high fault currents.
• Time-Delay Functionality: The time-delay feature allows the fuse to withstand temporary inrush currents, reducing unnecessary openings and enhancing system reliability.
• Indicating Capability: Equipped with an indicator window that provides a visual signal when the fuse has operated, facilitating quick identification and replacement.

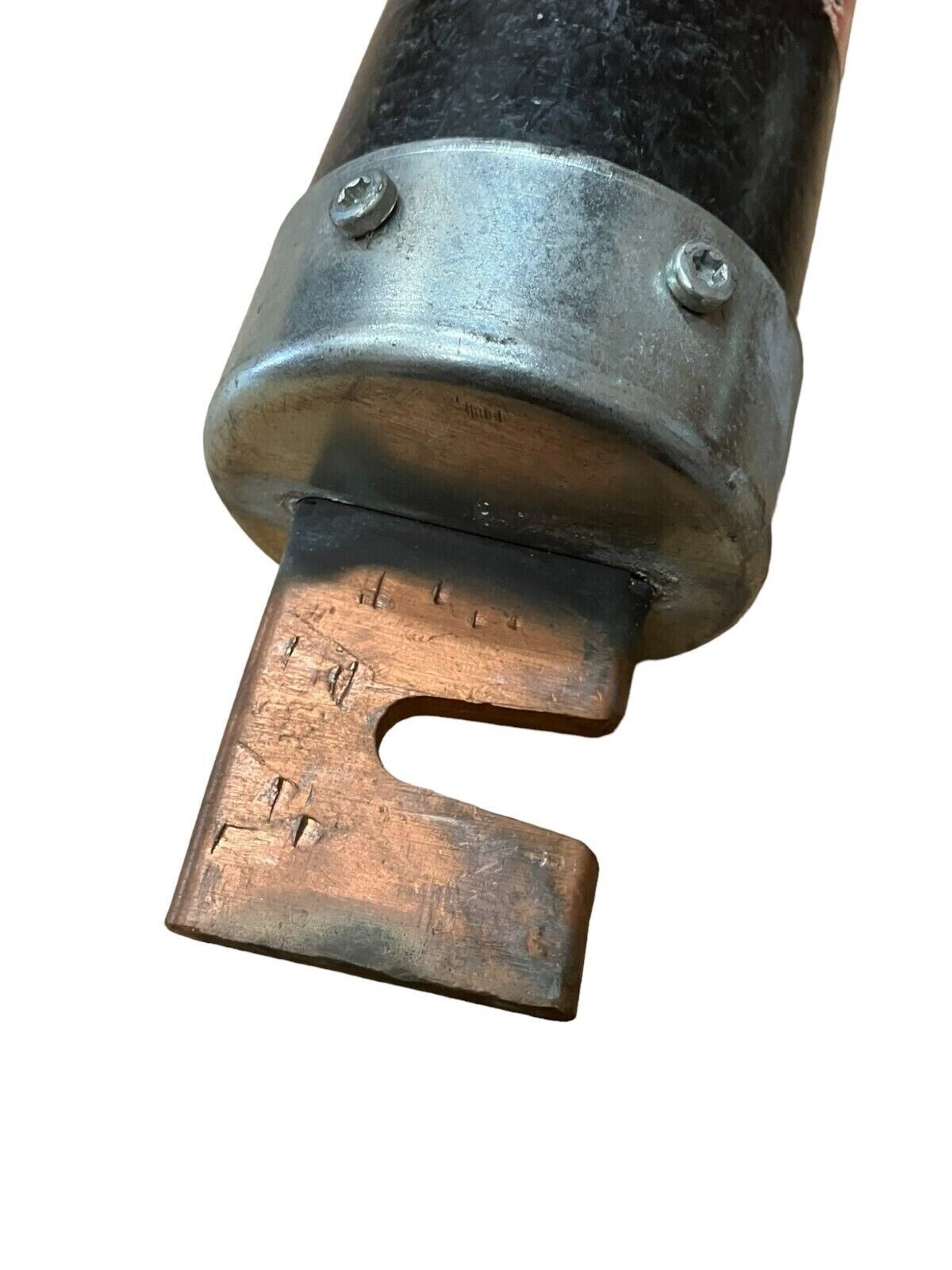

• Knife-Blade Terminals: Designed with knife-blade terminals for secure and efficient installation in compatible fuse holders.

Applications

The IDSR600 fuse is suitable for a wide range of industrial and commercial applications, including:

• DC circuits
• Solar inverters
• Motors
• Transformers
• Solenoids
• Fluorescent lighting systems

Specifications

• Current Rating: 600 Amperes
• Voltage Rating: 600 VAC/VDC
• Interrupting Rating: 200 kA at 600 VAC; 20 kA at 600 VDC
• Fuse Class: RK5
• Body Style: Cylindrical with knife-blade terminals
• Dimensions: 3-3/32 inches in diameter x 13-3/8 inches in length

By integrating the Littelfuse IDSR600 into your electrical system, you ensure enhanced protection against overcurrent conditions, minimizing downtime and safeguarding critical equipment.
