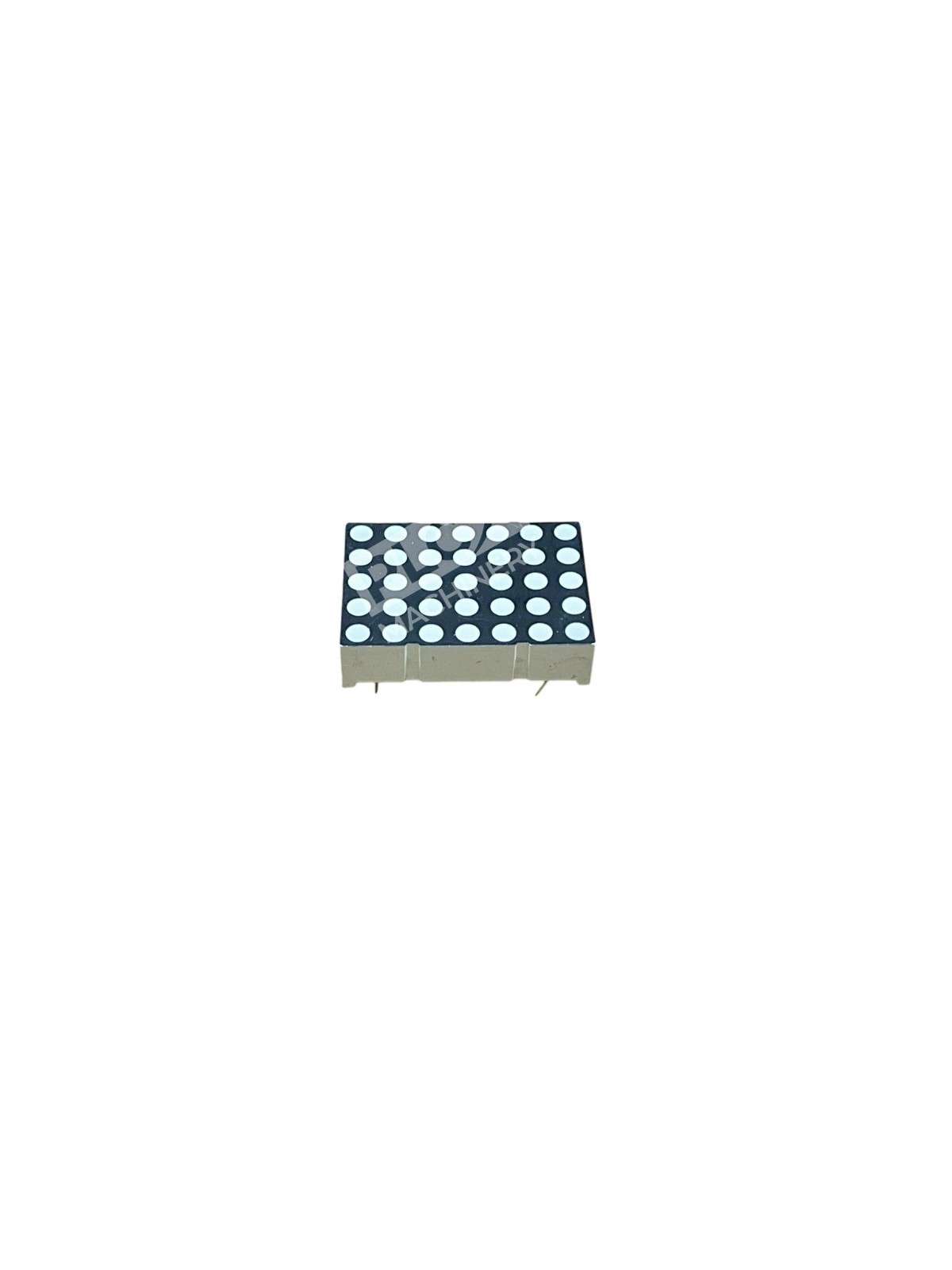

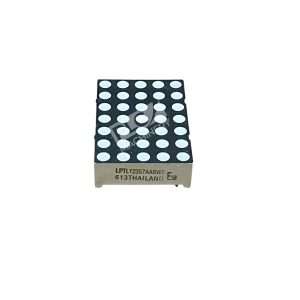

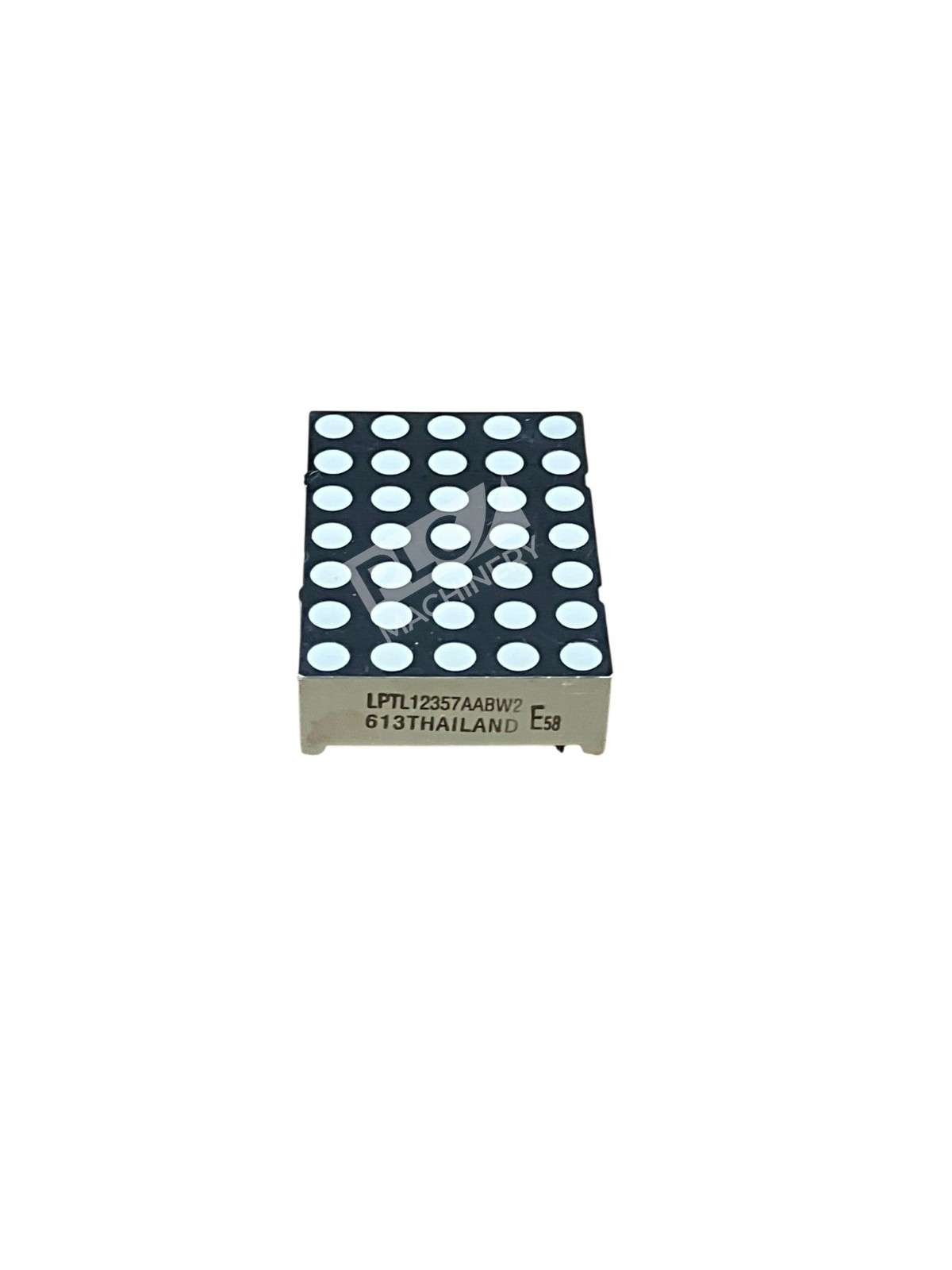

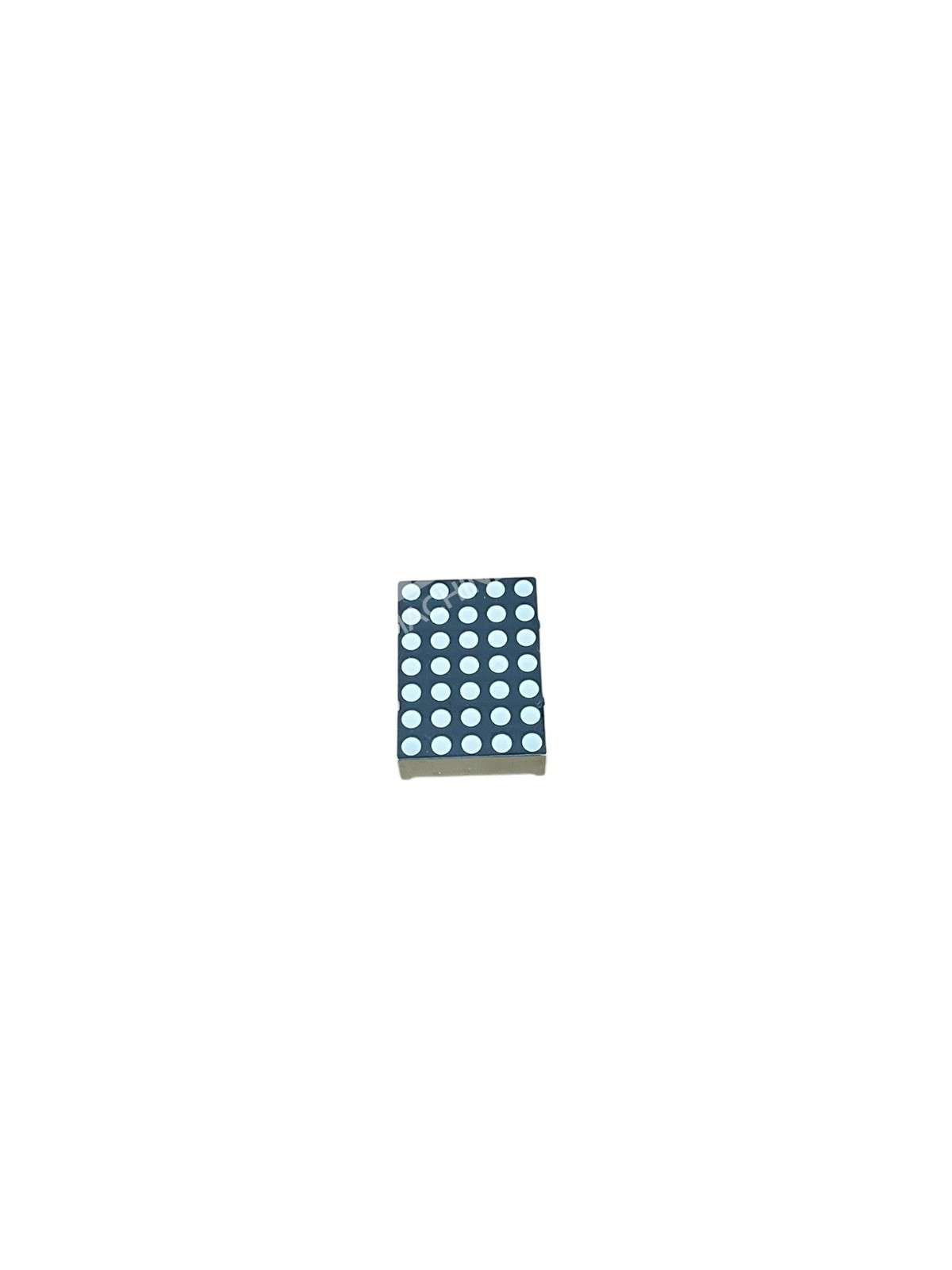

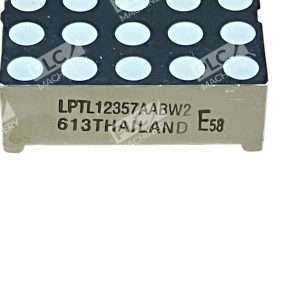

Lite-On LPTL12357AABW2 5×7 Dot Matrix LED Display Module
The Lite-On LPTL12357AABW2 is a high-performance 5×7 dot matrix LED display module designed for clear and efficient visual representation in various applications. This module features a common cathode row and common anode column configuration, facilitating straightforward integration into electronic systems.
Key Features
- Display Configuration: 5×7 dot matrix, suitable for alphanumeric and simple graphic displays.
- Color Options: Dual-color capability with Green and Orange-Red LEDs, offering versatile display possibilities.
- Forward Voltage: Typical forward voltages are 2.1V for Green and 2.0V for Orange-Red LEDs, ensuring energy-efficient operation.
- Luminous Intensity: Each LED provides a luminous intensity of 2 millicandelas (mcd), delivering clear and visible output.
- Compact Dimensions: The module measures 0.50″ (12.66mm) in length, 0.70″ (17.74mm) in width, and 0.25″ (6.30mm) in height, making it suitable for space-constrained applications.
- Internal Connection: Designed with a common cathode row and common anode column configuration, simplifying the driving circuitry.
Applications
The LPTL12357AABW2 is ideal for integration into:
- Industrial control systems
- Instrumentation panels
- Point-of-sale equipment
- Consumer electronics
- Automotive displays
Its dual-color display and compact size make it a versatile choice for applications requiring clear and reliable visual feedback.
Technical Specifications
- Display Type: Dot Matrix
- Matrix Configuration: 5×7
- LED Colors: Green and Orange-Red
- Forward Voltage (Typical): 2.1V (Green), 2.0V (Orange-Red)
- Luminous Intensity: 2mcd per LED
- Dimensions: 0.50″ L × 0.70″ W × 0.25″ H (12.66mm × 17.74mm × 6.30mm)
- Internal Connection: Common Cathode Row, Common Anode Column
The Lite-On LPTL12357AABW2 5×7 Dot Matrix LED Display Module combines efficient performance with a compact design, making it a suitable component for a wide range of electronic display applications.
