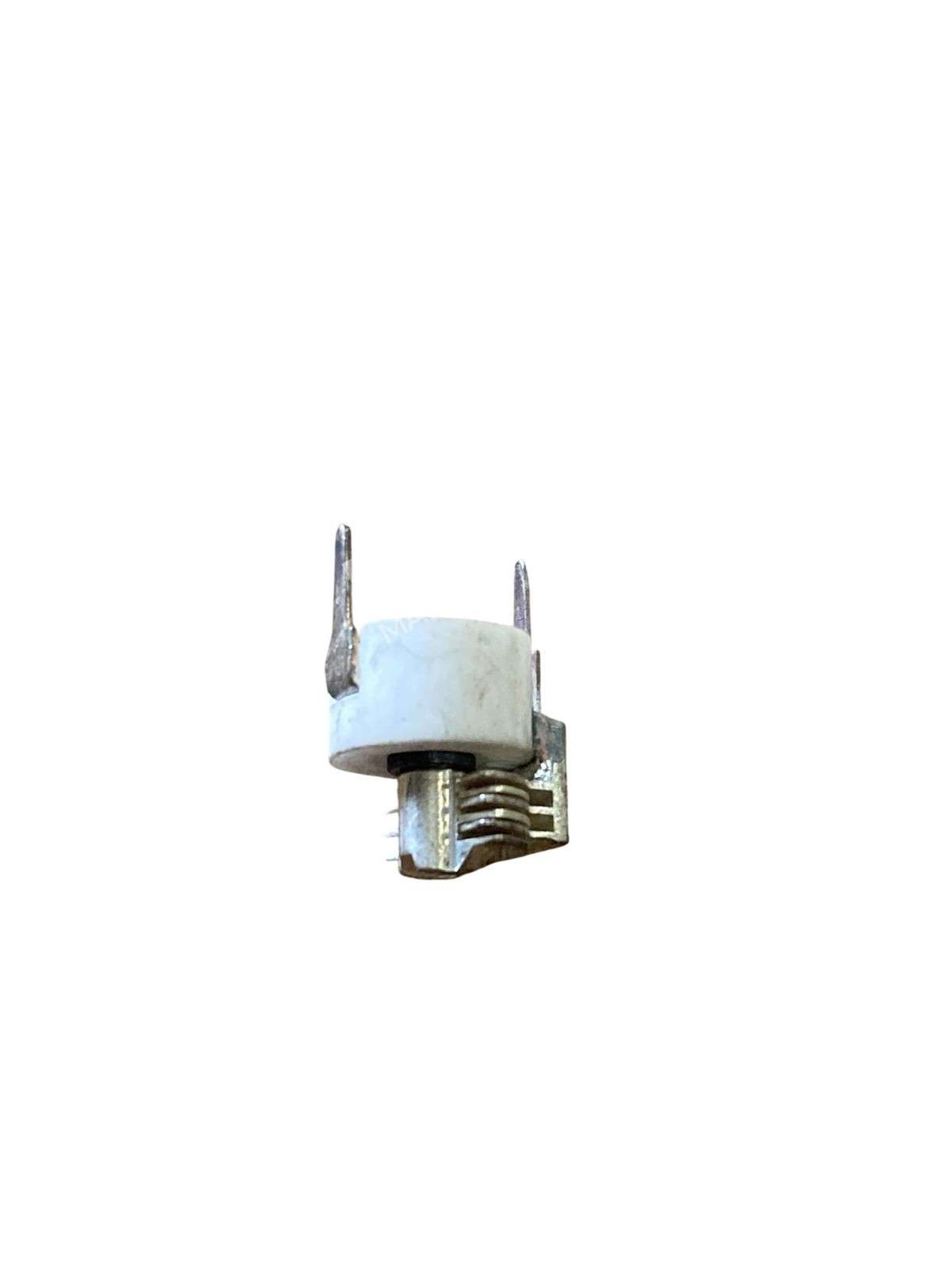

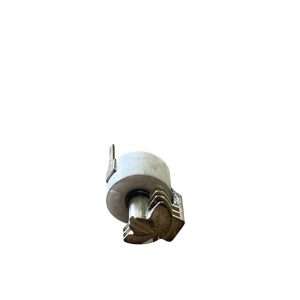

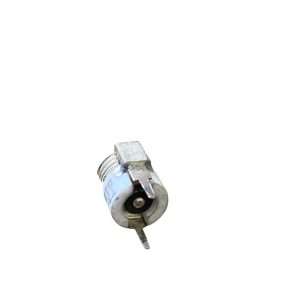

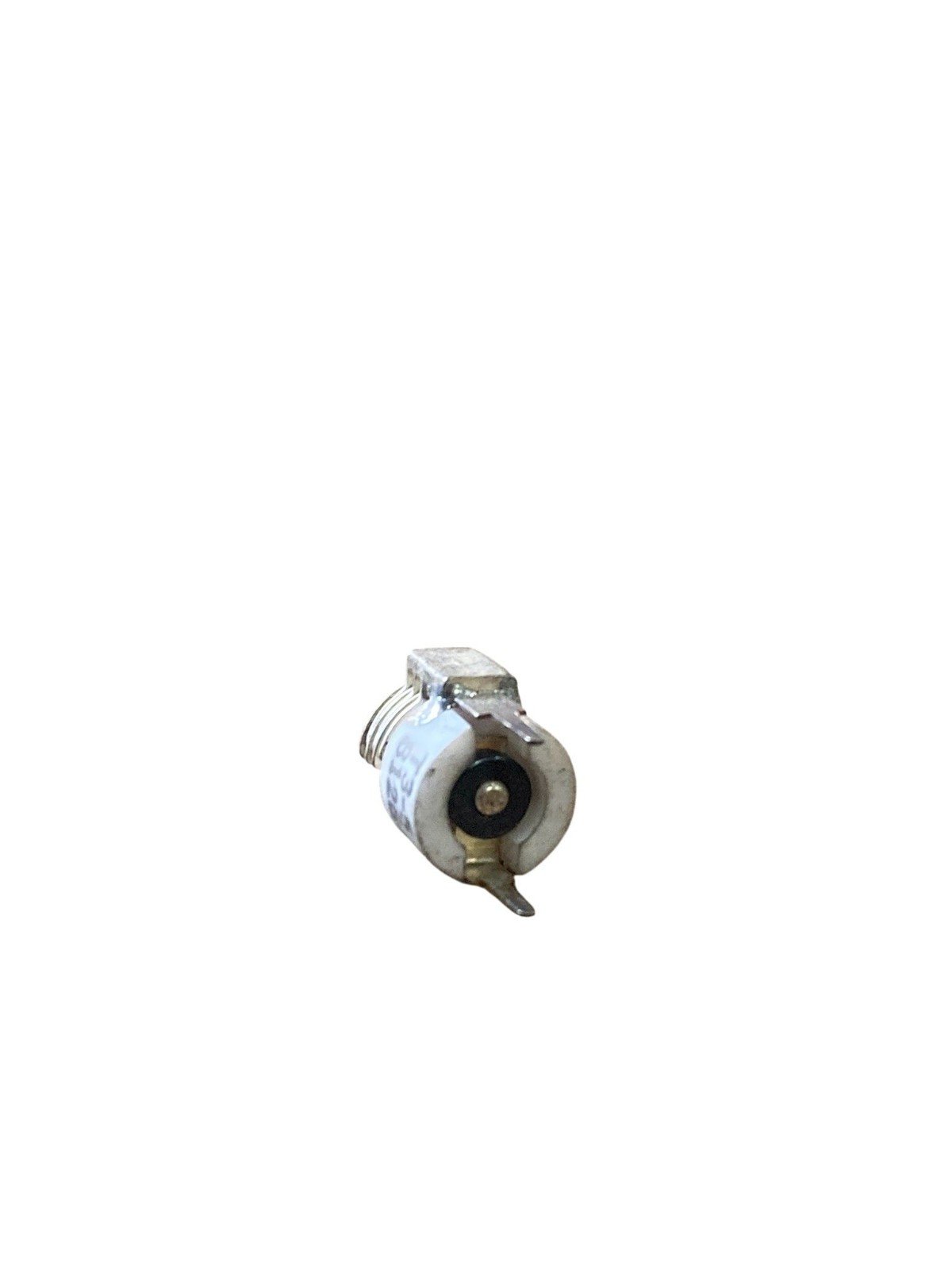

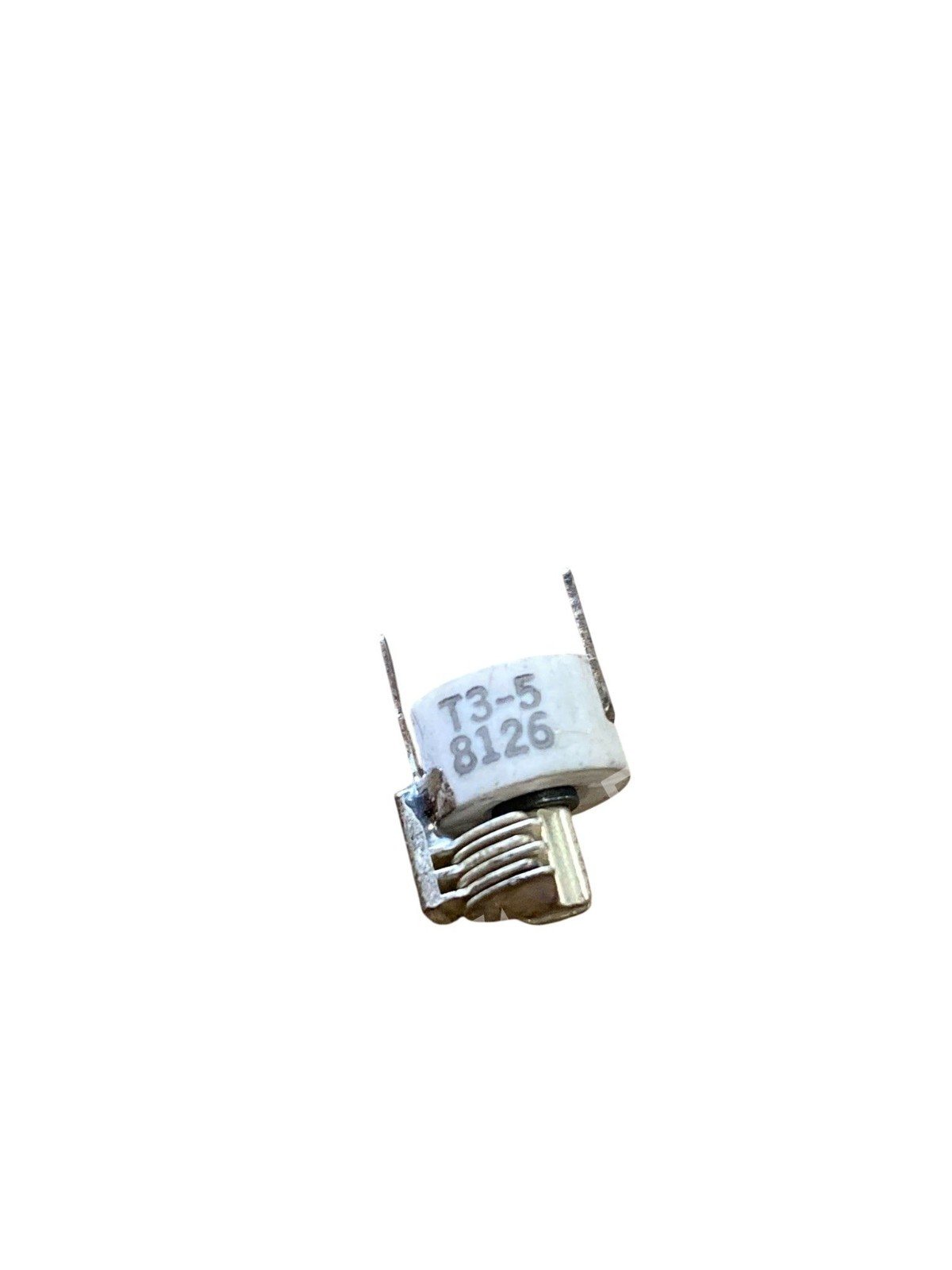

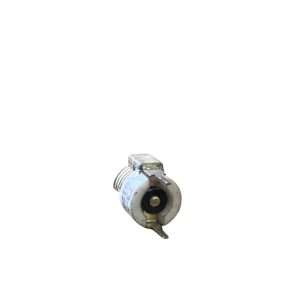

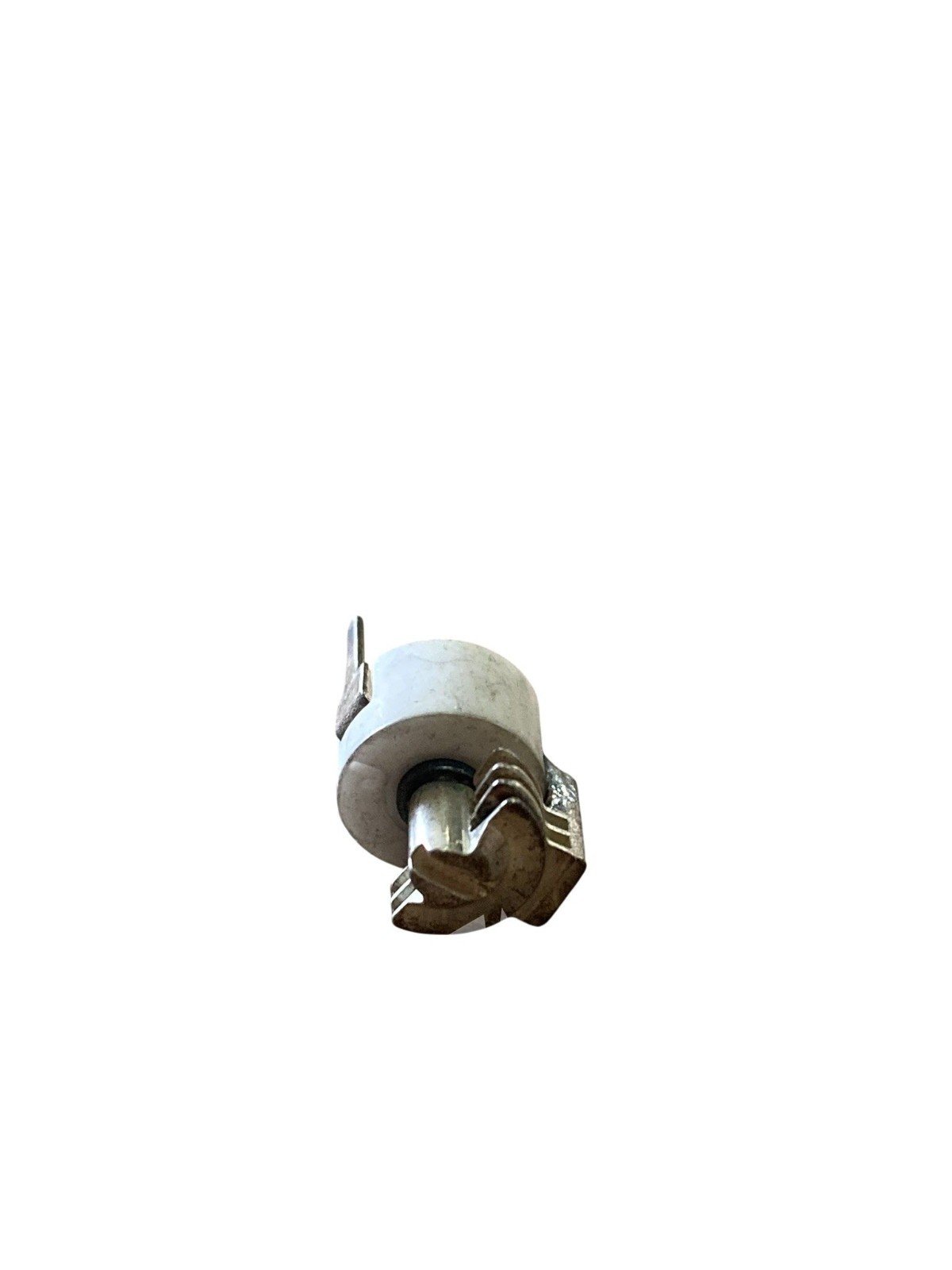

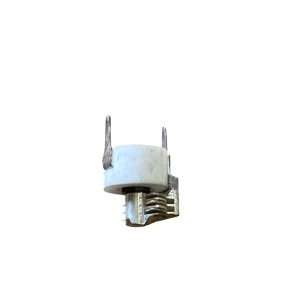

The Johanson T3-5 8126 Air Variable Capacitor is a precision-engineered component designed for high-frequency applications, offering exceptional performance and reliability.
Key Features
- Capacitance Range: 0.35 to 3.5 pF, allowing for fine-tuned adjustments in RF circuits.
- High Q Factor: Exceeds 10,000 at 100 MHz, ensuring minimal energy loss and superior efficiency.
- Voltage Rating: Operates safely up to 250 VDC, suitable for various electronic applications.
- Construction: Utilizes air as the dielectric medium, providing excellent temperature stability and low loss characteristics.
- Adjustment Mechanism: Features a multi-turn design for precise capacitance tuning.
Applications
Ideal for use in RF and microwave circuits, the T3-5 8126 is commonly employed in:
- Tuning and matching networks
- Oscillators
- Filters
- Antenna matching units
Installation and Handling
Designed for panel mounting, this capacitor ensures secure and stable integration into electronic assemblies. Its robust construction allows for reliable performance in demanding environments.
Quality Assurance
Manufactured by Johanson Manufacturing Corporation, a leader in precision electronic components, the T3-5 8126 Air Variable Capacitor meets stringent quality standards, ensuring consistent and dependable operation in critical applications.
