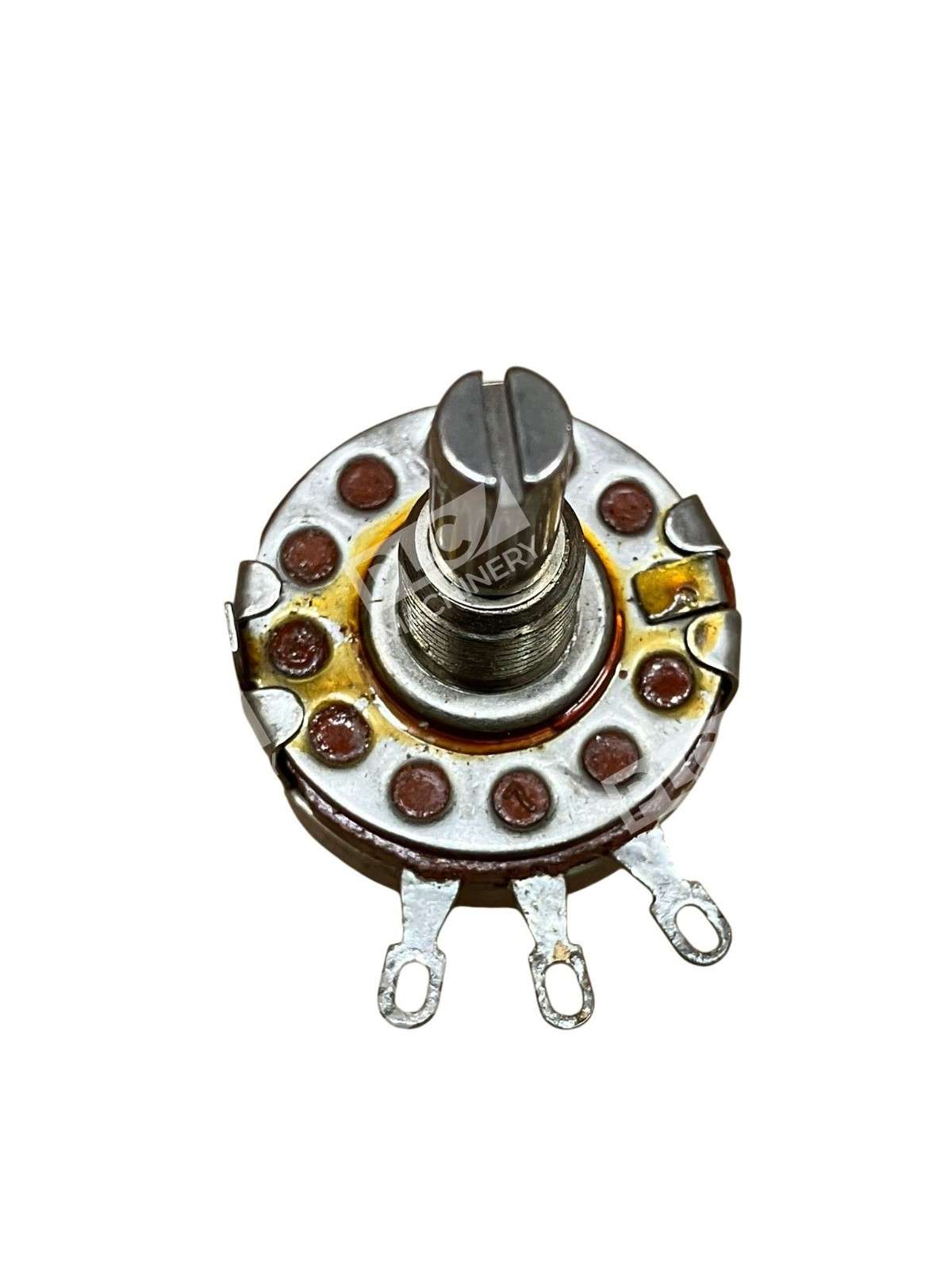

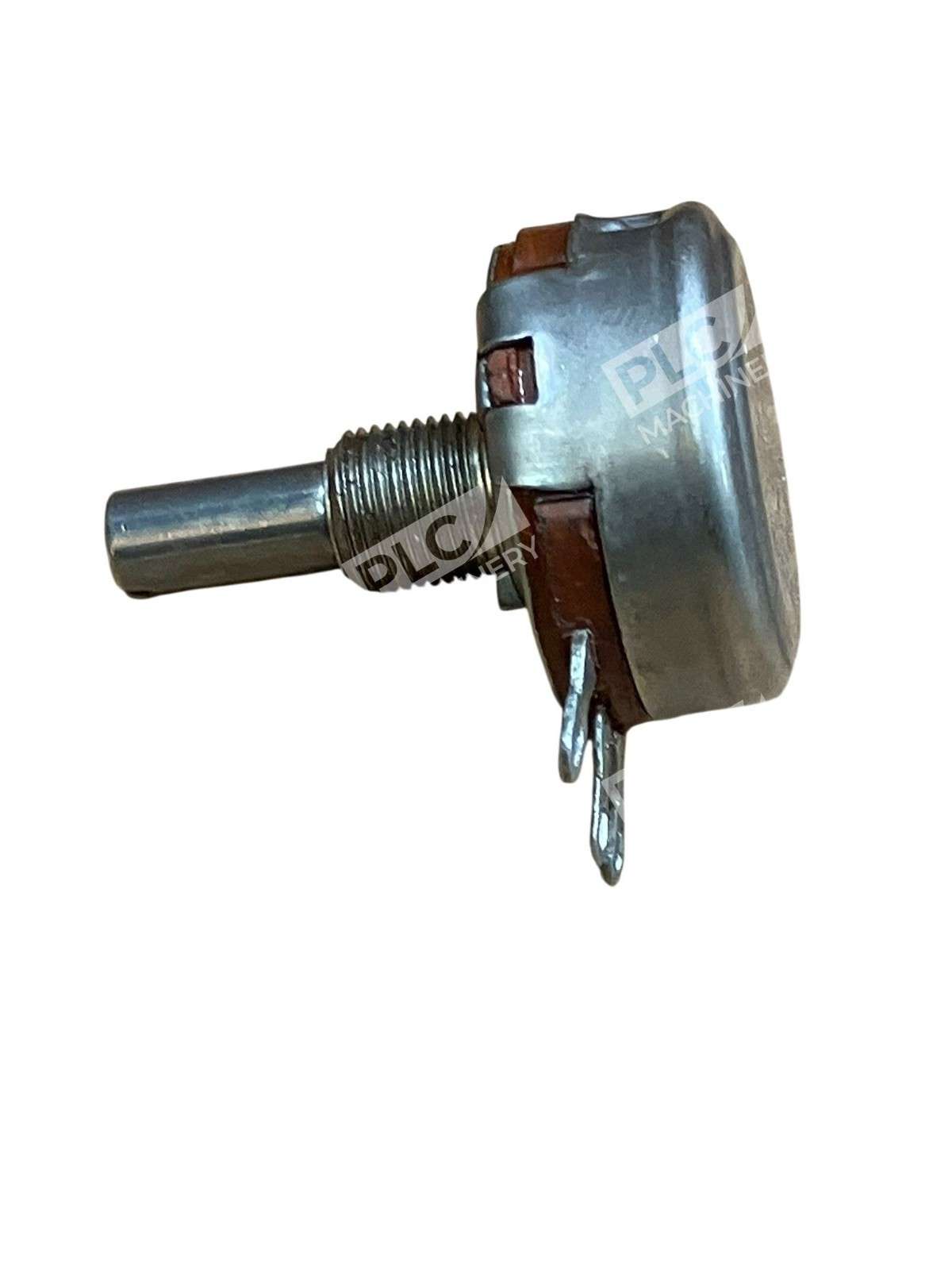

Allen-Bradley JA1N056S504UA / RV4NAYSD504A Type J Potentiometer 500K? 2W ±10% The Allen-Bradley JA1N056S504UA, also known as the RV4NAYSD504A, is a high-quality Type J potentiometer designed for precise control in various electronic applications. This single-turn, linear potentiometer offers a resistance of 500k? with a power rating of 2 watts and a tolerance of ±10%. Key Features Resistance Value: 500k? Power Rating: 2W Tolerance: ±10% Electrical Taper: Linear Number of Turns: 1 Termination Style: Solder Lug Actuator Type: Slotted Shaft Actuator Length: 0.875″ (22.23mm) Actuator Diameter: 0.249″ (6.32mm) Bushing Thread: 3/8-32 Mounting Type: Panel Mount Body Size: Round – 1.120″ Dia (28.45mm) Operating Temperature Range: -55°C to 120°C (-67°F to 248°F) Rotational Life: 25,000 cycles Mechanical Rotation: 312° ± 3° Applications This potentiometer is suitable for a wide range of applications, including: Industrial control systems Audio equipment Instrumentation Medical devices Telecommunications Its robust design and precise control make it an ideal choice for environments requiring reliable and accurate resistance adjustment. Additional Information The JA1N056S504UA / RV4NAYSD504A potentiometer features a conductive plastic element, ensuring smooth operation and longevity. The panel mount design, combined with solder lug terminals, facilitates easy installation and secure connections. The slotted shaft allows for straightforward manual adjustments, making it user-friendly in various settings. With its combination of high resistance value, power rating, and durability, this potentiometer is a versatile component suitable for both commercial and industrial applications.
