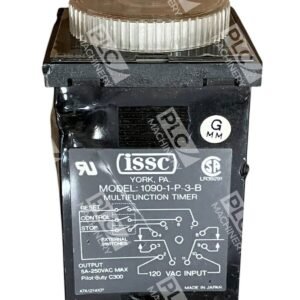

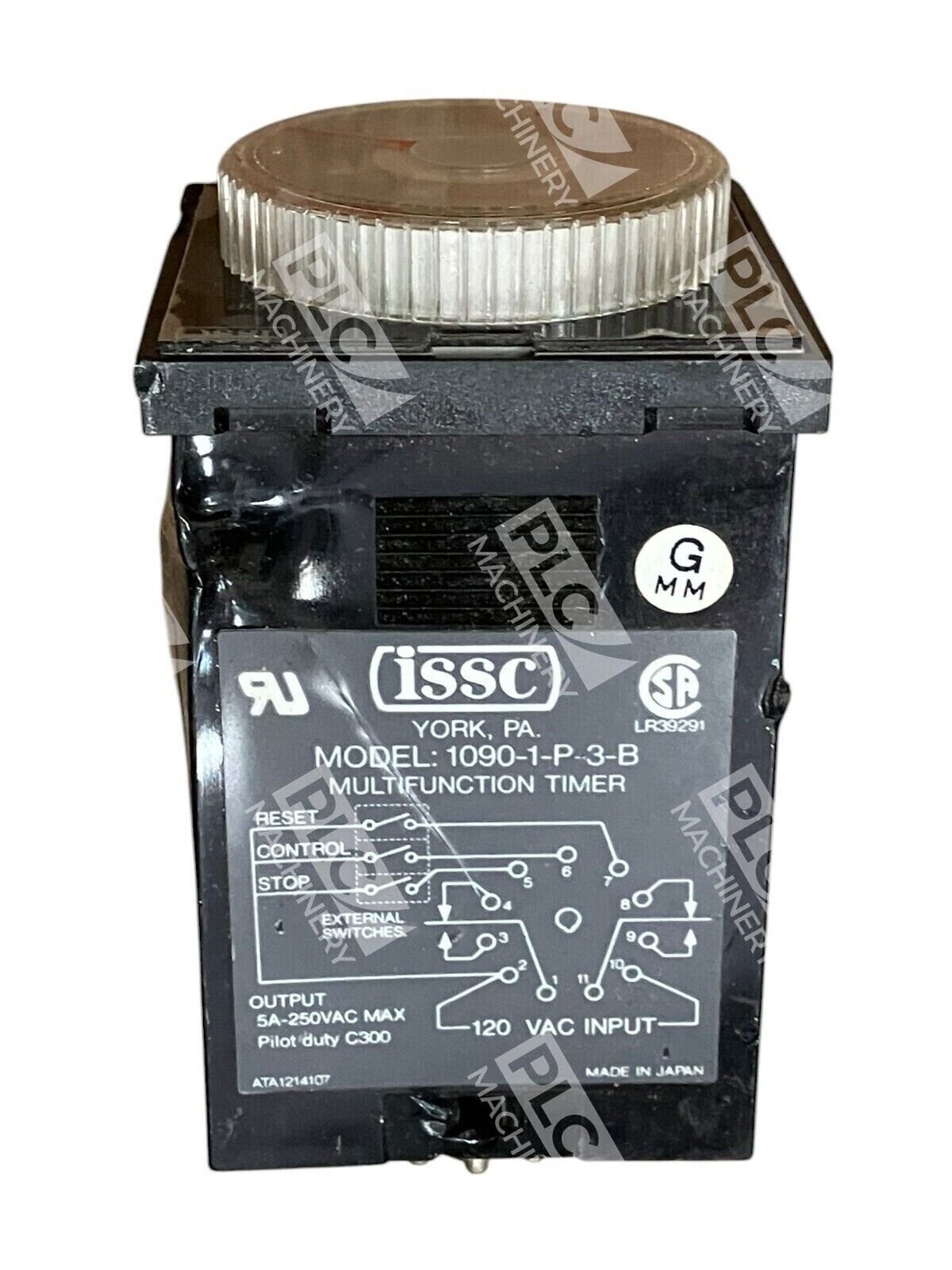

ISSC Multifunction Timer 1090-1-P-3-B

ISSC Multifunction Timer 1090-1-P-3-B

The ISSC Multifunction Timer 1090-1-P-3-B is a versatile and reliable timing device designed for a wide range of industrial applications. Its robust features and programmable functions make it an essential component in automation and control systems.

Key Features

• Programmable Timing Functions: Offers eight selectable modes, including On Delay, Off Delay, Repeat Cycle (Off Start and On Start), Pulse One-shot, One-shot On/Off, One-shot Off/On, and One Cycle Maintained Interval.
• Wide Timing Range: Provides 16 programmable time ranges from 0.1 seconds to 500 hours, accommodating various operational requirements.
• High Accuracy: Ensures repeat accuracy of ±0.3% of the set time, delivering consistent performance.
• Flexible Input Voltage: Compatible with multiple input voltages: 100-240 VAC, 24 VAC/DC, and 12 VDC, offering adaptability to different power systems.
• Durable Output Relay: Equipped with an electromechanical relay rated at 5A @ 240VAC (resistive), with a mechanical life of 20 million operations and an electrical life of at least 100,000 operations at full load.
• User-Friendly Interface: Features an auto-calibrating dial for direct time setting and LED indicators for power and contact status, enhancing ease of use.

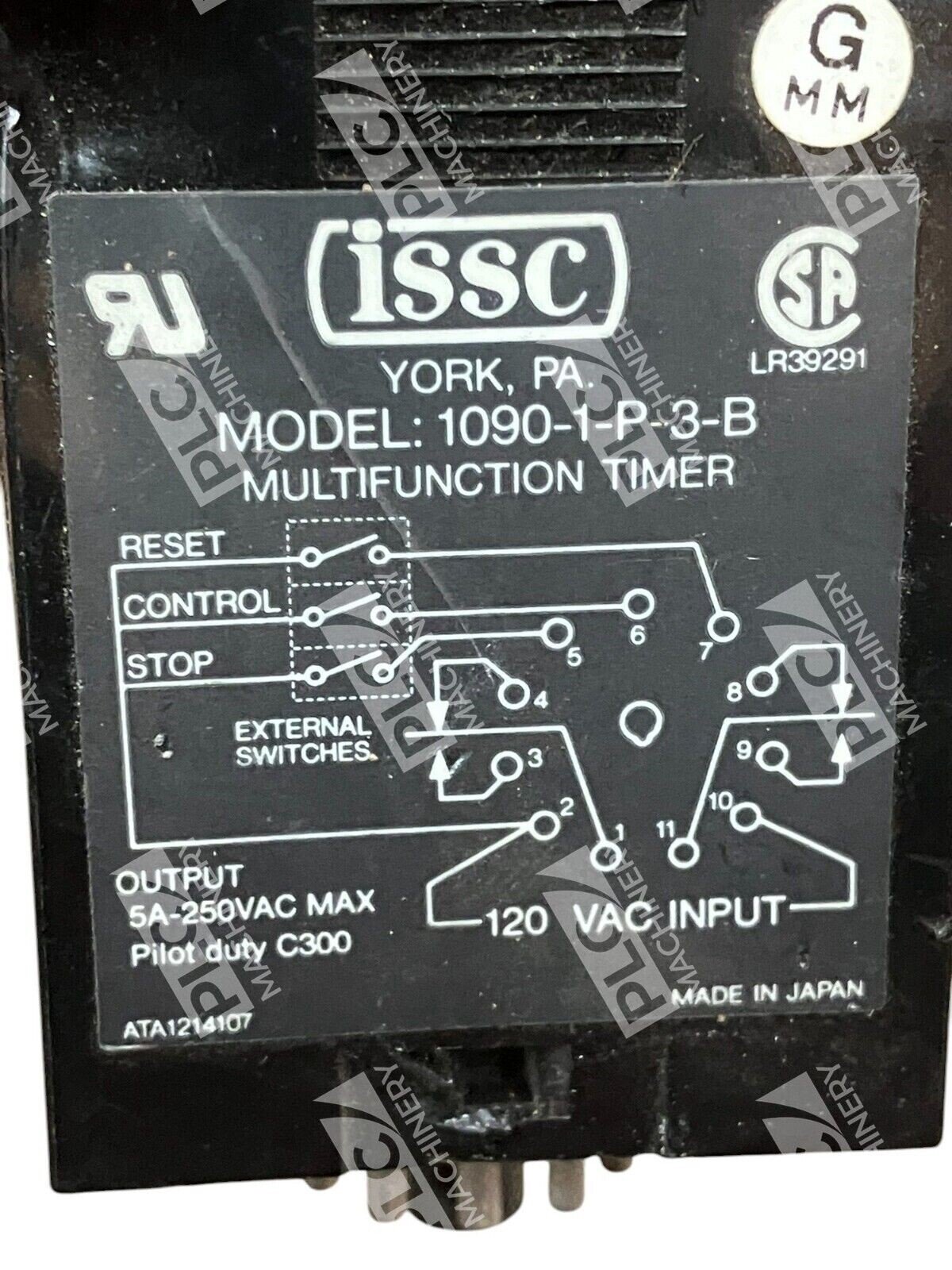

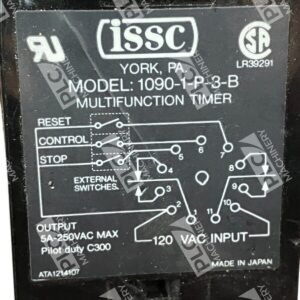

• Versatile Mounting Options: Supports both plug-in and panel mount configurations, with termination via an 11-pin socket or screw terminals, facilitating flexible installation.
• Robust Construction: Housed in a durable polycarbonate casing with an IP50 protection rating, ensuring reliability in various industrial environments.

Specifications

• Input Voltage: 100-240 VAC, 24 VAC/DC, 12 VDC
• Frequency: 50/60 Hz (AC models)
• Power Consumption: 10VA (100-240 VAC), 2.5VA (24 VAC), 2W (12 VDC & 24 VDC)
• Transient Protection: MOV
• Output Type: Electromechanical relay
• Mechanical Life: 20,000,000 operations
• Electrical Life: 100,000 operations minimum (at full rated load)
• Operating Temperature: -10° to 50° C (14° to 122°F)
• Timing Variation vs. Temperature: ±2% maximum
• Degree of Protection: IP50 standard

The ISSC Multifunction Timer 1090-1-P-3-B stands out as a dependable and adaptable solution for precise timing control in industrial automation, ensuring optimal performance and efficiency in various applications.
