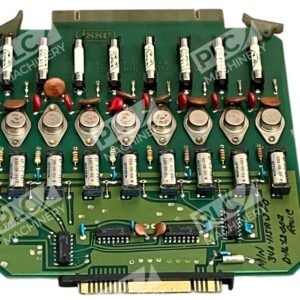

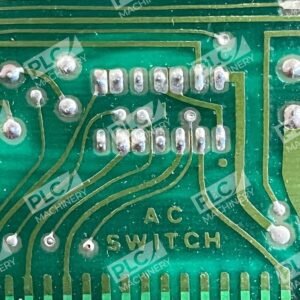

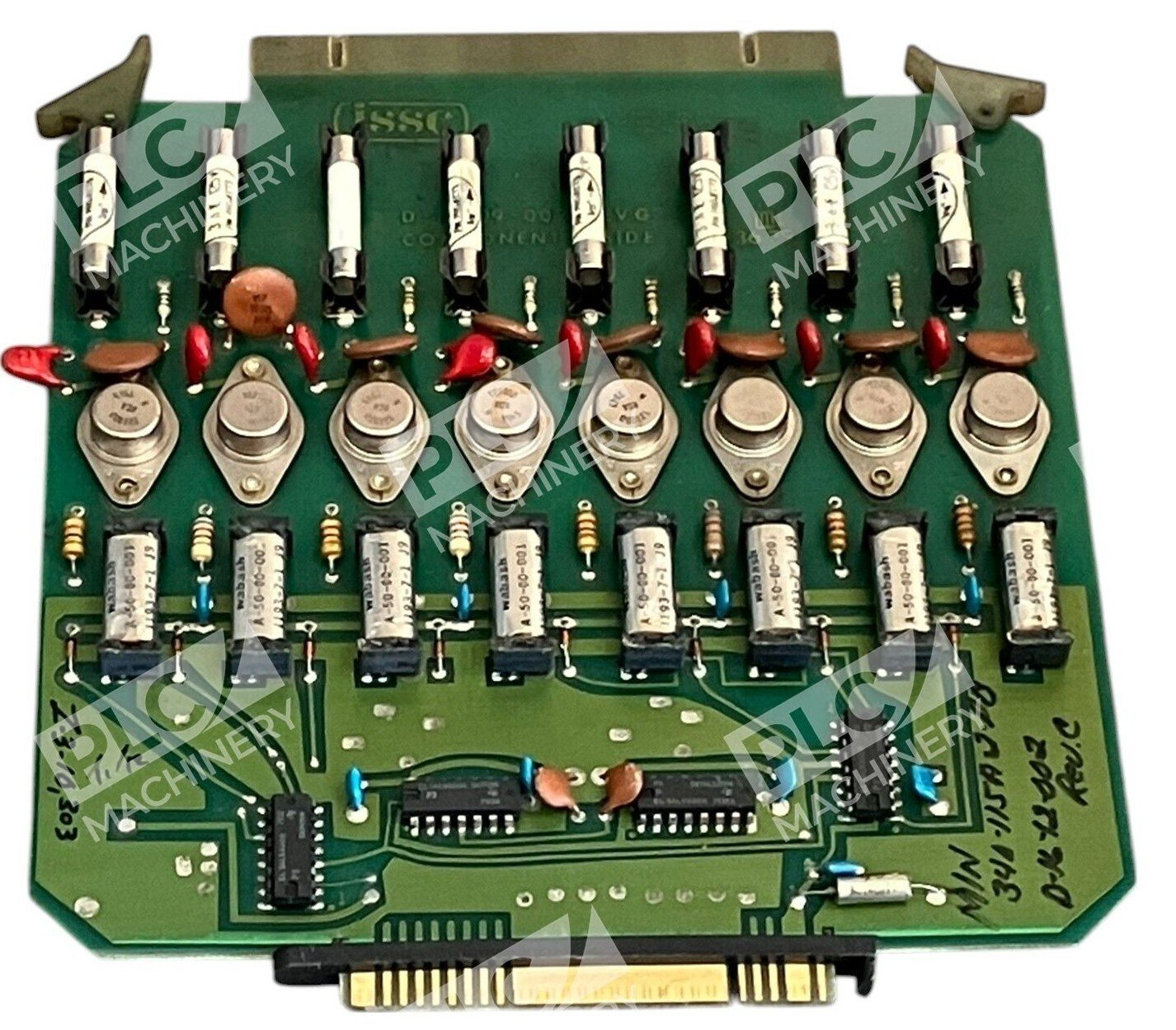

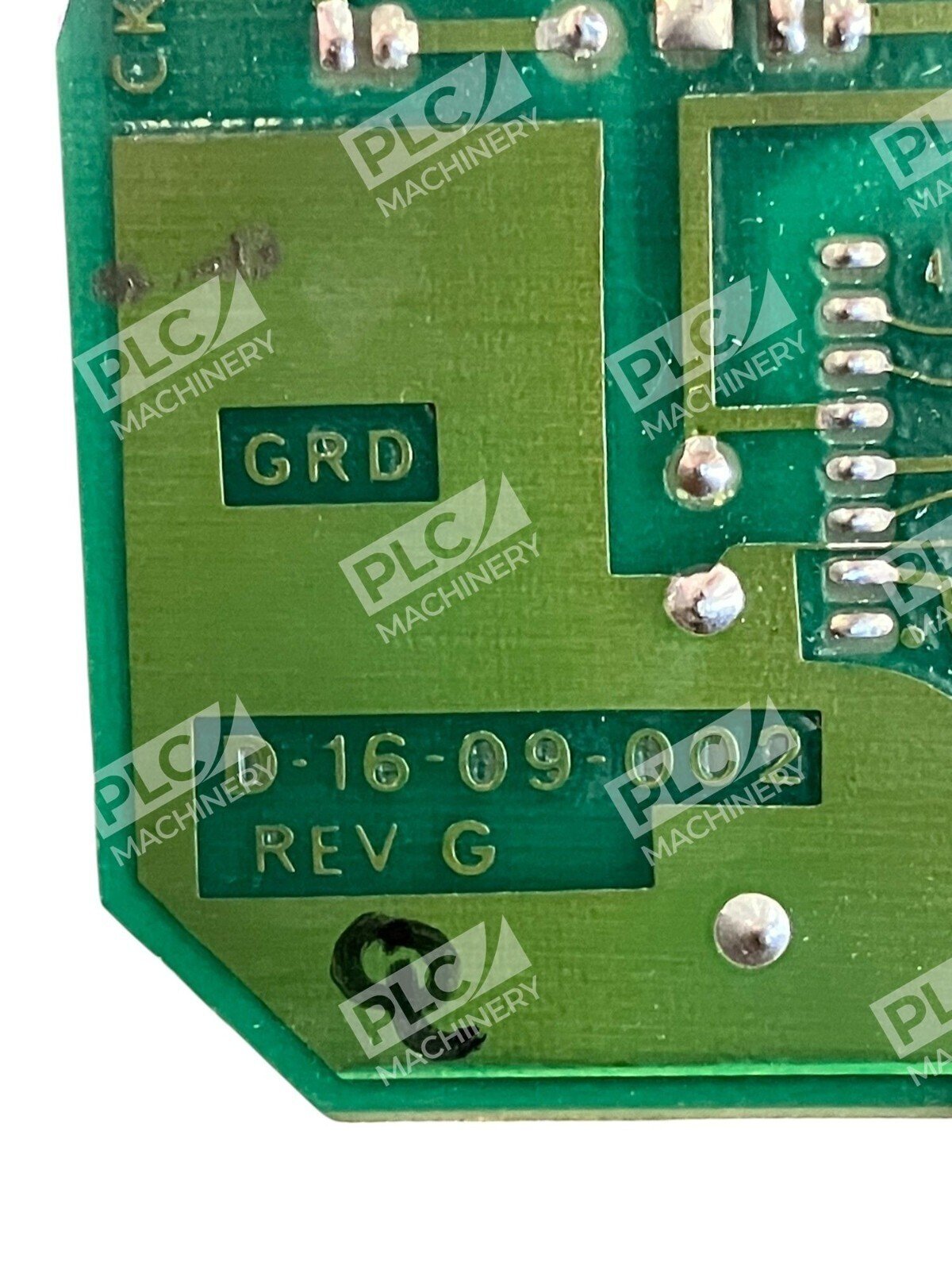

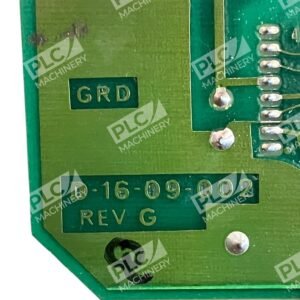

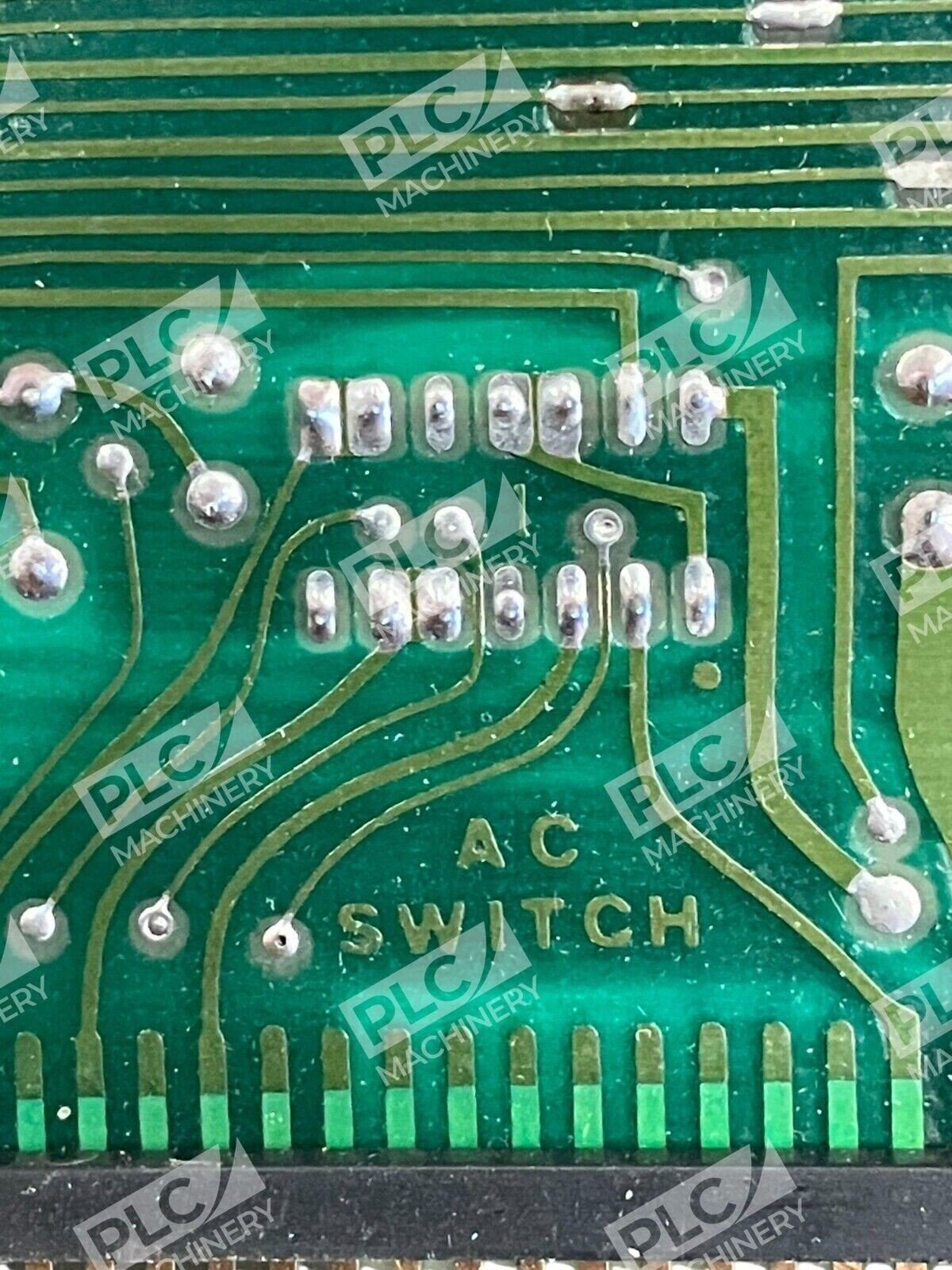

ISSC GRD AC Switch PC Output Relay Board D-16-09-002 Rev G

ISSC GRD AC Switch PC Output Relay Board D-16-09-002 Rev G

The ISSC GRD AC Switch PC Output Relay Board D-16-09-002 Rev G is a specialized component designed for industrial automation and control systems. This relay board facilitates the management of AC switching operations, providing reliable and efficient control over various electrical devices.

Key Features

• Form C Relays: Equipped with SPDT (Single Pole Double Throw) relays, allowing for versatile switching capabilities.
• High Voltage Handling: Capable of managing input voltages up to 24 VDC or 24 VAC, ensuring compatibility with a wide range of industrial applications.
• Robust Load Capacity: Supports a nominal load of 0.5 A at 120 VAC and 1 A at 24 VDC, with a maximum switching power of 60 VA or 24 W.
• Durability: Designed for longevity with a mechanical life expectancy of 2 million operations and an electrical life expectancy of 100,000 operations.
• Efficient Control Logic: Operates with a control logic where a TTL high (+5V) signal activates the relay, ensuring straightforward integration into existing systems.

Applications

This relay board is ideal for various industrial applications, including:

• On/Off control of machinery and equipment
• Energy management systems
• Test automation setups
• Process control operations

Technical Specifications

• Relay Type: SPDT (Form C)
• Input Voltage: 24 VDC or 24 VAC
• Nominal Load: 0.5 A at 120 VAC; 1 A at 24 VDC
• Maximum Switching Power: 60 VA, 24 W
• Maximum Switching Voltage: 120 VAC, 60 VDC
• Maximum Switching Current: 1 A
• Mechanical Life Expectancy: 2 million operations
• Electrical Life Expectancy: 100,000 operations
• Operate Time: 6 ms
• Control Logic: TTL high (+5V) activates relay
• Power Consumption: +12V @ 528mA max; +5V @ 150mA max
• Dimensions: 205 mm x 114 mm
• Operating Temperature: 0 – 60°C
• Storage Temperature: -20 – 70°C
• Humidity: 5% to 90% non-condensing

The ISSC GRD AC Switch PC Output Relay Board D-16-09-002 Rev G stands as a reliable solution for managing AC switching tasks in industrial environments, offering durability and compatibility with various control systems.
