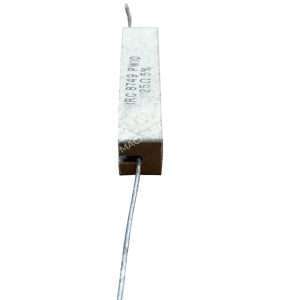

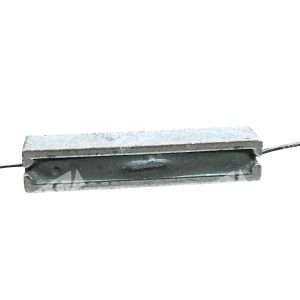

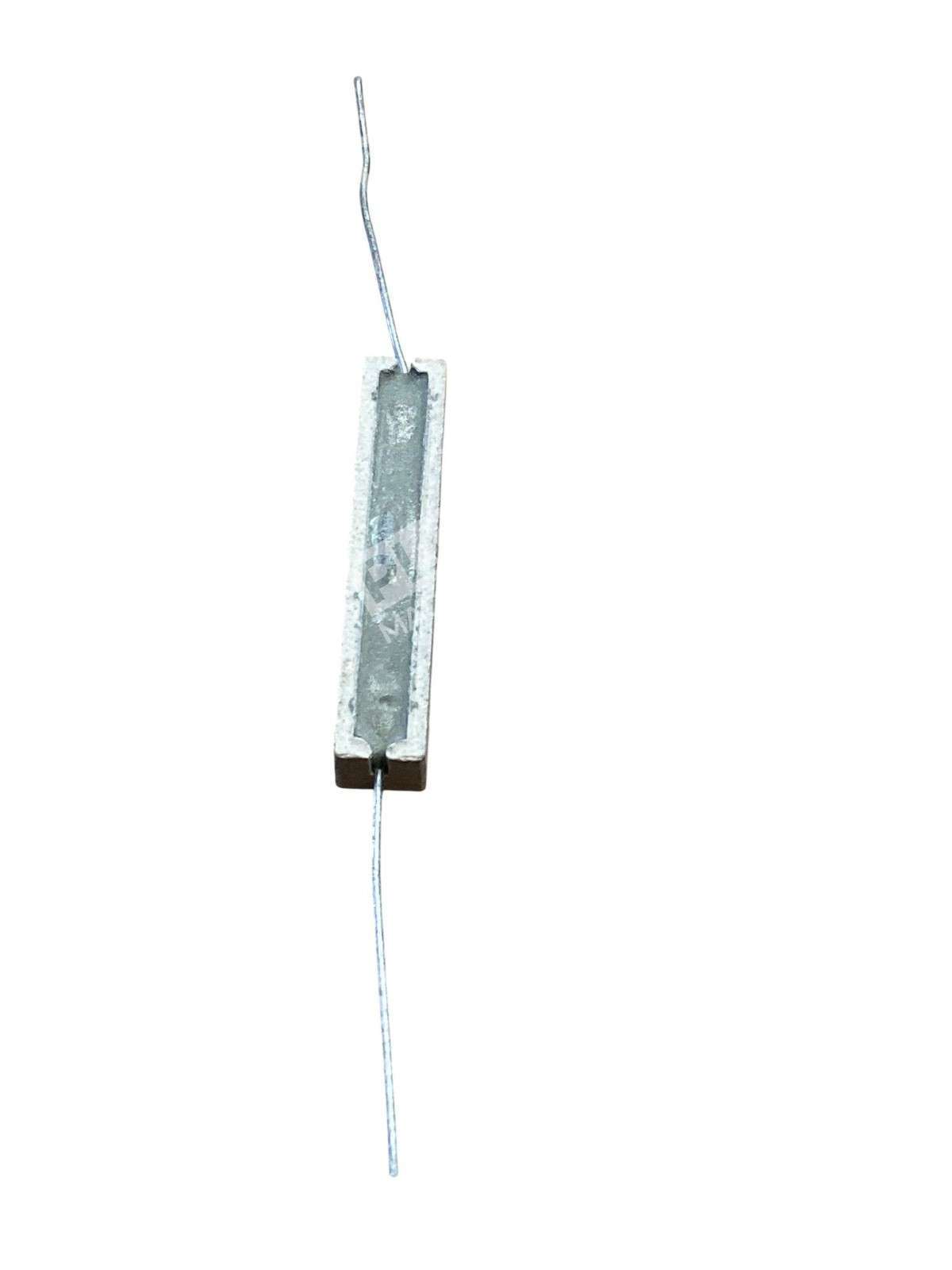

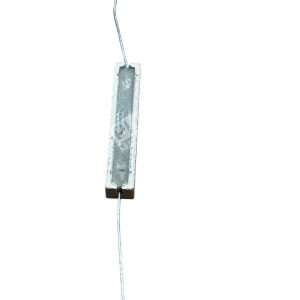

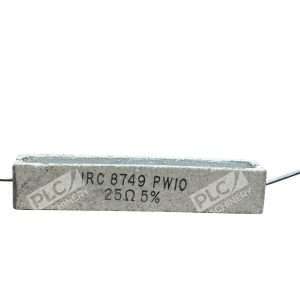

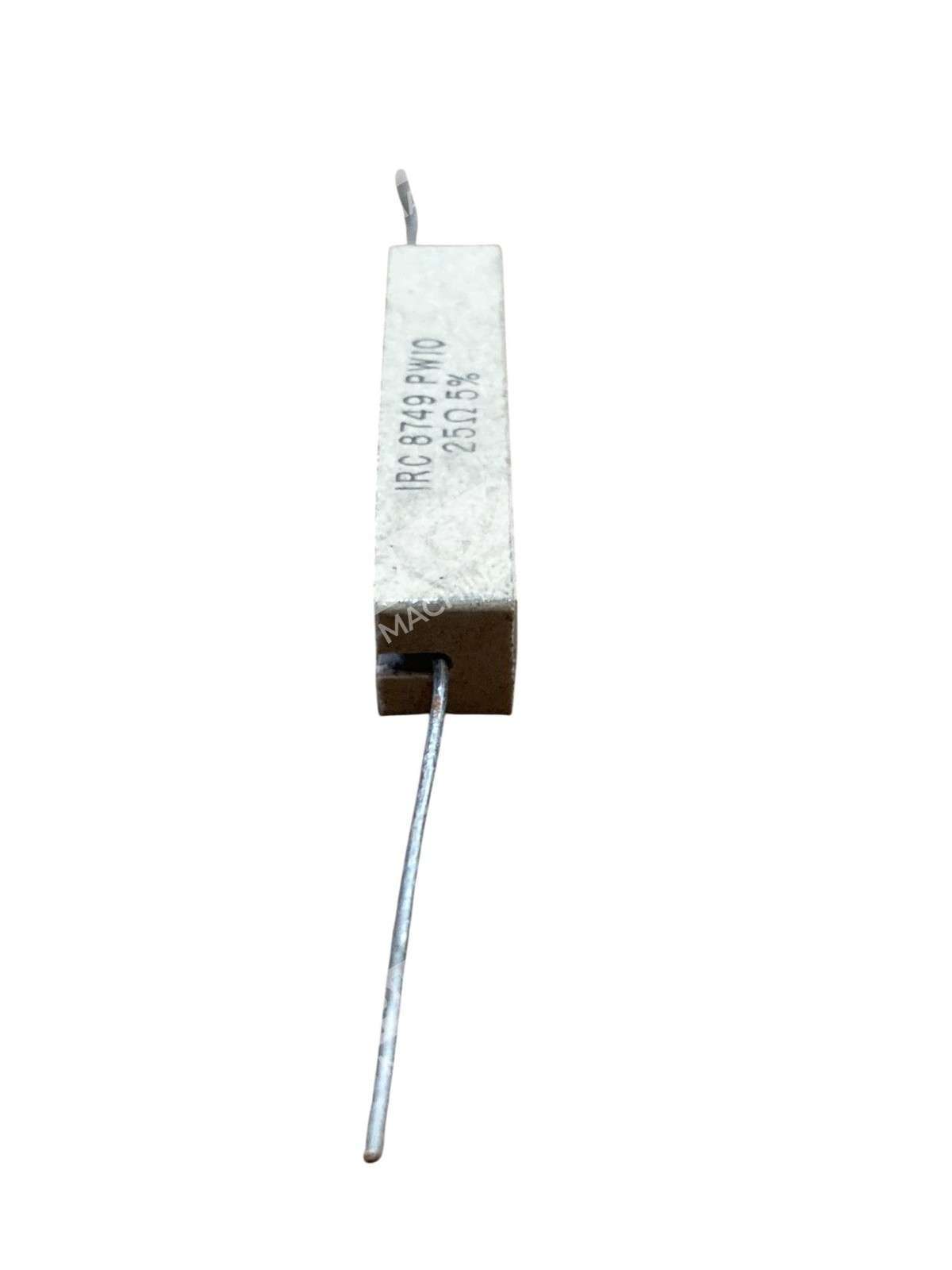

IRC 8749 PW10 25Ω 10W Wirewound Ceramic Cement Power Resistor 5%
The IRC 8749 PW10 is a high-quality wirewound ceramic cement power resistor designed for applications requiring precise resistance and robust performance. With a resistance value of 25 ohms and a power rating of 10 watts, this resistor is suitable for various high-power electronic circuits.
Key Features
- Resistance Value: 25Ω
- Power Rating: 10W
- Tolerance: ±5%
- Construction: Wirewound
- Encapsulation: Ceramic cement casing
- Mounting: Axial leads for through-hole installation
Specifications
- Temperature Coefficient: 300ppm/°C
- Operating Temperature Range: -55°C to +155°C
- Maximum Working Voltage: 500V
- Maximum Overload Voltage: 1000V
- Rated Ambient Temperature: 70°C
Applications
This resistor is ideal for use in power supplies, amplifiers, and other high-power electronic devices where stable resistance and heat dissipation are critical.
Compliance
The IRC 8749 PW10 resistor complies with RoHS standards, ensuring it is free from hazardous substances and suitable for environmentally conscious applications.
For detailed dimensions and additional technical information, please refer to the product datasheet.
