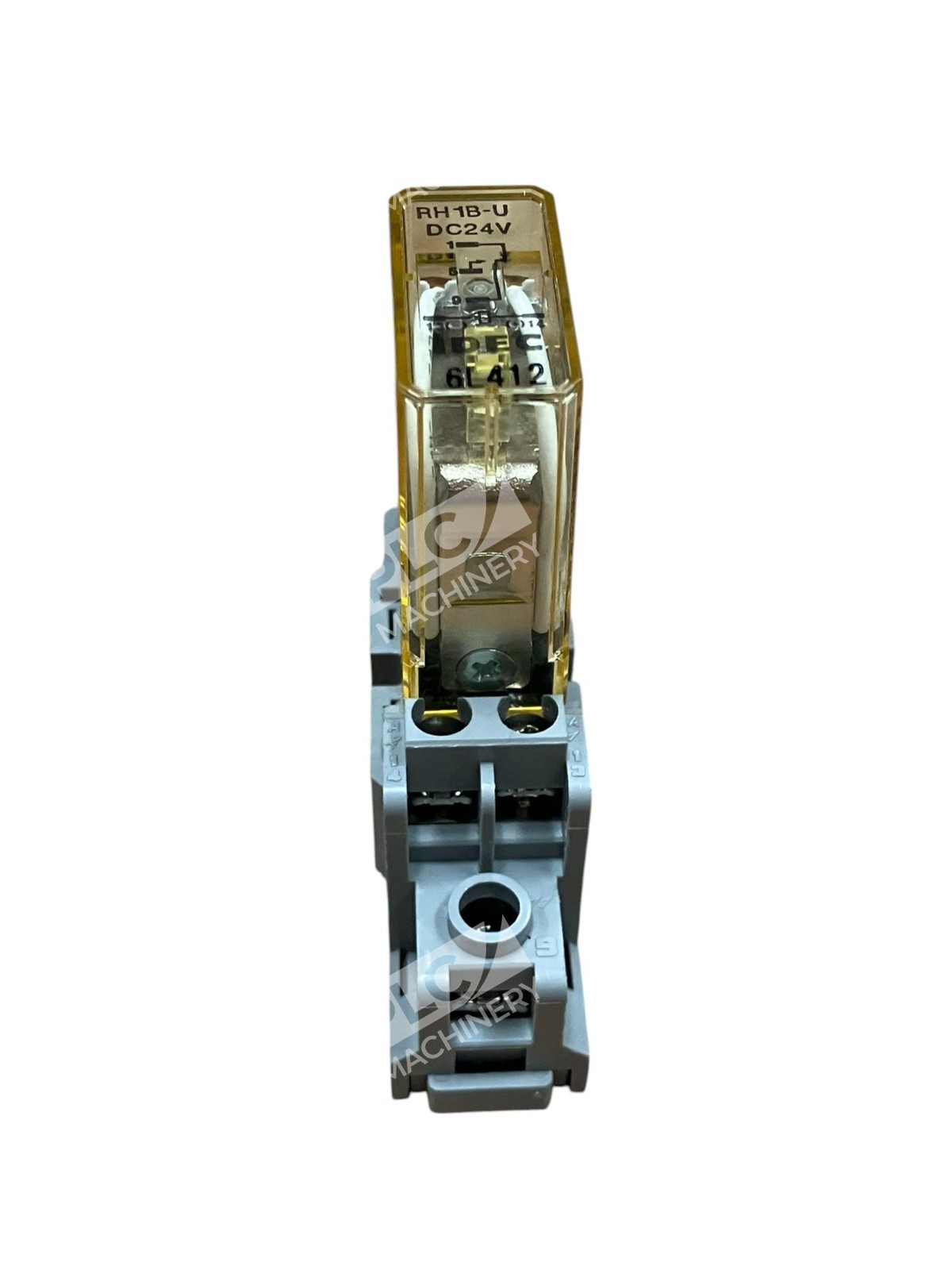

IDEC DC24V 10A 300V SH1B-05C Base with RH1B-U Relay
The IDEC SH1B-05C Base paired with the RH1B-U Relay offers a reliable and efficient solution for various industrial applications requiring high switching capacity and secure connections.
Key Features
- High Switching Capacity: Supports up to 10A, ensuring robust performance in demanding environments.

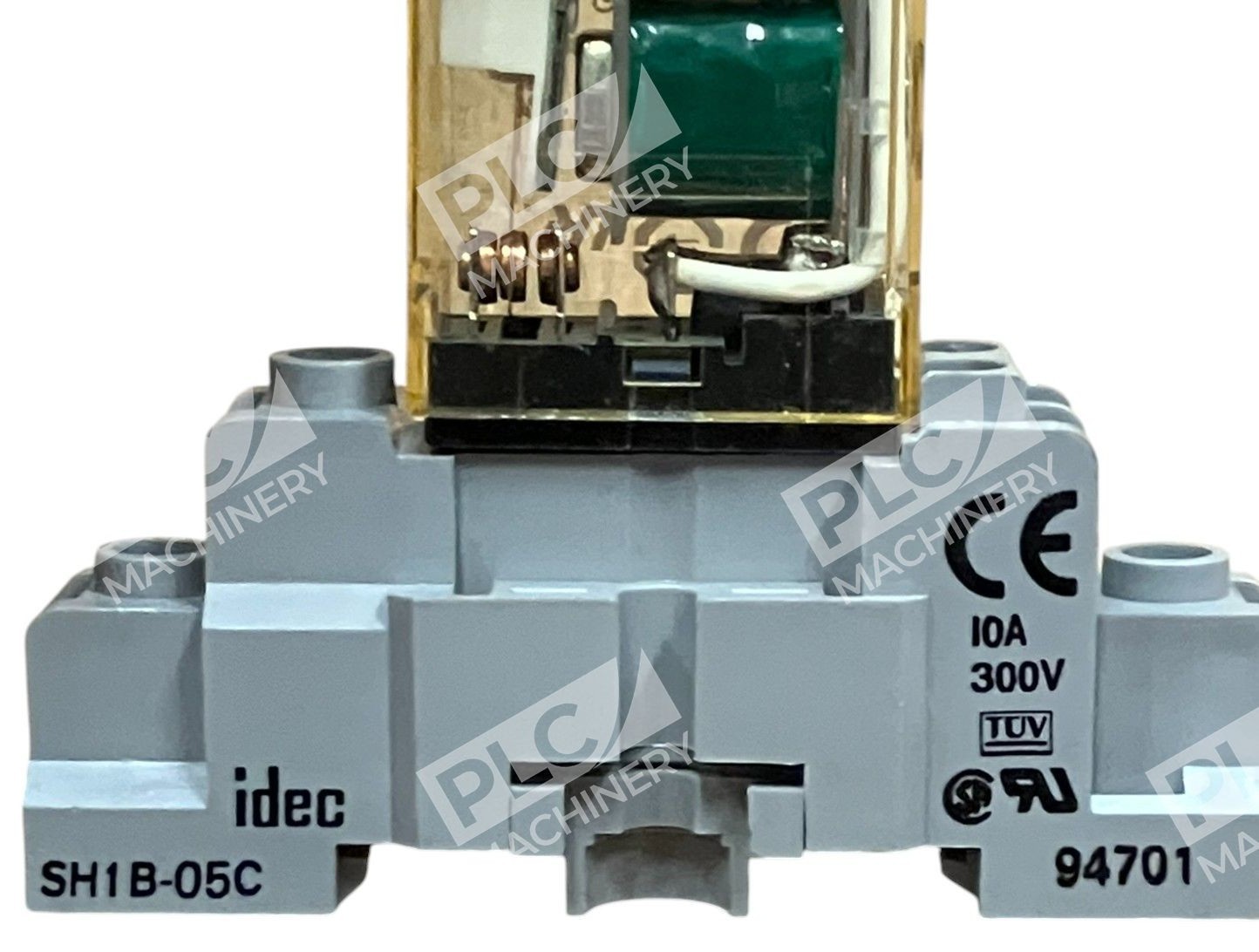

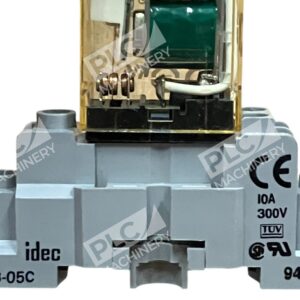

- Compact Design: The midget size of the SH1B-05C base saves space, making it suitable for installations with limited room.
- Finger-Safe Construction: Designed with safety in mind, the SH1B-05C base features a finger-safe design to prevent accidental contact.
- Versatile Mounting Options: Compatible with DIN rail mounting, facilitating easy and secure installation.

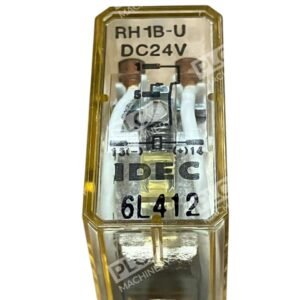

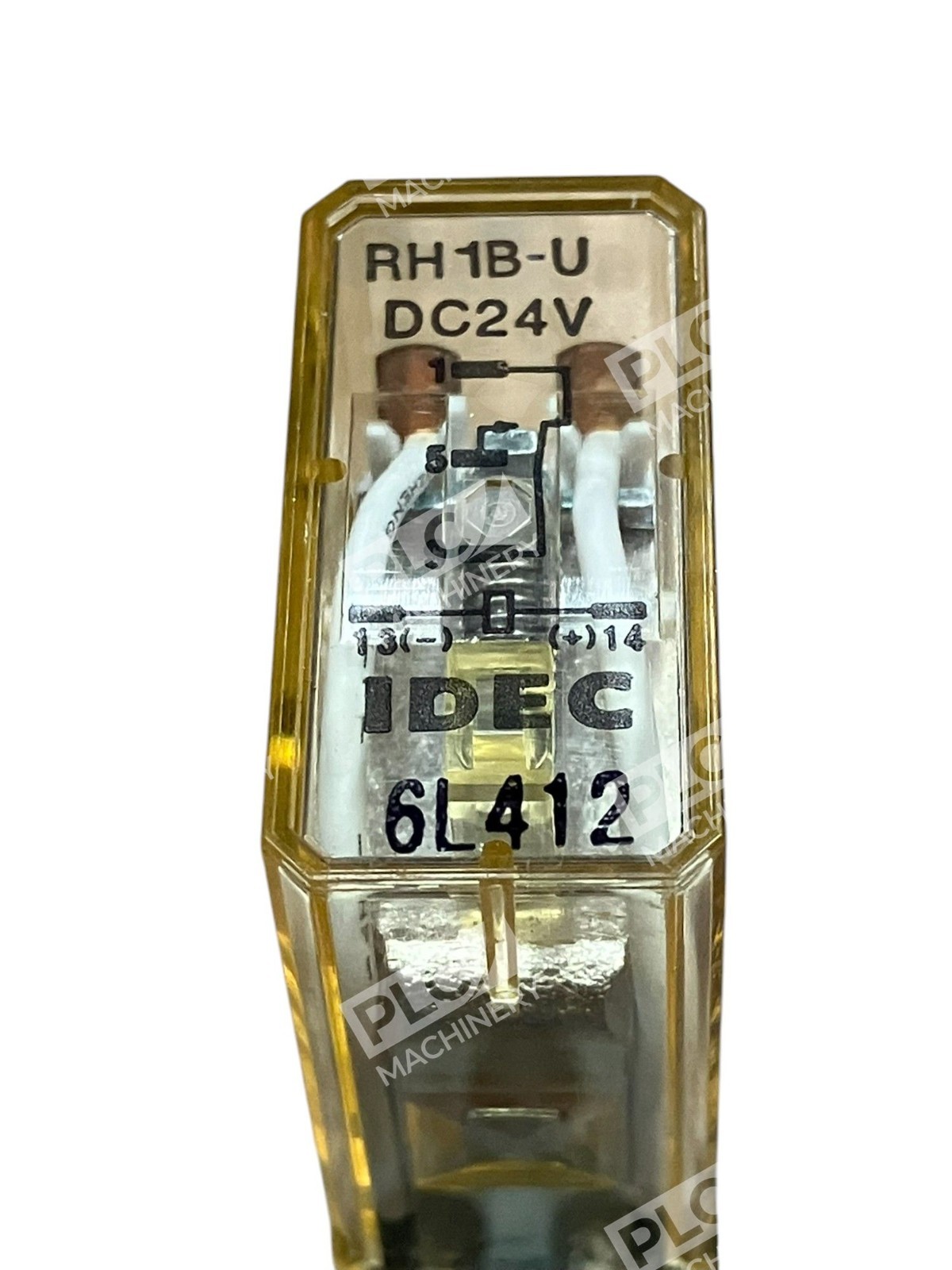

- Reliable Relay Performance: The RH1B-U relay offers Single Pole Double Throw (SPDT) contacts with a 24V DC coil voltage, ensuring dependable operation.
Technical Specifications
| Component | Specification |
|---|---|
| Base Model | SH1B-05C |
| Relay Model | RH1B-U |
| Coil Voltage | 24V DC |
| Contact Configuration | SPDT |
| Current Rating | 10A |
| Voltage Rating | 250V AC |
| Number of Pins | 5 |
| Mounting Type | DIN Rail |
| Terminal Type | Screw |
| Dimensions | 64 mm H x 30 mm W x 35.5 mm D |
| Operating Temperature | -25 to 50°C |
Applications
This combination is ideal for use in control panels, automation systems, and other industrial settings where reliable relay operation and secure mounting are essential.
Compliance and Safety
The SH1B-05C base and RH1B-U relay comply with industry standards, ensuring safety and reliability in various applications.
For more detailed information or specific application guidance, please refer to the manufacturer’s documentation or contact a qualified professional.
