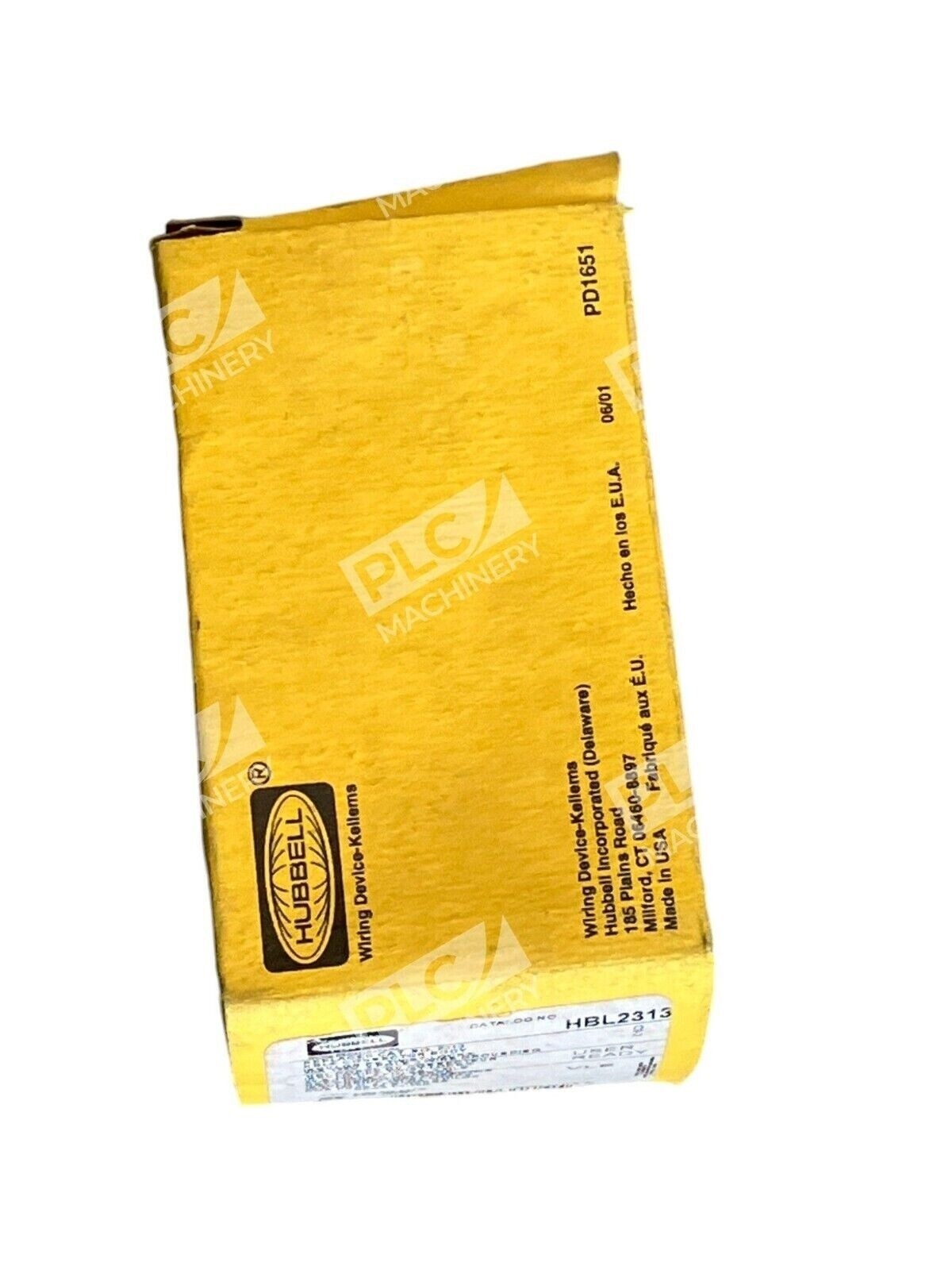

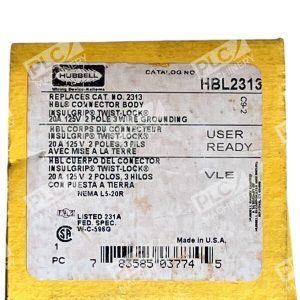

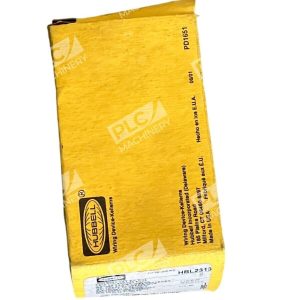

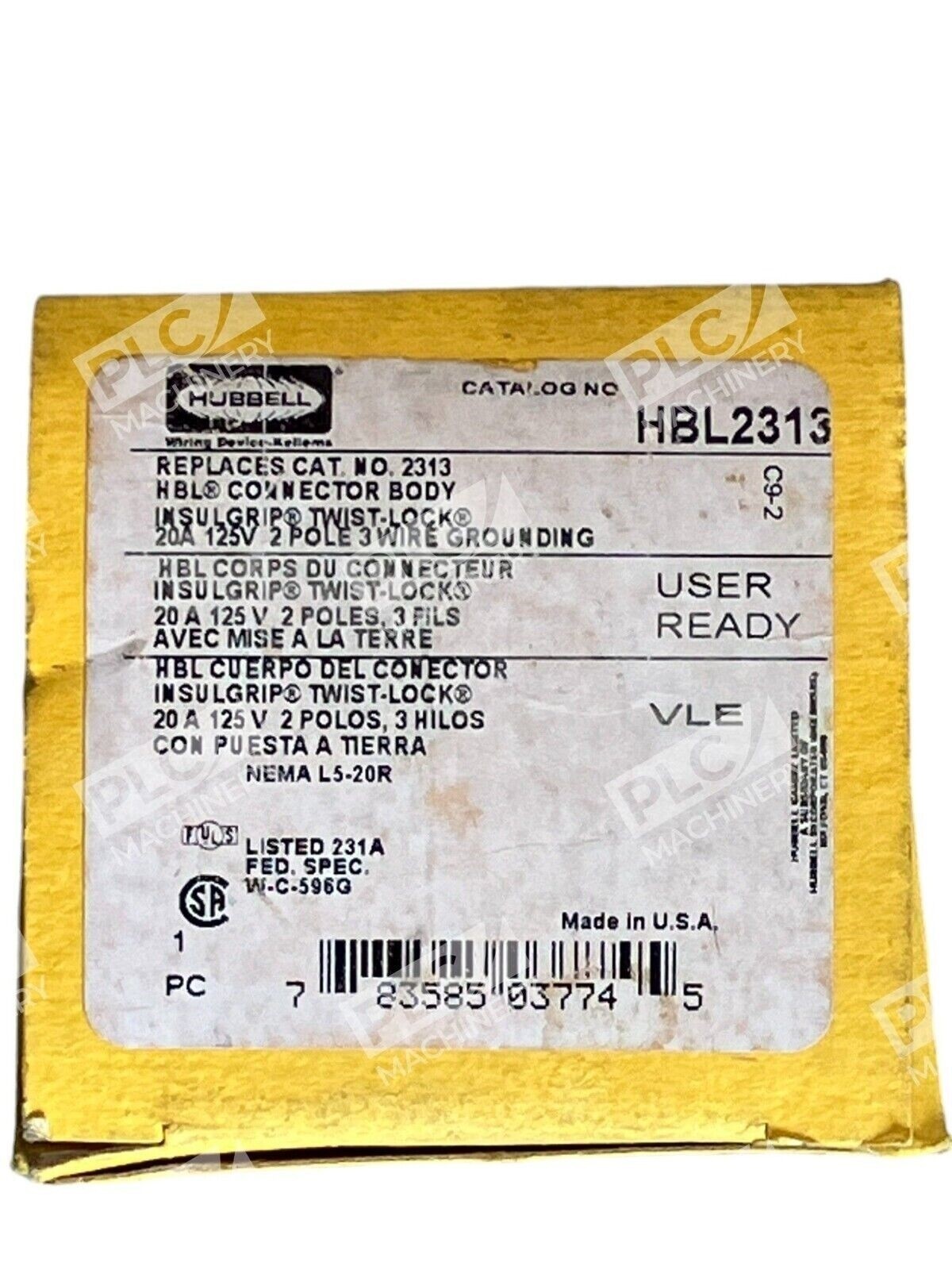

Hubbell Insulgrip® Twist-Lock® Connector Body – 20A, 125V, 2-Pole, 3-Wire Grounding
The Hubbell HBL2313 is a high-performance industrial-grade female connector body designed to deliver reliable and secure electrical connections in demanding environments. Engineered with precision, this connector ensures optimal performance for various applications.
Key Features
- Durable Construction: Crafted from robust black and white nylon, the ribbed housing offers a secure grip while providing exceptional resistance to impacts and chemicals.
- Superior Cord Grip Design: The advanced cord grip mechanism safeguards terminations by minimizing strain, thereby enhancing the longevity and reliability of the connection.
- Ease of Termination: Featuring a clear, funnel-shaped wire entry, the connector simplifies the termination process, ensuring accurate and efficient wiring.
- Integrated Dust Shield: An integral dust shield protects the wiring chamber from dust and contaminants, maintaining the integrity of the electrical connection.
Technical Specifications
- Amperage Rating: 20 Amps
- Voltage Rating: 125 Volts AC
- Configuration: 2-Pole, 3-Wire Grounding
- NEMA Configuration: L5-20R
- Terminal Type: Screw Terminal
- Wire Accommodation: Accepts #16 AWG to #8 AWG stranded copper wire
- Cord Diameter Range: 0.360″ to 0.930″ (9-24 mm)
- Operating Temperature: -40°C to 75°C without impact
- Environmental Suitability: IP20 rated for indoor dry locations unless additional protection is provided
- Certifications: UL 498 Listed, CSA C22.2 No. 42 Certified, Federal Specification W-C-596 Compliant
Applications
Ideal for heavy-duty industrial settings, the Hubbell HBL2313 connector body is suitable for applications requiring secure and durable electrical connections, including manufacturing facilities, construction sites, and commercial installations.
Dimensions
- Length: 2.26 inches
- Width: 2.26 inches
- Height: 3.86 inches
- Weight: 0.3 lbs
The Hubbell HBL2313 Insulgrip® Twist-Lock® Connector Body combines durability, safety, and ease of use, making it a reliable choice for professionals seeking high-quality electrical connectors.
