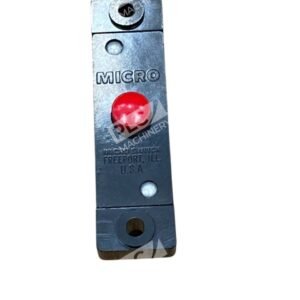

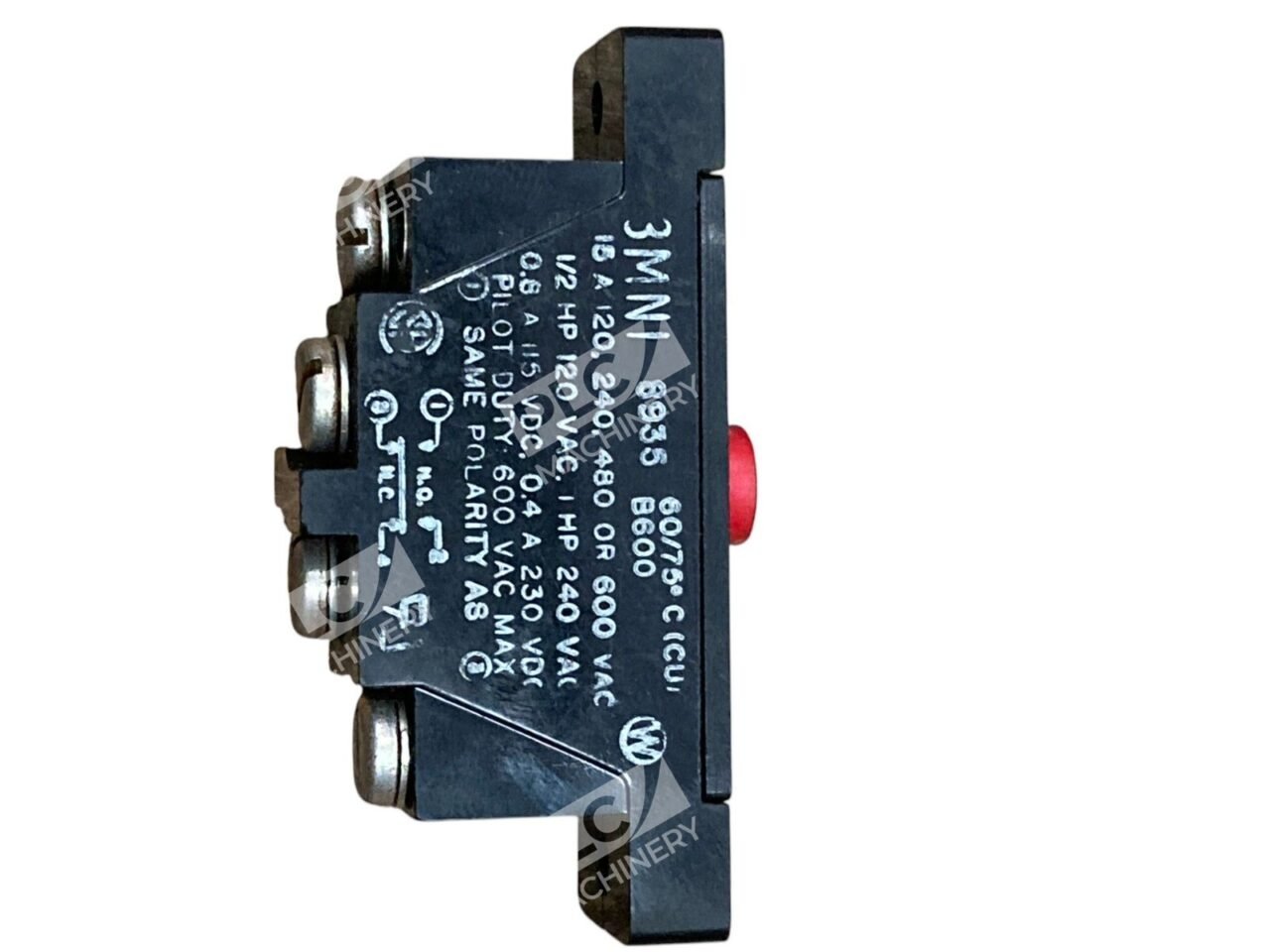

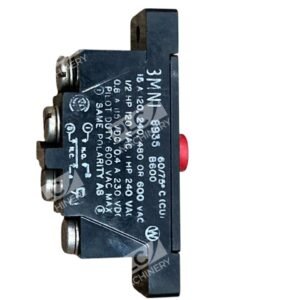

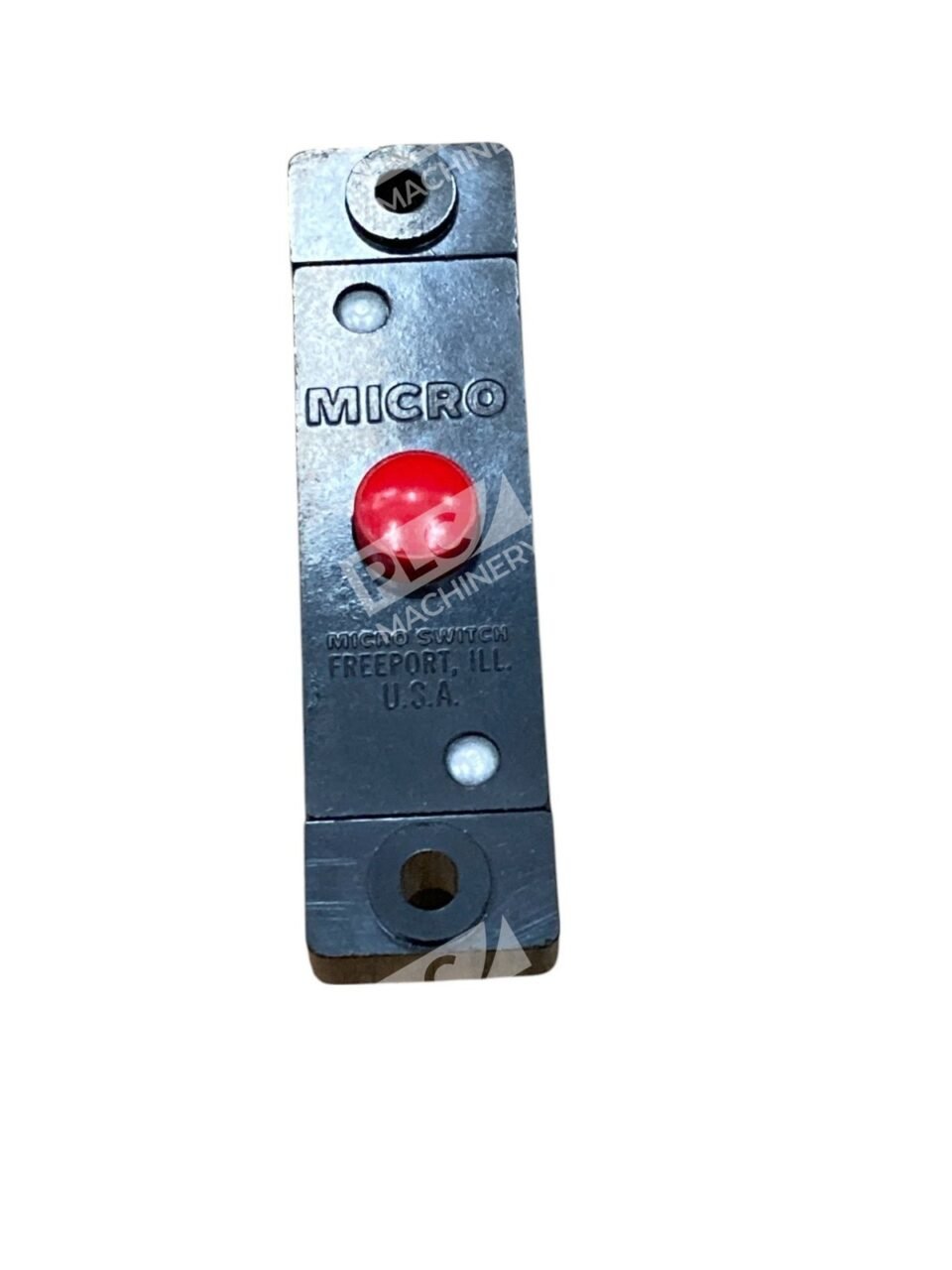

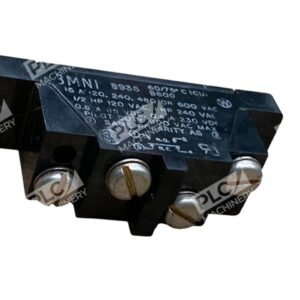

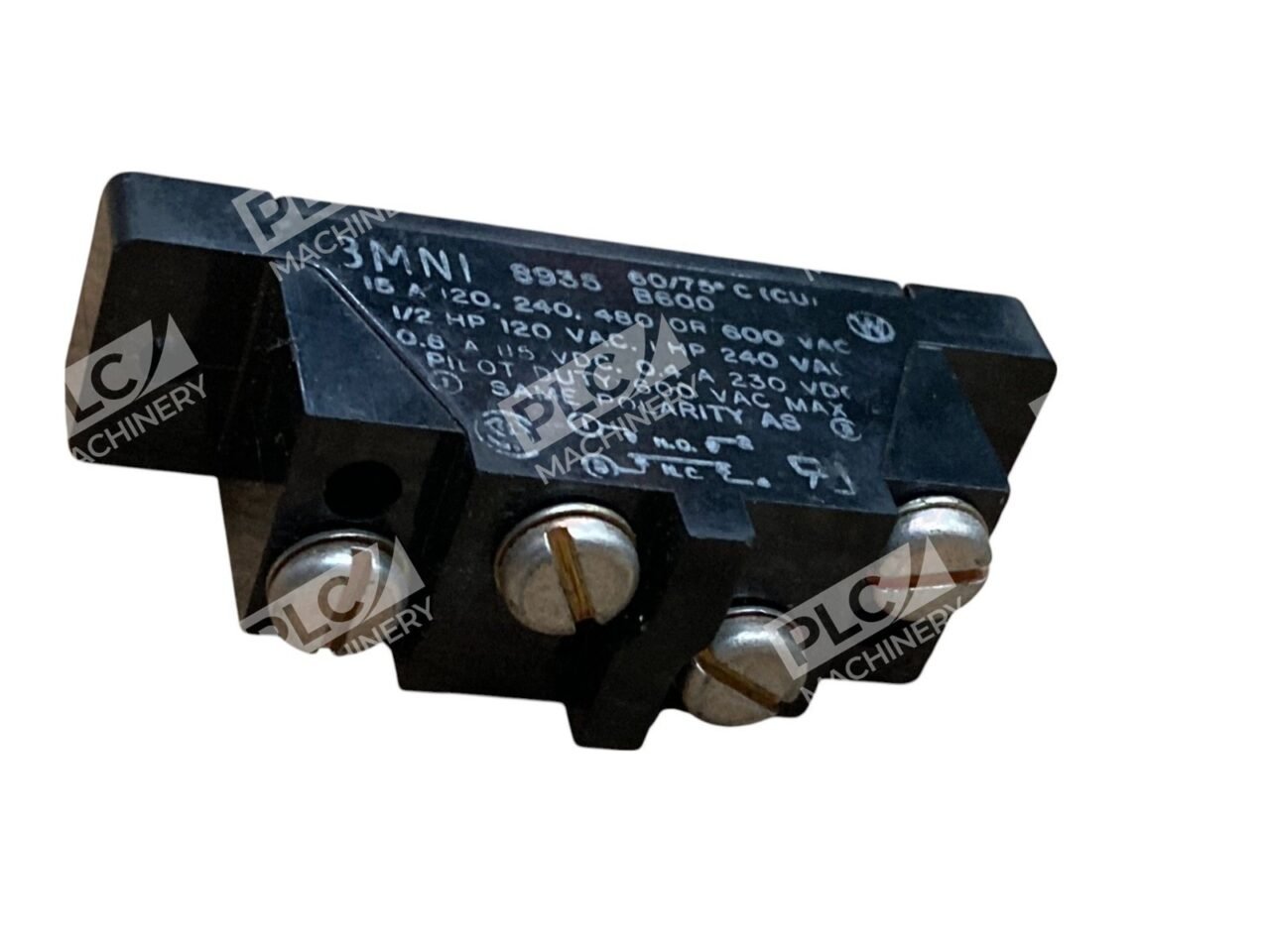

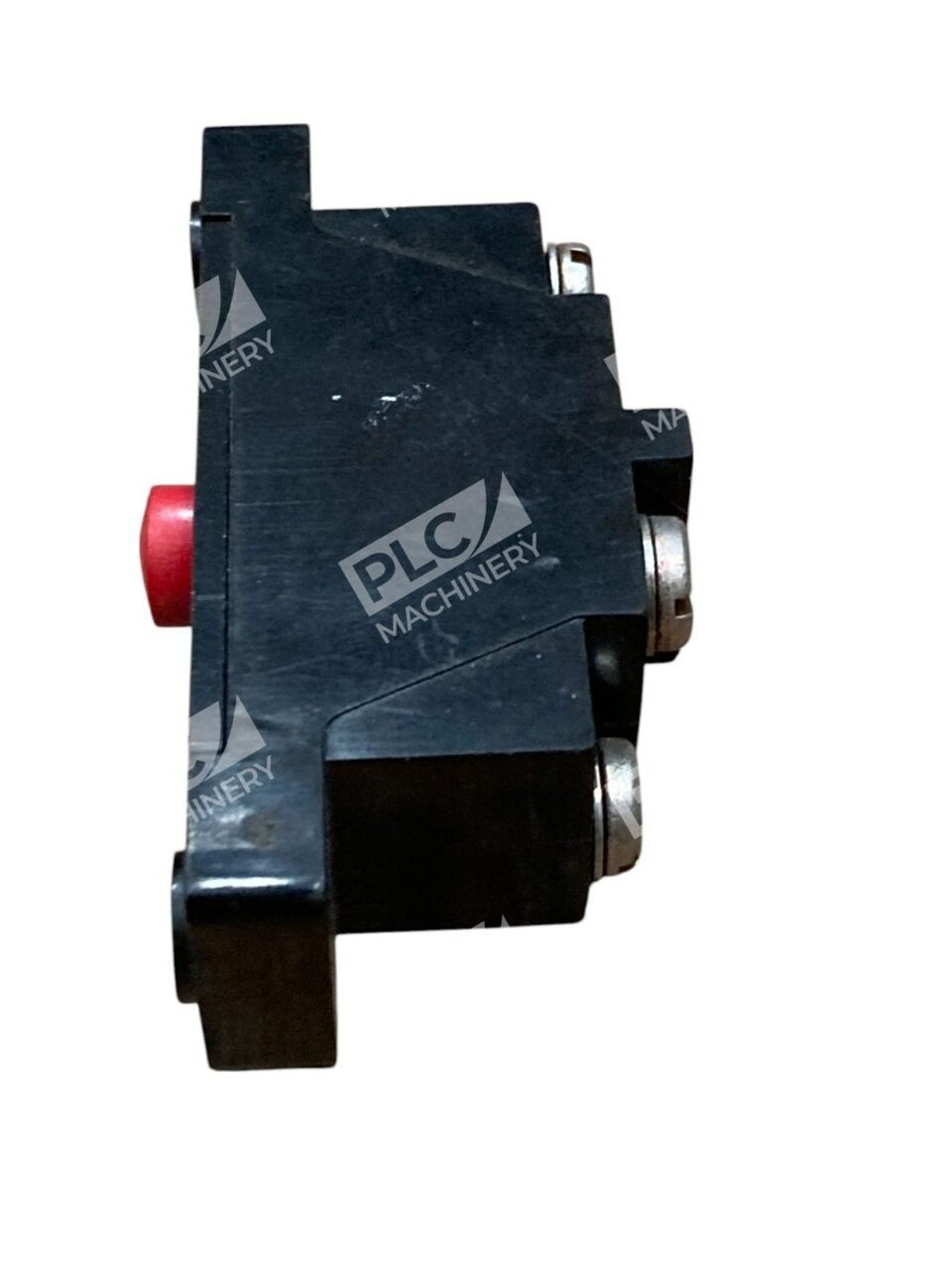

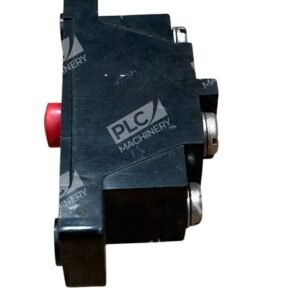

The Honeywell 3MN1 Micro Switch is a premium large snap-action switch designed for high-performance applications requiring reliable and repeatable operation.
Key Features
- Double-Break Circuitry: Ensures enhanced electrical performance by breaking the circuit in two places simultaneously.
- High Current Capacity: Capable of handling up to 15 A at 600 VAC, making it suitable for power-duty applications.
- Durable Construction: Built with arc-resistant plastic housing to withstand demanding industrial environments.
- Extended Mechanical Life: Engineered for longevity, offering up to 10 million cycles at 95% survival rate.
- Versatile Mounting: Designed for easy gang mounting, facilitating integration into various control mechanisms.
Technical Specifications
- Actuator Type: Pin Plunger
- Contact Configuration: Double Pole Double Throw (DPDT)
- Switch Terminals: Screw
- Maximum Contact Current: 15 A
- Nominal Contact Voltage: 600 VAC / 230 VDC
- Operating Force: 3.34 N to 5.56 N (12 oz to 20 oz)
- Operating Temperature Range: -55°C to 85°C (-67°F to 185°F)
- Mechanical Durability: Up to 10 million cycles
Applications
The 3MN1 Micro Switch is ideal for use in industrial settings, including:
- Limit or control mechanisms on machine tools
- Presses
- Other industrial equipment requiring precise and reliable switching
Its robust design and high electrical capacity make it a dependable choice for demanding applications.
