Hitachi Kokusai 12VDC 120mA CCD Camera KP-M32N

Hitachi Kokusai KP-M32N 12VDC 120mA CCD Camera

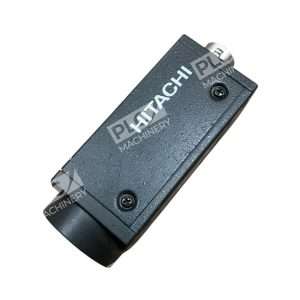

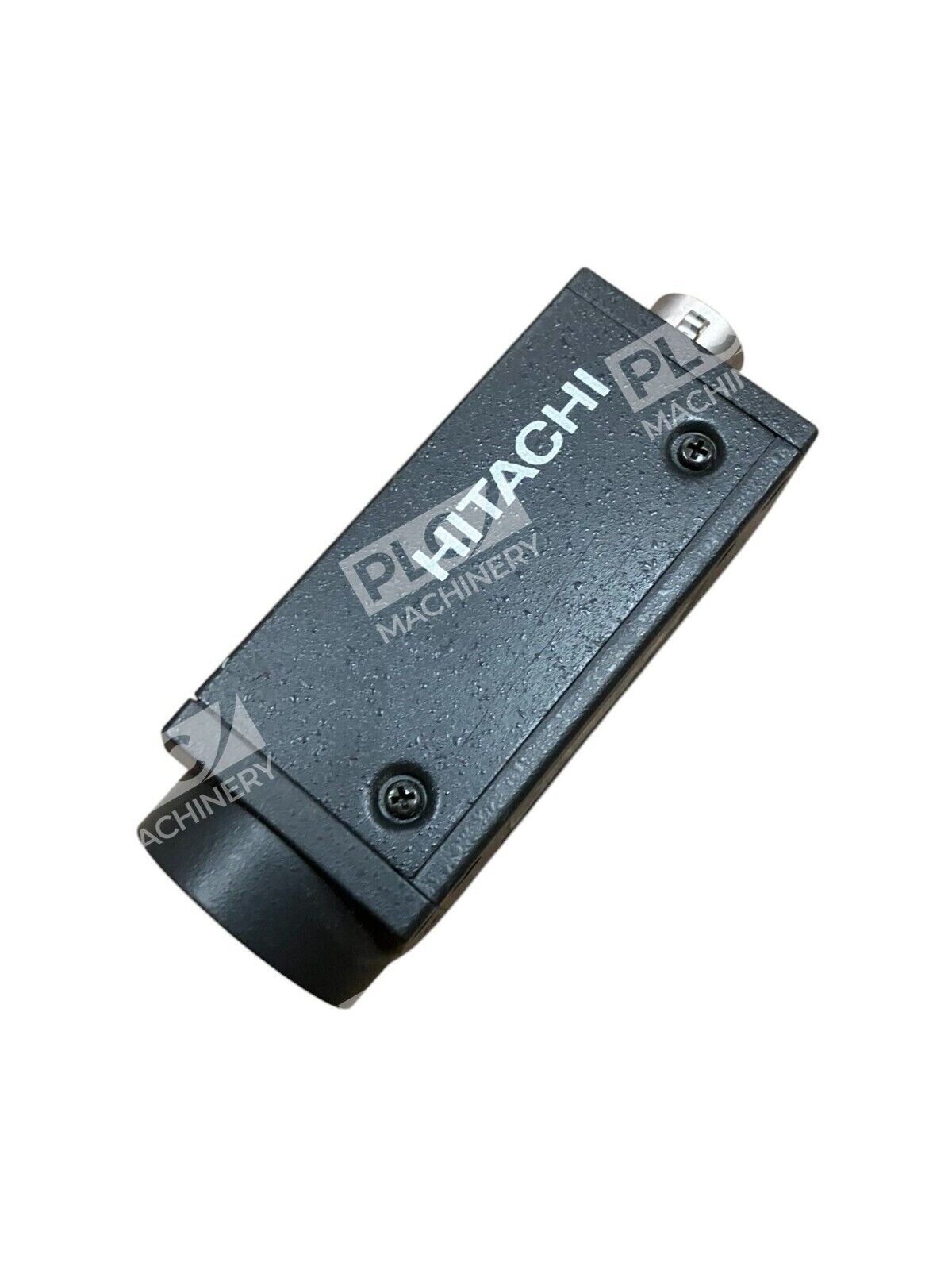

The Hitachi Kokusai KP-M32N is a compact monochrome CCD camera designed for high-performance imaging in space-constrained environments. Its 29mm square body and lightweight design make it ideal for applications where size and weight are critical factors.

Key Features

• Compact and Lightweight: The camera’s small form factor allows for easy integration into various systems without compromising performance.
• High Resolution: Equipped with a 1/3-inch interline transfer CCD sensor, the KP-M32N delivers a resolution of 570 TV lines, ensuring sharp and detailed images.
• High Sensitivity: With a minimum illumination of 0.3 lux at f/1.4, the camera performs well in low-light conditions.
• Multi-Step Electronic Shutter: The electronic shutter offers speeds ranging from 1/60 to 1/10,000 seconds, allowing for precise capture of fast-moving objects.
• Integration Modes: Users can select between field or frame integration modes to optimize sensitivity or vertical resolution based on application requirements.
• Synchronization: The KP-M32N supports both internal and external synchronization, with automatic selection for seamless operation.
• Field-on-Demand Mode: This feature enables image capture at specific timings, providing flexibility for various imaging scenarios.
• Single Cable Connection: A 12-pin Hirose connector consolidates all input, output, and power signals, simplifying installation and reducing cable clutter.

Specifications

• Imaging Device: 1/3-inch interline transfer CCD
• Effective Pixels: 768 (H) x 494 (V)
• Pixel Size: 6.35 µm (H) x 7.4 µm (V)
• Signal-to-Noise Ratio: 56 dB
• Gamma: Selectable between 0.45 and 1.0
• Gain Control: Options include Automatic Gain Control (AGC), manual, and fixed settings
• Video Output: RS-170 1.0 Vp-p

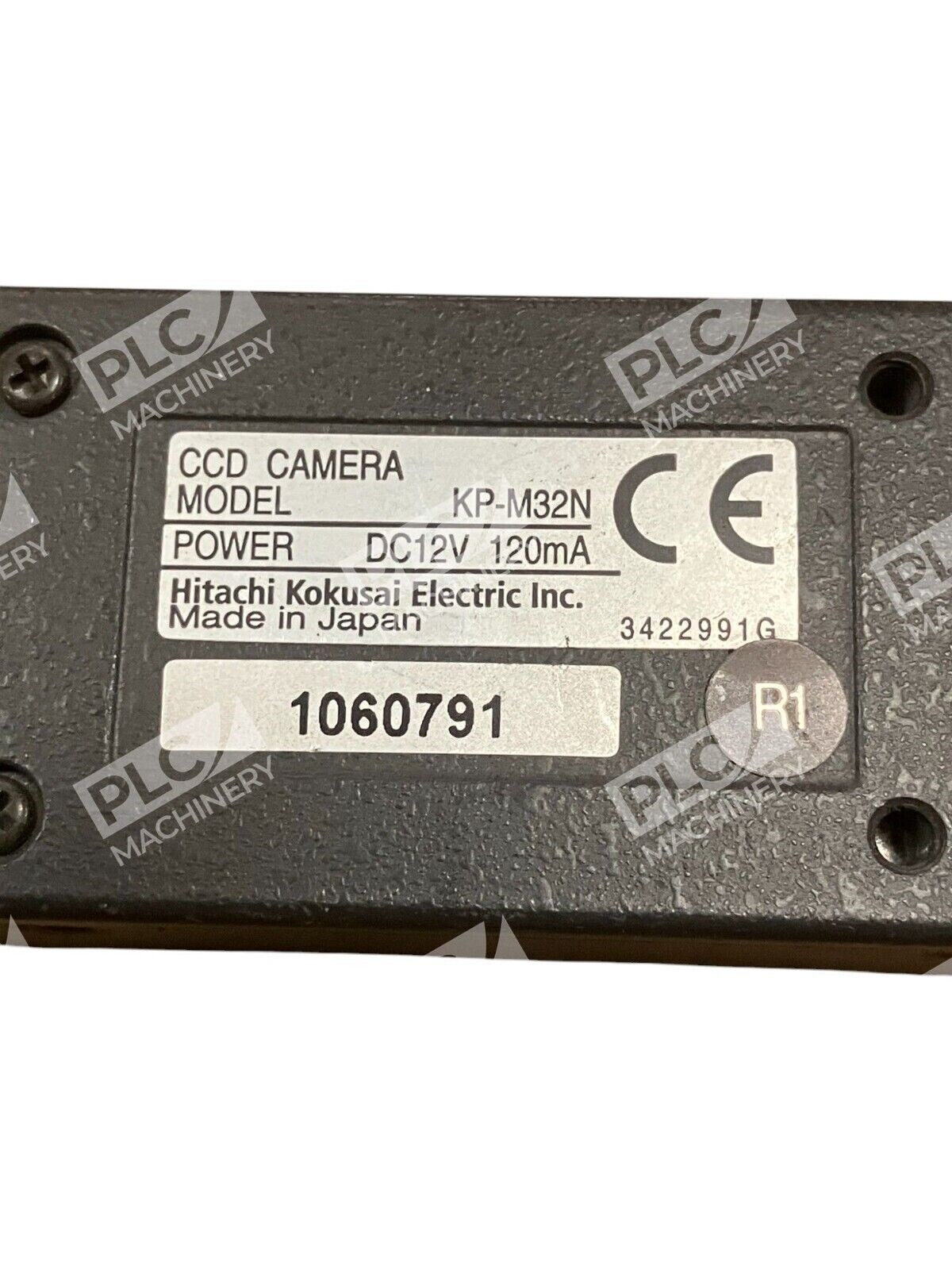

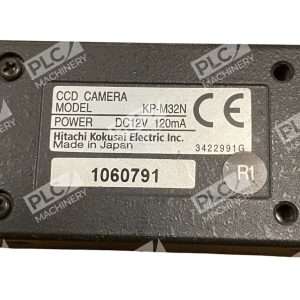

• Power Requirements: 12V DC at 120mA
• Dimensions (W x H x D): 29 x 29 x 62 mm
• Weight: Approximately 100 grams
• Lens Mount: C-Mount

The KP-M32N’s robust aluminum die-cast body enhances its durability and vibration resistance, making it suitable for use in demanding industrial environments. Its combination of high-resolution imaging, sensitivity, and versatile features positions it as a reliable choice for applications requiring precise monochrome imaging in compact spaces.
