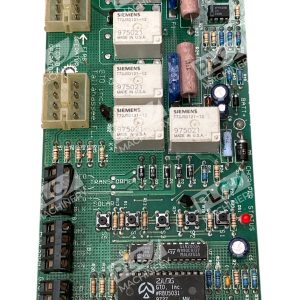

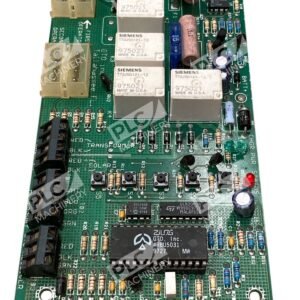

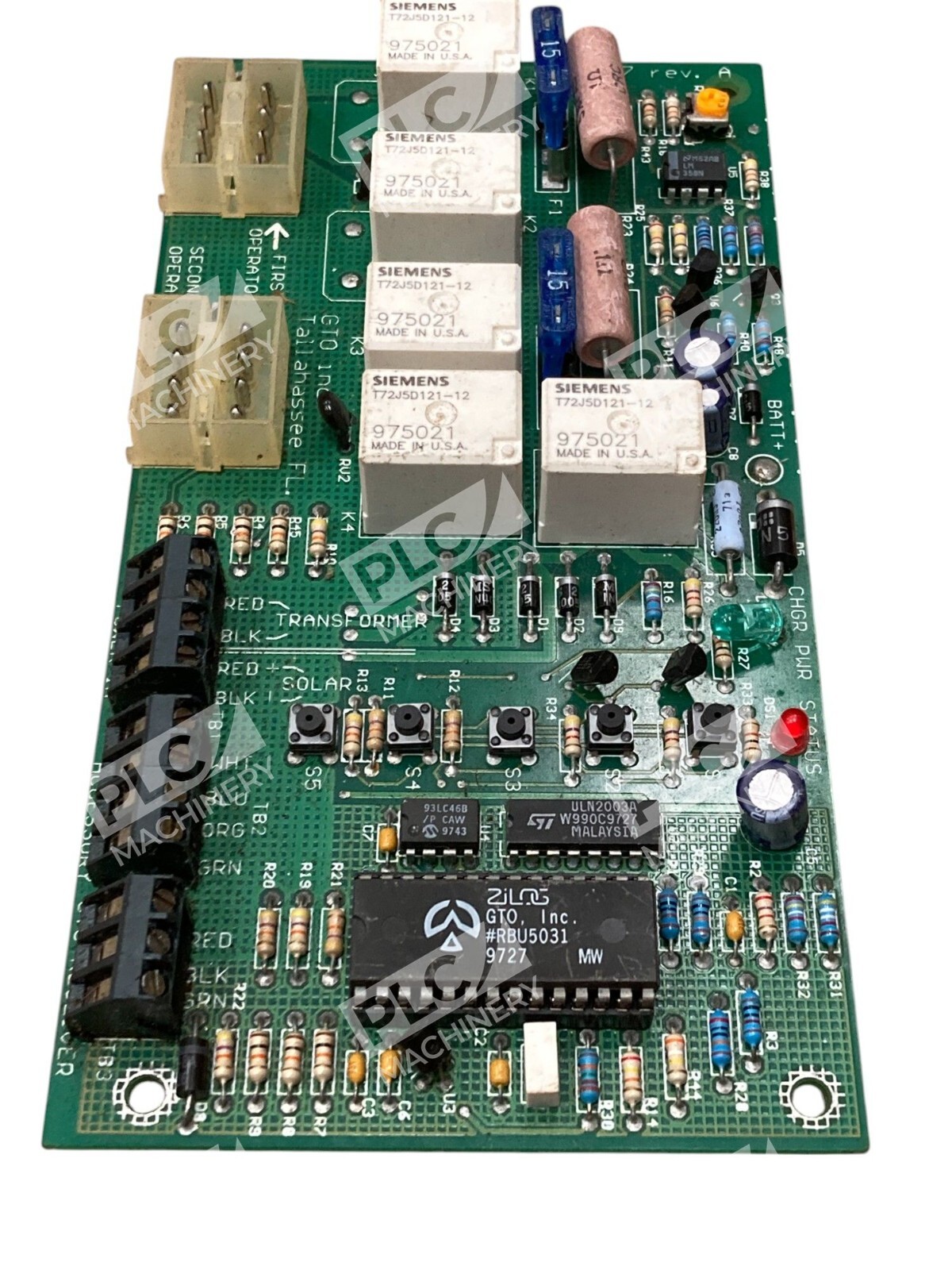

GTO Inc Reciever PCB Circuit Board RBR1007 Rev A

The GTO Inc Receiver PCB Circuit Board RBR1007 Rev A is a critical component designed to enhance the functionality and reliability of automated gate systems.

Key Features

• Universal Compatibility: Engineered to work seamlessly with a wide range of gate and garage door openers, ensuring versatile application across various systems.
• Dual-Channel Operation: Equipped with two channels, allowing for the control of multiple devices such as transmitters, multi-button transmitters, and wireless keypads.
• Reliable Performance: Constructed with high-quality electronic components to provide consistent and dependable operation, enhancing the overall security and convenience of your automated gate system.

Installation Considerations

When installing the RBR1007 Rev A receiver PCB, it’s important to consider the following:

• Cable Management: The standard receiver cable length is 10 feet (3.05 meters). For exterior applications, running the cable through PVC conduit is recommended to protect it from potential damage.
• Avoid Interference: Ensure that the receiver cable is not run in conduit containing AC wiring to prevent interference and maintain optimal performance.
• Optimal Range: The receiver’s range can vary from 50 to 100 feet (15.2 to 30.5 meters), depending on environmental factors. Proper placement and installation are crucial to achieving the desired operational range.

Technical Specifications

• Power Supply: Compatible with 8 to 24 Volt AC/DC power sources, offering flexibility in various installation scenarios.
• Wiring Configuration: Features color-coded wiring for straightforward connection:
  • Red Wire: Positive power input
  • Black Wire: Negative power input
  • Green Wire: Channel 1 (Common)
  • Blue Wire: Channel 1 (Normally Open Contact)
  • Brown Wire: Channel 2 (Common)
  • Yellow Wire: Channel 2 (Normally Open Contact)

By integrating the GTO Inc Receiver PCB Circuit Board RBR1007 Rev A into your automated gate system, you can achieve enhanced control, improved security, and increased convenience, ensuring a seamless and efficient operation tailored to your specific needs.
