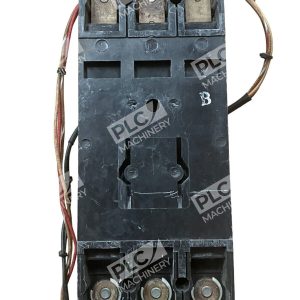

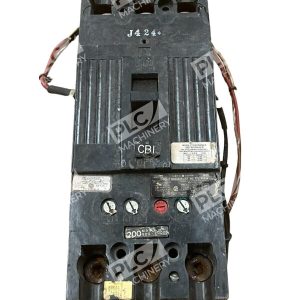

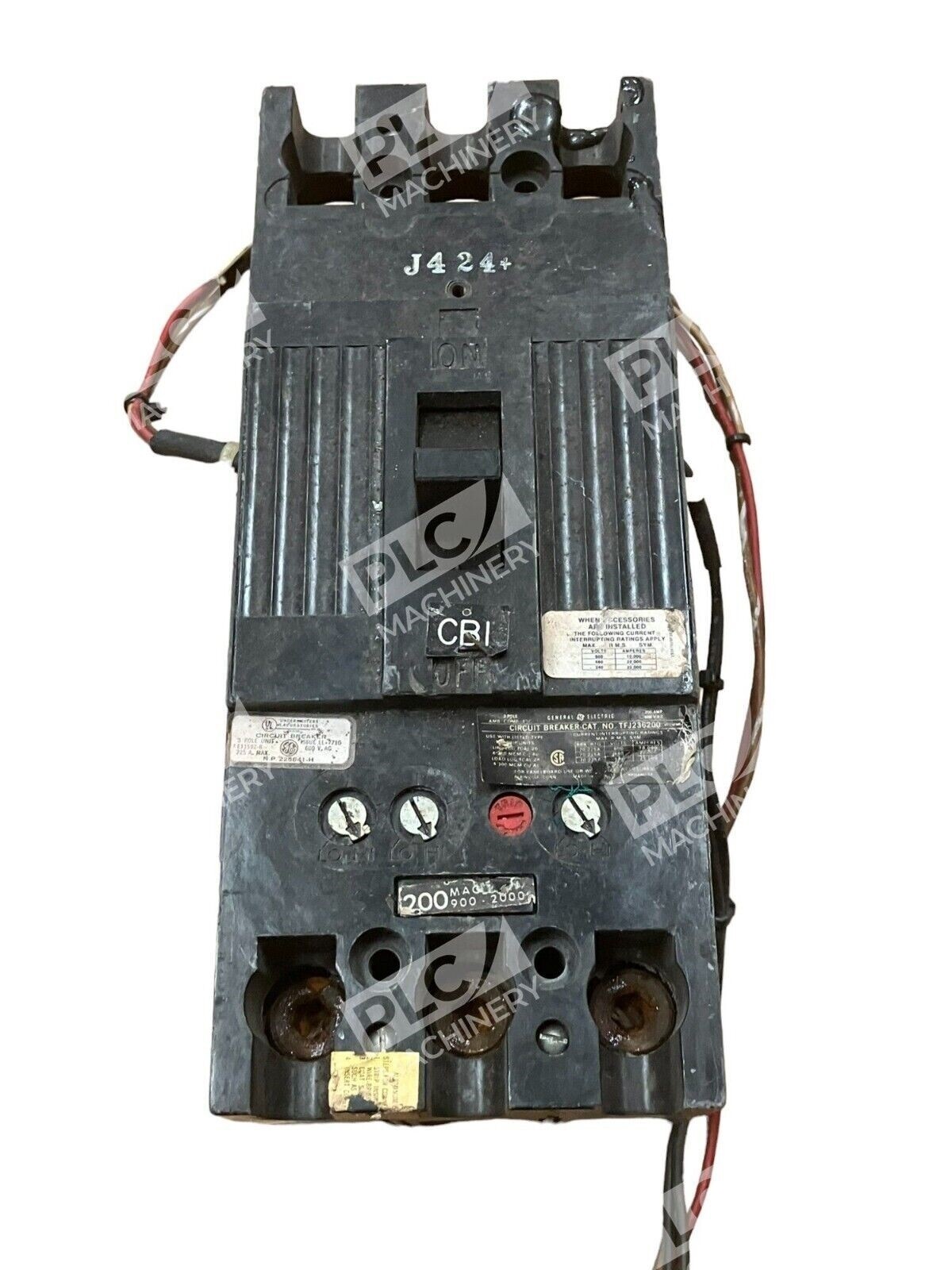

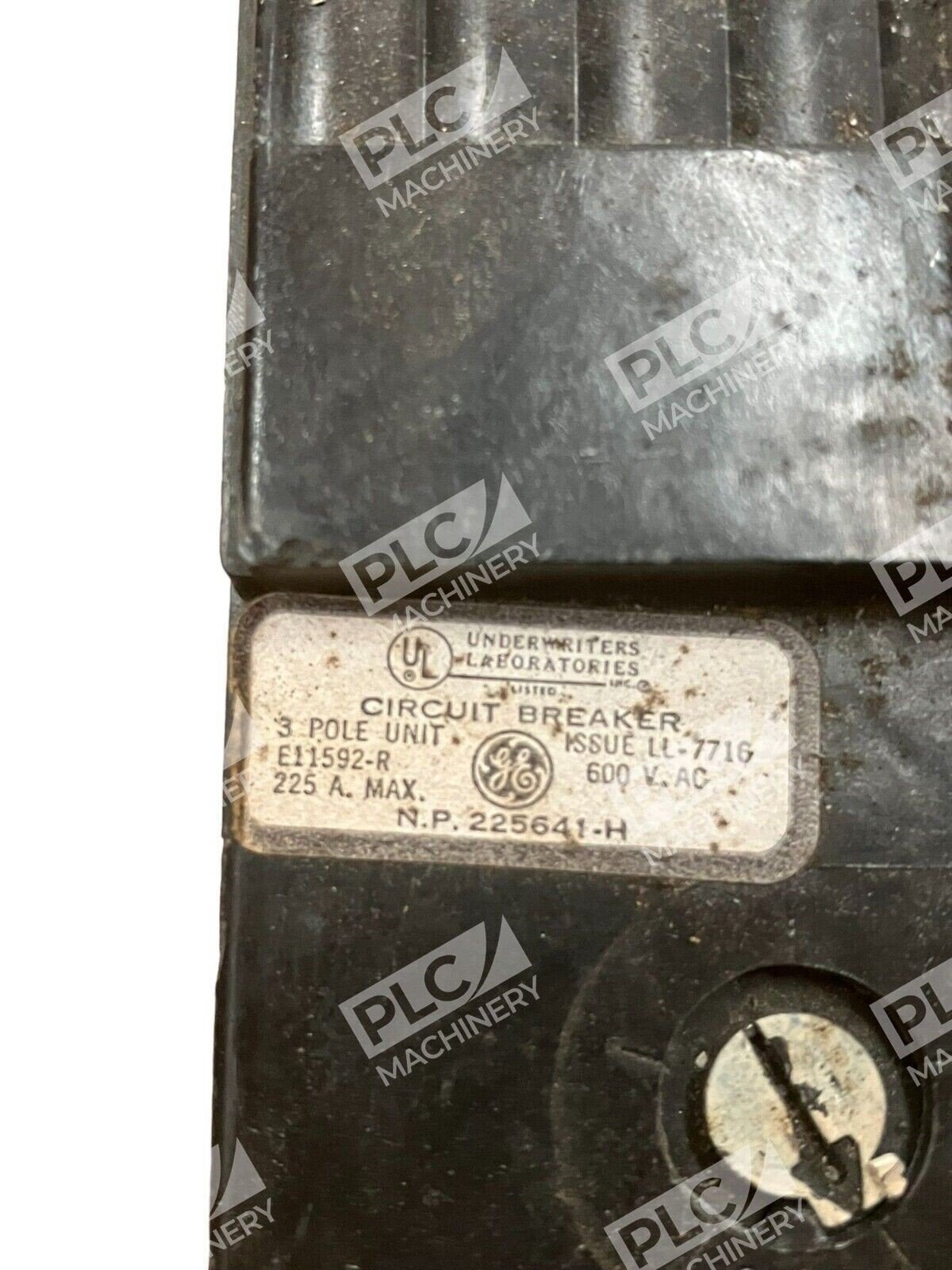

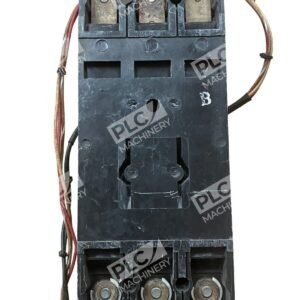

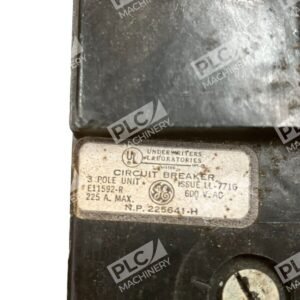

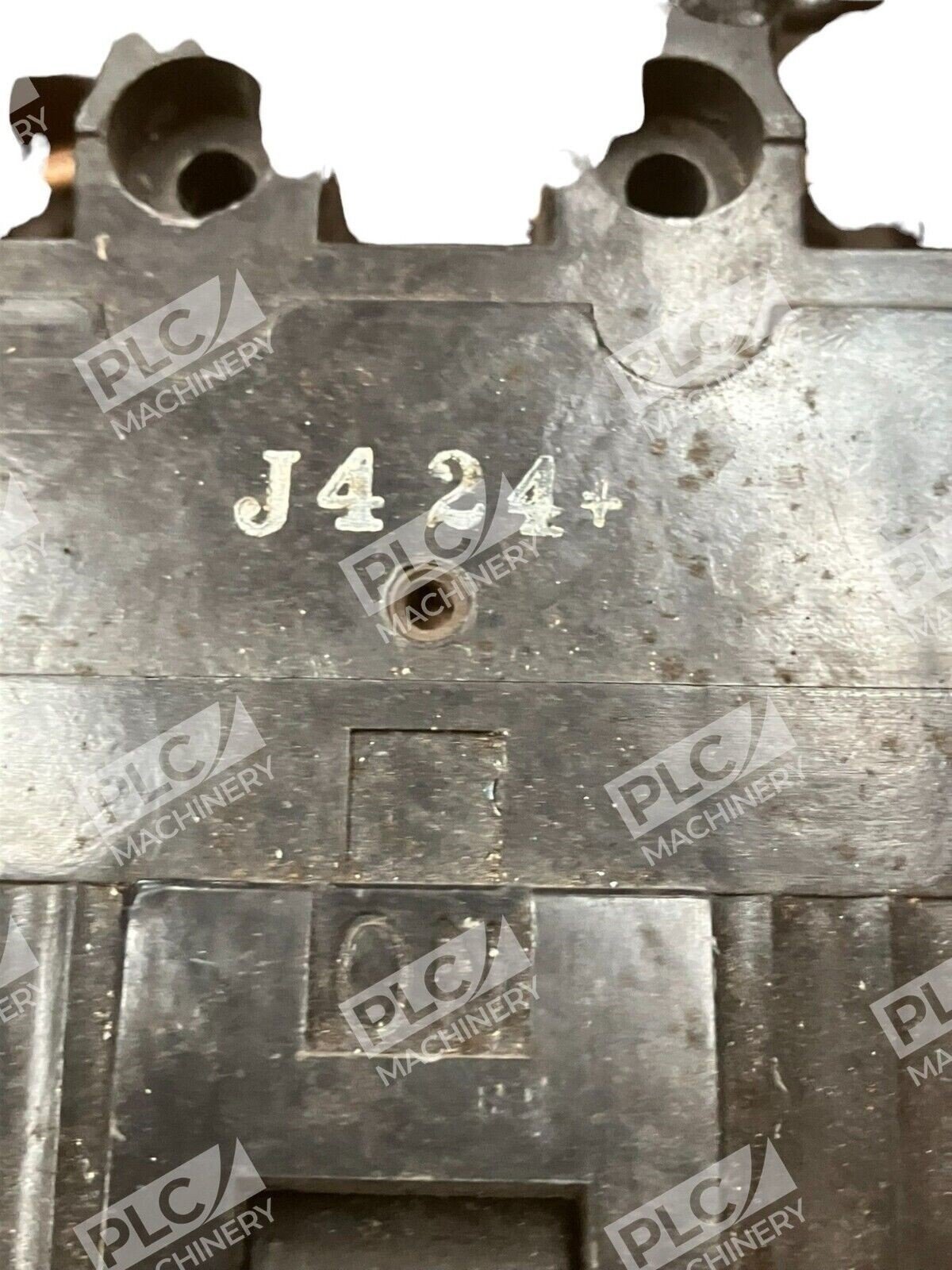

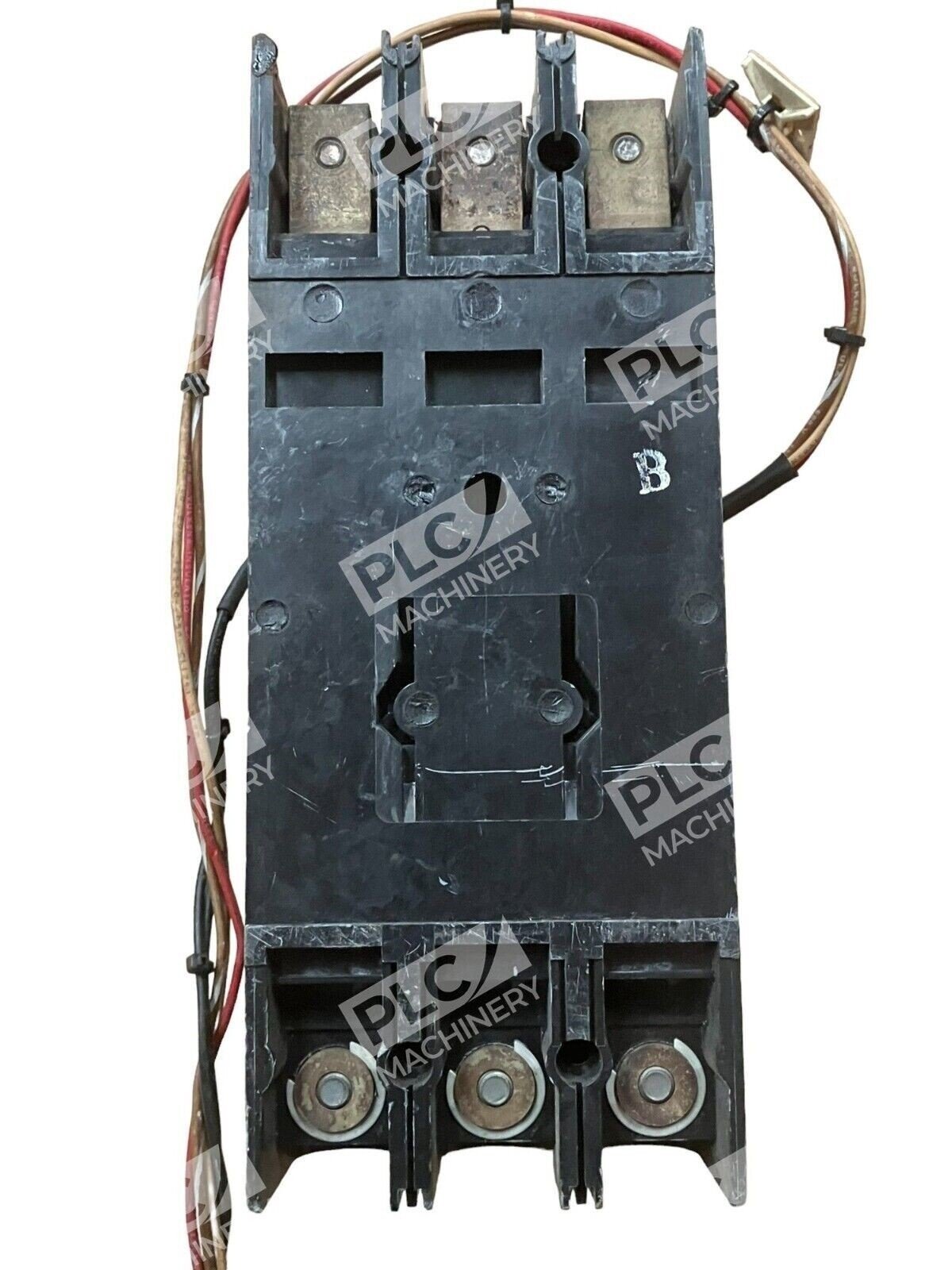

General Electric TFJ236200 Circuit Breaker
The General Electric TFJ236200 is a robust 3-pole molded case circuit breaker designed to provide reliable overcurrent protection in industrial and commercial electrical systems. With a current rating of 200 amperes and a voltage capacity of up to 600 volts AC, this breaker ensures the safety and efficiency of your electrical infrastructure.
Key Features

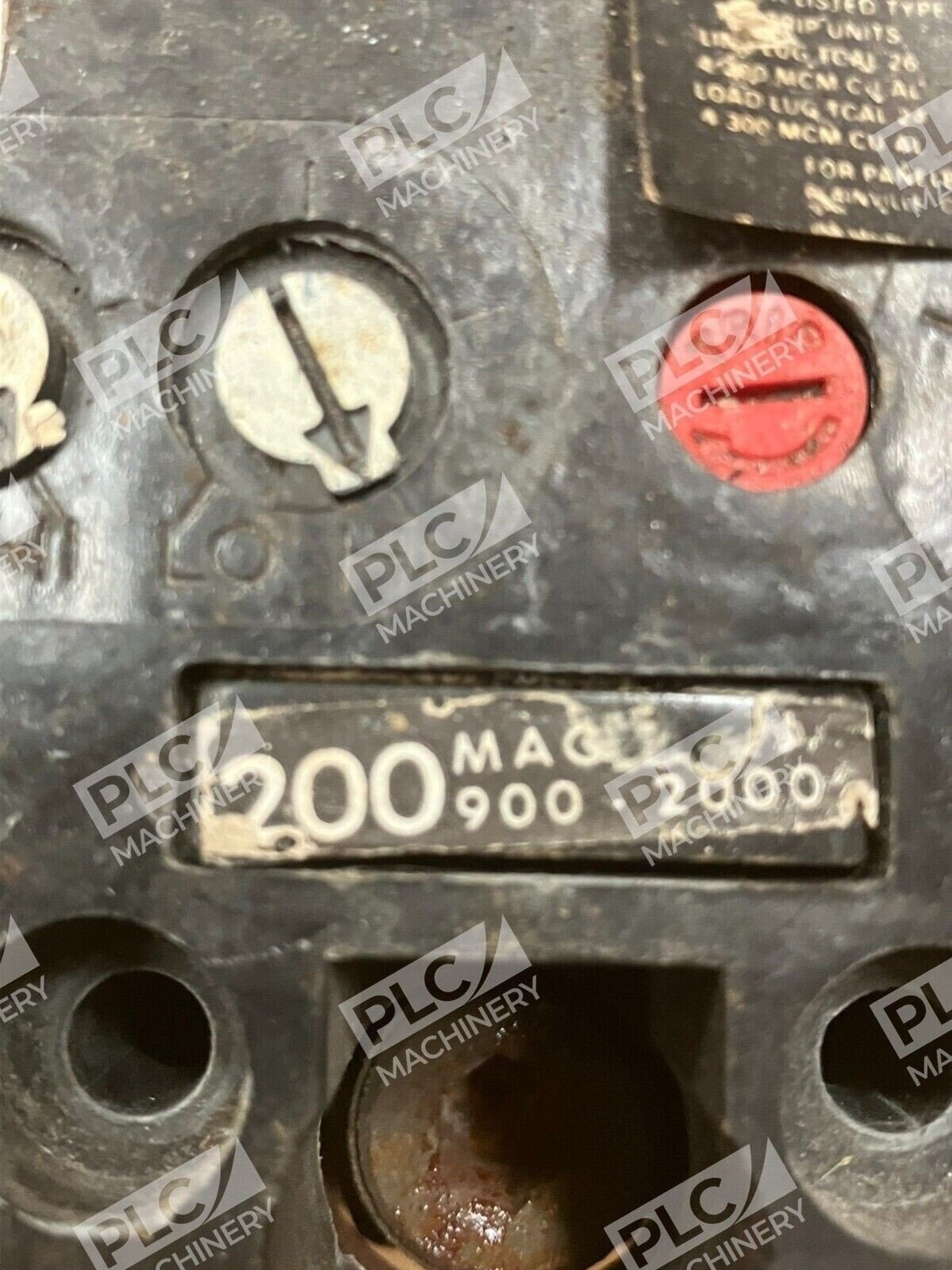

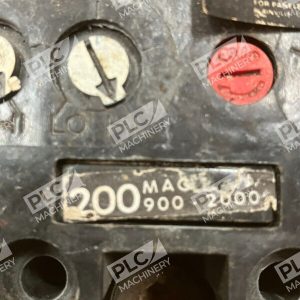

- Thermal Magnetic Protection: Combines long-time and instantaneous trip functions to safeguard against overloads and short circuits.
- High Interrupting Capacity: Capable of handling fault currents up to 22kA at 480V AC, ensuring robust performance during electrical faults.
- Durable Construction: Built with industrial-grade materials, the TFJ236200 is designed to withstand demanding environments, offering longevity and dependable operation.
- Ease of Installation: Features a bolt-on connection type with load-side lugs that accommodate wire sizes from #4 to 300 MCM, supporting both copper and aluminum conductors for a straightforward installation process.
Technical Specifications
- Frame Type: TFJ
- Amperage: 200A
- Poles: 3
- Voltage Rating: Up to 600V AC

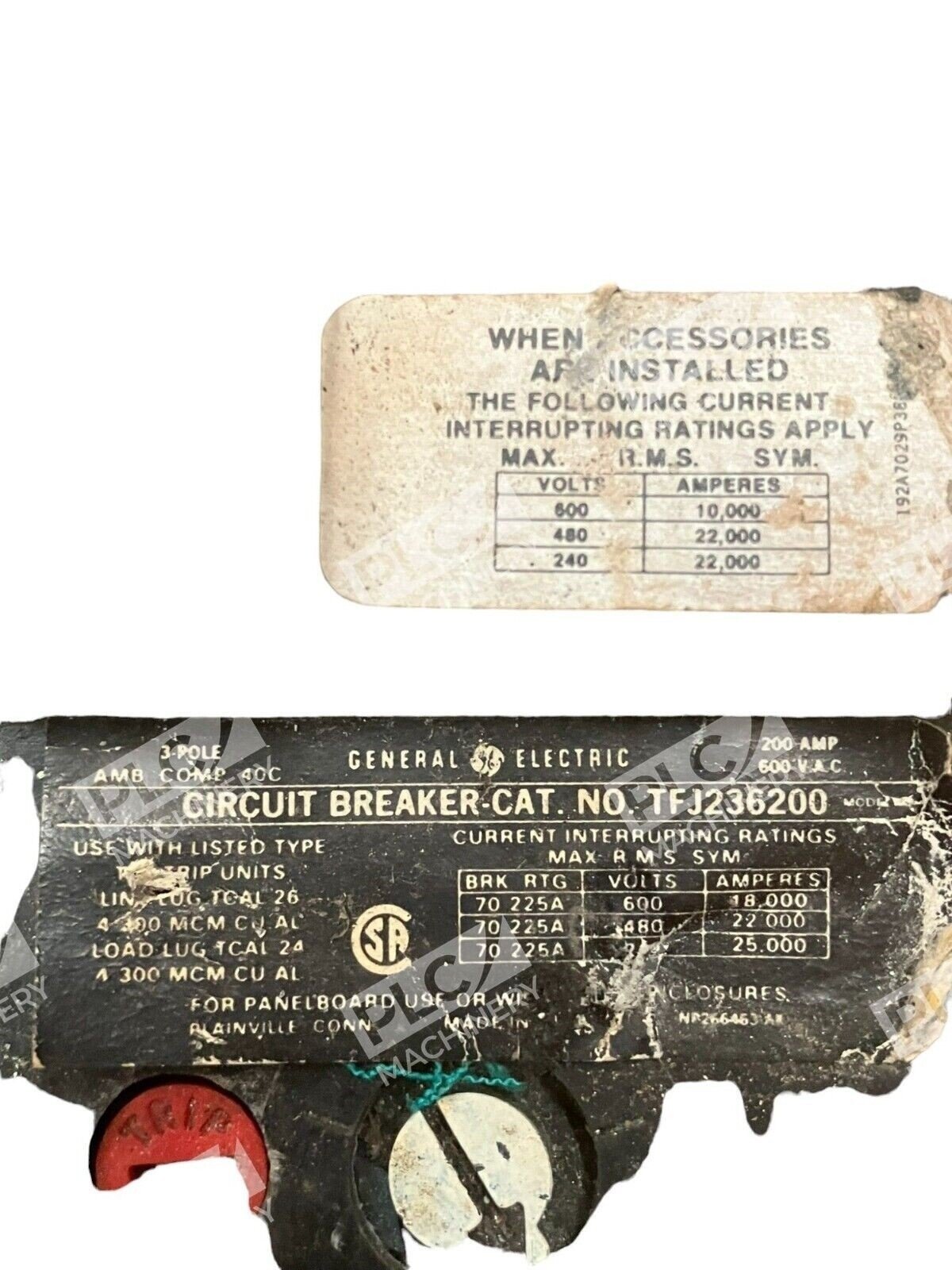

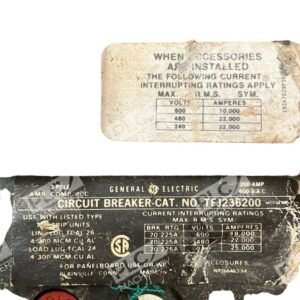

- Interrupting Capacity (AIC):
- 25kA at 240V AC
- 22kA at 480V AC
- 18kA at 600V AC
- Dimensions: 4.13″ W x 10.13″ L x 3.81″ D
- Weight: Approximately 10 lbs
Certifications
The TFJ236200 complies with industry standards, including UL and CSA certifications, ensuring adherence to safety and performance requirements.
Applications
This circuit breaker is ideal for industrial and commercial electrical distribution systems requiring reliable overcurrent protection. Its high interrupting capacity and durable design make it suitable for applications involving motors, transformers, and other heavy-duty equipment.
Incorporating the General Electric TFJ236200 into your electrical infrastructure ensures robust protection and operational reliability, meeting the stringent demands of modern industrial environments.
