General Electric TEB122050 Circuit Breaker 50A 240VAC 250VDC

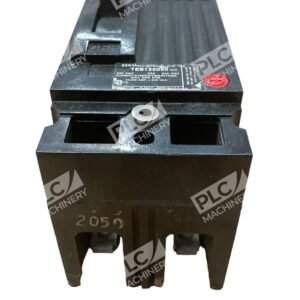

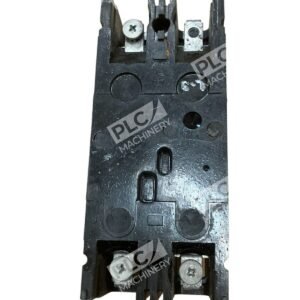

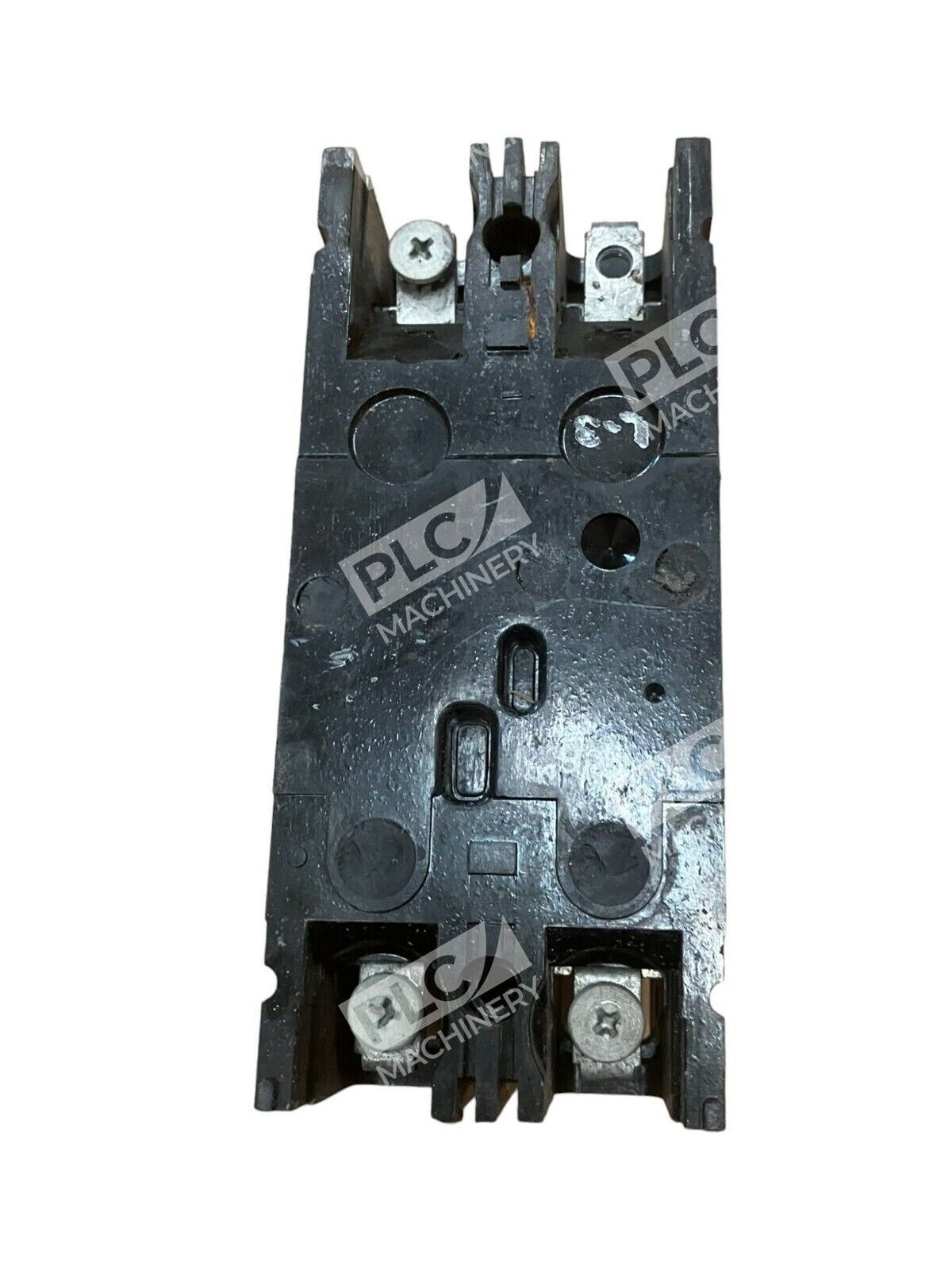

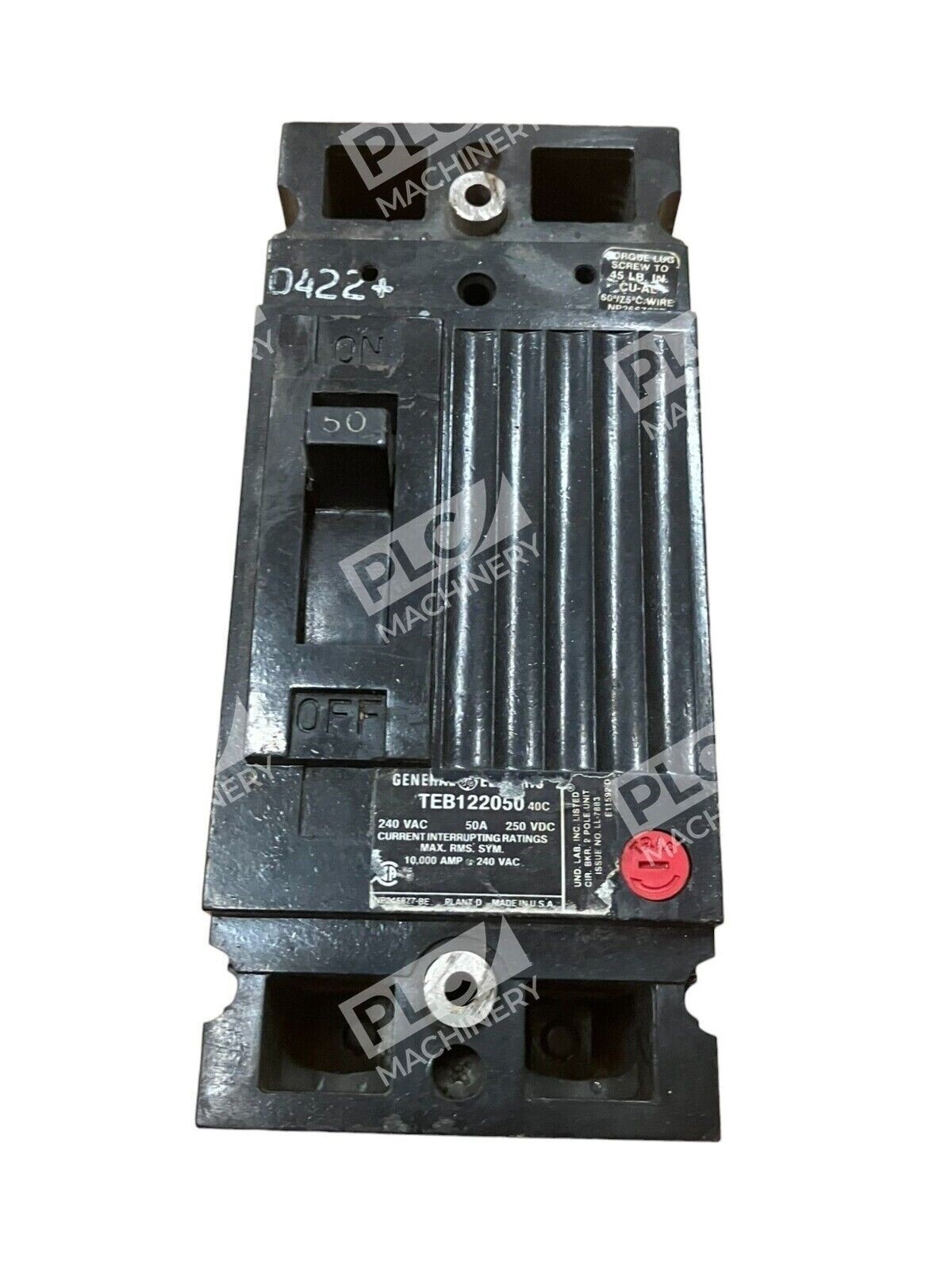

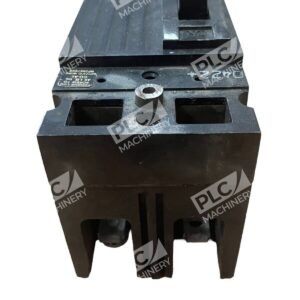

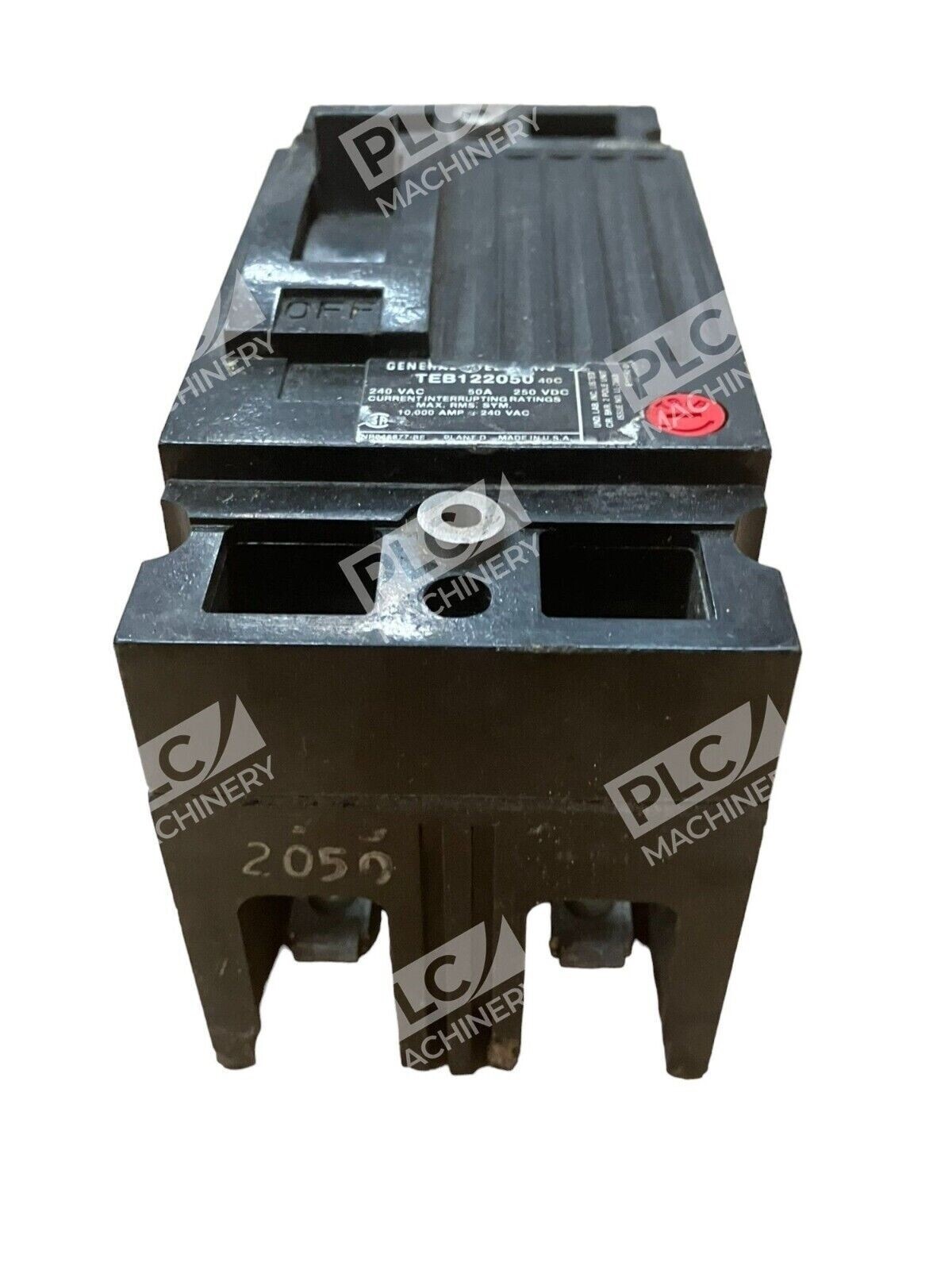

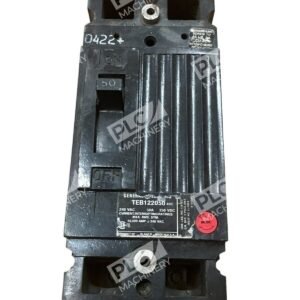

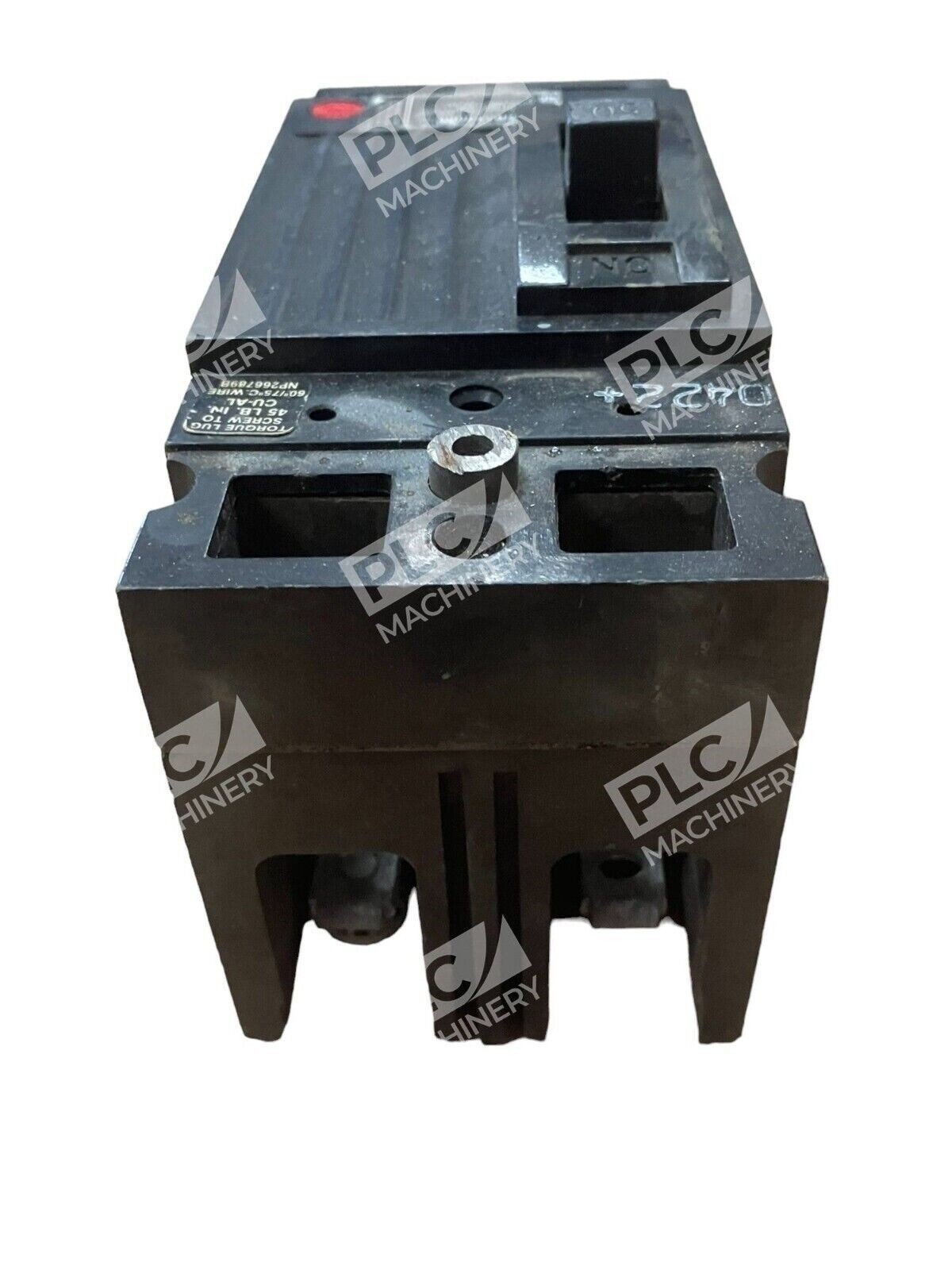

General Electric TEB122050 Circuit Breaker

The General Electric TEB122050 is a robust 2-pole molded case circuit breaker designed to deliver reliable protection for electrical systems operating at 240 VAC and 250 VDC. With a current rating of 50 amps and an interrupting capacity of 10 kA at 240 VAC, this breaker ensures safety and efficiency in various industrial and commercial applications.

Key Features

• Amperage Rating: 50 A
• Voltage Rating: 240 VAC / 250 VDC
• Interrupting Capacity: 10 kA at 240 VAC
• Number of Poles: 2
• Frame Type: E150
• Trip Type: Non-Interchangeable Thermal Magnetic
• Connection Type: Line/Load Lug
• Wire Size Compatibility: 8 to 6 AWG
• Operating Temperature Range: 10 to 50°C
• Dimensions: 2.75 in W x 3.375 in D x 6.3125 in H

Applications

The TEB122050 circuit breaker is suitable for a wide range of applications, including:

• Industrial facilities
• Switchboards
• Motor control centers
• Lighting panels
• Power distribution systems
• Customized control panelboards

Design and Compliance

Constructed with a high-strength plastic molded case, the TEB122050 ensures durability and longevity. It features a pivot/toggle handle actuator for easy operation and is designed for quick-make, quick-break, trip-free mechanisms to minimize arcing during operation. The breaker is UL 489 listed and CSA certified, meeting stringent safety and performance standards.

Installation and Compatibility

Equipped with line and load lugs compatible with both copper and aluminum conductors, the TEB122050 offers flexible installation options. Its design allows for reverse feed applications, enhancing its versatility in various electrical setups.

For those seeking a dependable circuit protection solution, the General Electric TEB122050 circuit breaker combines performance, safety, and adaptability to meet the demands of modern electrical systems.
