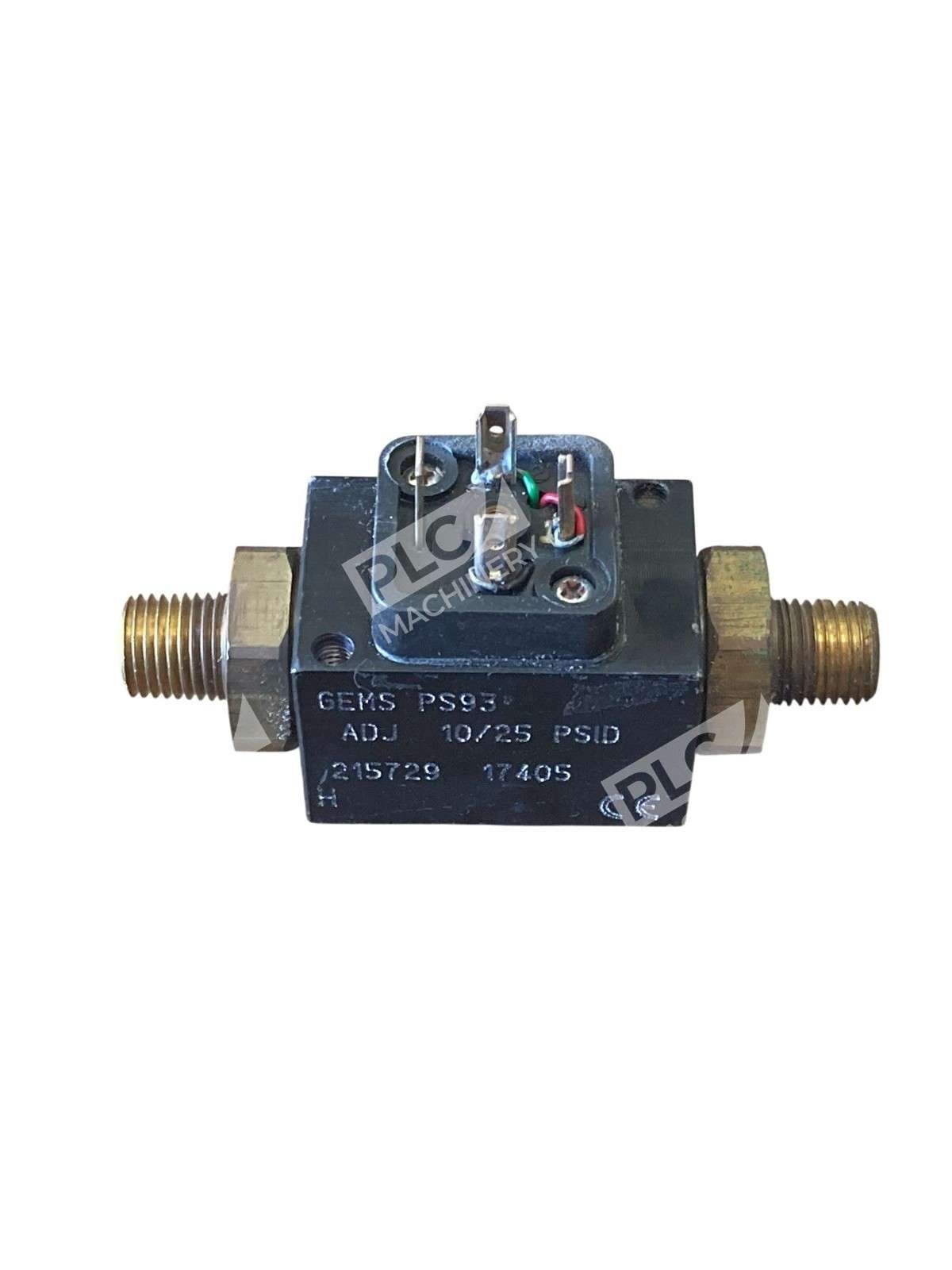

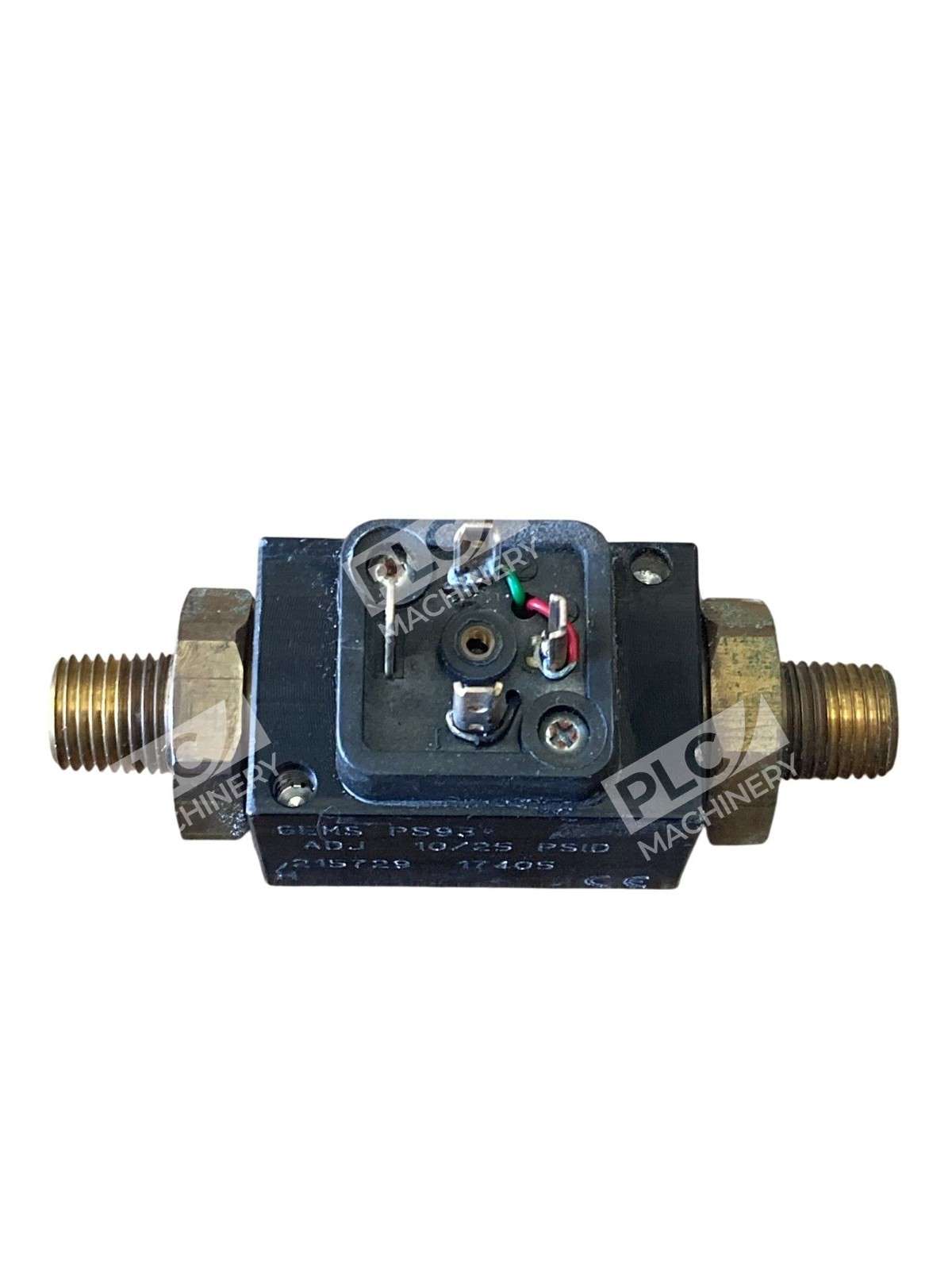

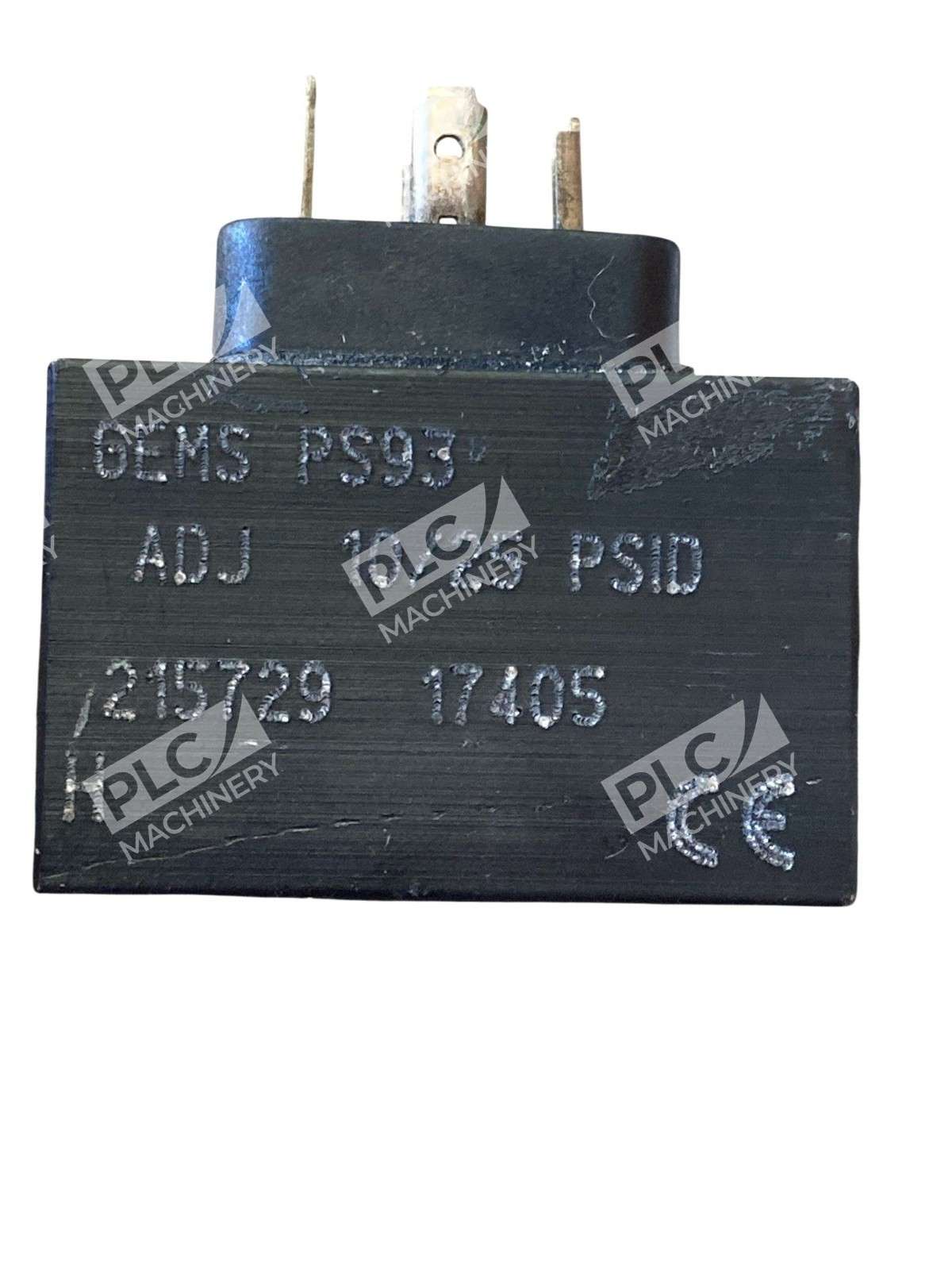

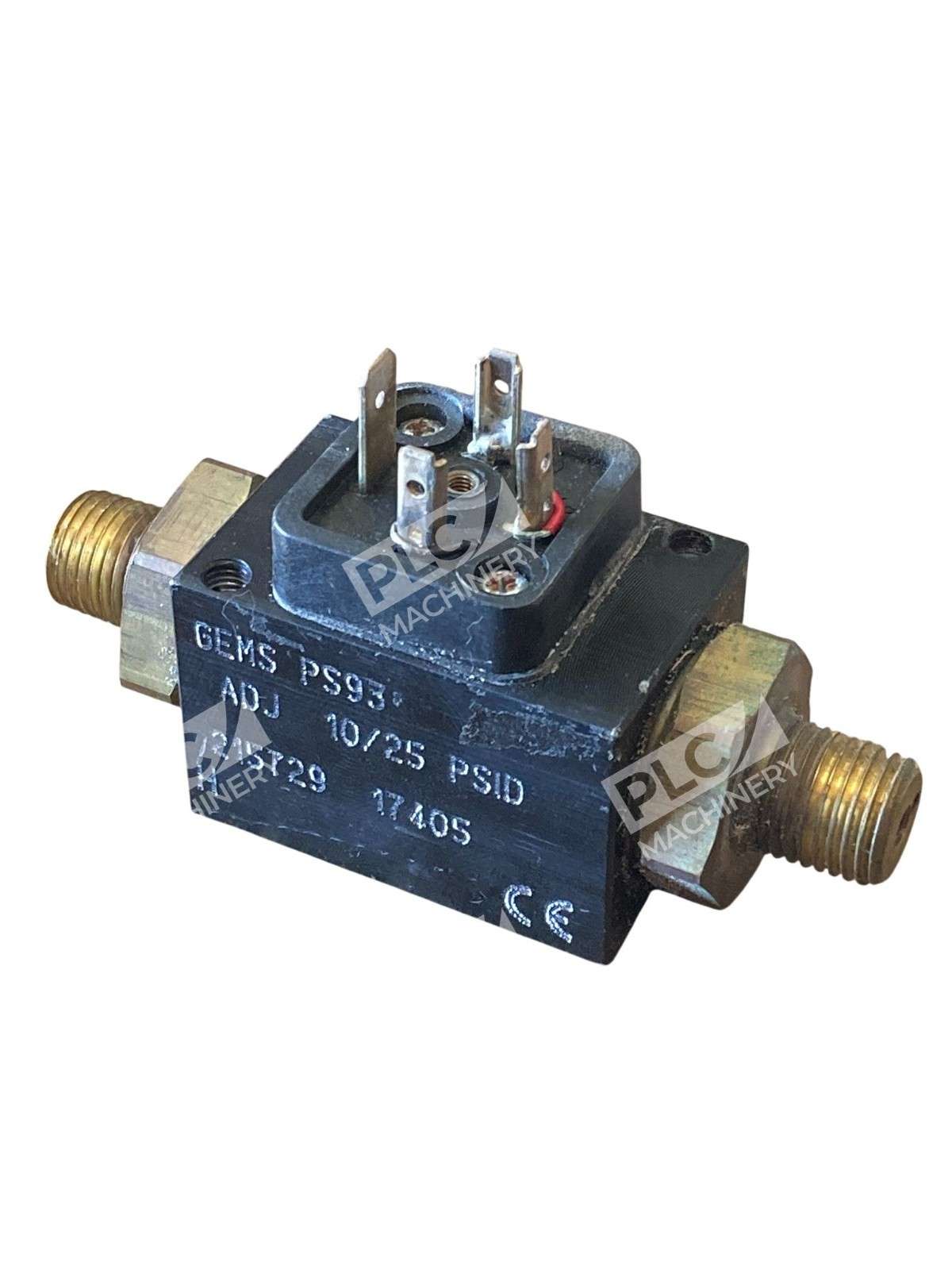

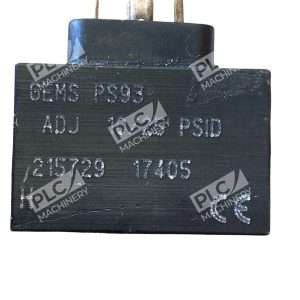

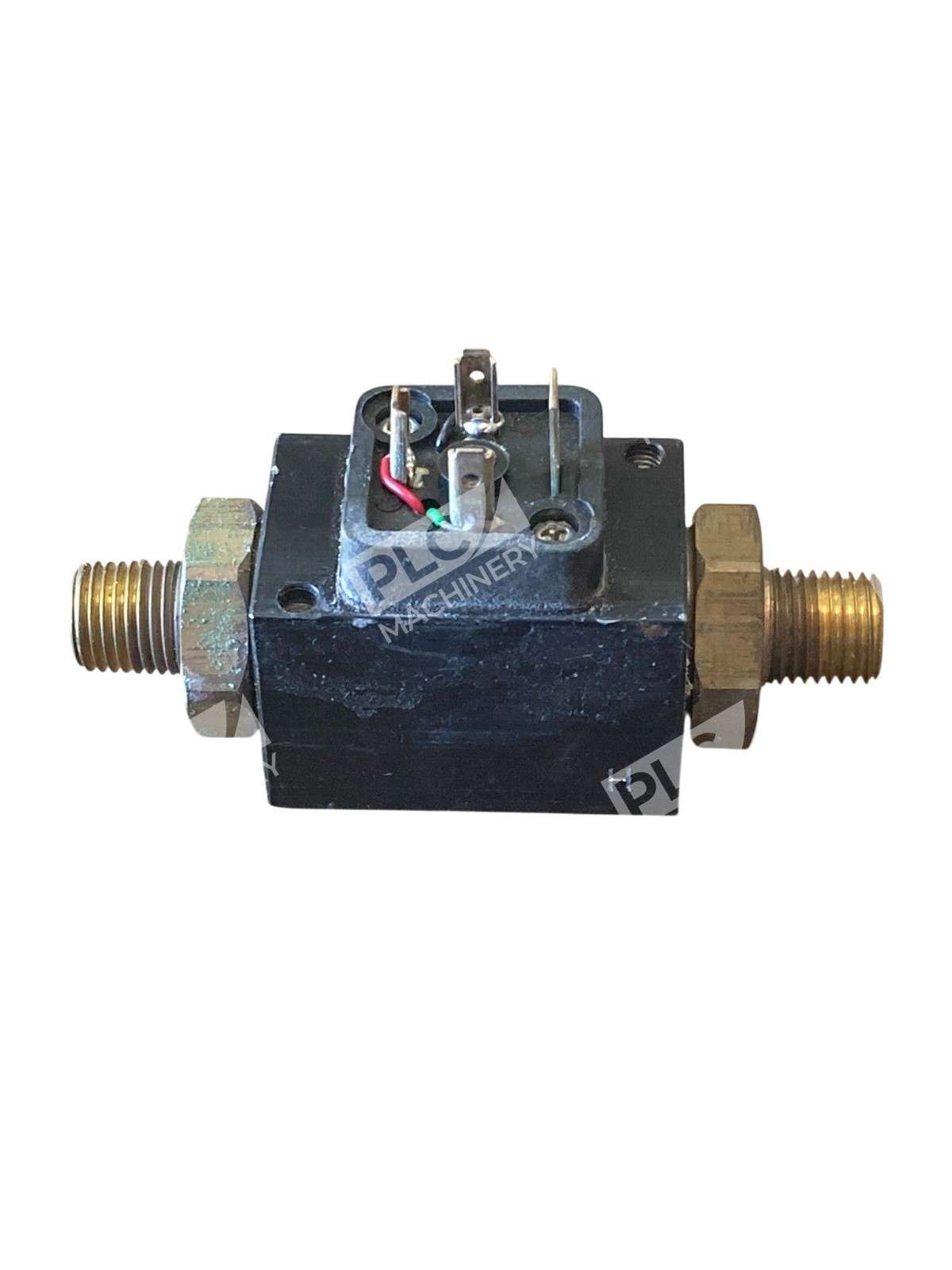

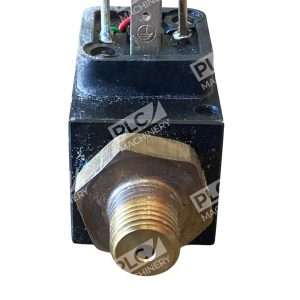

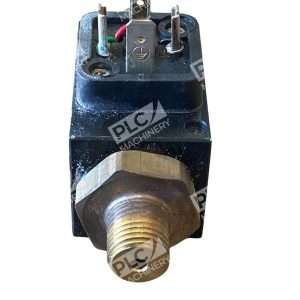

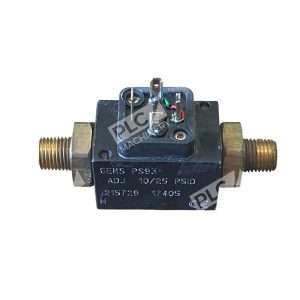

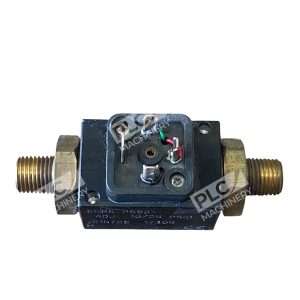

Gems Sensors PS93 Series Adjustable Pressure Switch 10/25 PSID
The Gems Sensors PS93 Series Adjustable Pressure Switch is a compact and reliable solution for monitoring differential pressure in various applications. Designed to operate within a pressure range of 10 to 25 PSID (pounds per square inch differential), this switch ensures precise control and safety in systems where maintaining specific pressure differentials is critical.
Key Features
- Adjustable Pressure Range: The PS93 Series allows for field or factory adjustment within the 10 to 25 PSID range, providing flexibility to meet specific application requirements.
- Compact Design: Its small footprint enables installation in tight spaces without compromising performance.
- Durable Construction: Built with a rugged housing and all-metal surfaces for overload stops, the switch offers reliable operation under high-pressure surges.
- Piston/Diaphragm Design: Combines the high proof pressure of piston technology with the sensitivity of a diaphragm, ensuring accurate and consistent performance.
- Field Adjustable: Equipped with a hex screw inside the low port, the switch can be adjusted on-site while protecting against unauthorized tampering.
Specifications
- Pressure Range: 10 to 25 PSID
- Proof Pressure: 500 psi
- Burst Pressure: 900 psi
- Diaphragm Material: Buna-N (optional EPDM, Viton®, and Neoprene)
- Fitting Material: Zinc-plated steel (optional Brass or 316 Stainless Steel)
- Electrical Termination: DIN 43650A (IP65)
- Switch Rating: 5 Amp SPDT @ 240 VAC and 24 VDC; 0.5 Amp @ 24 VDC (optional gold contacts for low current applications)
- Repeatability: ±2% of highest set point at 20°C (68°F)
- Operating Temperature Range: -4°F to +176°F (-20°C to +80°C)
Applications
The PS93 Series is ideal for a variety of applications, including:
- HVAC systems
- Hydraulic and pneumatic systems
- Industrial automation
- Process control
- Medical equipment
Its robust design and adjustable settings make it suitable for environments where precise pressure monitoring and control are essential.
Ordering Information
To order the PS93 Series Adjustable Pressure Switch with a 10 to 25 PSID range, specify the following:
- Model: PS93
- Pressure Range Code: 10 (for 10 to 25 PSID)
- Pressure Fitting: Specify desired fitting type and material
- Circuit: C (SPDT)
- Electrical Termination: H (DIN 43650A Male Half Only)
- Options: Specify any additional options such as diaphragm material or gold contacts
For example, an order code might look like: PS93-10-4MNS/4MNS-C-HM-XX-XXXX.
For detailed ordering information and assistance, please refer to the Gems Sensors catalog or contact their customer support.
