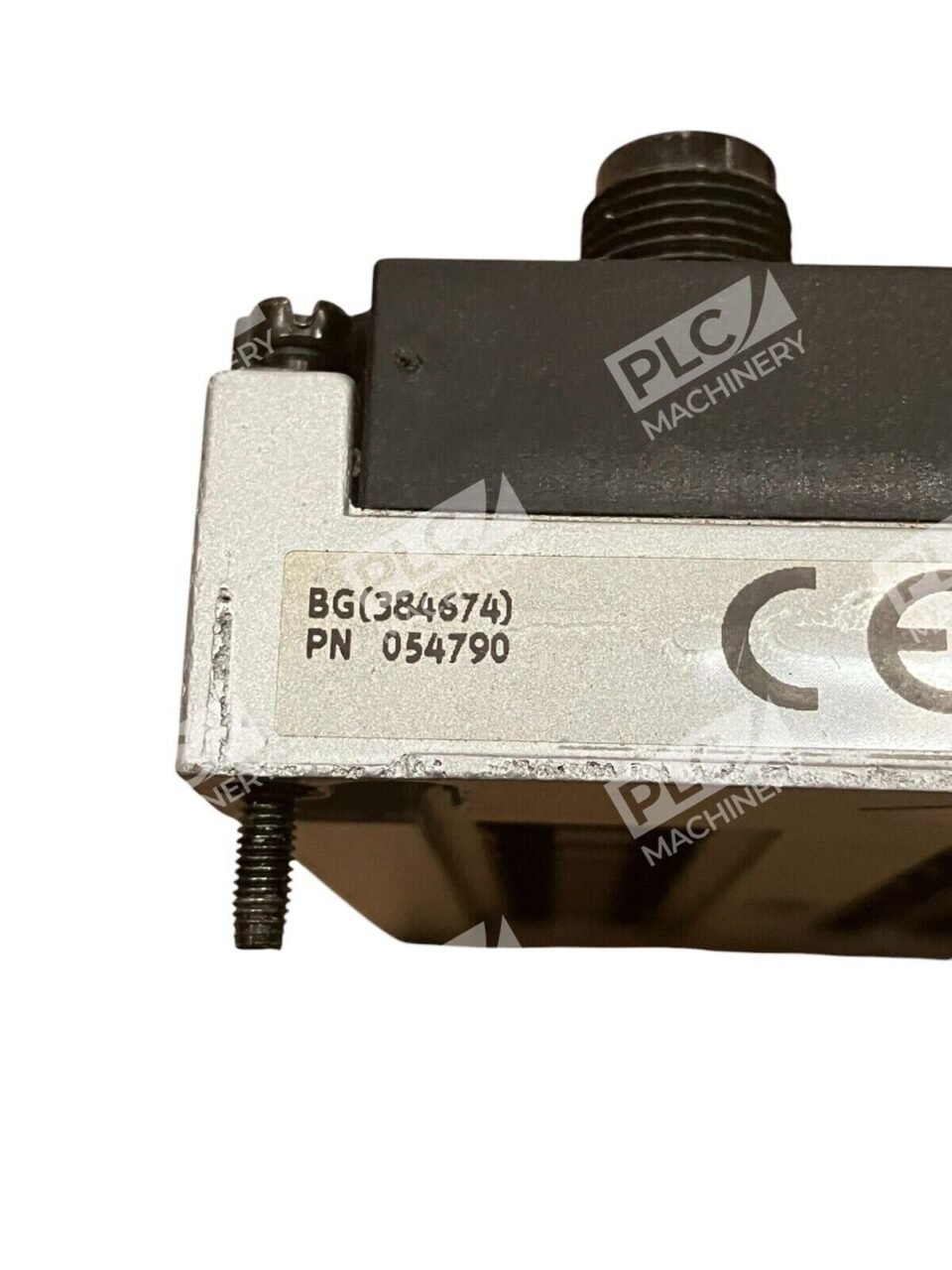

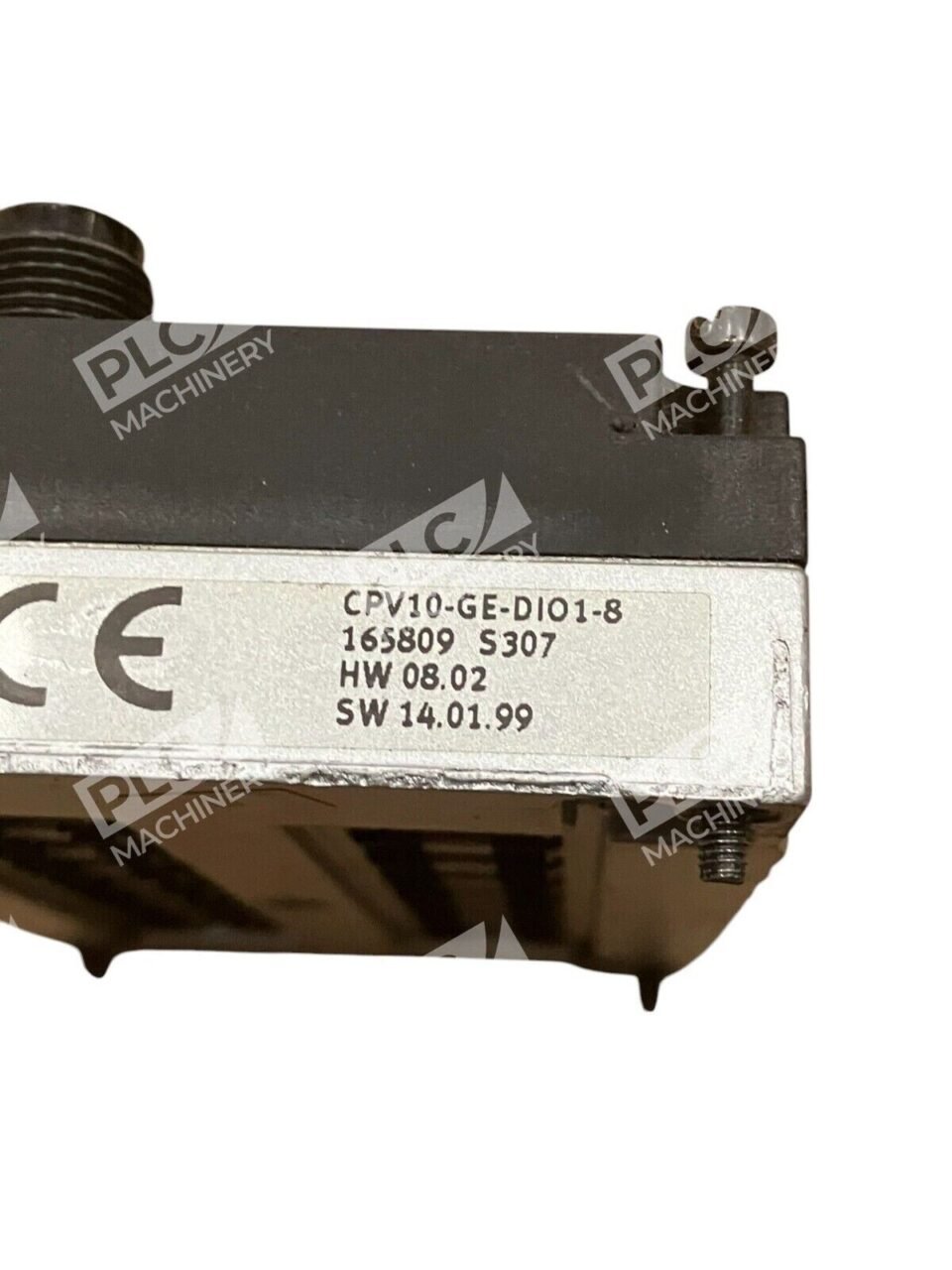

Festo 165809 S307 HW08.02 SW14.01.99 054790 Manifold Interface CPV10-GE-DIO1-8

Festo 165809 CPV10-GE-DI01-8 Electrical Interface

The Festo 165809 CPV10-GE-DI01-8 is a compact and efficient electrical interface designed for seamless integration with CPV valve terminals. This interface facilitates the connection of up to 16 inputs and 8 outputs, accommodating a maximum of 16 valve coils. Its design supports CP string extension, allowing for expanded system configurations.

Key Features

• CP String Extension: Supports 16 inputs and 8 outputs (or 16 valves), enabling flexible system expansion.
• Fieldbus Interface Options: Offers optional connectivity via:
  • Socket and plug, M12x1, 5-pin, B-coded
  • Sub-D, 9-pin, socket
• Device-Specific Diagnostics: Provides comprehensive diagnostics, including:
  • Missing module on CP string extension
  • Short circuit/overload detection on outputs
  • Undervoltage monitoring for outputs, sensor supply, and valves
• Communication: Supports cyclical communication types and configuration via GSD files and bitmaps.
• Electrical Specifications:
  • Operating voltage range: 20.4 to 26.4 V DC
  • Nominal operating voltage: 24 V DC
  • Baud rate: 9.6 kBaud to 12 MBaud with automatic detection
• Protection and Compliance:
  • Reverse polarity protection for all electrical connections
  • Degree of protection: IP65
  • RoHS-compliant materials

Technical Specifications

• Material: Die-cast aluminum housing with PA-reinforced cover
• Ambient Temperature Range: -5°C to 50°C
• Storage Temperature Range: -20°C to 70°C
• Weight: Approximately 240 g

The Festo 165809 CPV10-GE-DI01-8 electrical interface is engineered to provide reliable and efficient control within pneumatic systems, ensuring optimal performance and adaptability in various industrial applications.
