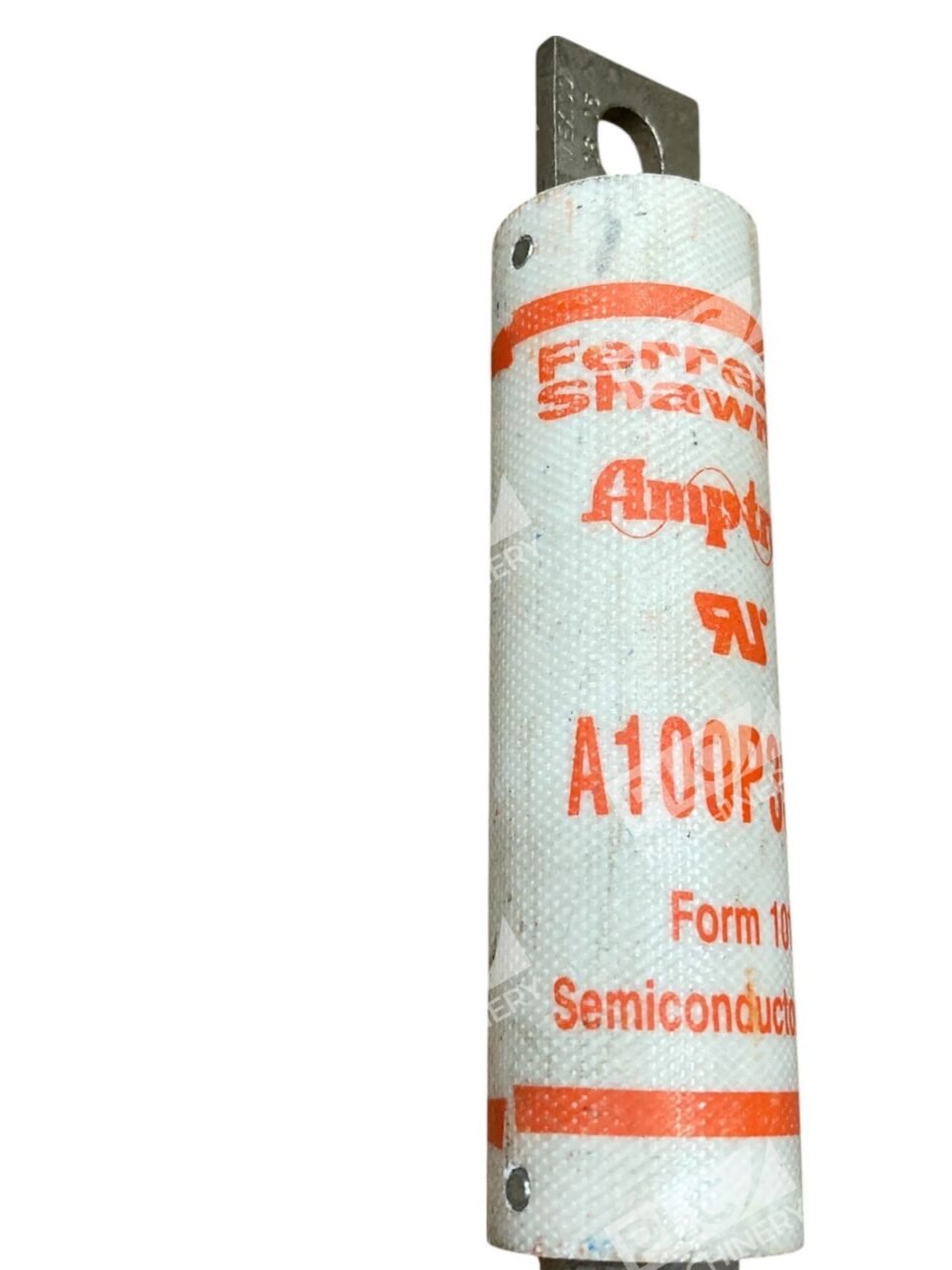

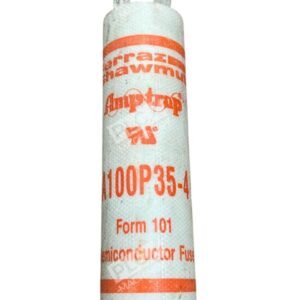

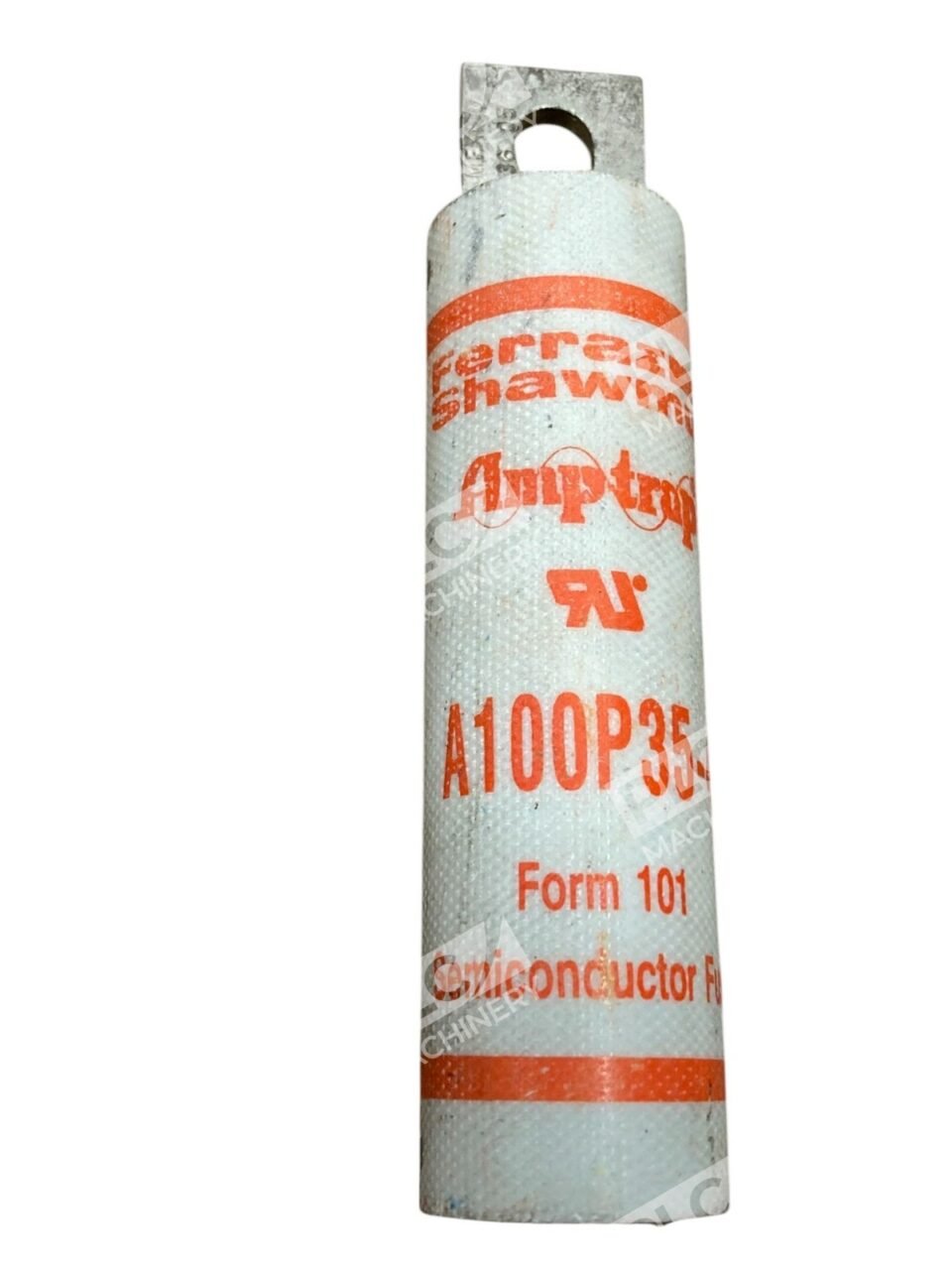

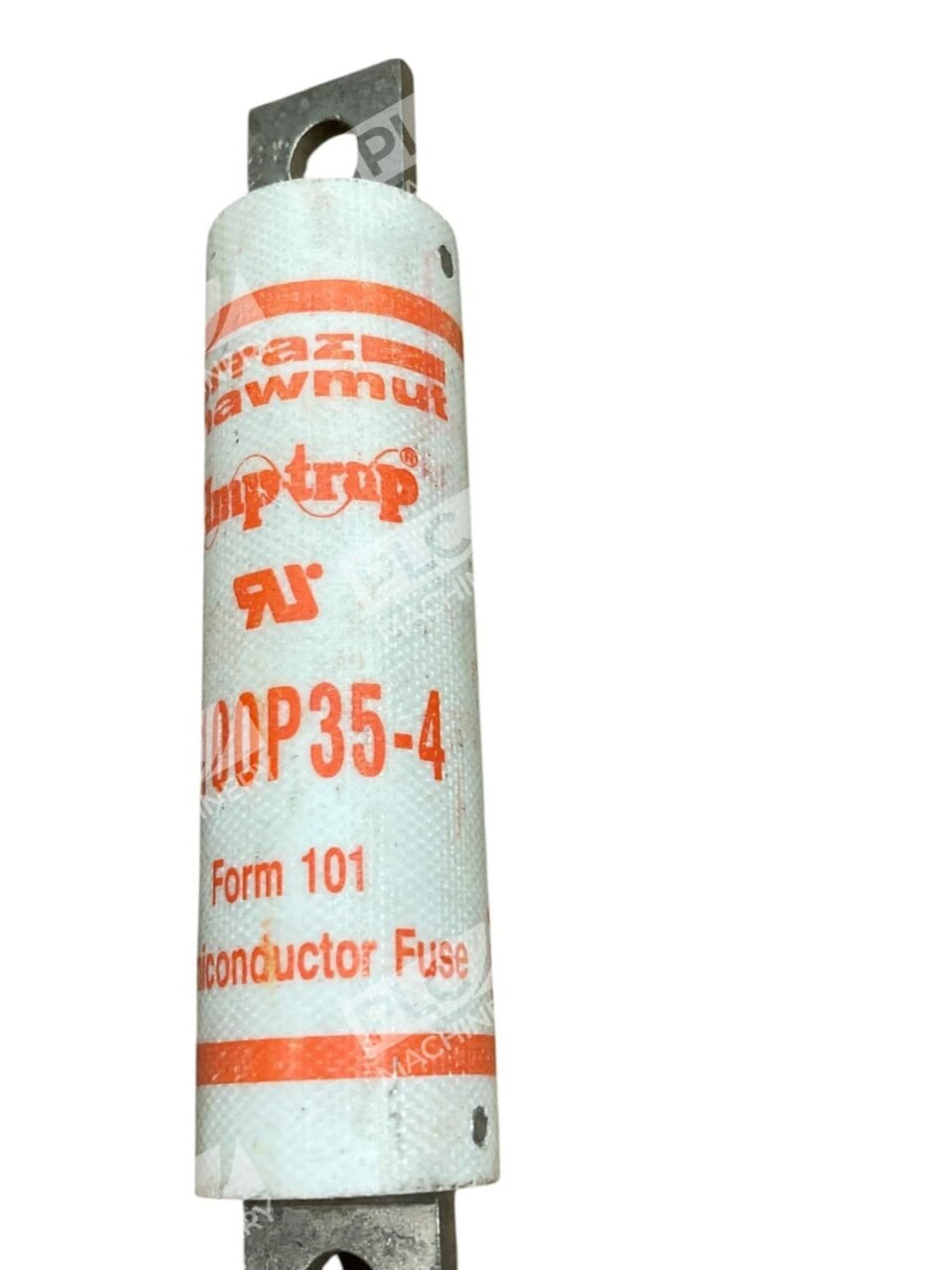

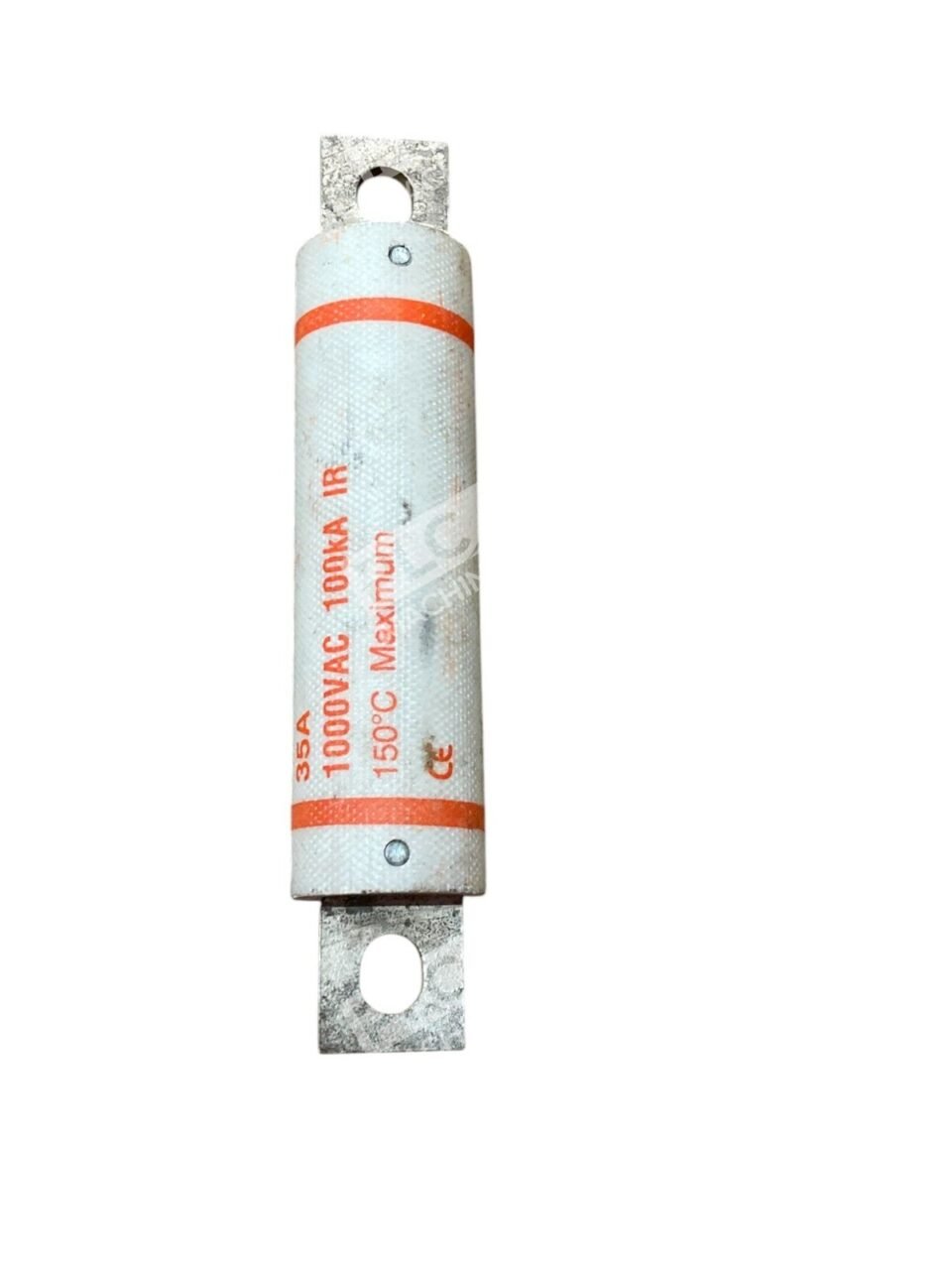

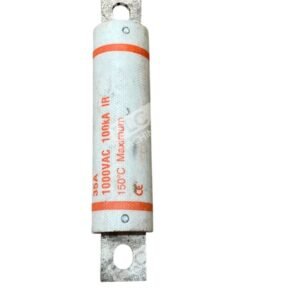

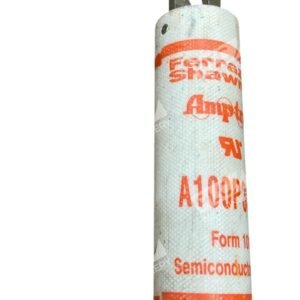

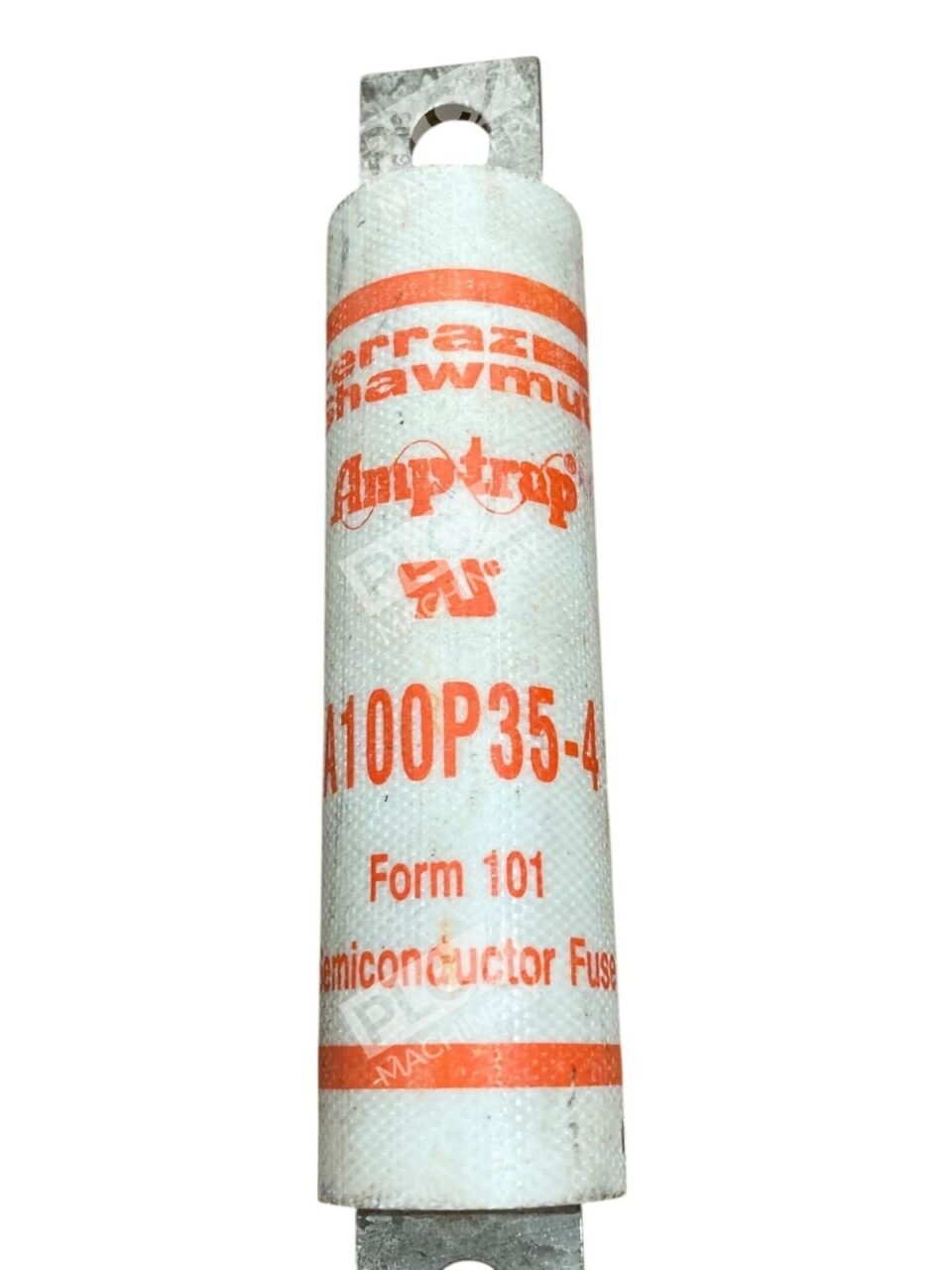

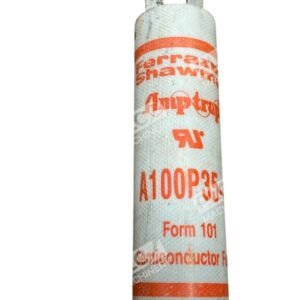

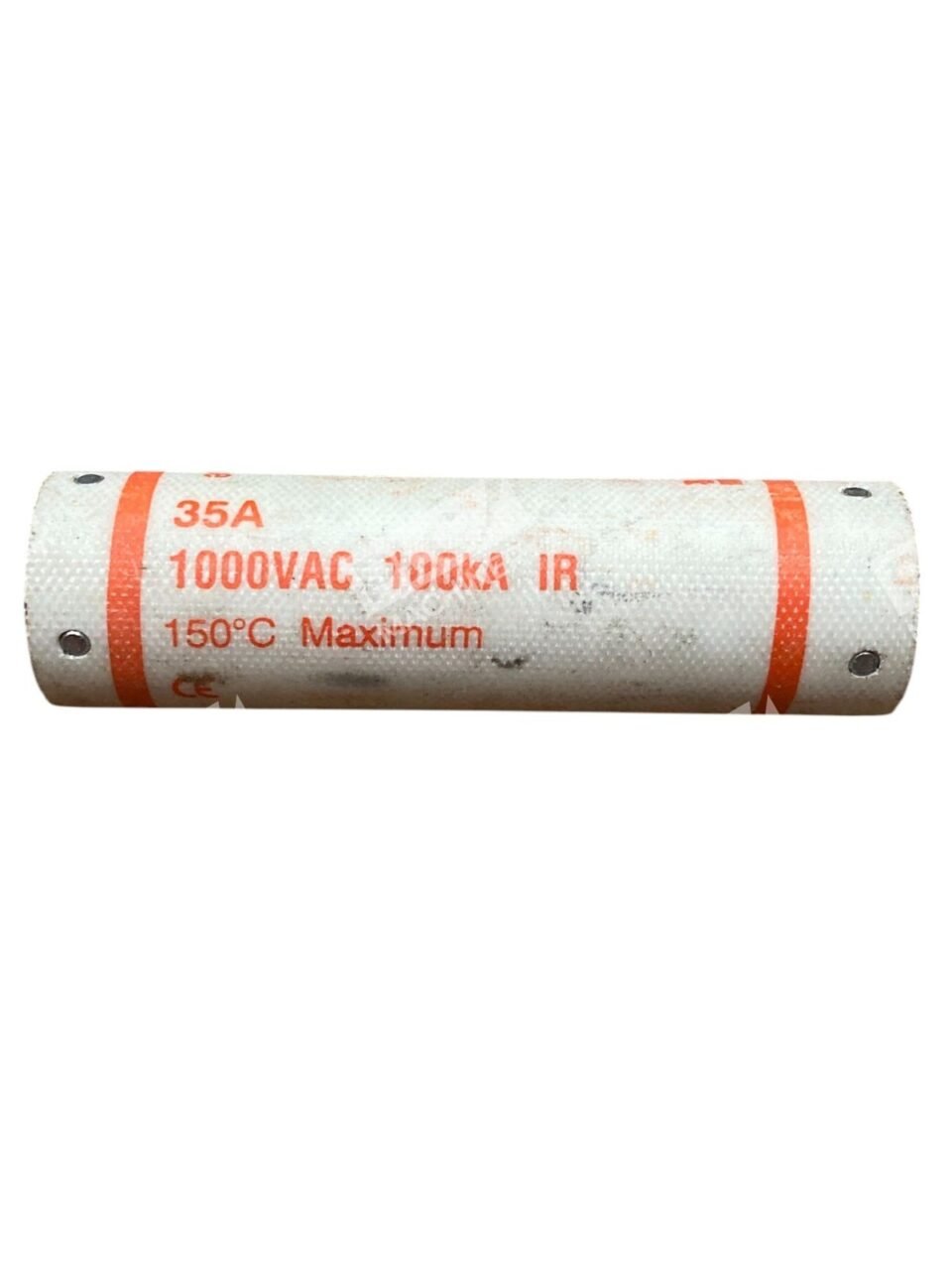

Ferraz A100P35-4 Semi Conductor Fuse

Ferraz A100P35-4 Semiconductor Fuse

The Ferraz A100P35-4 is a high-speed semiconductor fuse designed to provide reliable protection for sensitive electronic equipment. With a voltage rating of 1000 VAC and 750 VDC, and a current rating of 35 amperes, this fuse is suitable for a variety of high-voltage applications.

Key Features

• High-Speed Performance: The A100P35-4 offers fast-acting characteristics, ensuring rapid response to overcurrent conditions, thereby safeguarding critical components.
• Low I²t Value: Its low I²t minimizes damage to protected components during short circuits, enhancing the longevity and reliability of the system.
• Controlled Arc Voltage: Designed to reduce stress on circuit components during fuse clearing, the controlled arc voltage feature helps maintain system stability.
• Robust Construction: Featuring a cylindrical body measuring 1 inch in diameter and 5 inches in length, the fuse is built for durability and ease of installation.
• High Interrupting Rating: With an interrupting rating of 100 kA, it effectively handles high fault currents, providing robust protection.

Applications

The A100P35-4 is ideal for protecting various high-voltage equipment, including:

• Uninterruptible Power Supply (UPS) systems
• AC and DC drives
• Reduced voltage motor starters
• Other semiconductor devices operating at 1000V or less

Technical Specifications

• Voltage Rating: 1000 VAC / 750 VDC
• Current Rating: 35 A
• Interrupting Rating: 100 kA
• Body Dimensions: 1 inch diameter x 5 inches length
• Mounting Type: Bolt-in/Blade
• Compliance: RoHS Compliant; UL Recognized

For detailed technical information and installation guidelines, please refer to the manufacturer’s datasheet.
