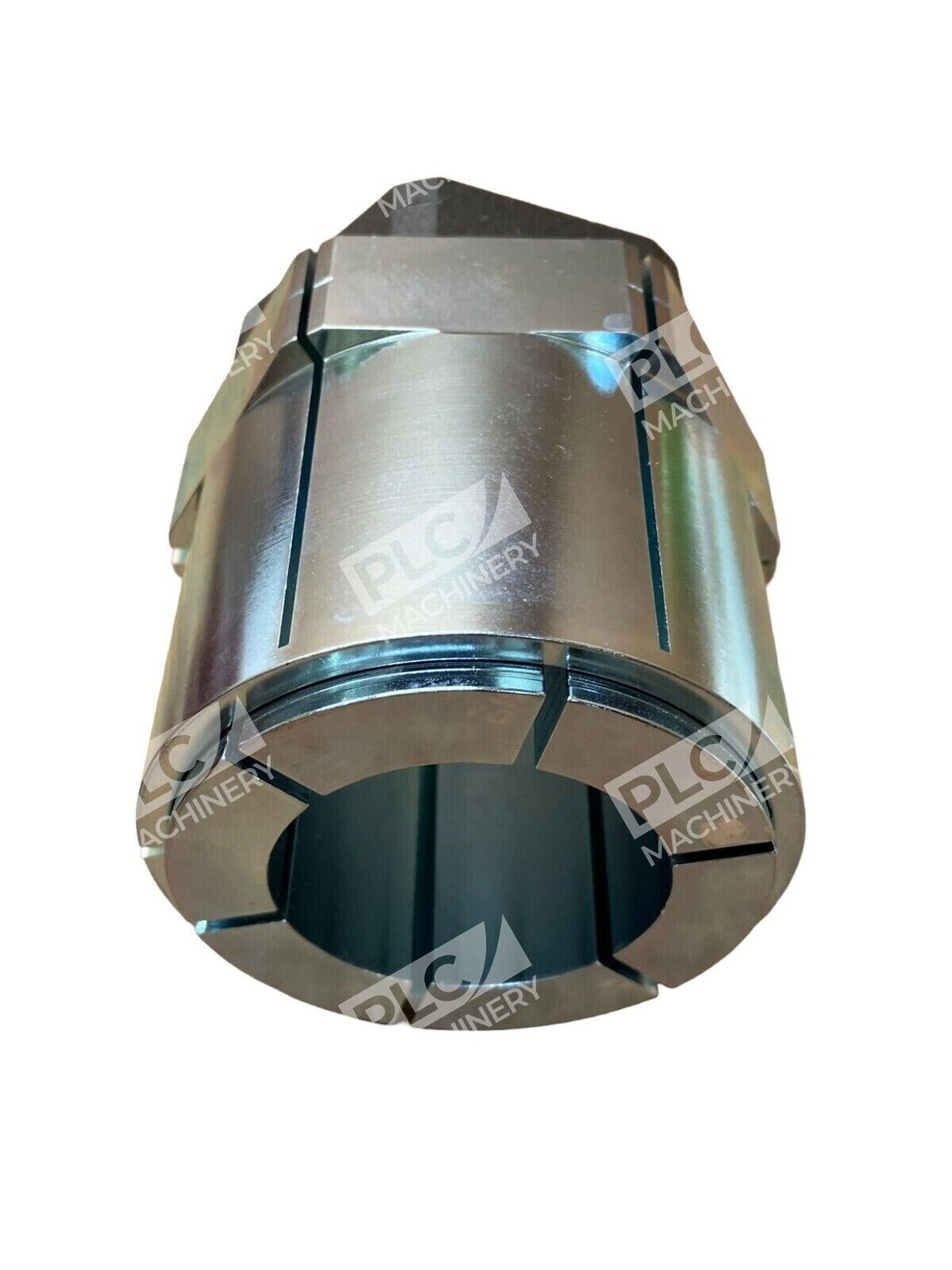

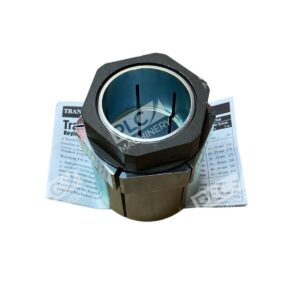

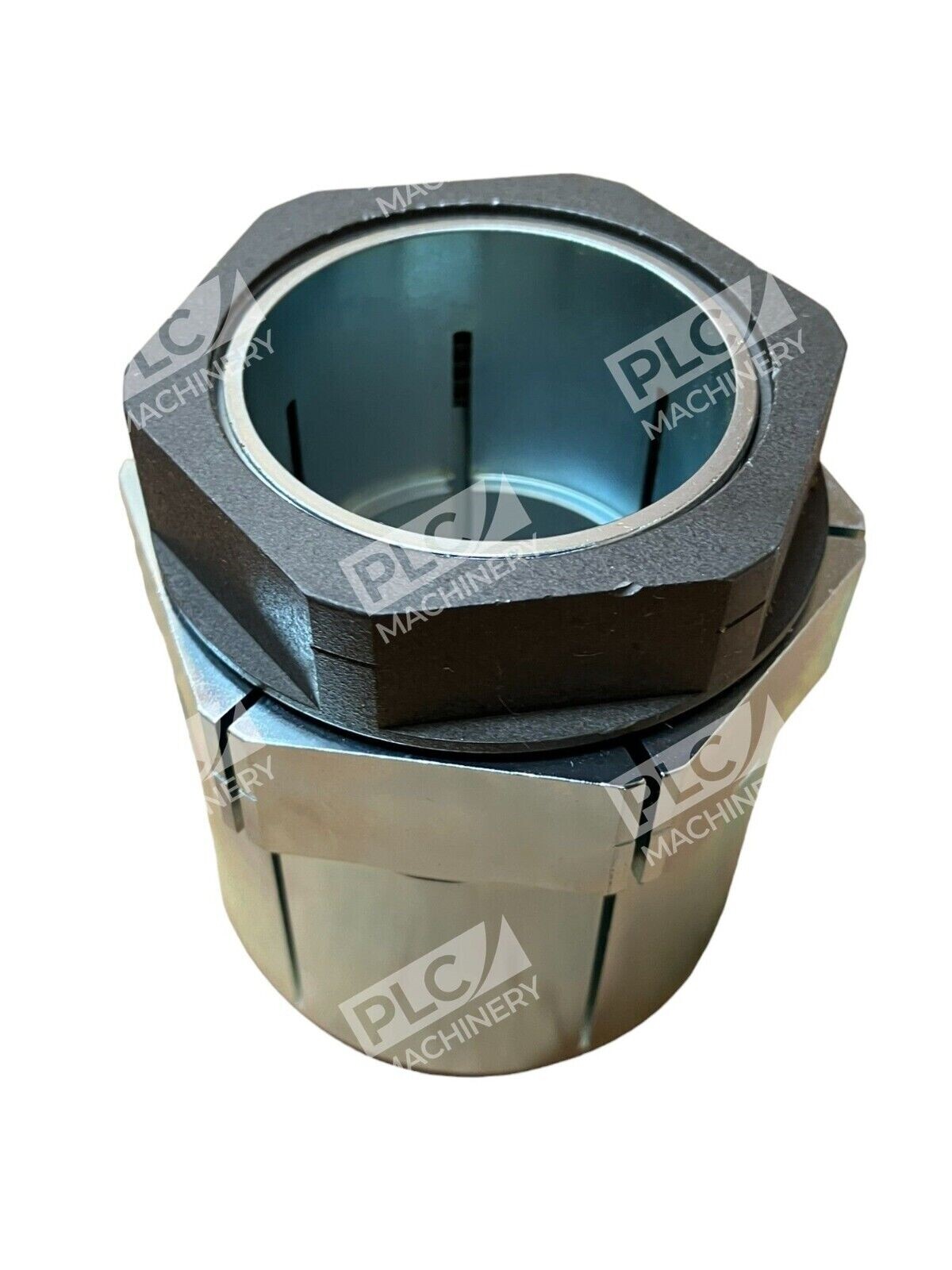

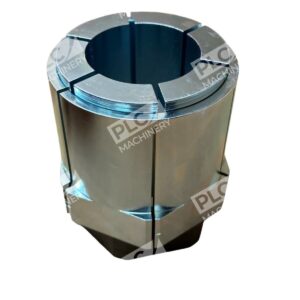

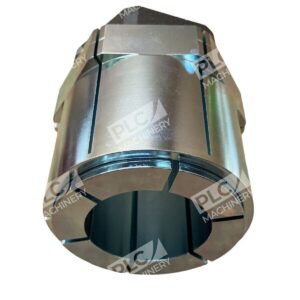

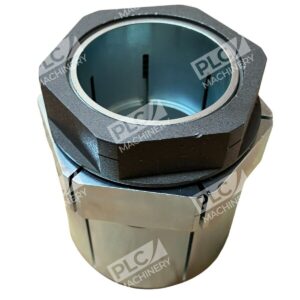

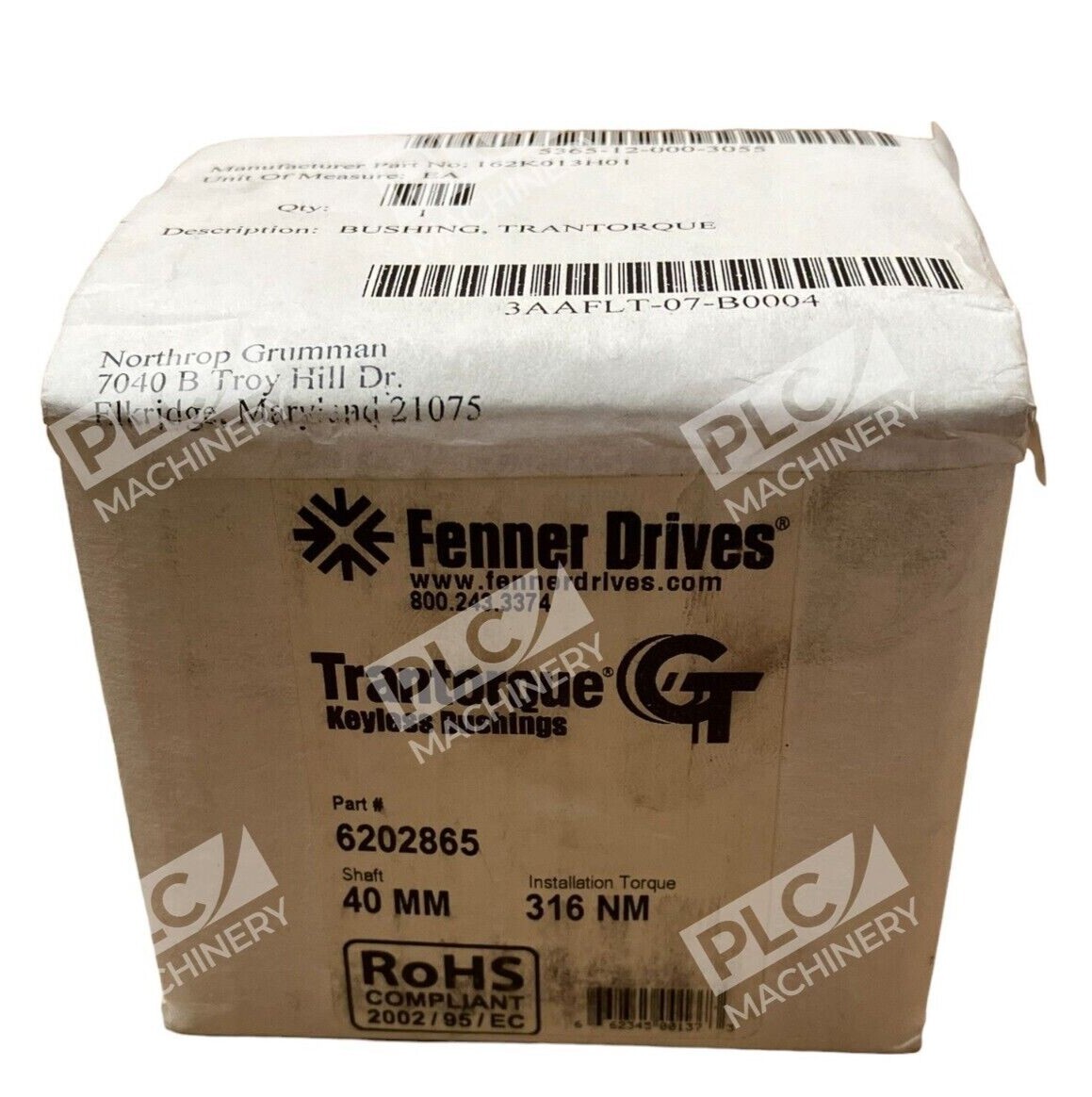

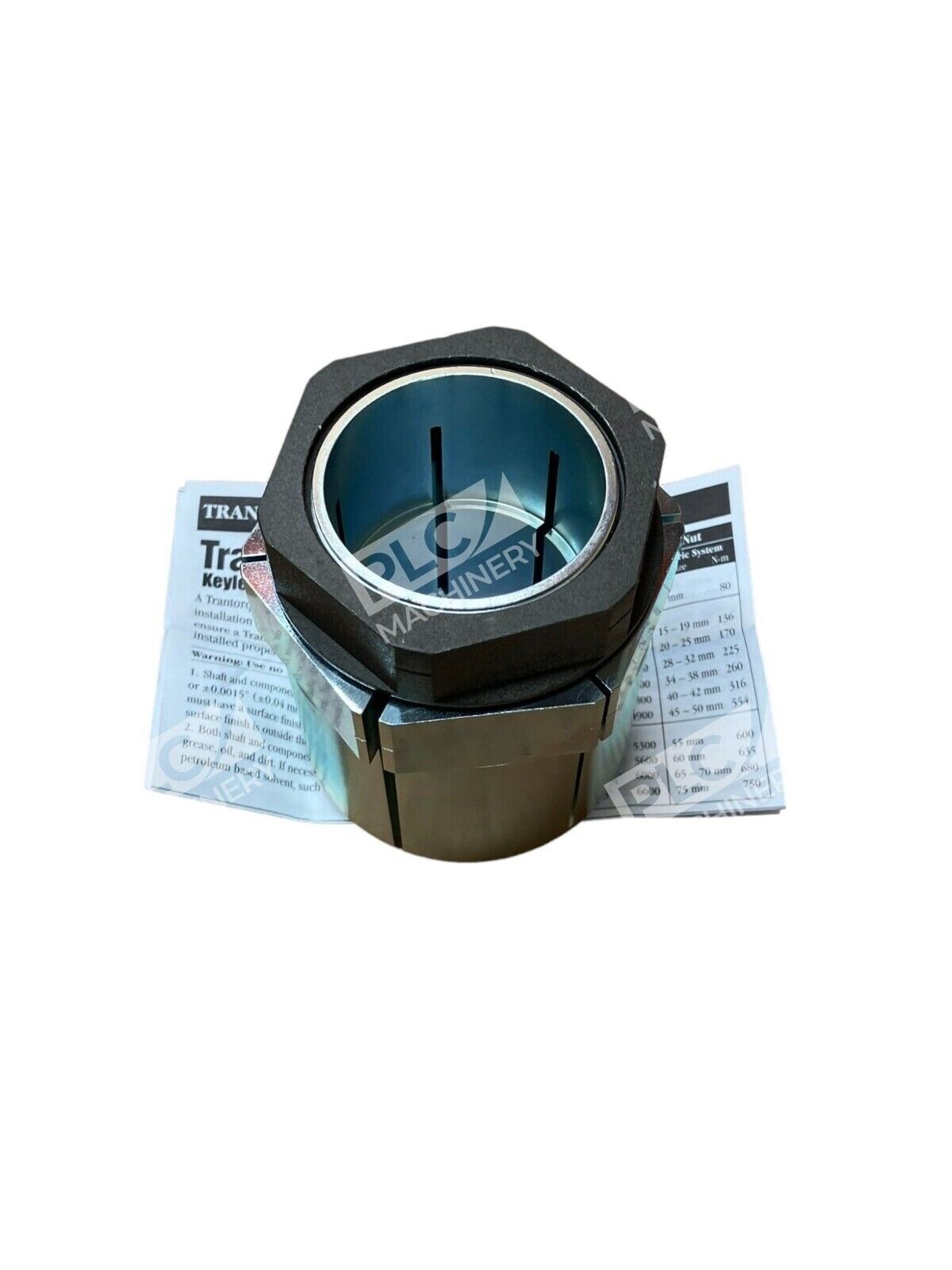

Fenner Drives 6202865 Trantorque GT Keyless Bushing
The Fenner Drives 6202865 Trantorque GT Keyless Bushing is engineered to provide a high-capacity, zero-backlash connection between shafts and mounted components. Designed for 40 mm diameter shafts, this bushing ensures precise and secure attachment without the need for keyways or splines.
Key Features
- Zero-Backlash Connection: Eliminates play between the shaft and mounted component, ensuring accurate torque transmission.
- High Torque Capacity: Capable of transmitting up to 728 N-m of torque, making it suitable for demanding applications.
- Easy Installation and Removal: Features a single hex nut design for quick and straightforward mounting and dismounting.
- Versatile Application: Can be mounted over existing keyways, allowing for retrofitting and repair without additional machining.
- Exceptional Concentricity: Maintains precise alignment, accommodating bending loads effectively.
Specifications
- Bore Diameter: 40 mm
- Outside Diameter: 67 mm
- Overall Length: 79.4 mm
- Transmissible Torque: 728 N-m
- Transmissible Thrust: 36 kN
- Hub Contact Pressure: 31 N/sq-mm
- Material: Steel with Zinc Plated Finish
- Temperature Range: -30 to 400°F
Applications
Ideal for use in various industrial applications, including:
- Mounting gears, cams, and timing belt sprockets
- Securing conveyor rolls and climate control fan hubs
- Attaching grinding wheels and other rotating components
The Fenner Drives 6202865 Trantorque GT Keyless Bushing offers a reliable and efficient solution for achieving secure, backlash-free connections in a wide range of mechanical systems.
