Electro-Sensors Pulser Disc 4″ 16-Pole Magnetic Speed Sensor Disc

Electro-Sensors Pulser Disc 4″ 16-Pole Magnetic Speed Sensor Disc

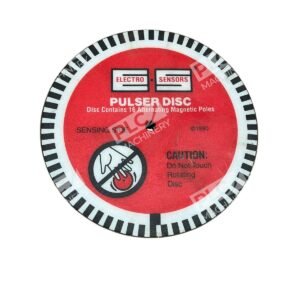

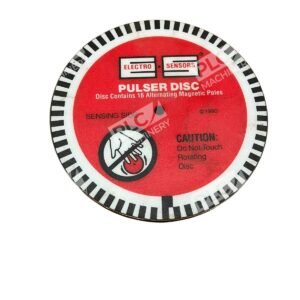

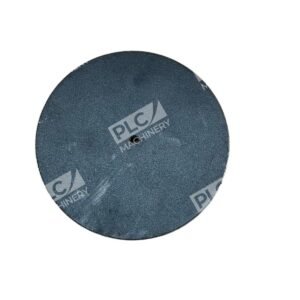

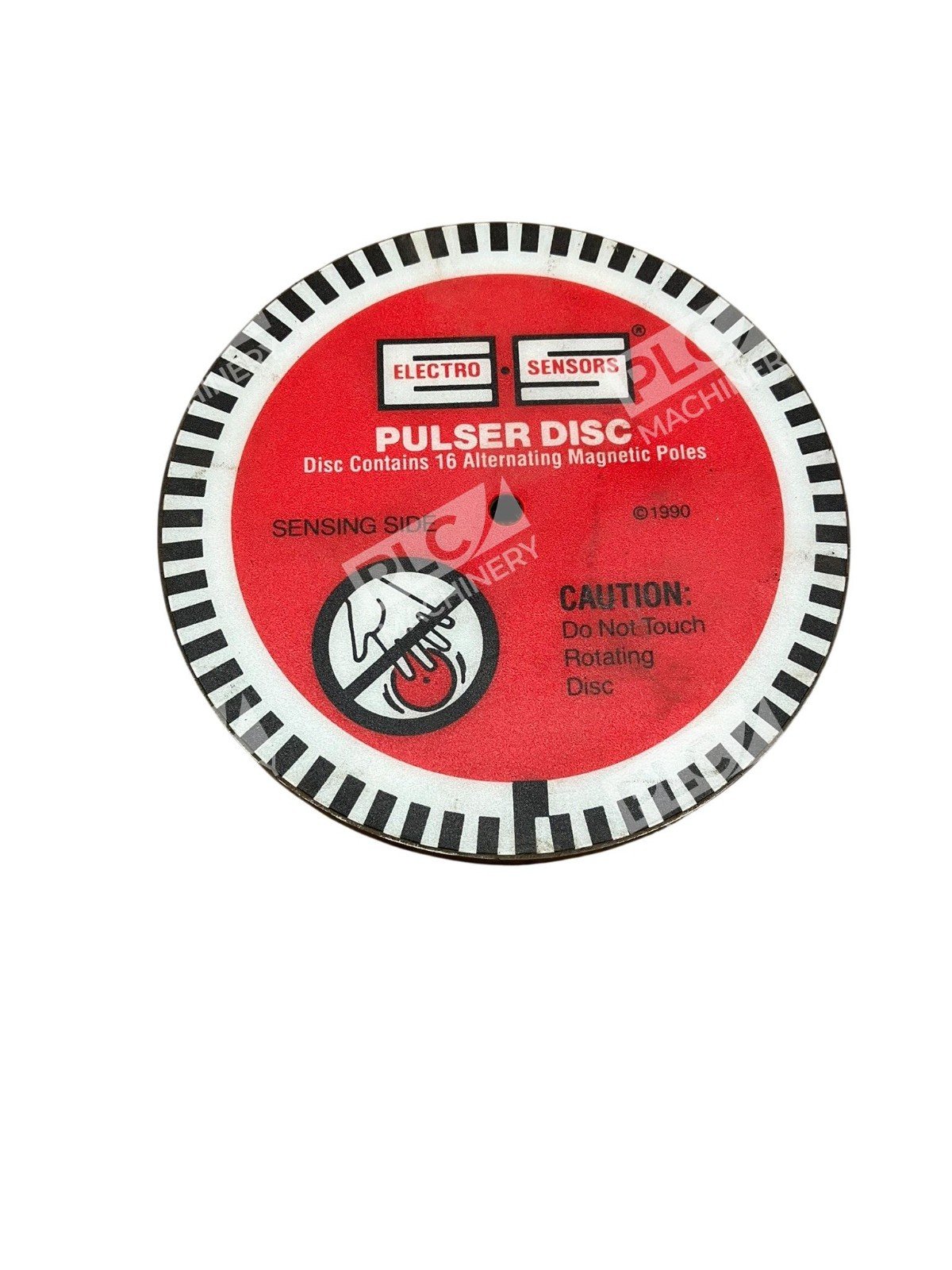

The Electro-Sensors Pulser Disc is a precision-engineered component designed to provide accurate and reliable speed sensing for various industrial applications. This 4-inch diameter disc features 16 embedded magnets, making it an ideal choice for monitoring rotational speeds in machinery.

Key Features

• Material Options: Available in durable PVC or aluminum to suit different environmental conditions and application requirements.
• Magnet Configuration: Equipped with 16 evenly spaced magnets, ensuring consistent pulse generation for precise speed measurement.
• Mounting Flexibility: Designed for end-of-shaft mounting, facilitating straightforward installation and maintenance.
• Non-Contact Sensing: Enables non-contact operation with compatible sensors, reducing wear and extending the lifespan of both the disc and sensor.
• Wide Operating Temperature Range: PVC models operate effectively between -40°F and +140°F, while aluminum models withstand temperatures from -40°F to +302°F, accommodating various industrial environments.
• High-Speed Capability: Supports rotational speeds up to 10,000 RPM at ambient temperature, suitable for high-speed applications.

Applications

The 4″ 16-Pole Magnetic Speed Sensor Disc is ideal for industries requiring precise rotational speed monitoring, including:

• Manufacturing and processing equipment
• Conveyor systems
• Pumps and compressors
• Material handling machinery

Installation and Compatibility

For optimal performance, the pulser disc should be paired with Electro-Sensors’ compatible speed sensors, such as the 906 Hall Effect Sensor or the 1101 Hall Effect Sensor. Proper alignment and gap distance between the sensor and the pulser disc are crucial for accurate pulse detection and reliable speed monitoring.

By integrating the Electro-Sensors Pulser Disc into your system, you can achieve precise and dependable speed measurements, enhancing the efficiency and safety of your operations.
