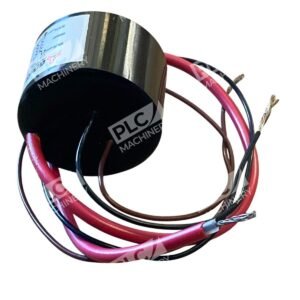

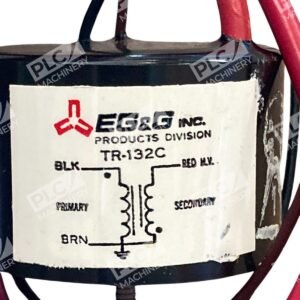

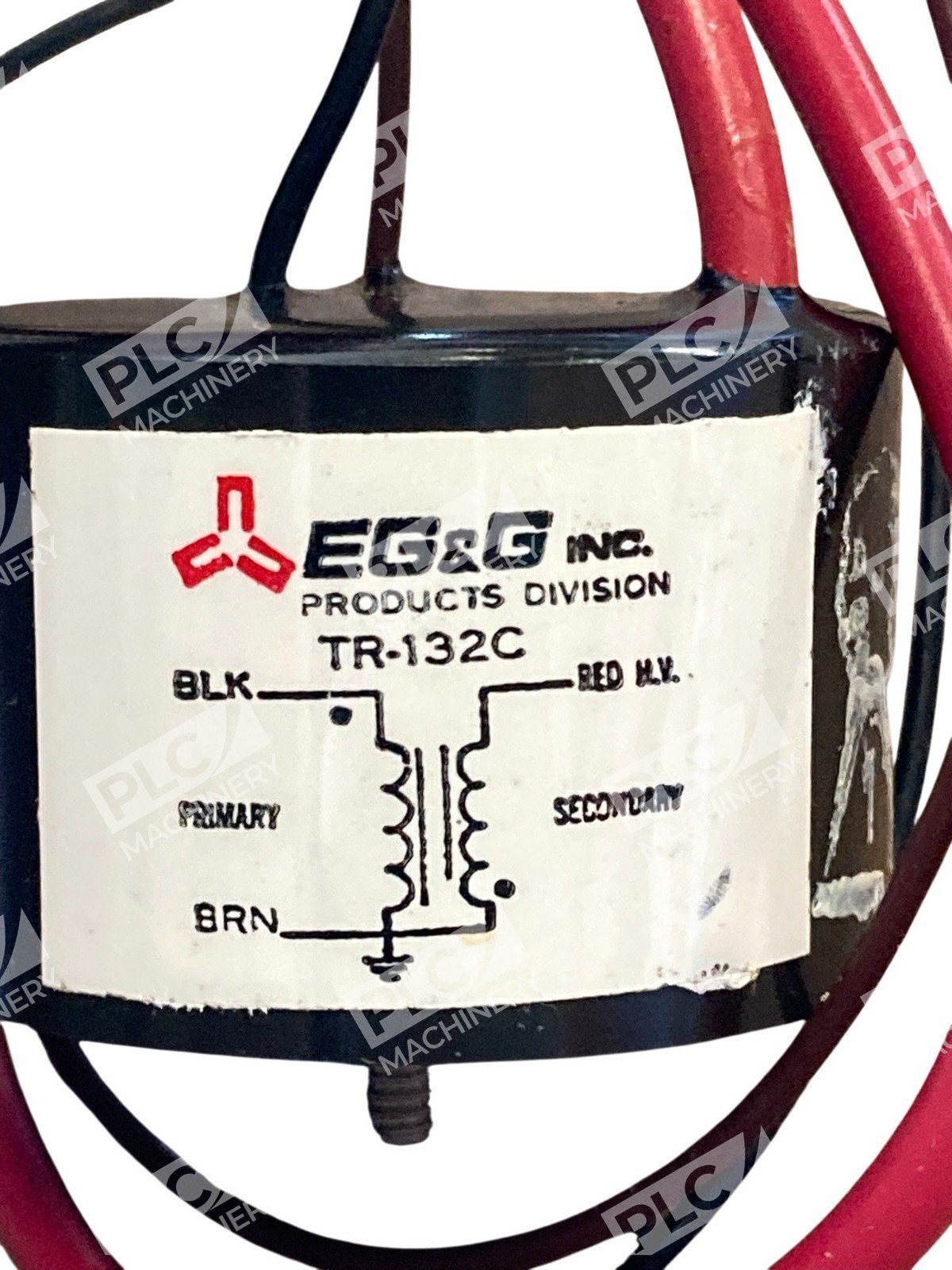

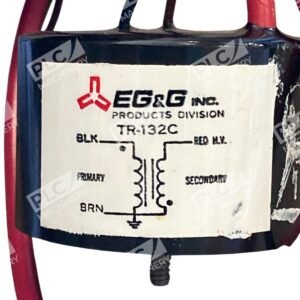

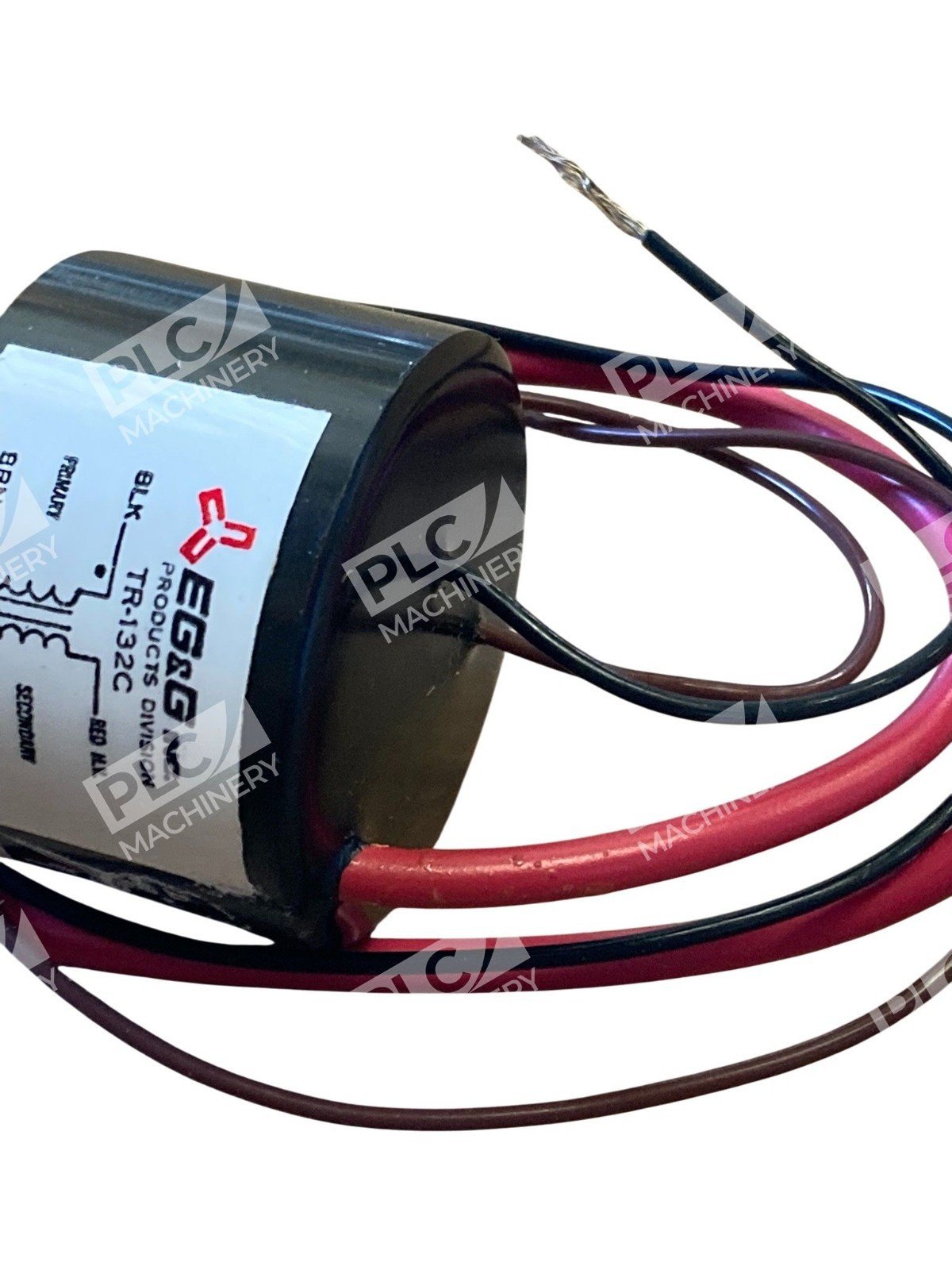

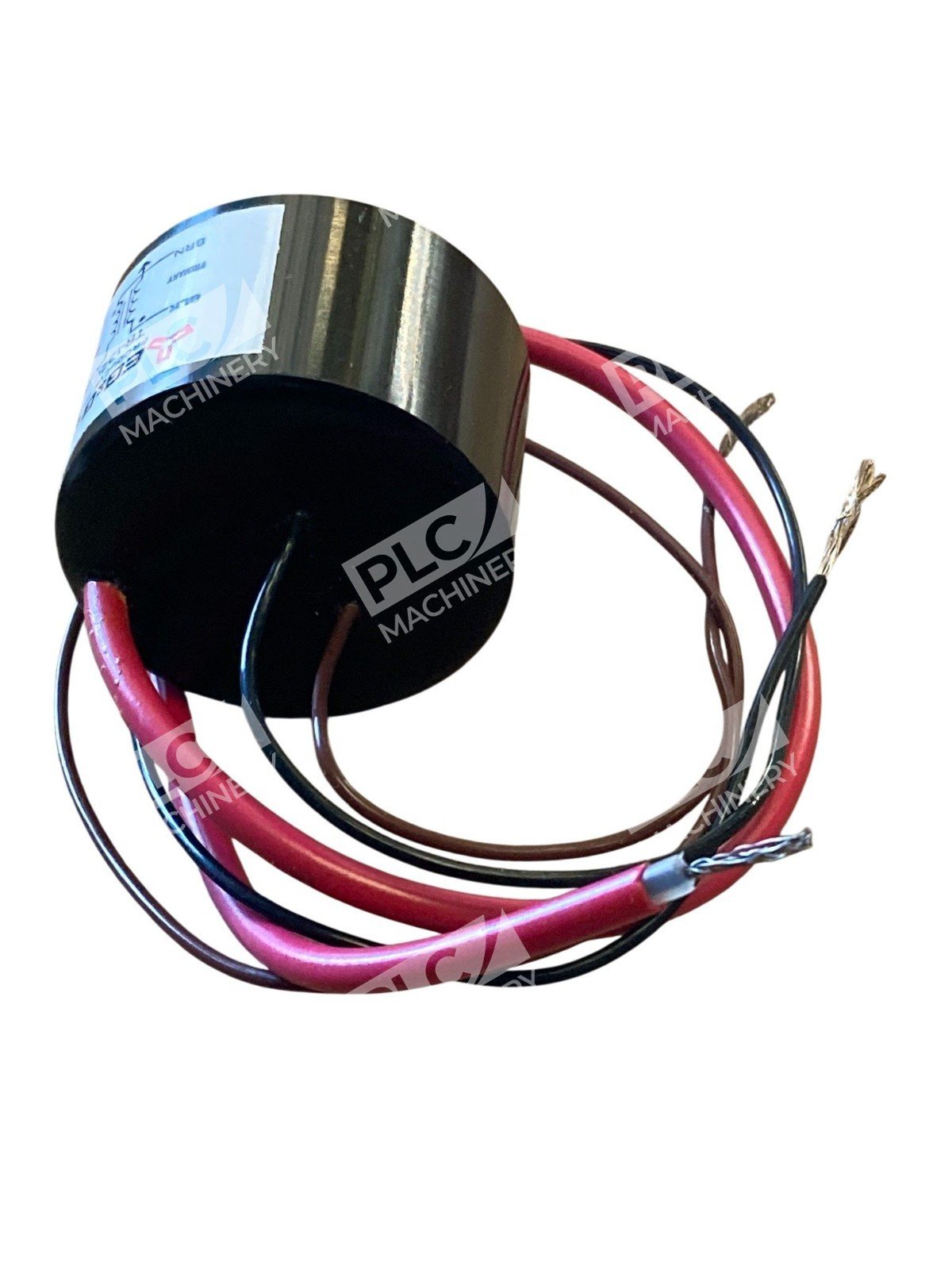

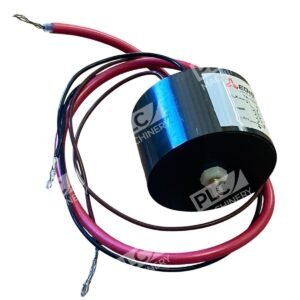

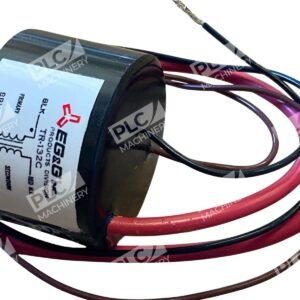

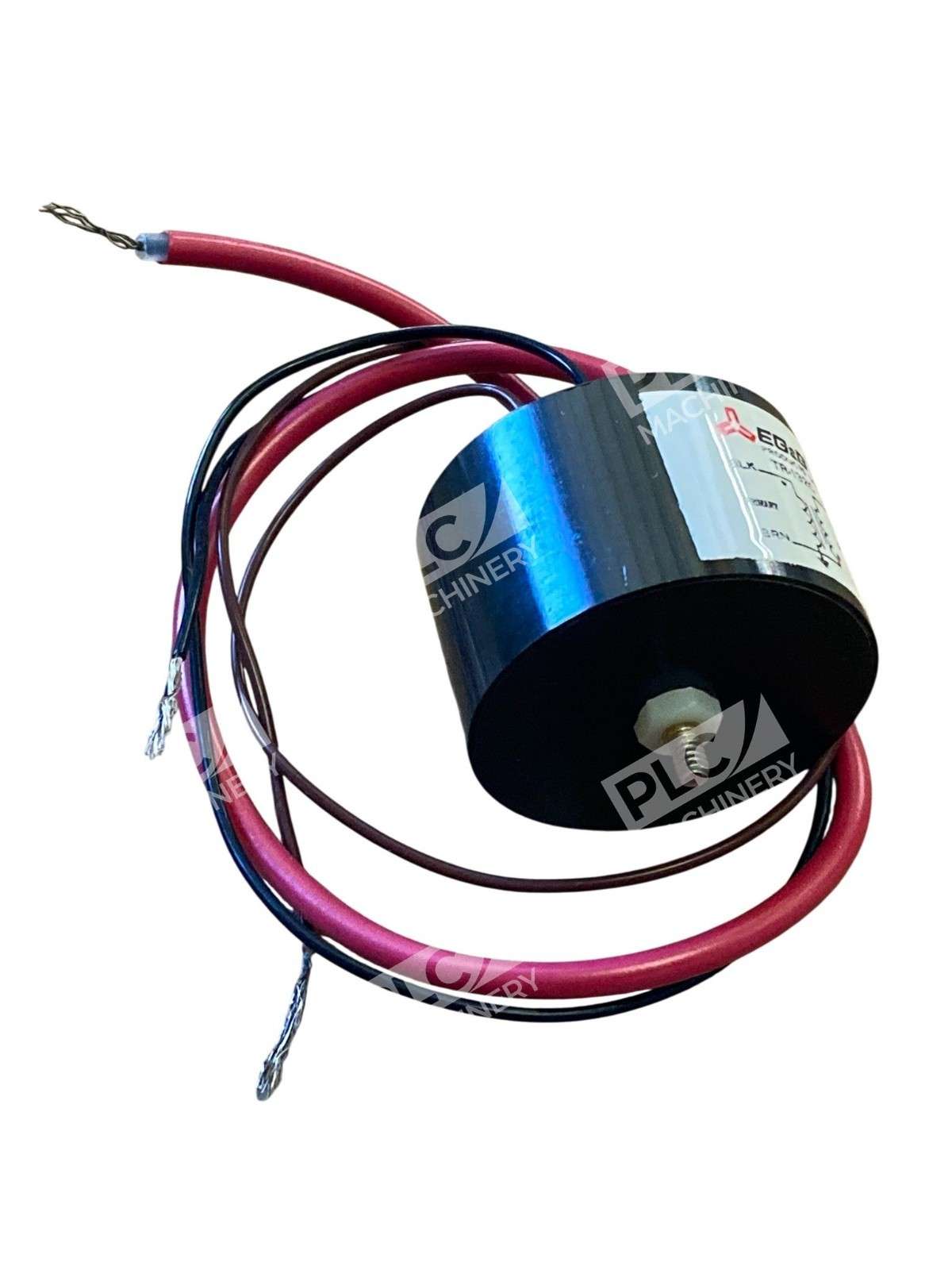

The EG&G TR-132C is a pulse transformer engineered for applications requiring precise pulse transmission without waveform distortion.
Key Features
- Primary to Secondary Turn Ratio: 72:1, facilitating significant voltage step-up or step-down as needed.
- Winding Operating Current: Supports up to 60.0 amperes AC on the secondary winding, accommodating high-current applications.
- Enclosure: Fully enclosed design ensures protection against environmental factors and enhances durability.

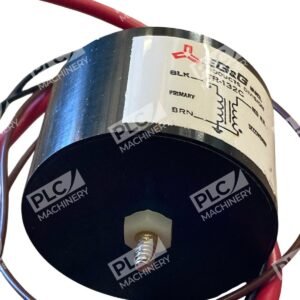

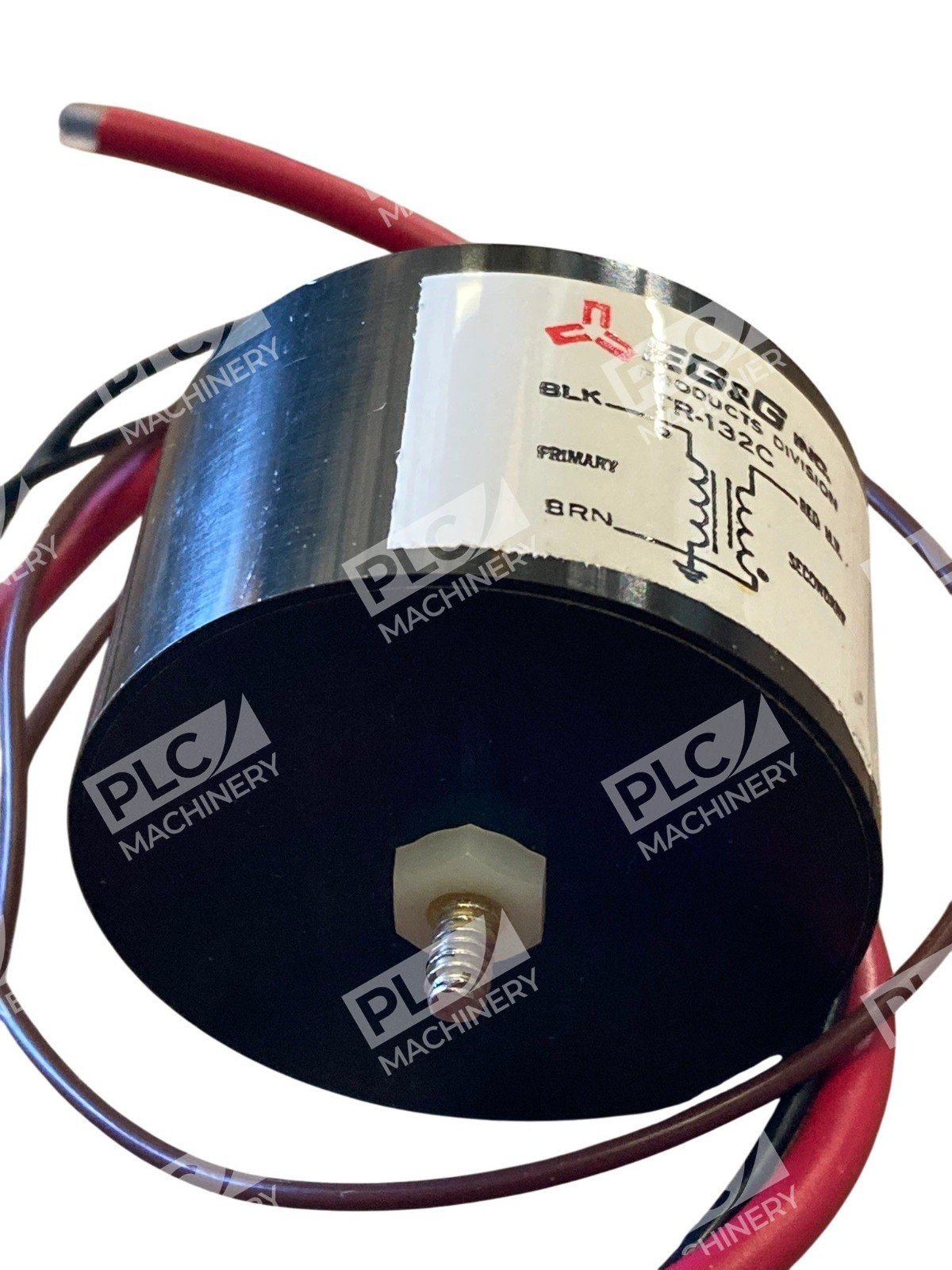

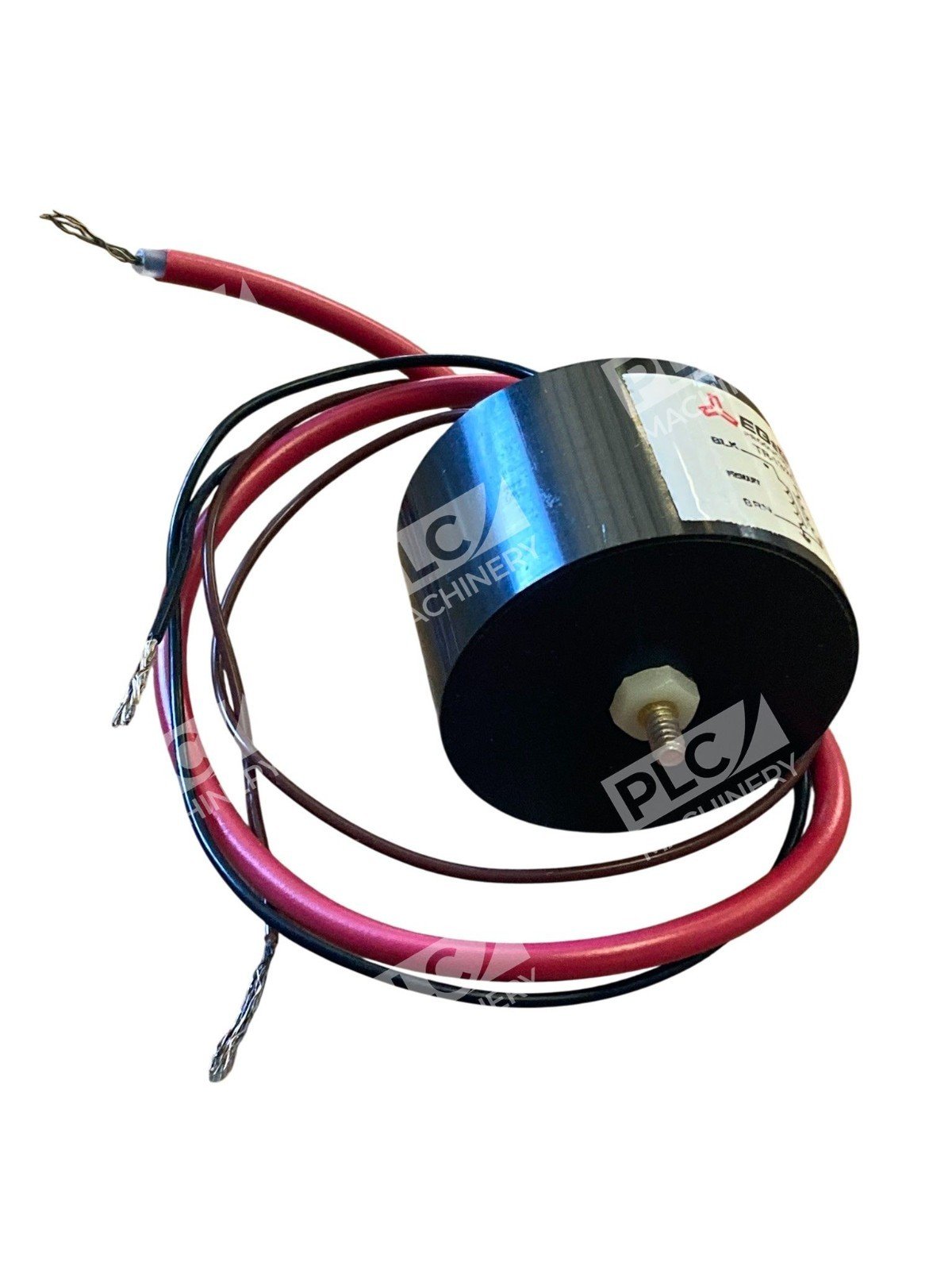

- Mounting: Equipped with a single threaded stud for secure and straightforward installation.
- Dimensions: Compact form factor with a body length of 1.063 inches and an outside diameter of 1.750 inches, allowing for integration into space-constrained setups.
Applications
The TR-132C is ideal for use in circuits where precise pulse transmission is critical, such as in timing circuits, signal processing, and other electronic applications requiring accurate pulse replication.
Technical Specifications
- Primary to Secondary Turn Ratio: 72:1
- Secondary Winding Operating Current: 60.0 amperes AC maximum
- Enclosure Type: Fully enclosed
- Mounting Method: Threaded stud
- Body Length: 1.063 inches
- Body Outside Diameter: 1.750 inches
The EG&G TR-132C pulse transformer combines robust performance with a compact design, making it a reliable component for various electronic applications.
