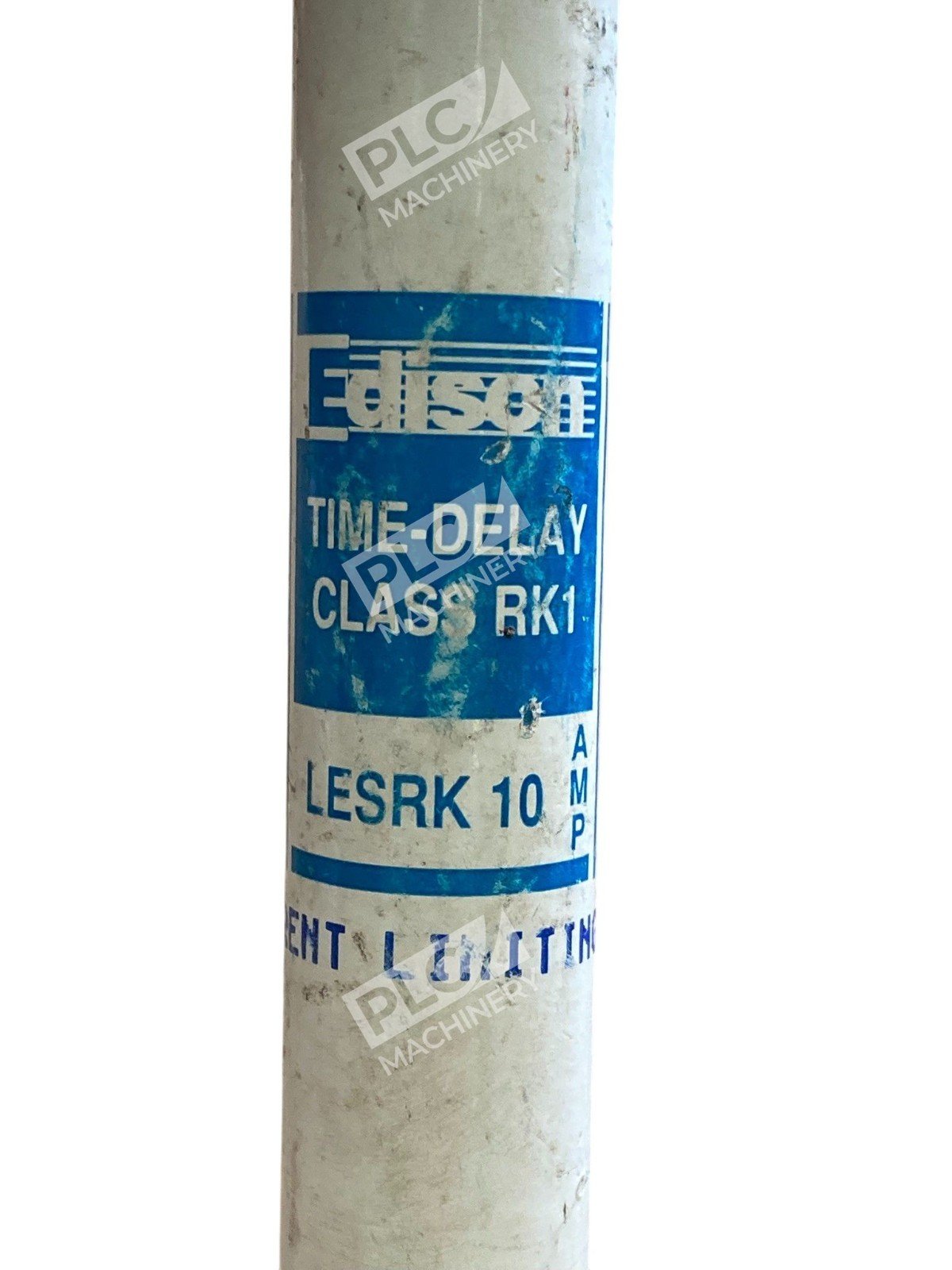

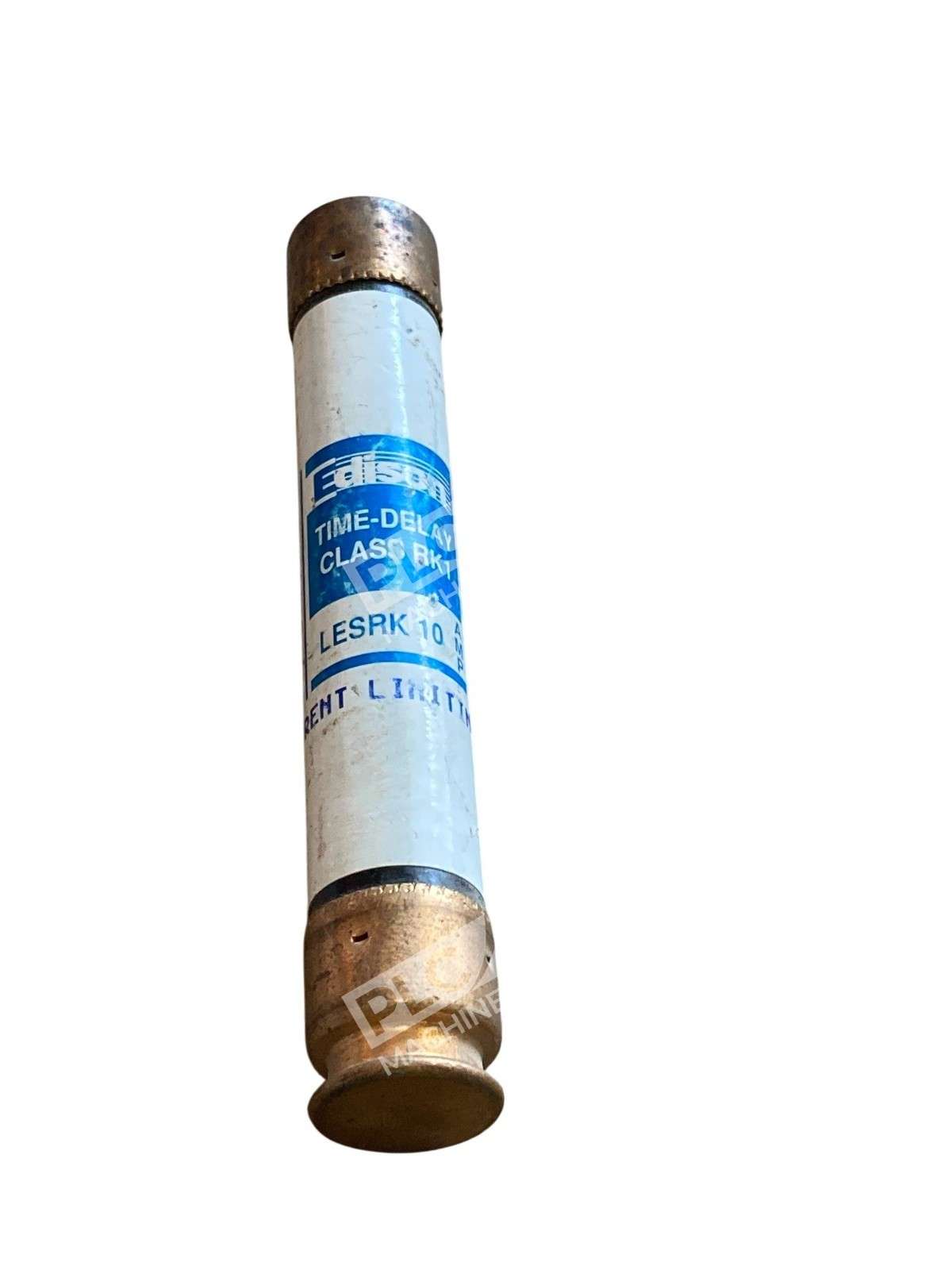

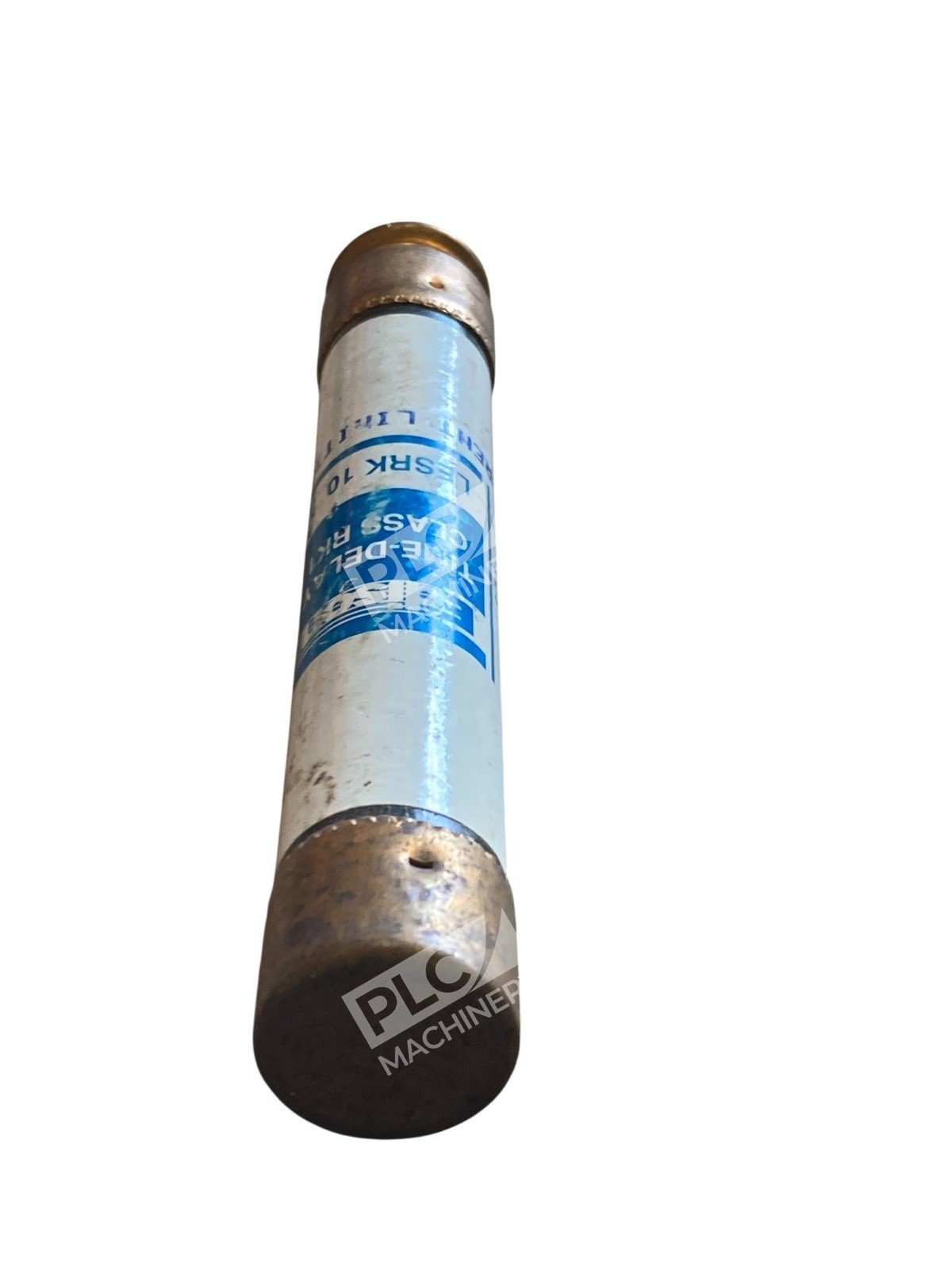

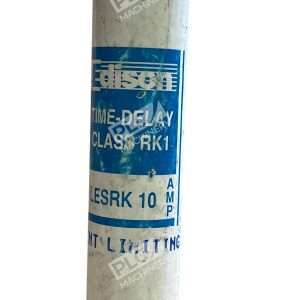

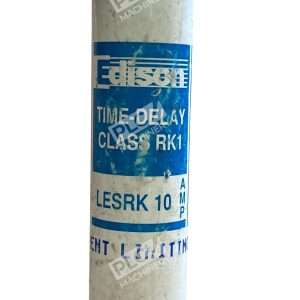

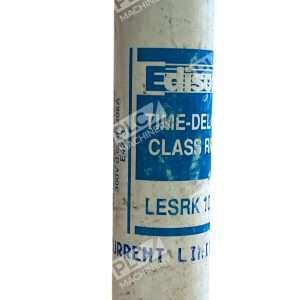

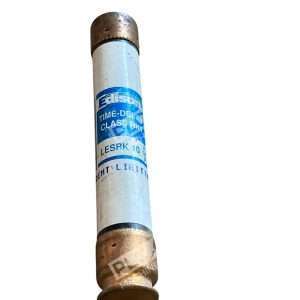

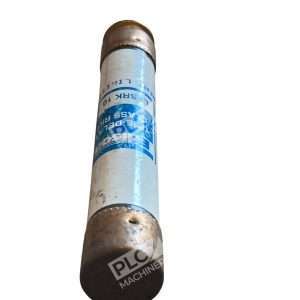

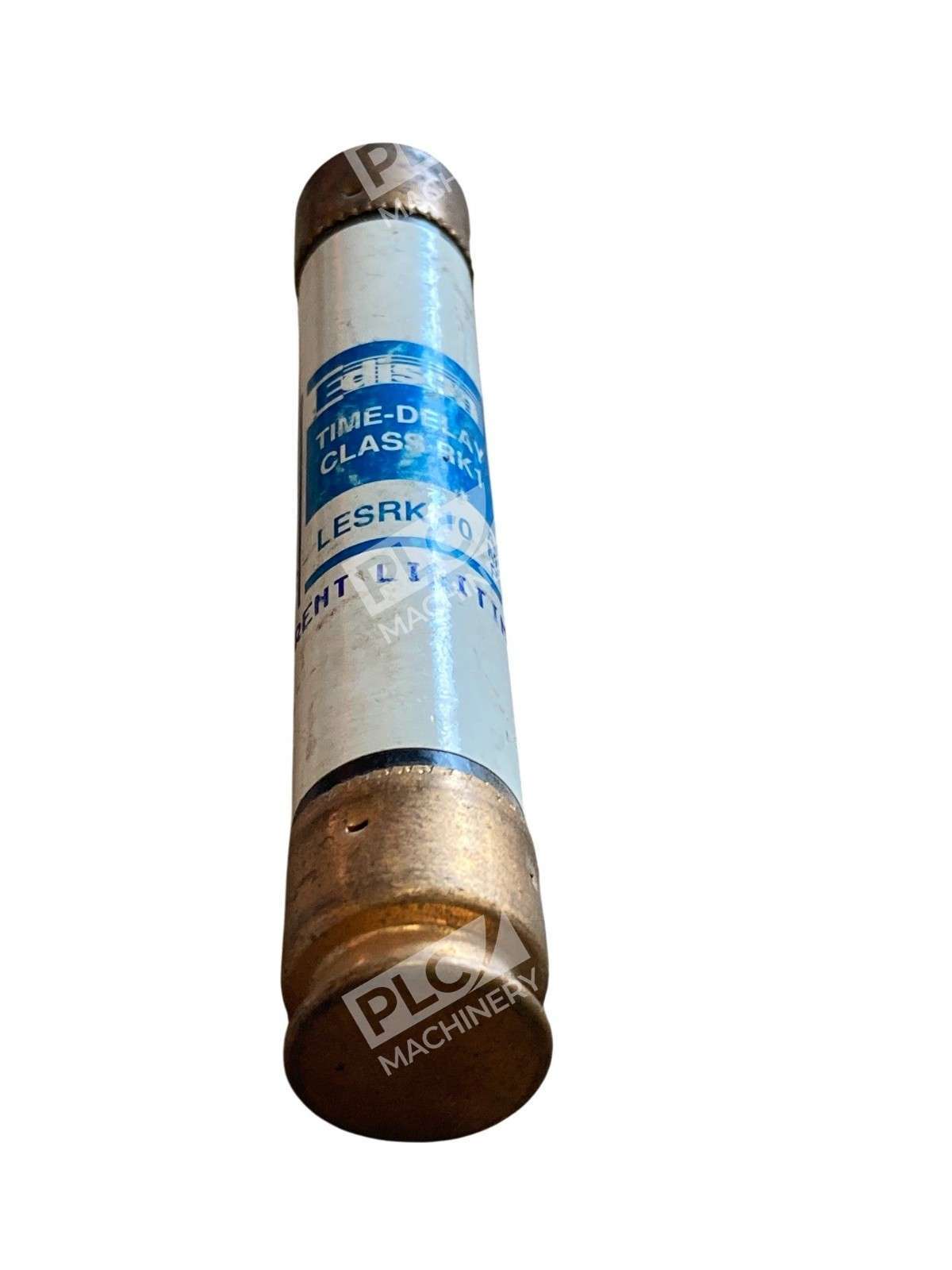

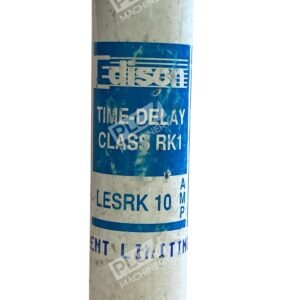

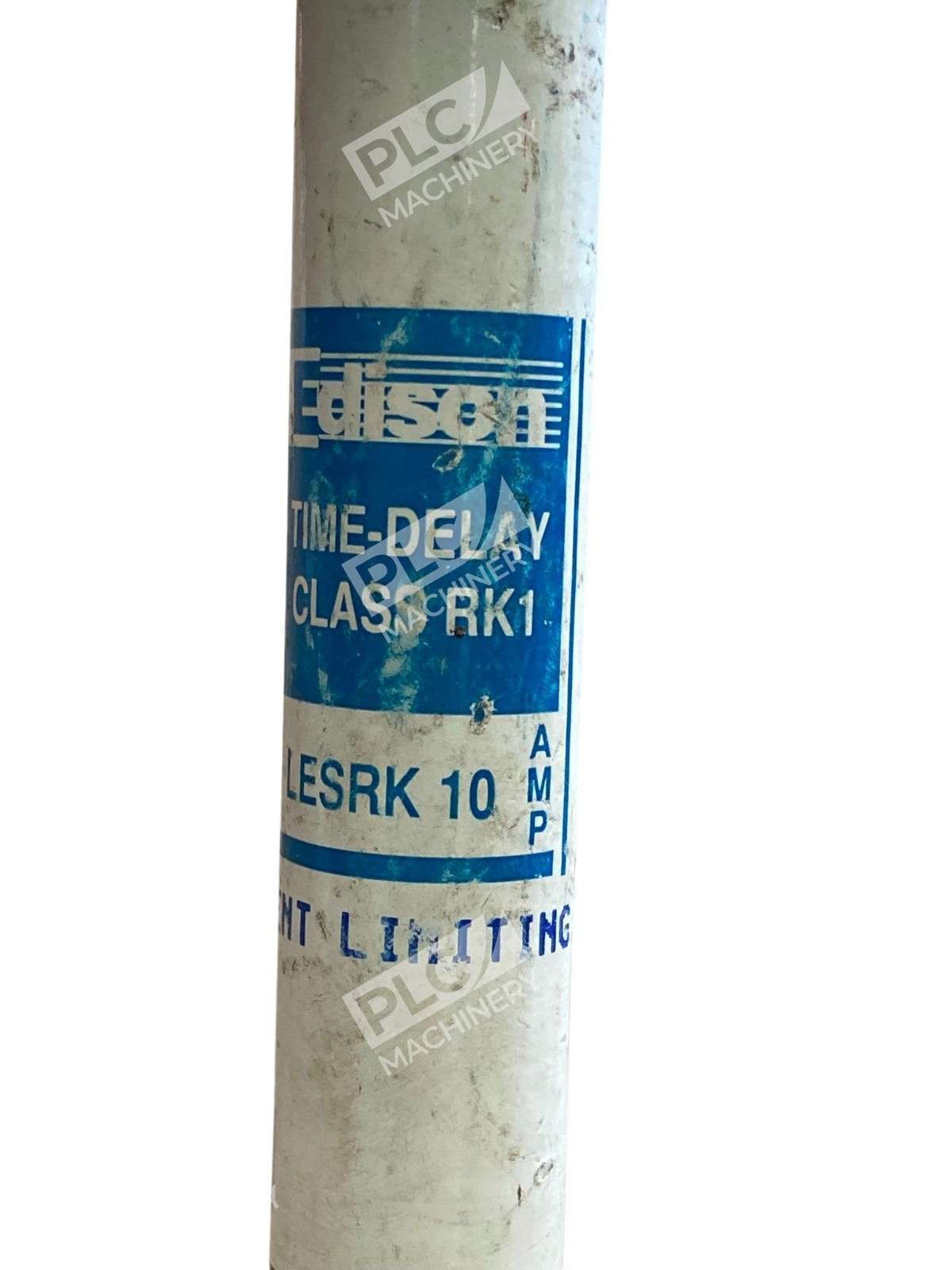

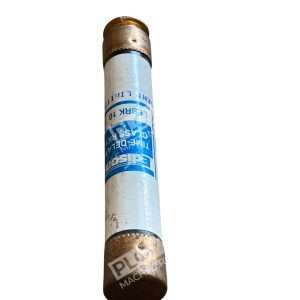

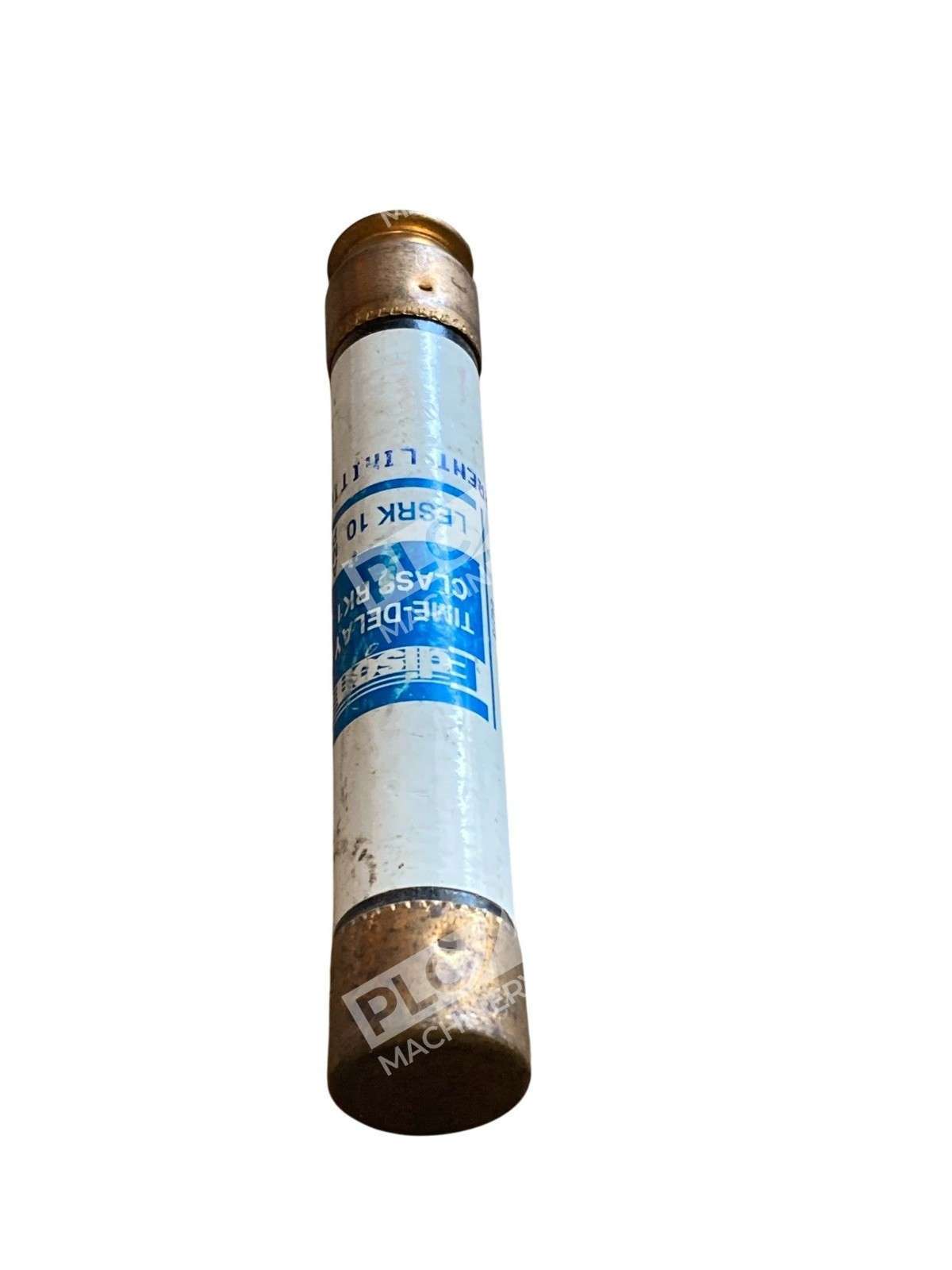

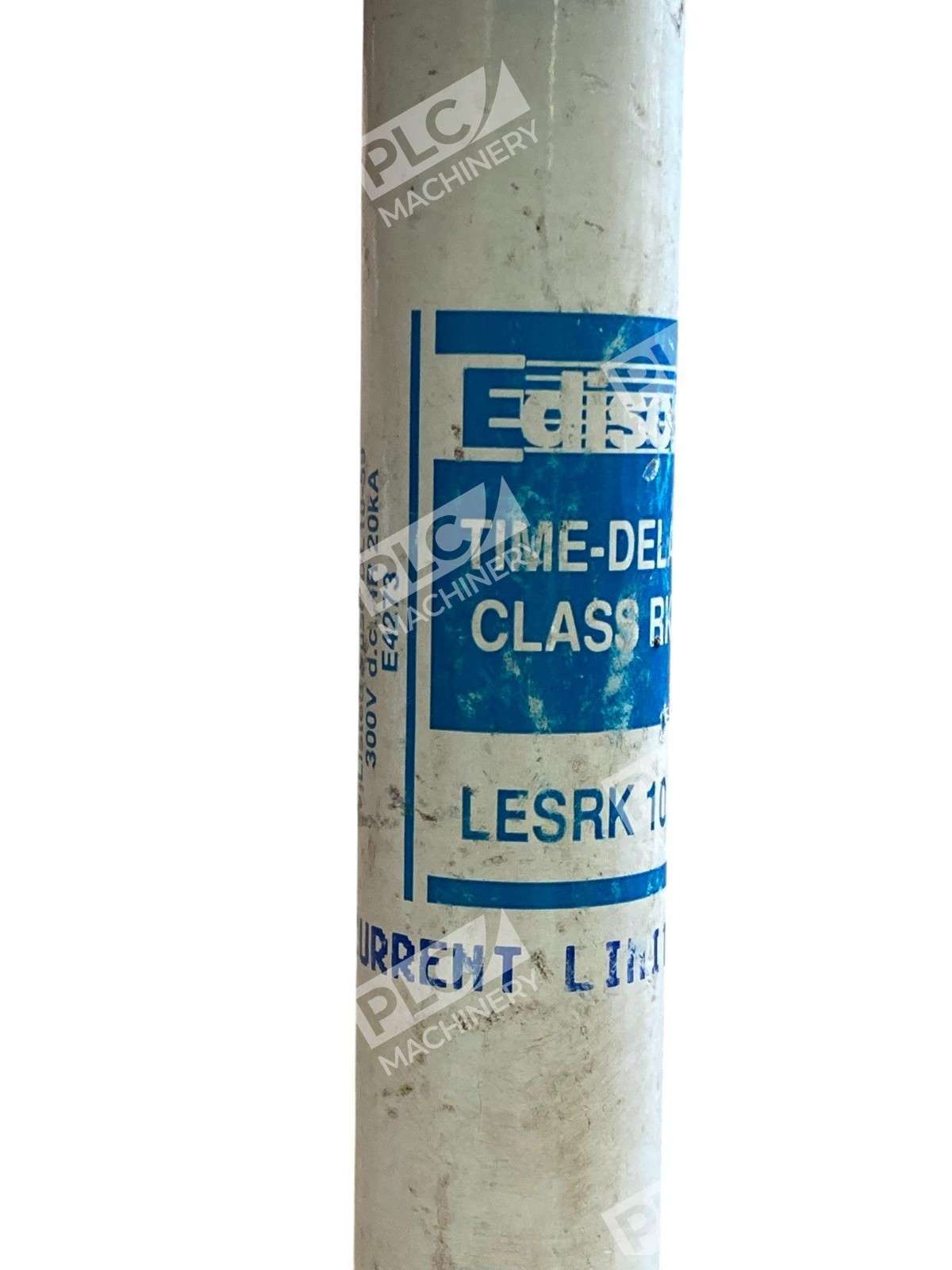

Edison LESRK 10 Class RK1 Time-Delay Fuse
The Edison LESRK 10 is a 10-amp, 600-volt AC, Class RK1 dual-element time-delay fuse designed to provide superior protection for electrical circuits. Its time-delay feature allows for the safe handling of temporary inrush currents, making it ideal for motor and transformer applications.
Key Features
- Dual-Element Construction: Enhances overload and short-circuit protection by allowing the fuse to handle temporary surges without opening unnecessarily.
- Time-Delay Capability: Permits sizing at 130% of full load amperes (FLA) for backup motor protection, safeguarding against single-phase damage.
- High Interrupting Rating: Rated at 200,000 amperes interrupting capacity (AIC), ensuring reliable performance under high fault conditions.
- Current-Limiting Design: Provides maximum short-circuit protection by limiting the let-through energy, reducing potential damage to equipment.
- Compliance and Certifications: UL Listed and CSA Certified, meeting industry standards for safety and performance.
Specifications
- Amperage Rating: 10 A
- Voltage Rating: 600 VAC
- Interrupting Rating: 200 kA RMS Symmetrical
- Fuse Class: RK1
- Body Dimensions: 5 inches in length, 0.81 inches in diameter
- Terminal Type: Ferrule
The Edison LESRK 10 fuse is engineered for applications requiring reliable overcurrent protection, such as AC power distribution system mains, feeders, and branch circuits. Its robust design and compliance with industry standards make it a dependable choice for safeguarding electrical systems.
