Edison Class J 600V 10A Time-Delay Fuse JDL10

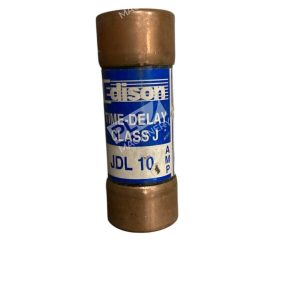

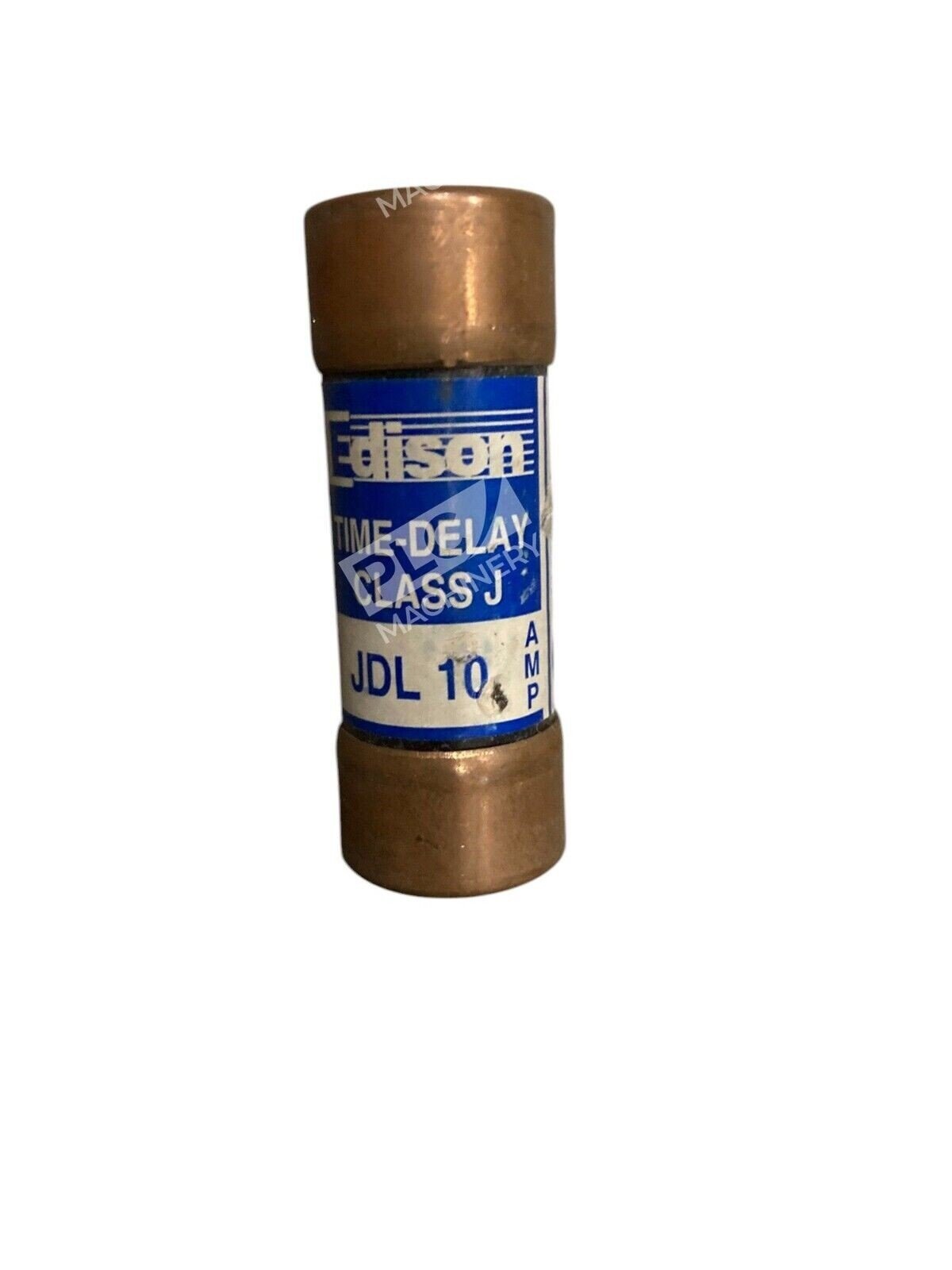

Edison JDL10 Class J 600V 10A Time-Delay Fuse

The Edison JDL10 is a high-performance Class J time-delay fuse, engineered to provide reliable overcurrent protection in various electrical applications. With its compact design and robust construction, this fuse is ideal for space-constrained environments requiring dependable circuit protection.

Key Features

• Amperage Rating: 10 Amperes
• Voltage Rating: 600 Volts AC
• Interrupting Rating: 200,000 Amperes Symmetrical
• Fuse Class: Class J
• Time-Delay: Dual-element design allows for temporary overloads, making it suitable for motor and transformer applications
• Dimensions: 2.25 inches in length and 0.81 inches in diameter
• Terminal Type: Ferrule
• Certifications: UL Listed, CSA Certified, CE Marked, and RoHS Compliant

Applications

The JDL10 fuse is designed for a wide range of applications, including:

• Feeder and branch circuit protection
• IEC starters and contactors
• General-purpose inductive load circuits
• Lighting load circuits

Benefits

• Space-Saving Design: Its compact size makes it ideal for installations where space is limited.
• Superior Time-Delay Characteristics: The dual-element construction provides excellent time-delay capabilities, allowing the fuse to withstand temporary inrush currents without nuisance tripping.
• High Interrupting Capacity: With a 200 kAIC rating, the JDL10 offers robust protection against high fault currents.
• Compliance and Safety: Adherence to multiple international standards ensures reliability and safety in various applications.

In summary, the Edison JDL10 Class J 600V 10A Time-Delay Fuse combines compact design with high-performance features, making it a reliable choice for protecting electrical circuits in diverse industrial and commercial settings.
