Eaton Cutler Hammer E51DP4 Photoelectric Head Diffuse Reflective 40″ Range

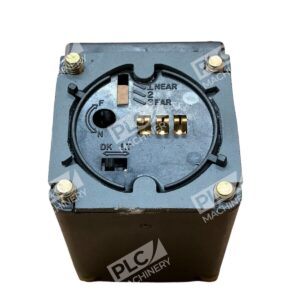

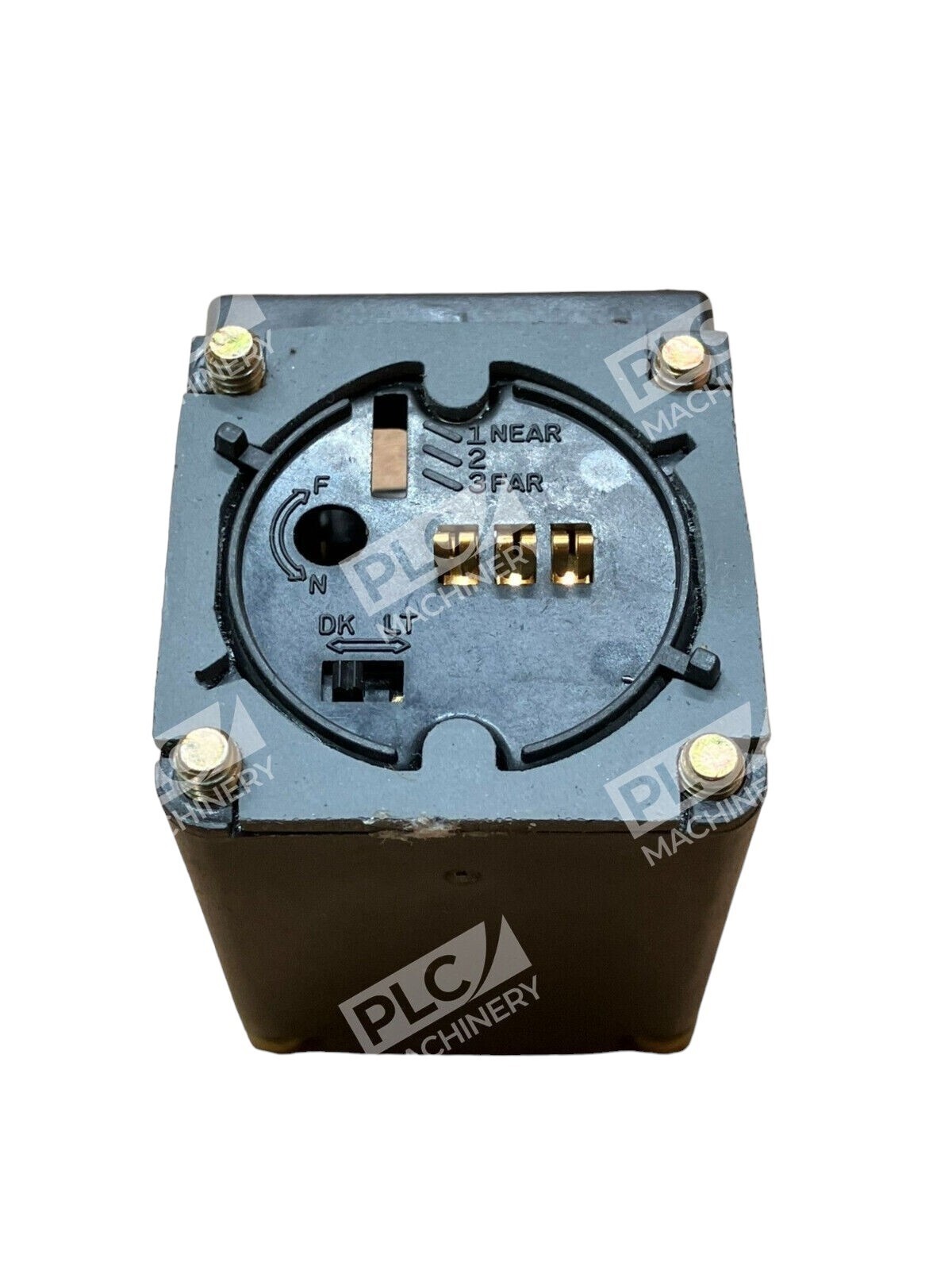

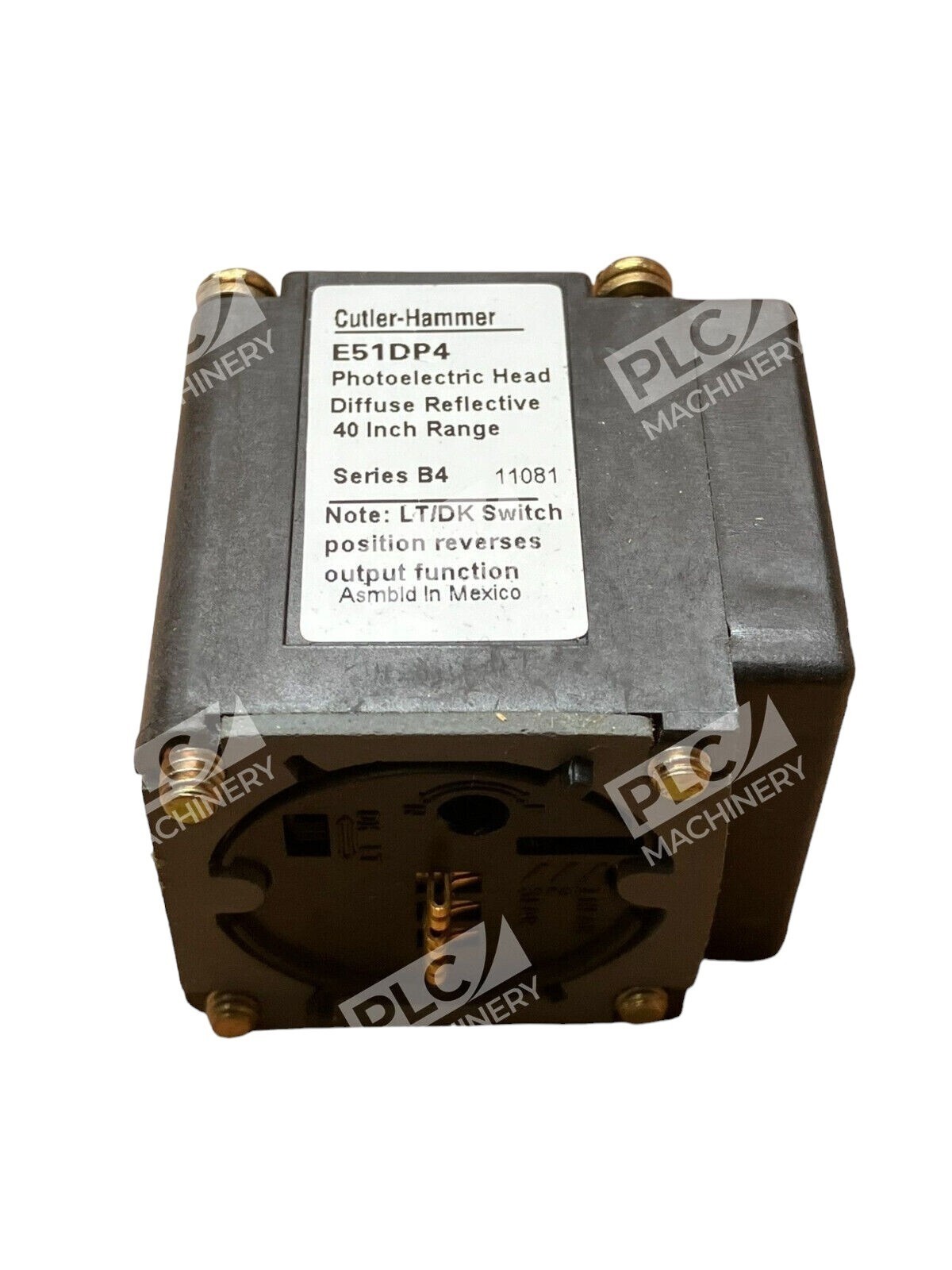

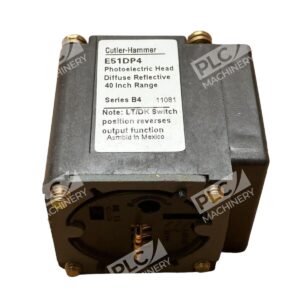

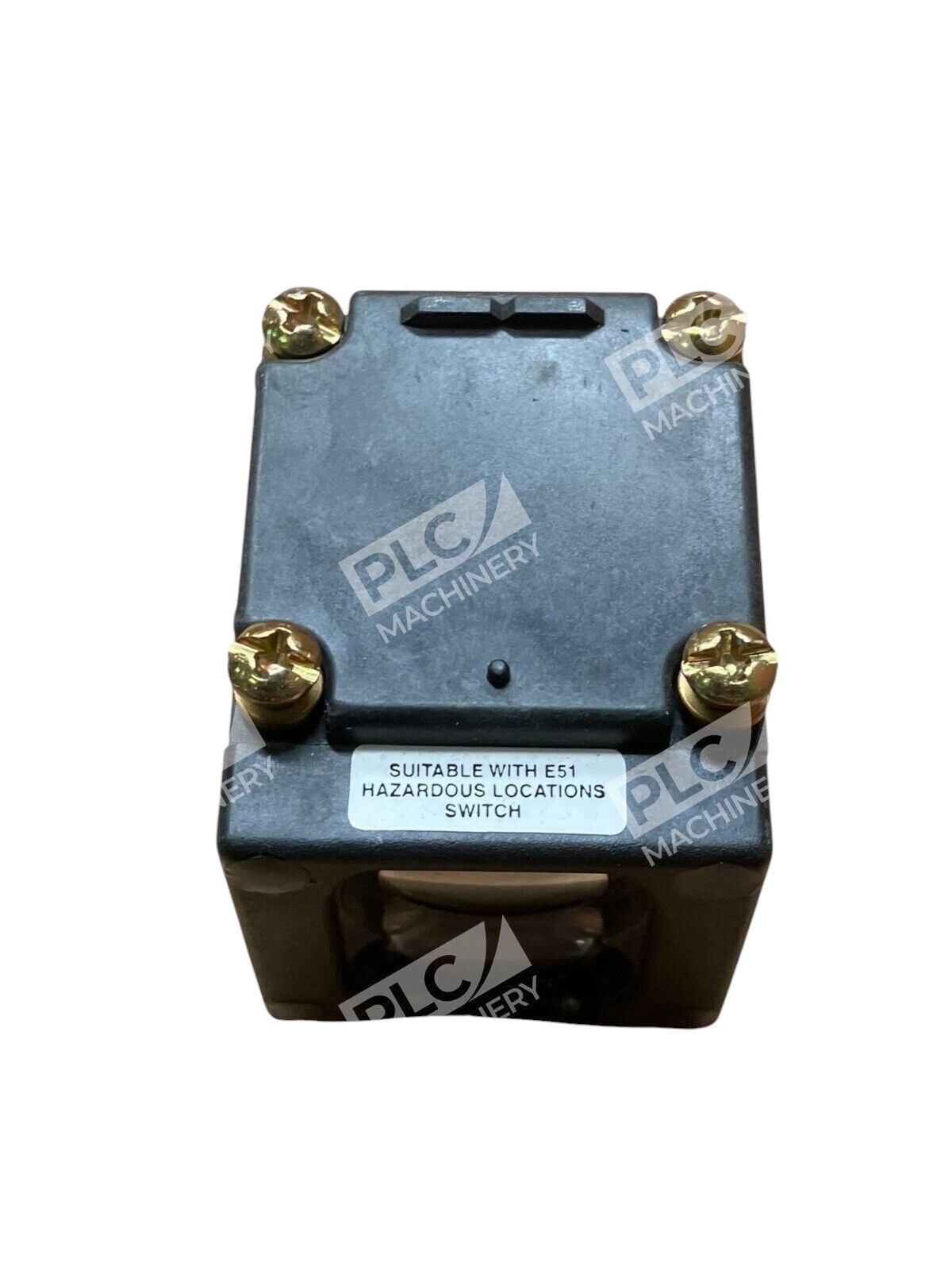

Eaton Cutler-Hammer E51DP4 Photoelectric Sensor Head

The Eaton Cutler-Hammer E51DP4 is a diffuse reflective photoelectric sensor head designed for precise object detection in industrial automation applications. With a sensing range of up to 41 inches, it effectively identifies objects within this distance, making it suitable for various operational environments.

Key Features

• Sensing Range: Capable of detecting objects up to 41 inches away.
• Response Time: Quick response with 20 milliseconds for AC/DC ON and 30 to 22 milliseconds for AC/DC OFF.
• Enclosure Rating: Robust design with NEMA 3/3S/4/4X/6/6P/12/13 and IP67 ratings, ensuring durability in challenging conditions.
• Temperature Range: Operates efficiently in temperatures ranging from -13°F to 158°F.
• Design: Right-angle configuration for versatile mounting options.
• Light Source: Utilizes an infrared sensing beam for reliable detection.

Applications

The E51DP4 sensor head is ideal for various industrial settings, including manufacturing lines, packaging systems, and material handling processes, where accurate and reliable object detection is essential.

Specifications

• Series: E51
• Sensor Type: Photoelectric/Diffuse Reflective
• Enclosure Material: Plastic
• Dimensions: 1.84 in L x 1.54 in W x 1.86 in H
• Certifications: CE Marked, UL Listed, CSA Certified

For more detailed information and purchasing options, please refer to the product’s official documentation or contact authorized Eaton distributors.
