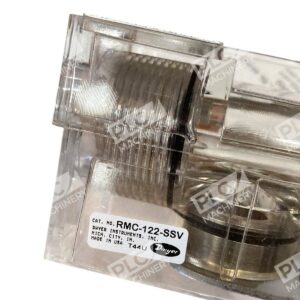

Dwyer Rate-Master Flowmeter RMC-122-SSV

Dwyer Rate-Master Flowmeter RMC-122-SSV

The Dwyer RMC-122-SSV is a precision flowmeter designed for accurate measurement of air flow rates ranging from 2 to 20 standard cubic feet per minute (SCFM). Its robust construction and user-friendly features make it suitable for a variety of applications, including medical equipment, air sampling, gas analysis, pollution monitoring, chemical injection, and cabinet purging.

Key Features

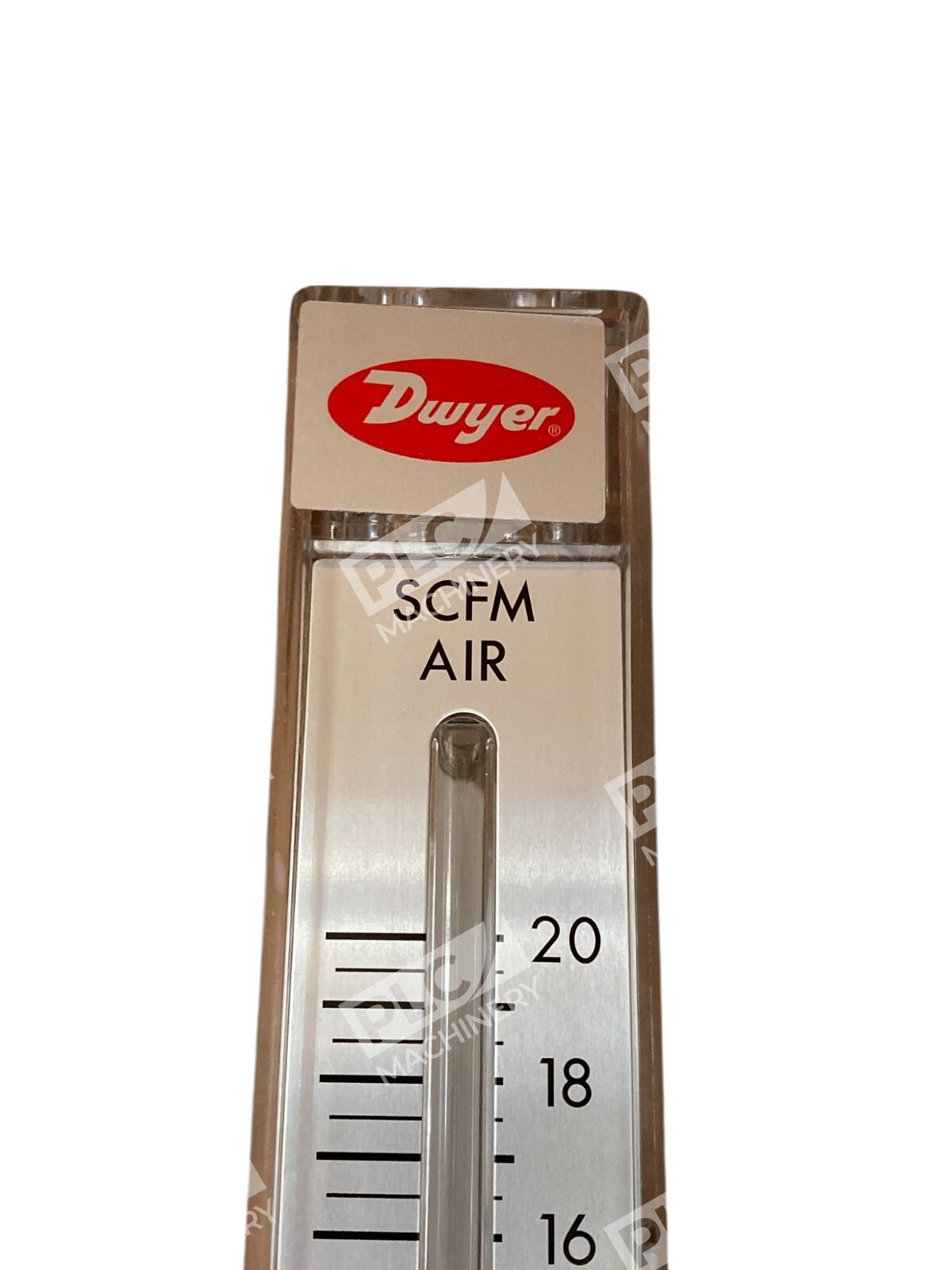

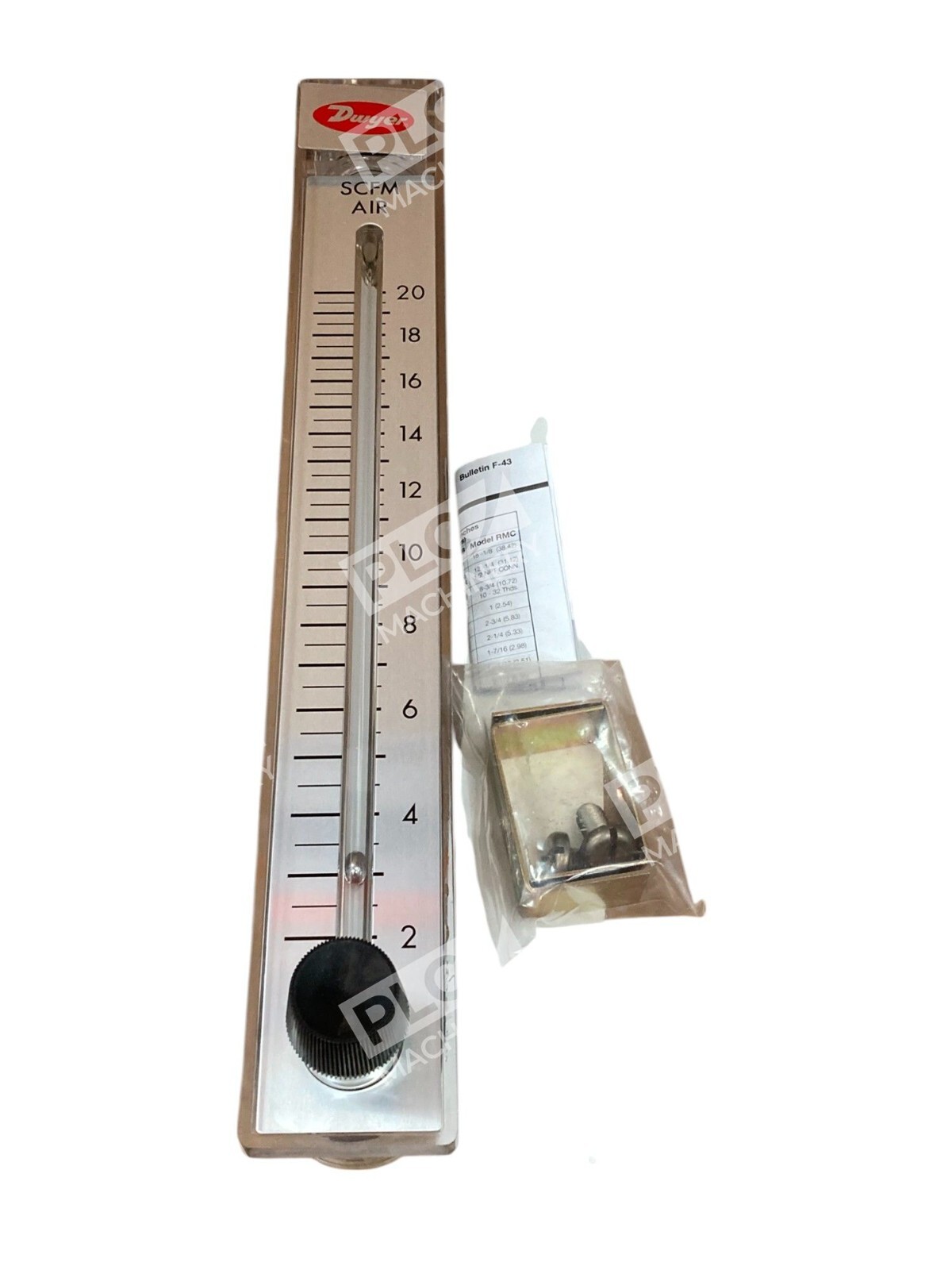

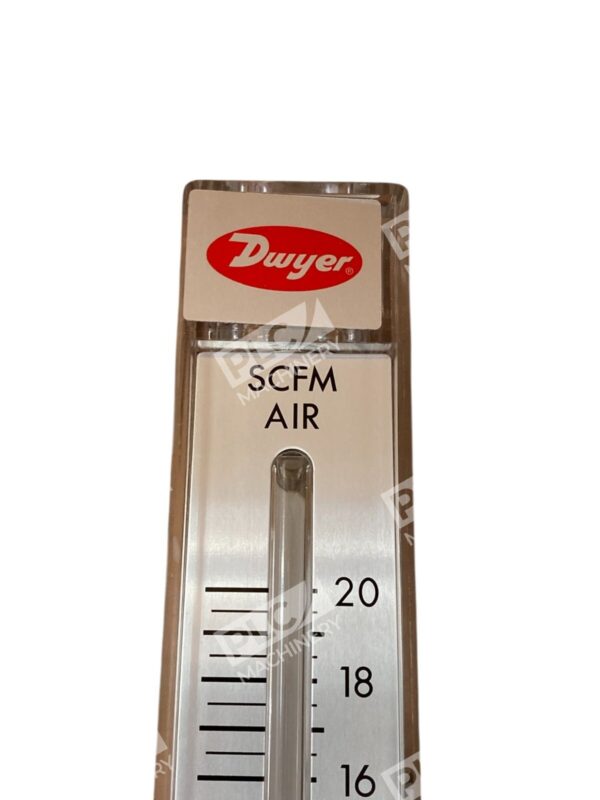

• Direct Reading Scale: The 10-inch scale provides immediate flow readings, eliminating the need for conversions and enhancing operational efficiency.

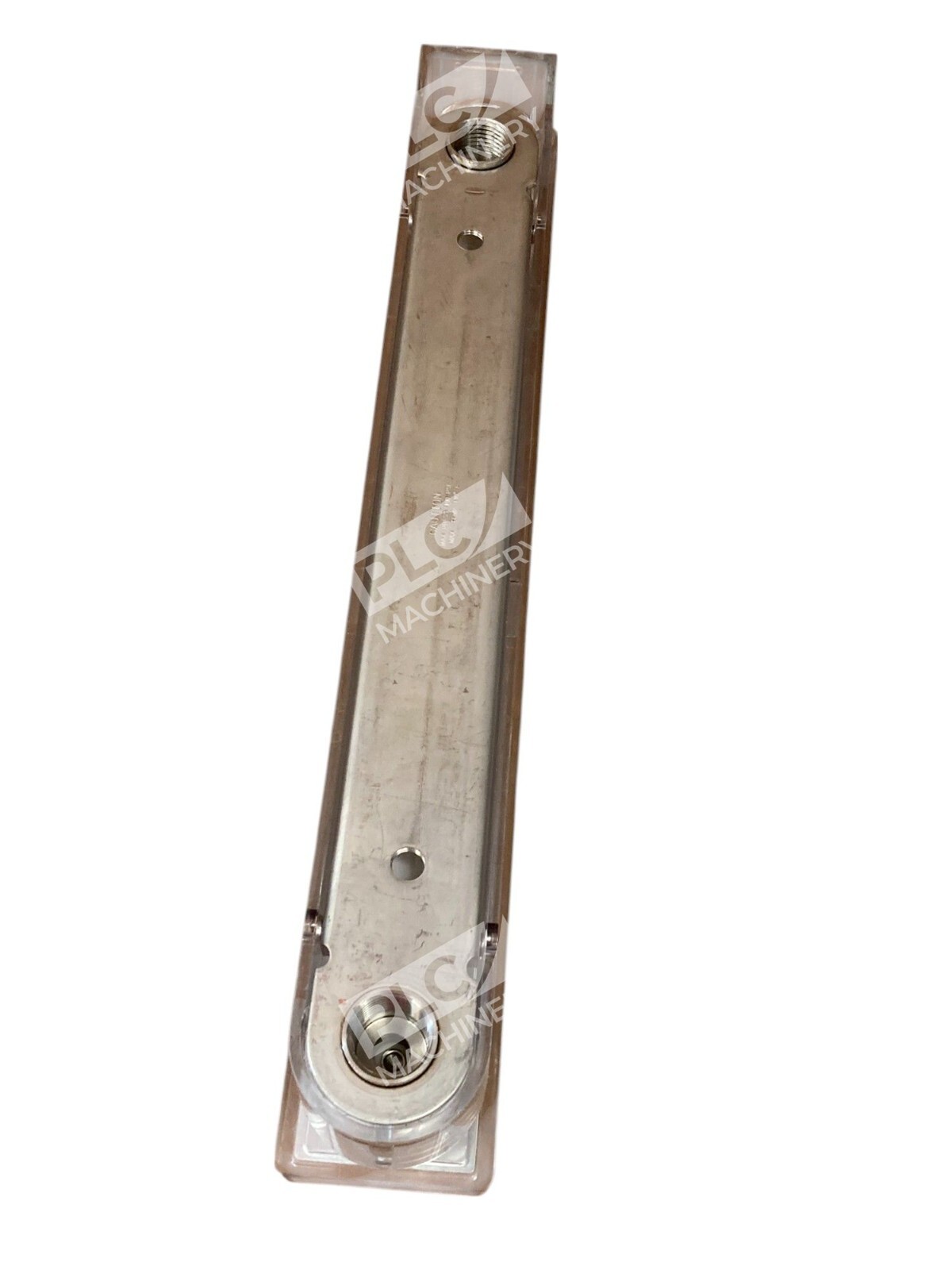

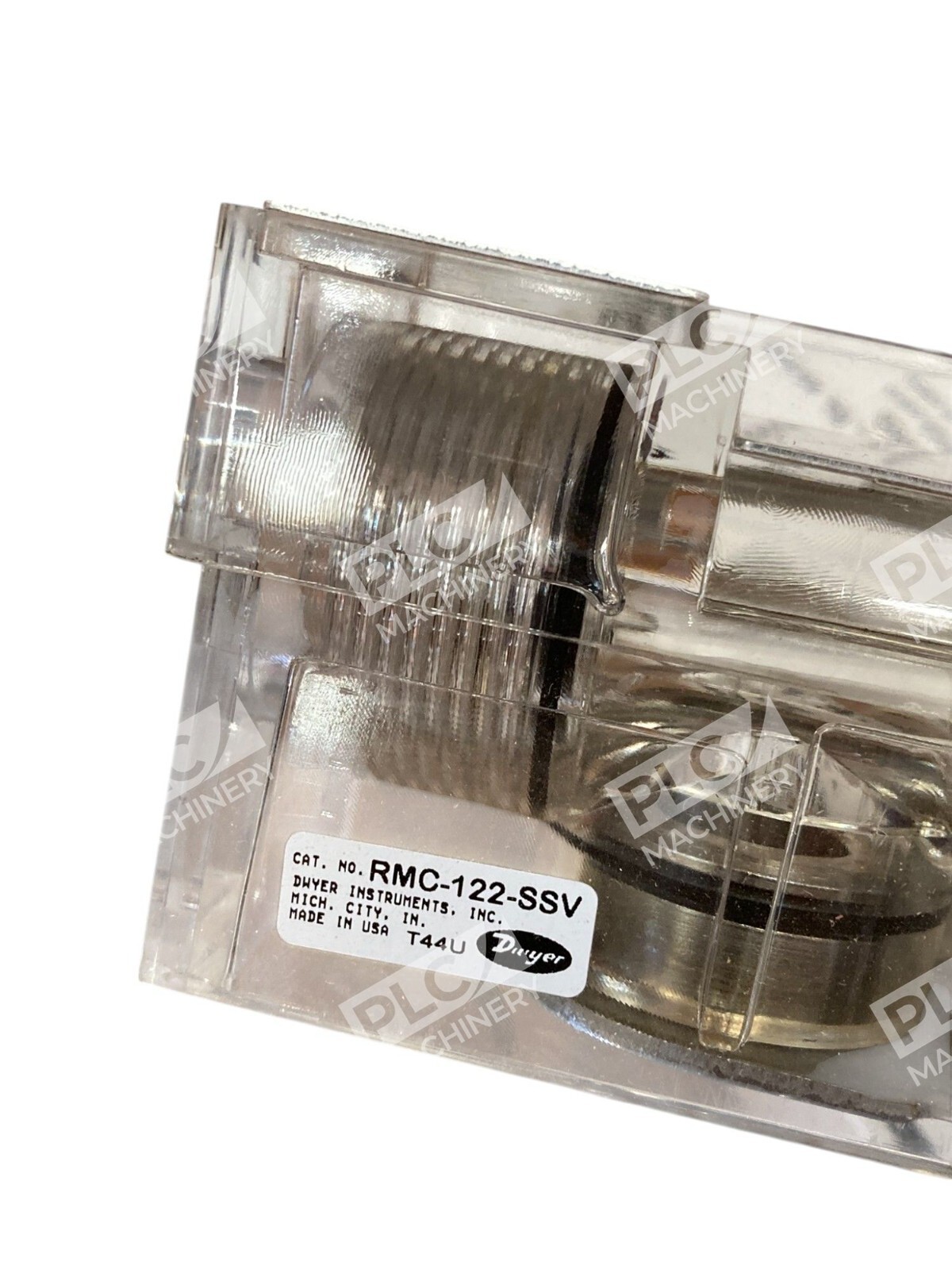

• Durable Construction: The flowmeter body is crafted from shatter-proof polycarbonate, ensuring longevity and resistance to impact.

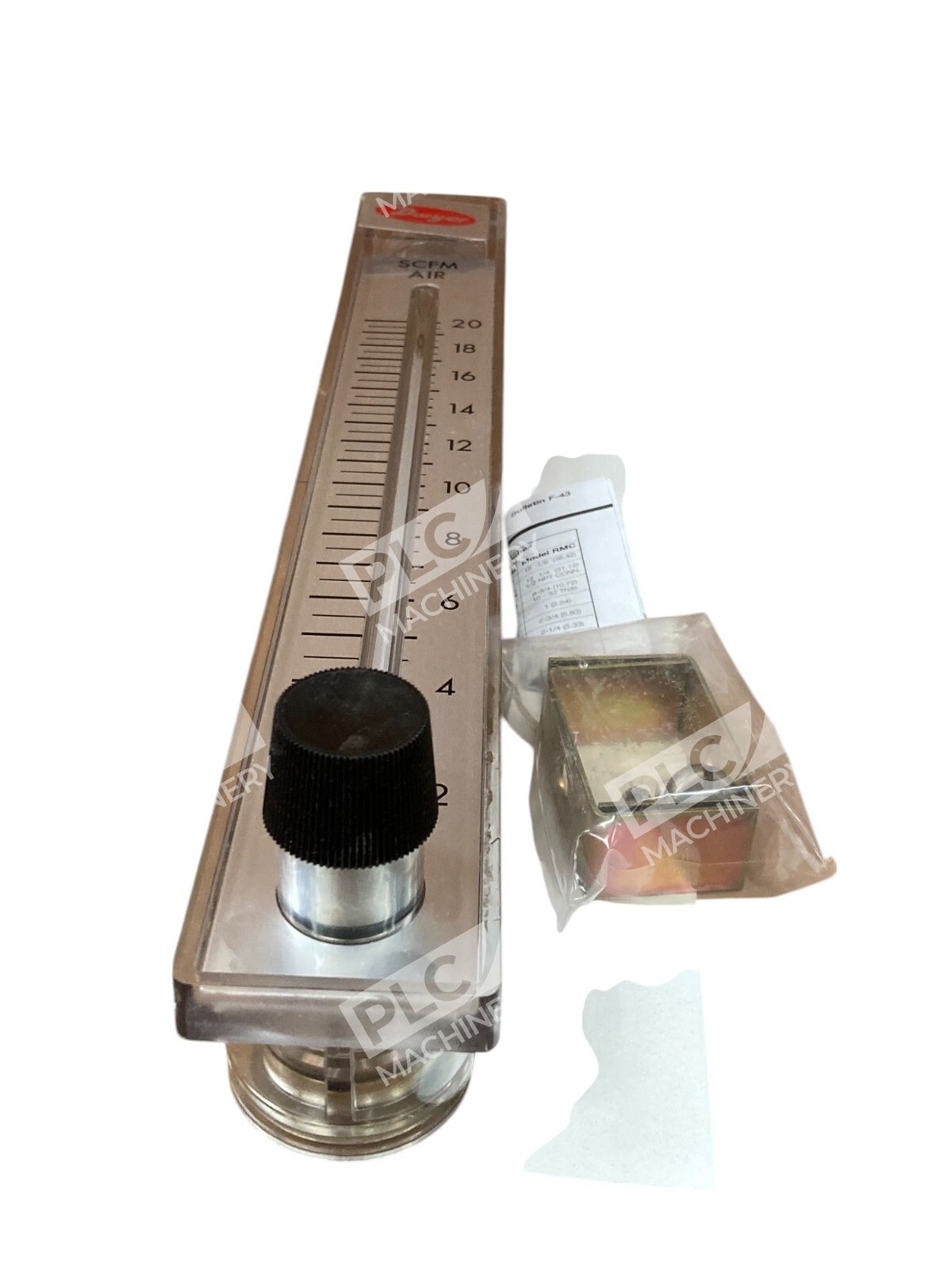

• Stainless Steel Valve: Equipped with a precision stainless steel metering valve, the RMC-122-SSV allows for precise flow adjustments and control.
• Stabilized Float Movement: Integral flow guides within the meter stabilize the float, preventing erratic movement and ensuring accurate readings.
• Interchangeable Bodies: The design allows for easy interchangeability of flowmeter bodies within the same series, facilitating maintenance and range adjustments without disturbing existing piping.

Specifications

• Flow Range: 2 to 20 SCFM air
• Accuracy: ±2% of full scale
• Temperature Limit: 130°F (54°C)
• Pressure Limit: 100 psi (6.9 bar)

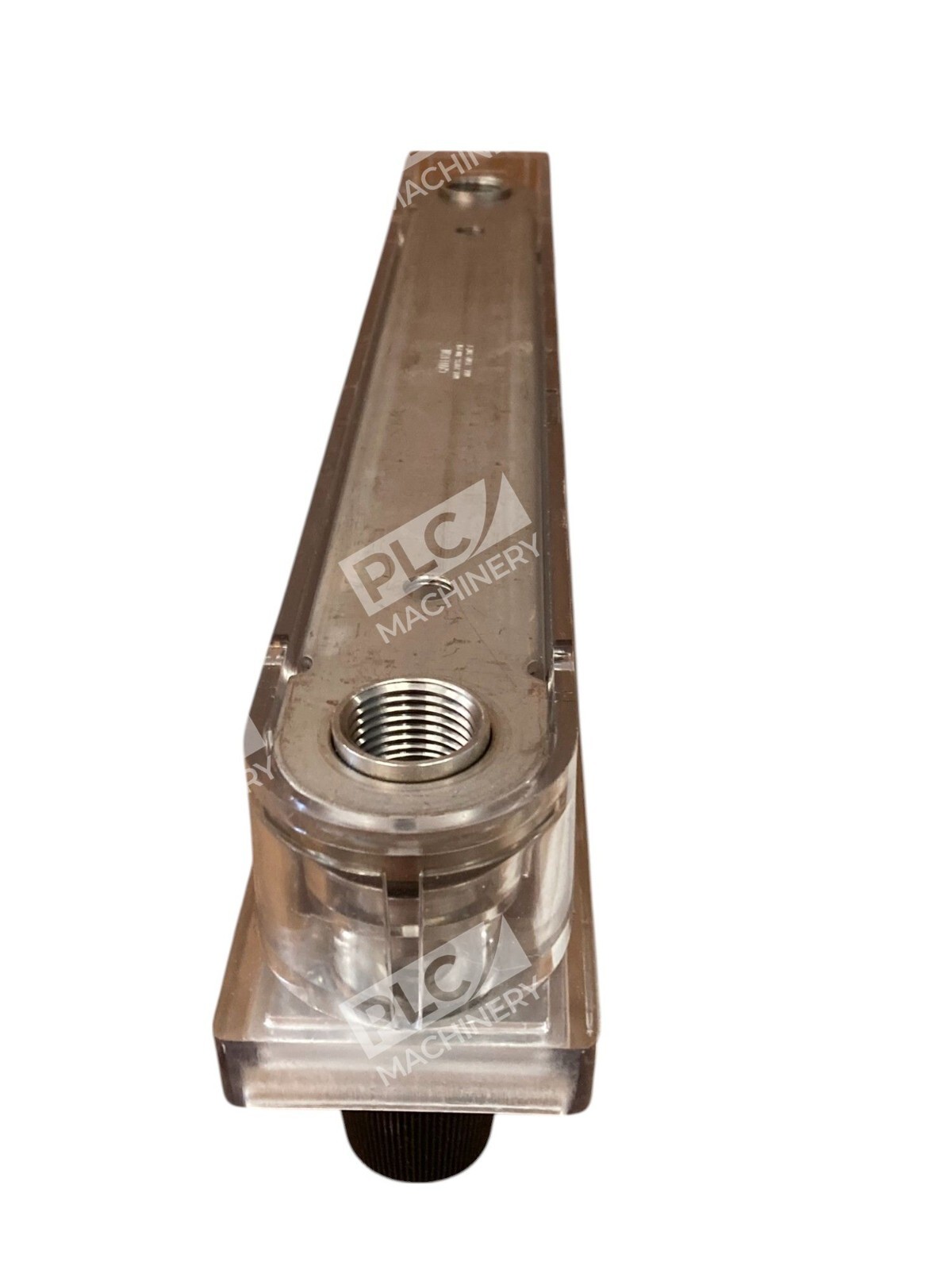

• Process Connection: 1/2″ female NPT
• Wetted Materials:
  • Body: Polycarbonate
  • O-ring: Neoprene and Buna-N
  • Metal Parts: Stainless steel
  • Float: Stainless steel, black glass, aluminum, K monel, or tungsten carbide, depending on range

Applications

The RMC-122-SSV is ideal for various applications, including:

• Medical equipment
• Air samplers
• Gas analyzers
• Pollution monitors
• Chemical injectors
• Cabinet purging

Its precise measurement capabilities and durable design make it a reliable choice for professionals seeking accurate and consistent flow monitoring.
