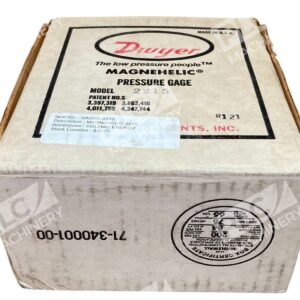

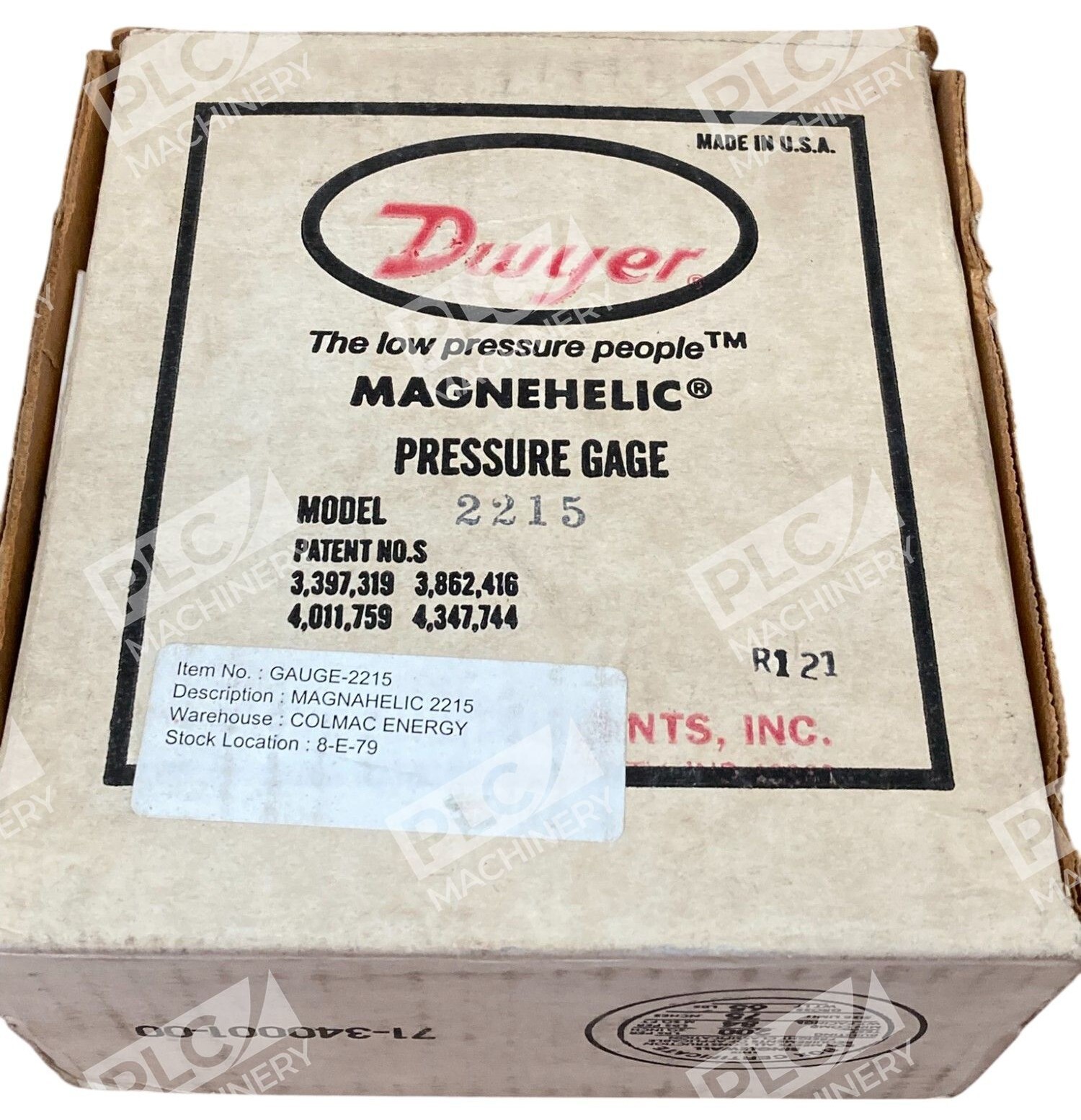

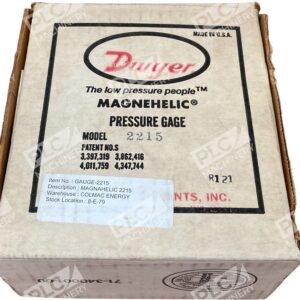

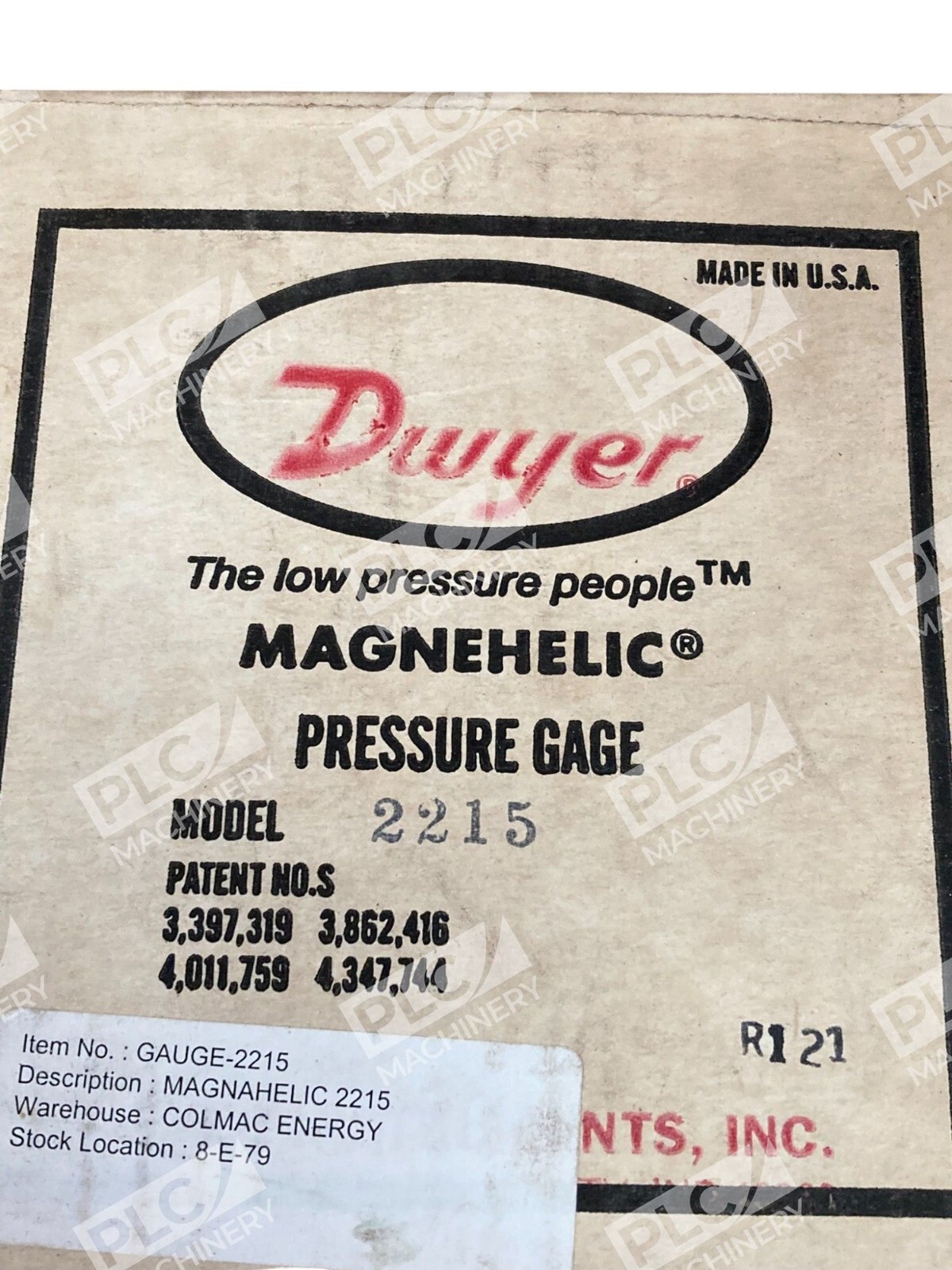

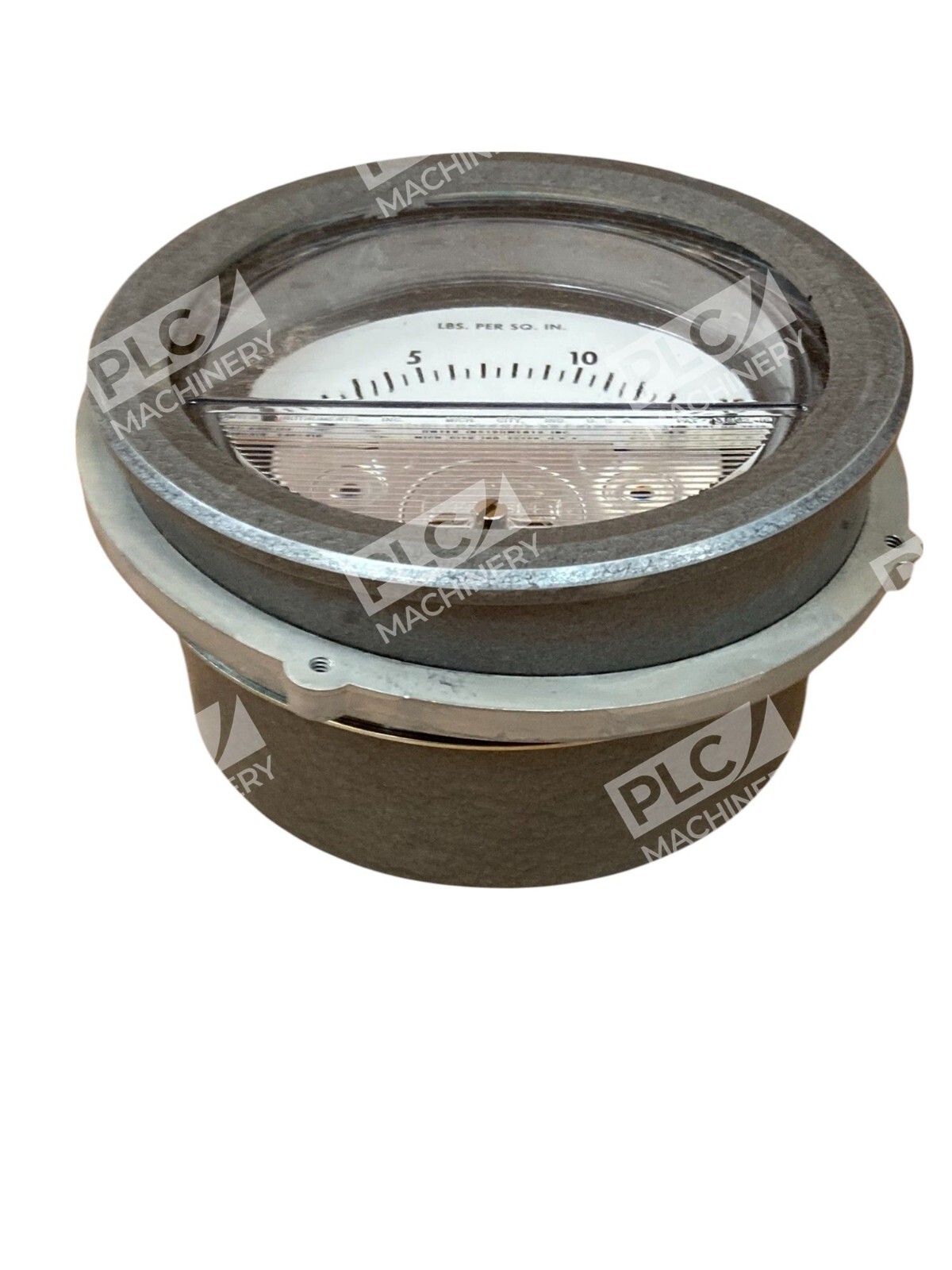

The Dwyer Magnehelic® Differential Pressure Gauge 2215 is a precision instrument designed to measure differential pressure in air and non-combustible, compatible gases. With a measurement range of 0 to 15 psi, it offers accurate and reliable readings for various applications.
Key Features

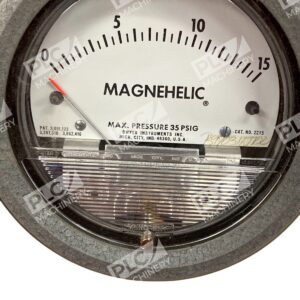

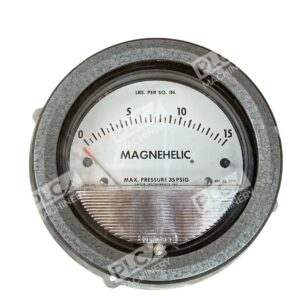

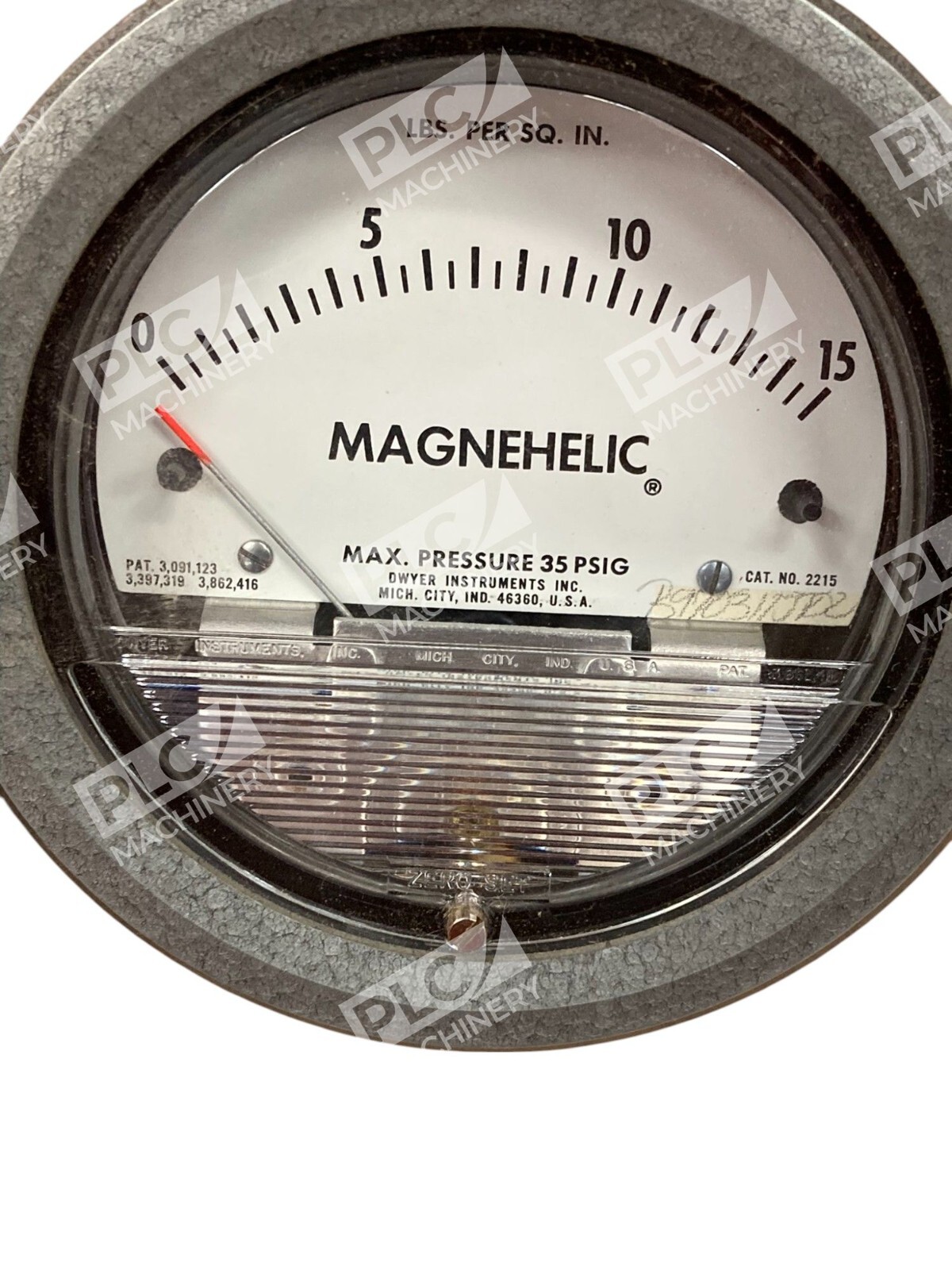

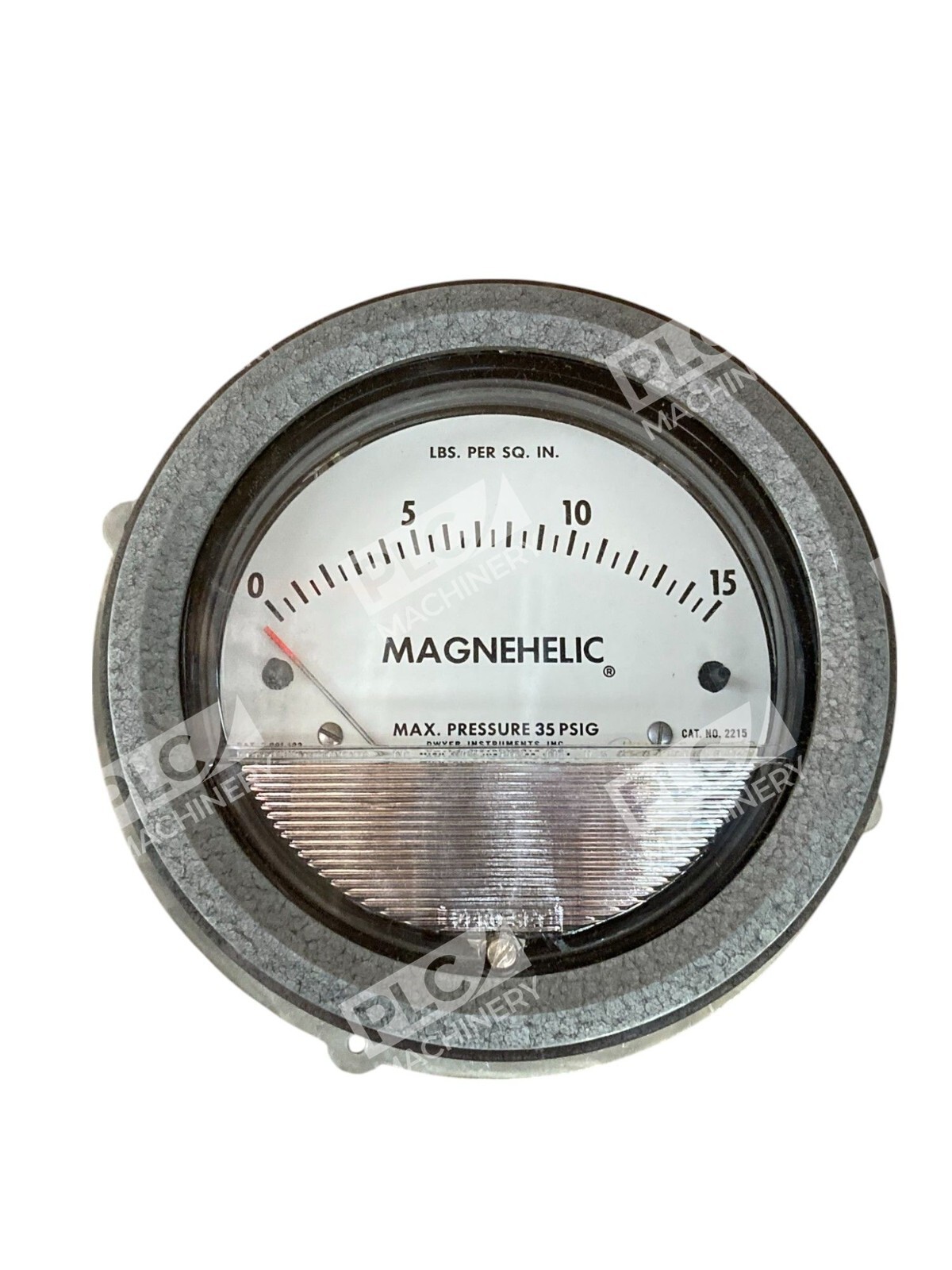

- Measurement Range: 0 to 15 psi with minor divisions of 0.5 psi.
- Accuracy: ±2% of full scale at 70°F (21.1°C).

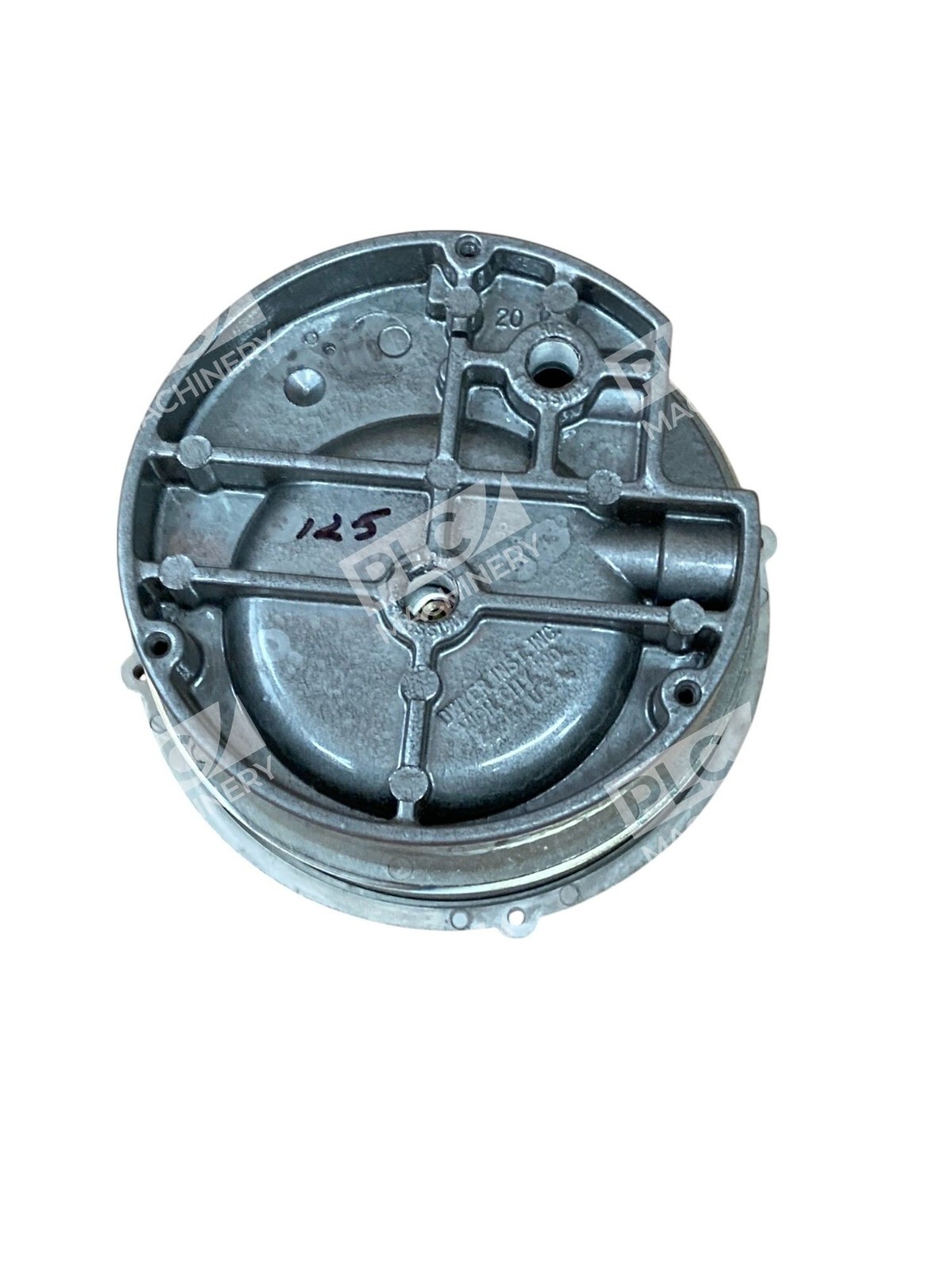

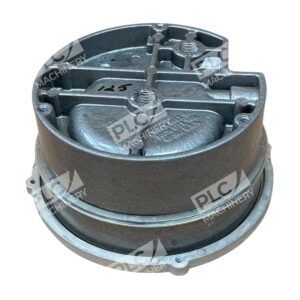

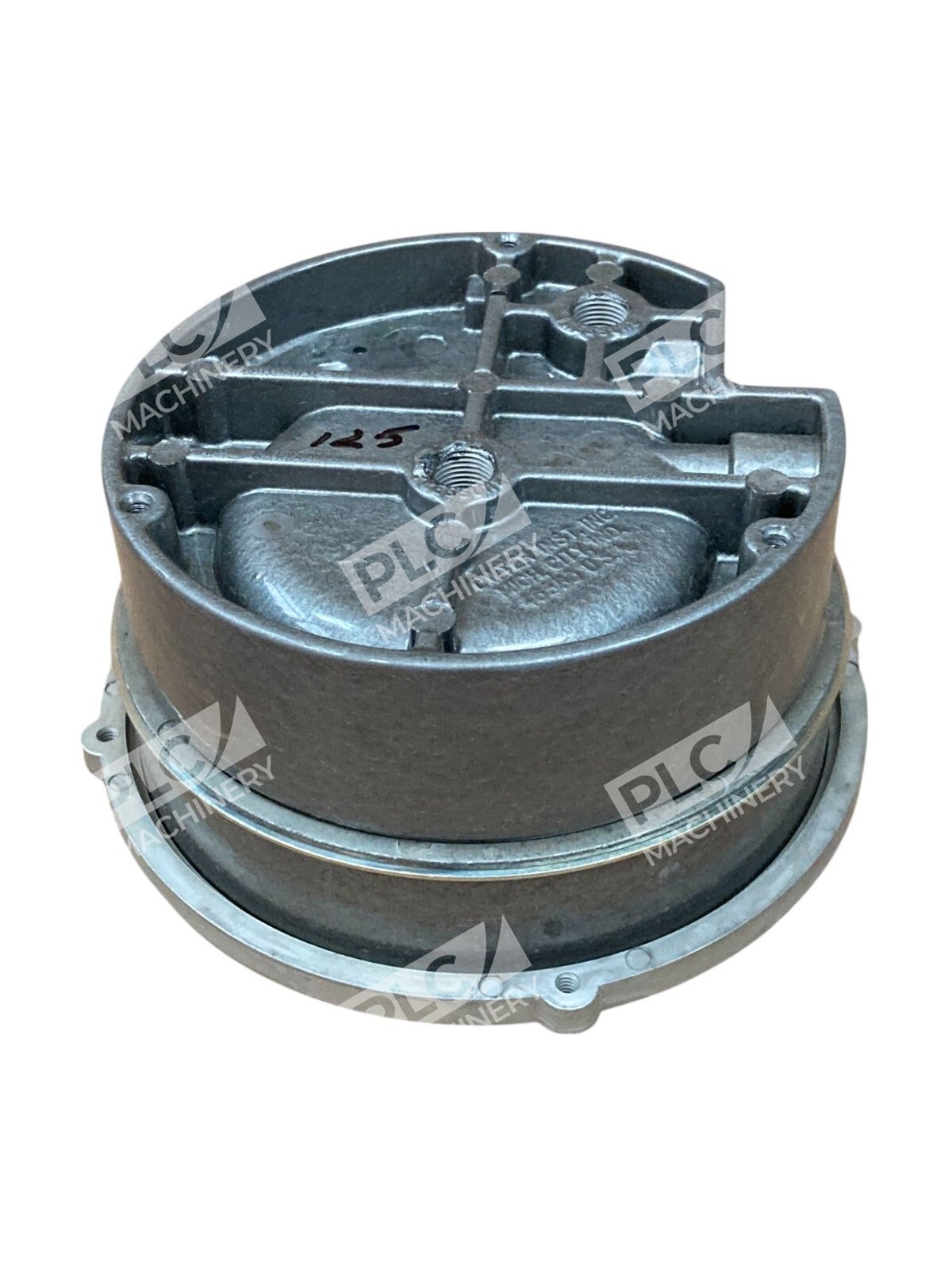

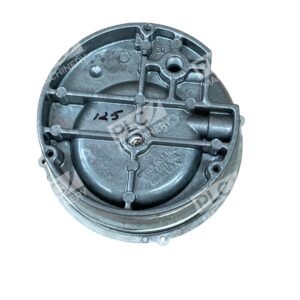

- Construction: Die-cast aluminum case and bezel with an acrylic cover, finished in gray to withstand a 168-hour salt spray corrosion test.
- Pressure Limits: -20 in Hg to 15 psig (-0.677 bar to 1.034 bar); optional higher pressure limits available.
- Temperature Limits: Operating range from 20°F to 140°F (-6.67°C to 60°C).
- Process Connections: 1/8″ female NPT duplicate high and low-pressure taps, with one pair on the side and one pair on the back.
- Enclosure Rating: IP67, ensuring resistance to dust and water ingress.
- Overpressure Protection: Relief plug opens at approximately 25 psig (1.72 bar) to prevent damage from overpressure.
Applications
The Dwyer 2215 Magnehelic® Gauge is ideal for monitoring:
- Filter status in HVAC systems.
- Air velocity measurements using a Dwyer Pitot tube.
- Blower vacuum levels.
- Fan pressure indications.
- Duct, room, or building pressures.
- Positive pressure in clean rooms.

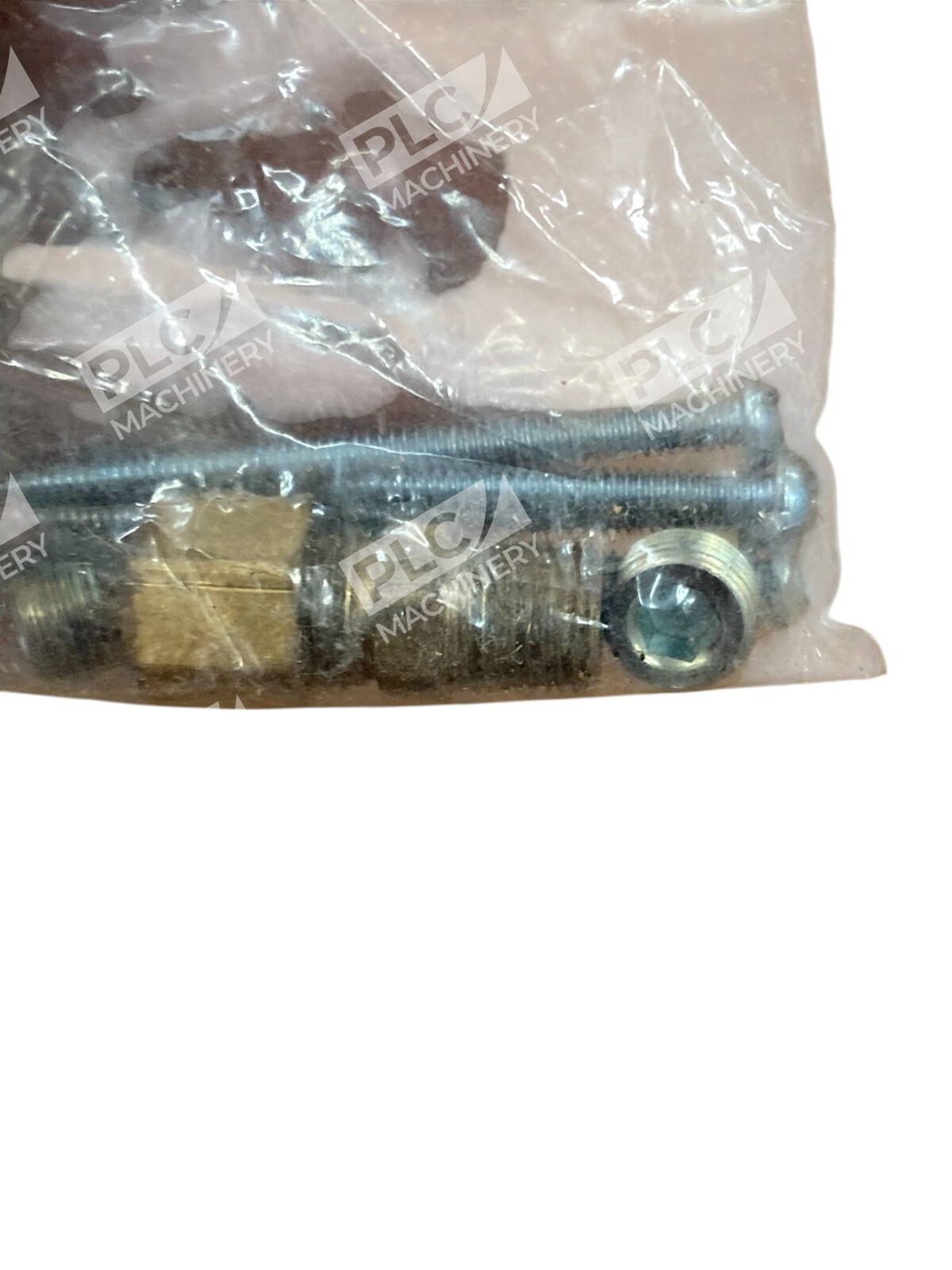

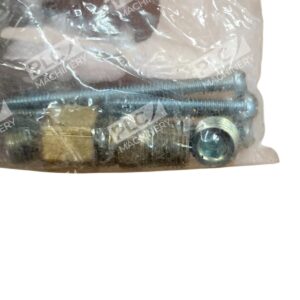

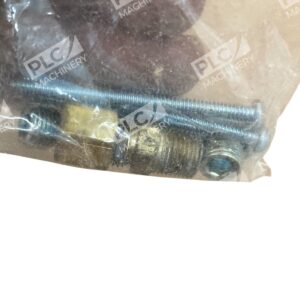

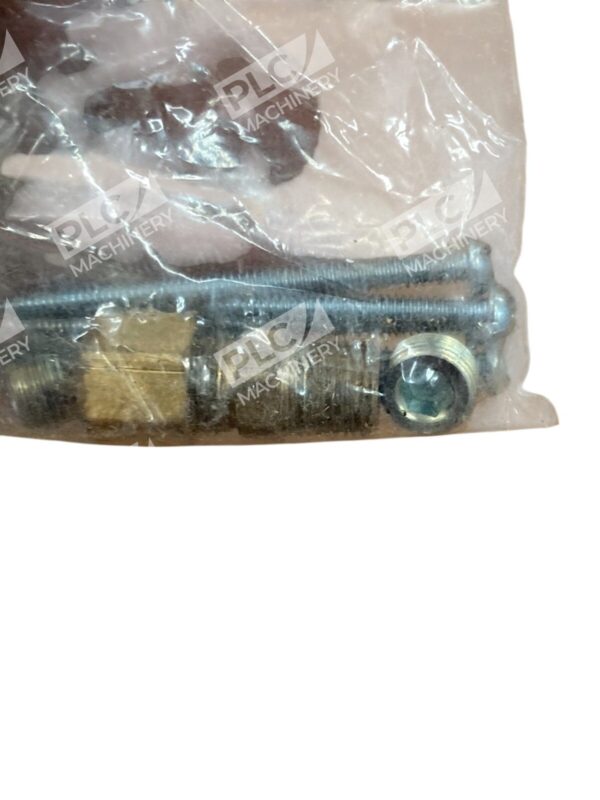

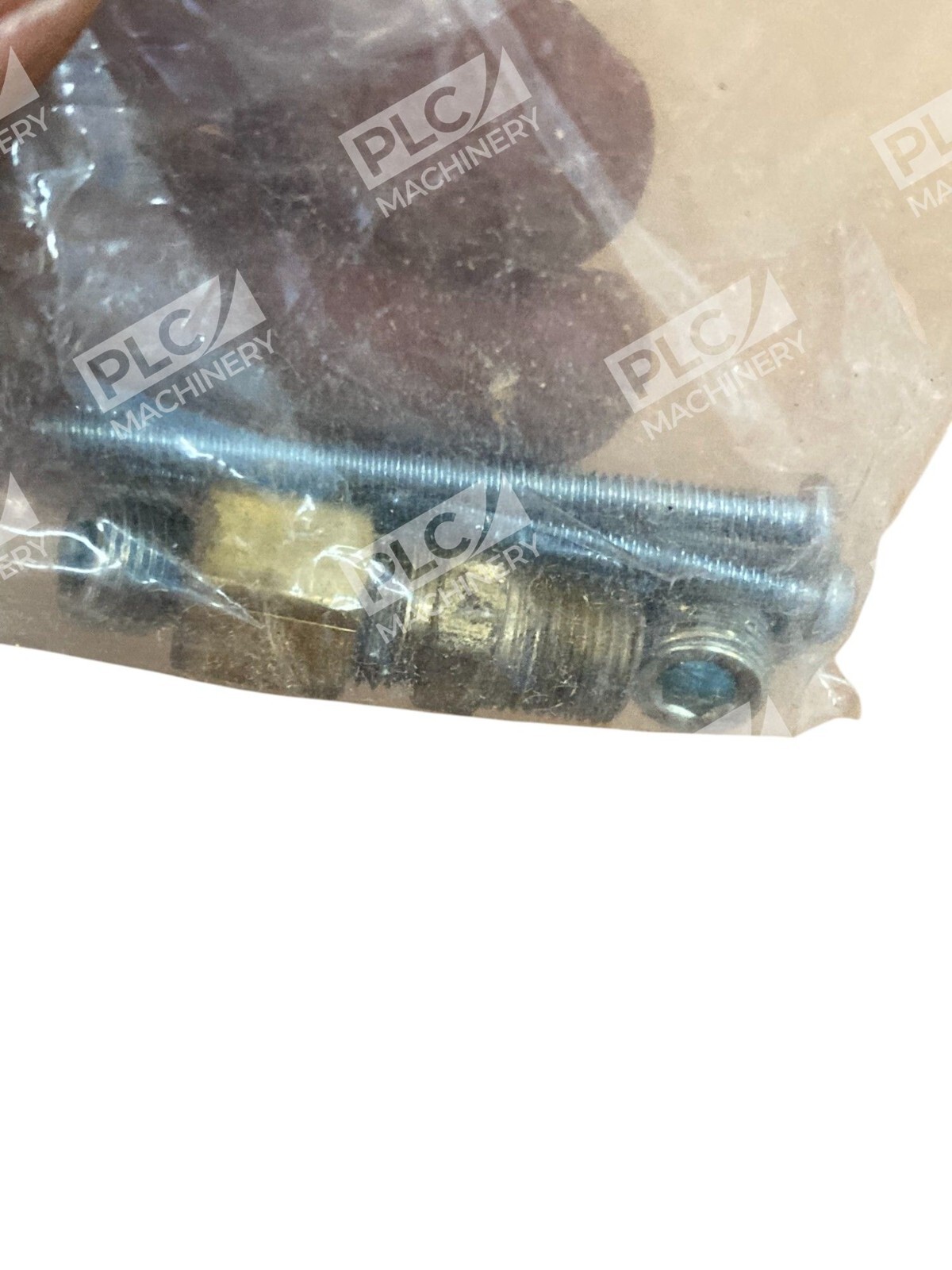

Included Accessories
- Two 1/8″ NPT plugs for duplicate pressure taps.
- Two 1/8″ pipe thread to rubber tubing adapters.
- Three flush mounting adapters with screws.
This gauge’s robust design ensures durability and long service life, making it a reliable choice for various industrial and commercial applications.
