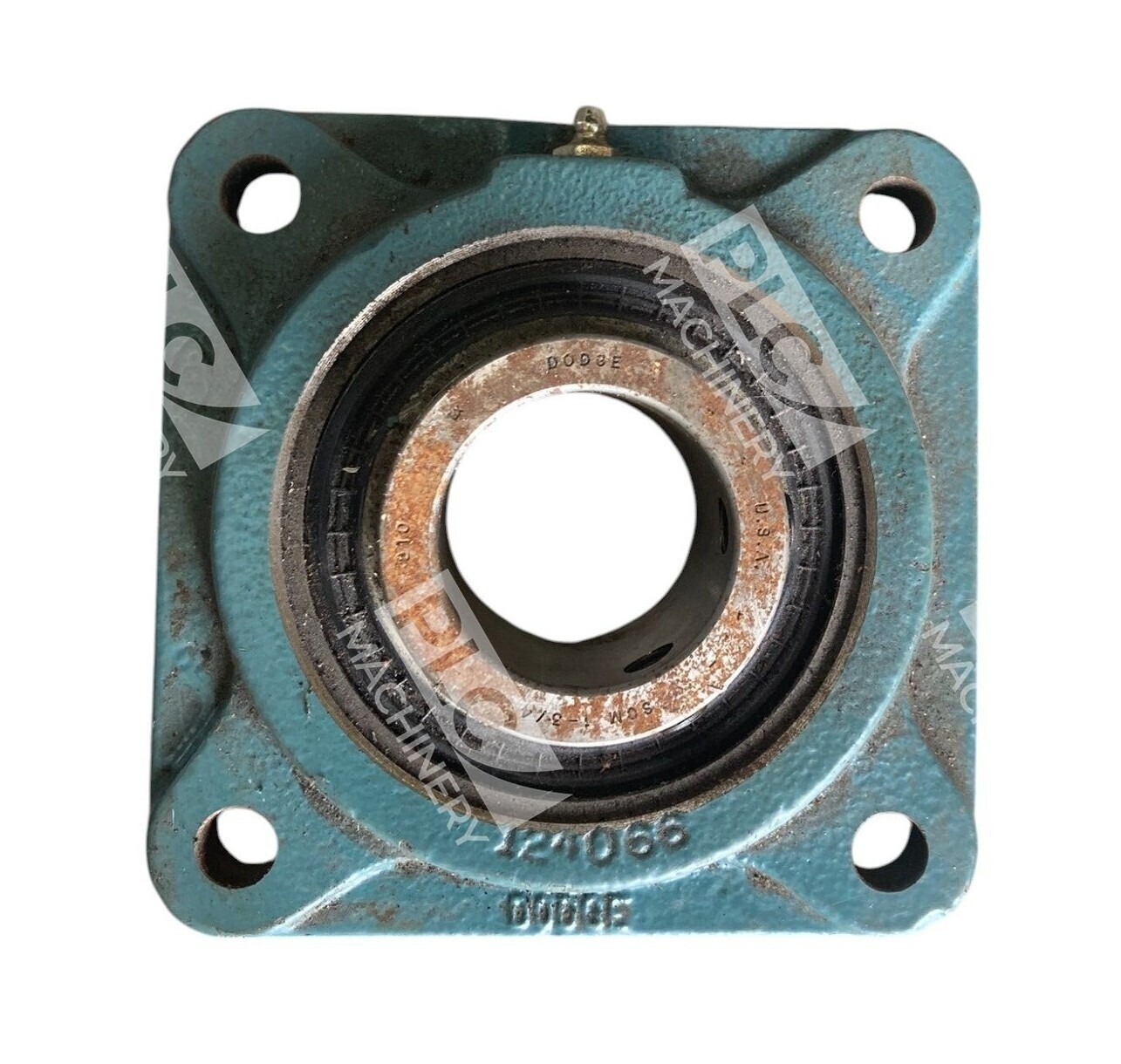

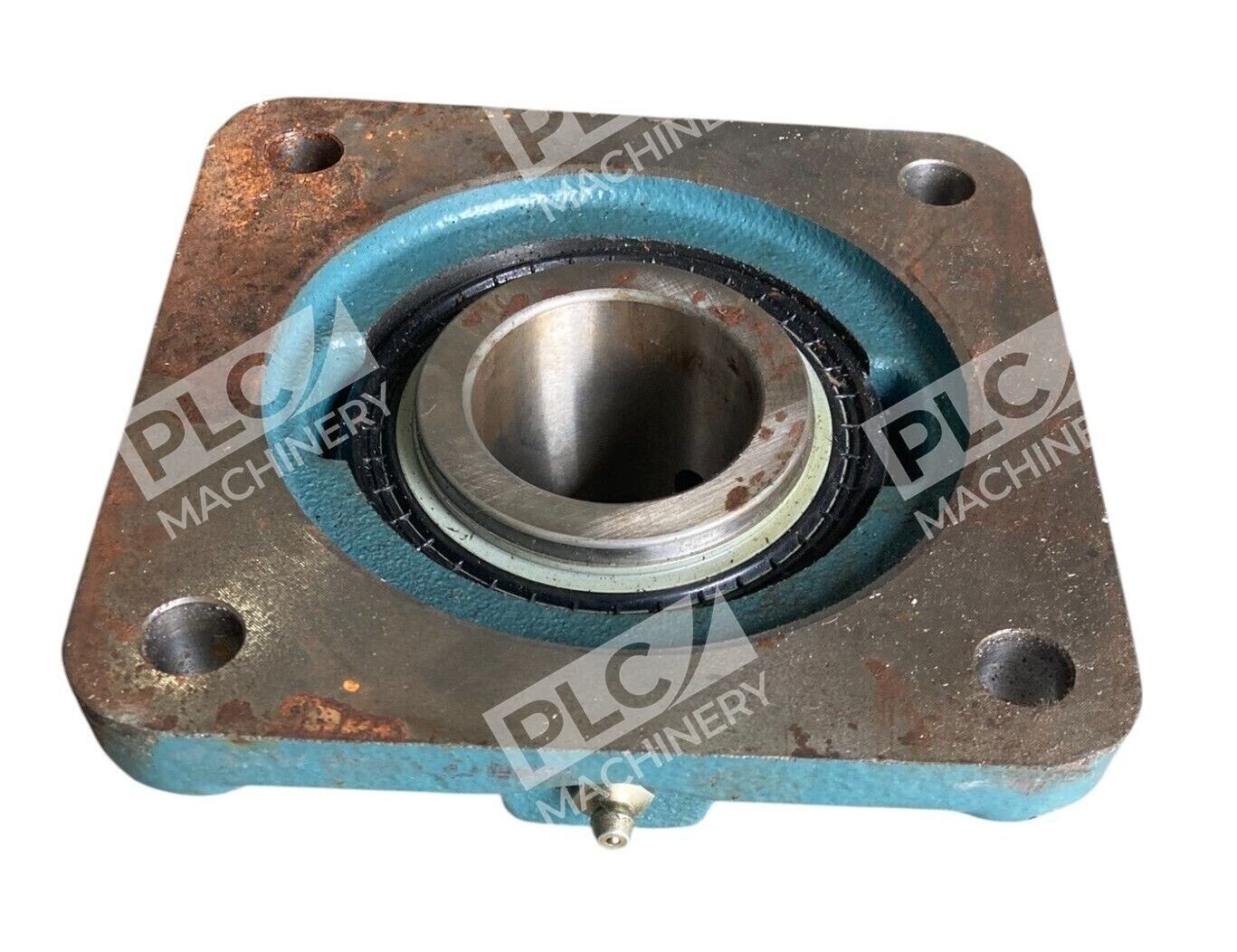

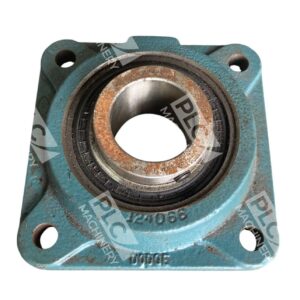

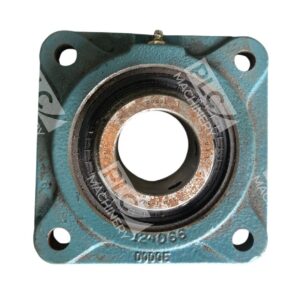

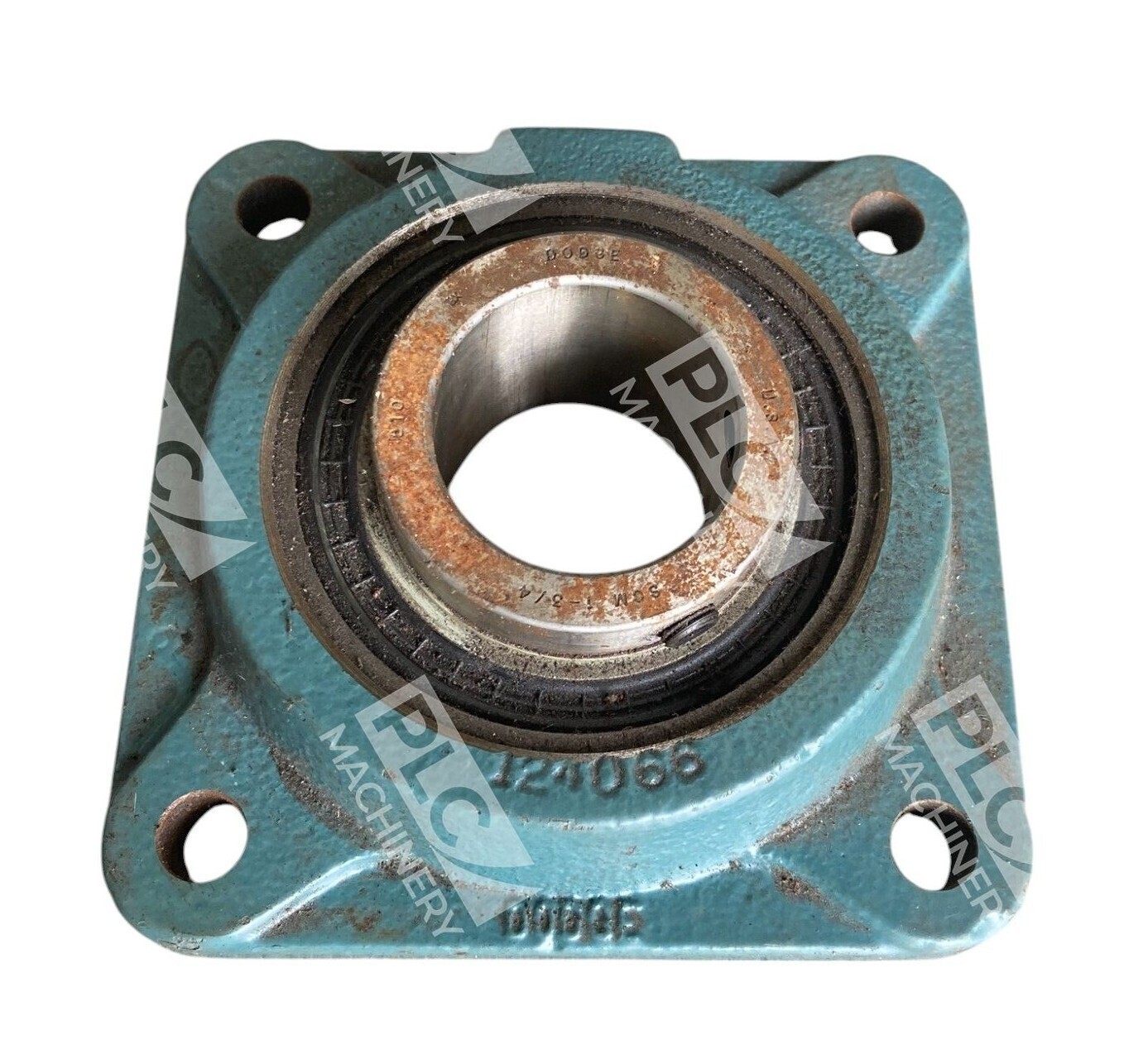

The Dodge 124066 SCM 1-3/4 4 Bolt Flange Housing Cast Iron Ball Bearing, model F4B-SCM-112, is a robust and reliable bearing unit designed for various industrial applications.
Key Features
- Bore Size: 1-3/4 inches
- Housing Type: 4-bolt square flange block
- Housing Material: Durable cast iron construction
- Locking Mechanism: Set screw for secure shaft attachment
- Sealing System: Single lip contact seal for effective contamination protection
- Relubrication Capability: Equipped with grease fittings for easy maintenance
Specifications
- Bolt Circle Diameter: 6.2 inches
- Bolt Spacing: 4-3/8 inches
- Overall Length: 5.63 inches
- Overall Height: 5.63 inches
- Overall Depth: 2.02 inches
- Dynamic Load Capacity: 7,891 lbs
- Static Load Capacity: 5,213 lbs
- Maximum Speed: 4,500 rpm
- Temperature Range: 225 to 400°F
Applications
This flange bearing unit is suitable for a wide range of industries, including:
- Air handling
- Unit handling
- Food and beverage processing
- Forest products
- Paper manufacturing
- Automotive
- Chemical processing
- Packaging and processing
Additional Features
- Precision-Hardened Rings: Inner and outer rings are precision-hardened and honed for enhanced wear resistance and quiet operation.
- DualGuard Sealing System: Features a mechanically retained, land-riding, single lip contact seal combined with a patented rubberized flinger for superior protection against contaminants.
- Reinforced Ball Cage: Constructed from heat-stabilized nylon with fiberglass reinforcement, allowing for higher operating temperatures and increased flexibility with added strength.
- Anti-Rotation Pin: Simplifies insert replacement without the need to replace grease fittings or location pins.
- Optimized Set Screw Spacing: 65° set screw spacing provides an optimal balance between locking force and inner ring stress.
- High-Quality Balls: Grade 10 balls ensure quieter operation and reduced vibration.
The Dodge F4B-SCM-112 flange bearing unit combines durability, precision, and ease of maintenance, making it an excellent choice for demanding industrial environments.
