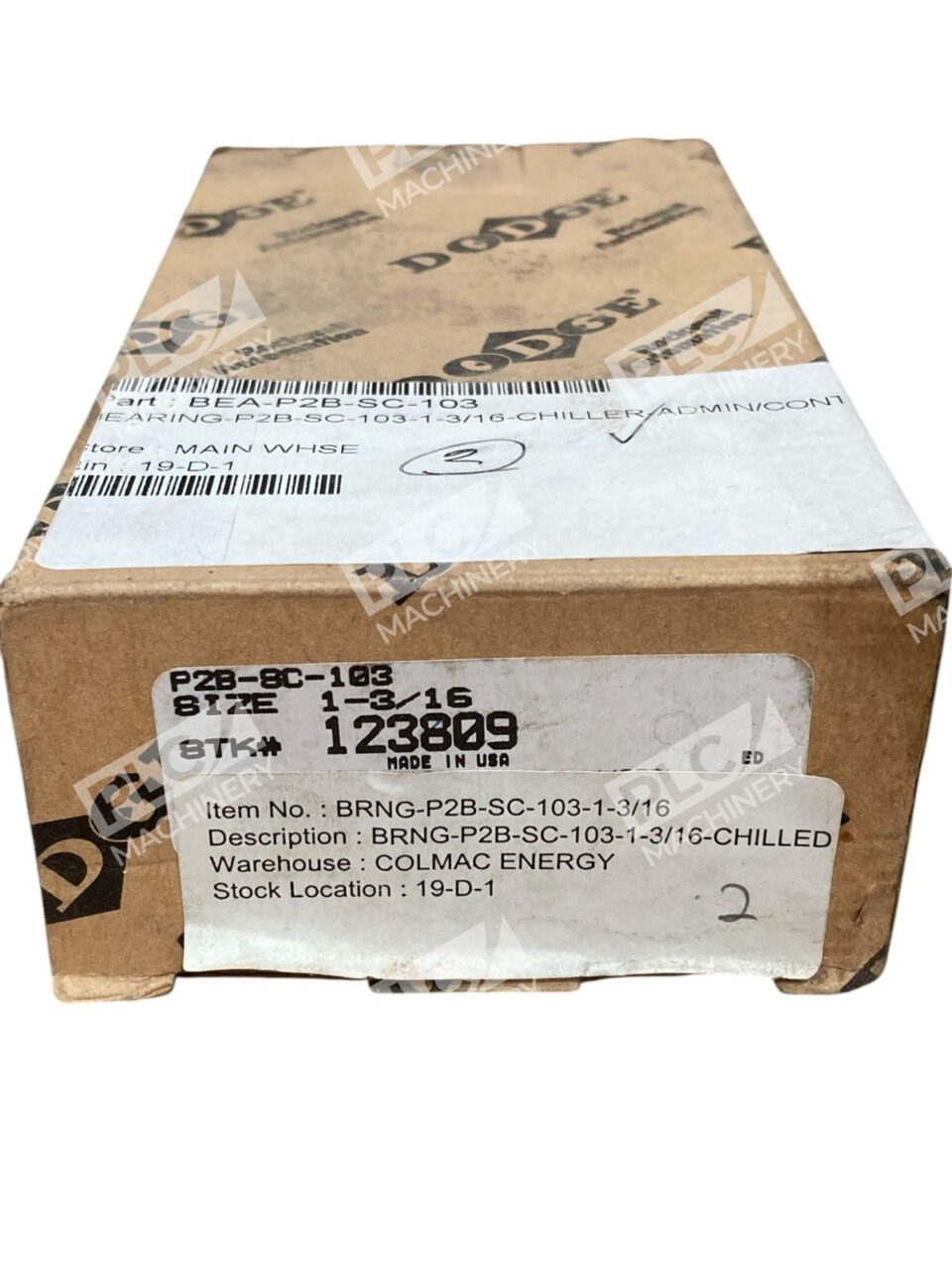

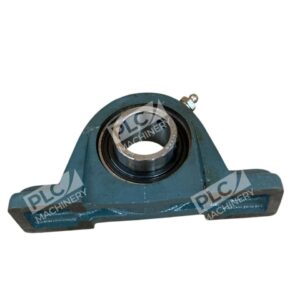

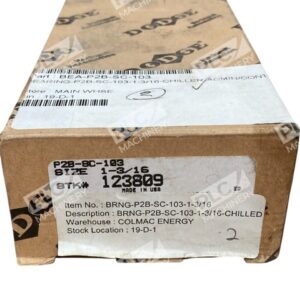

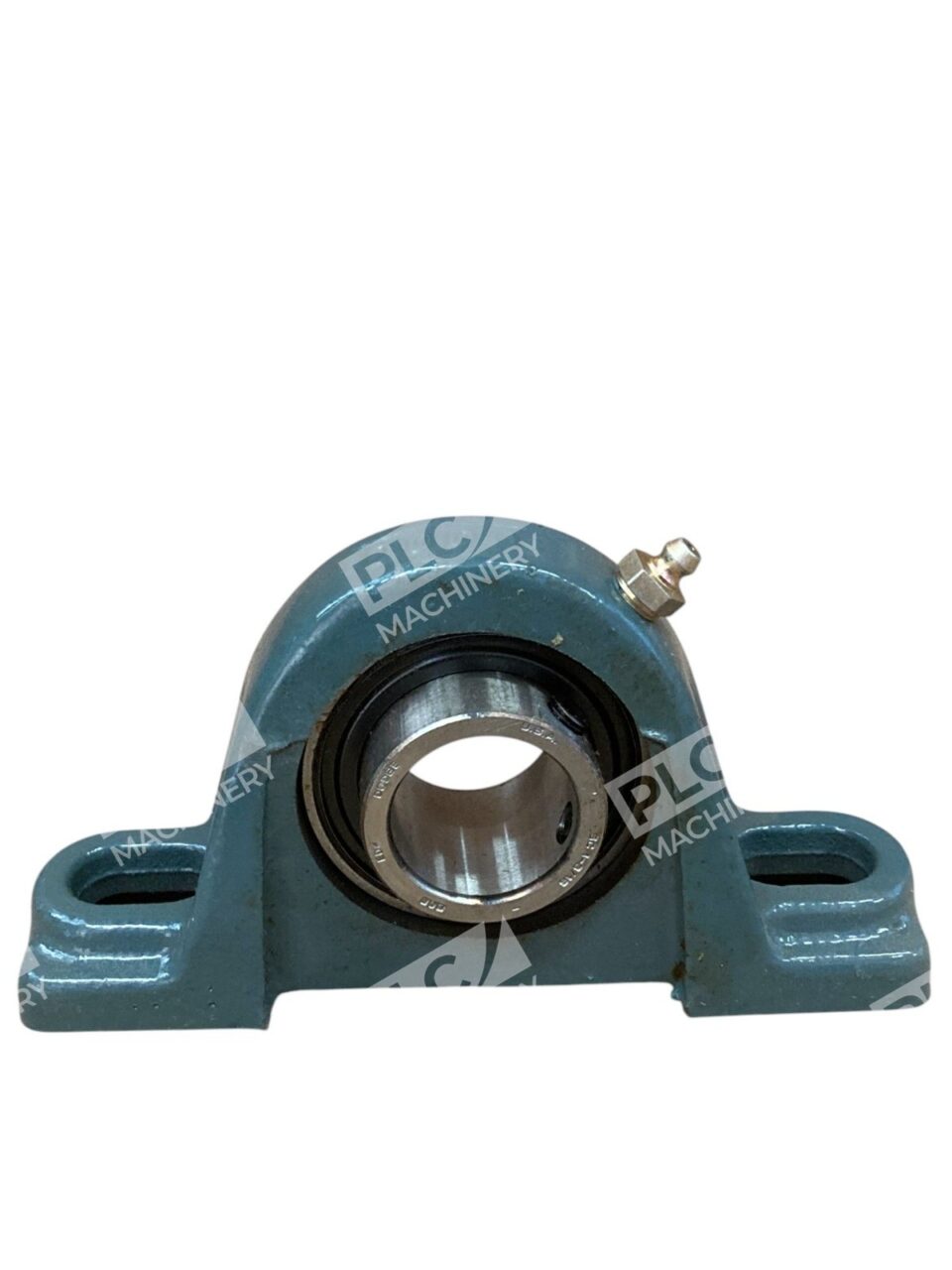

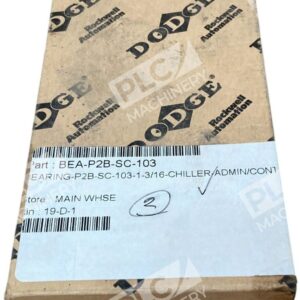

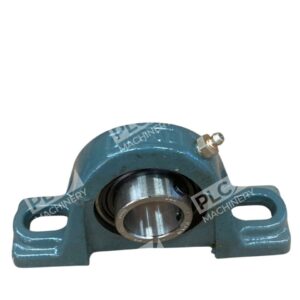

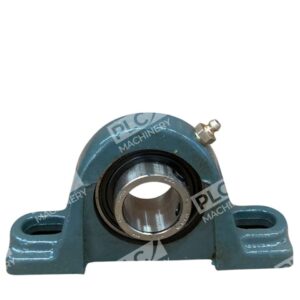

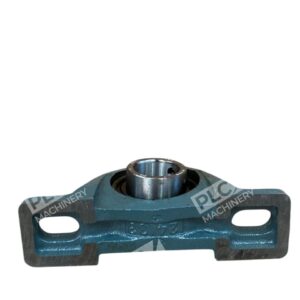

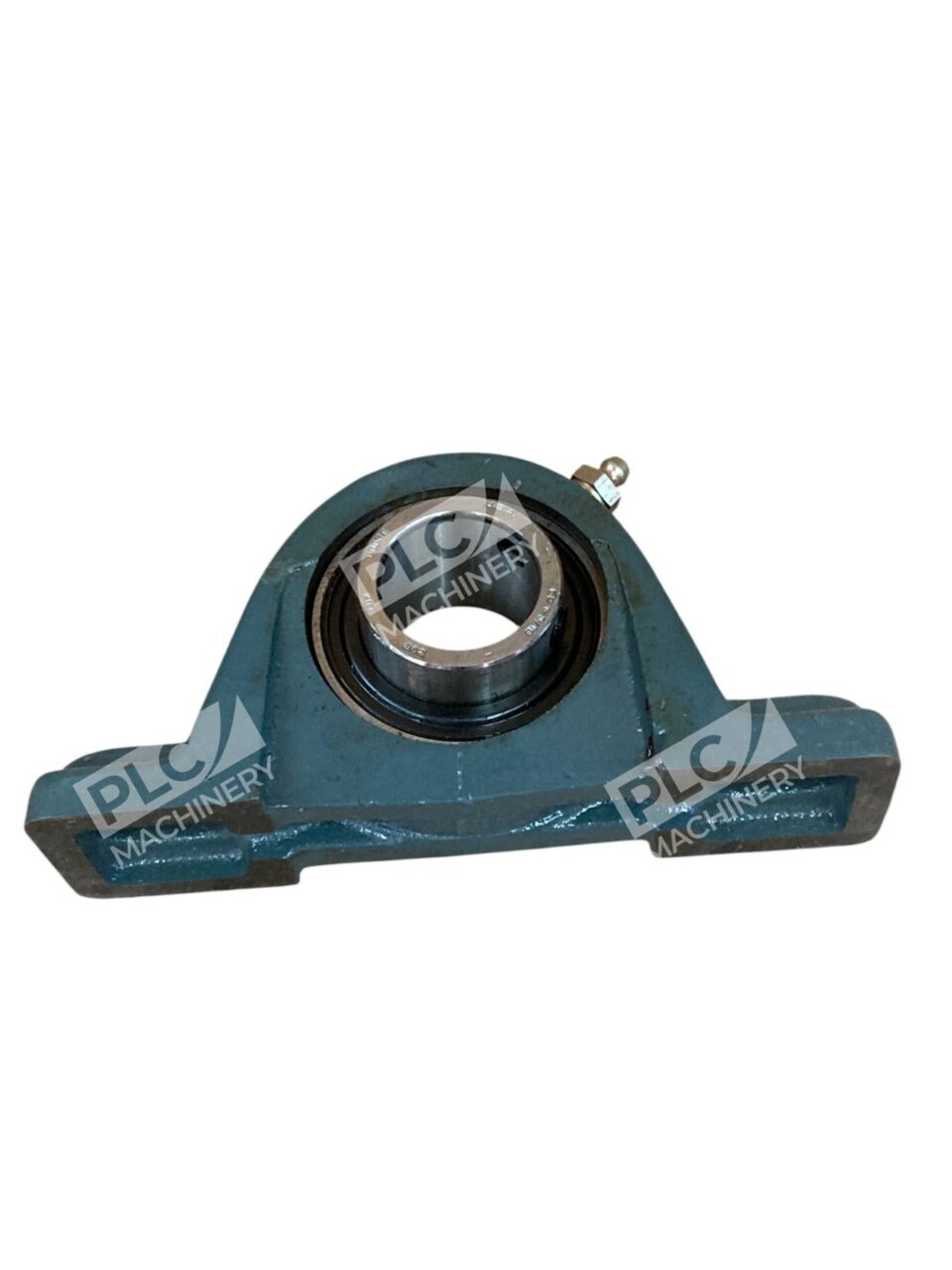

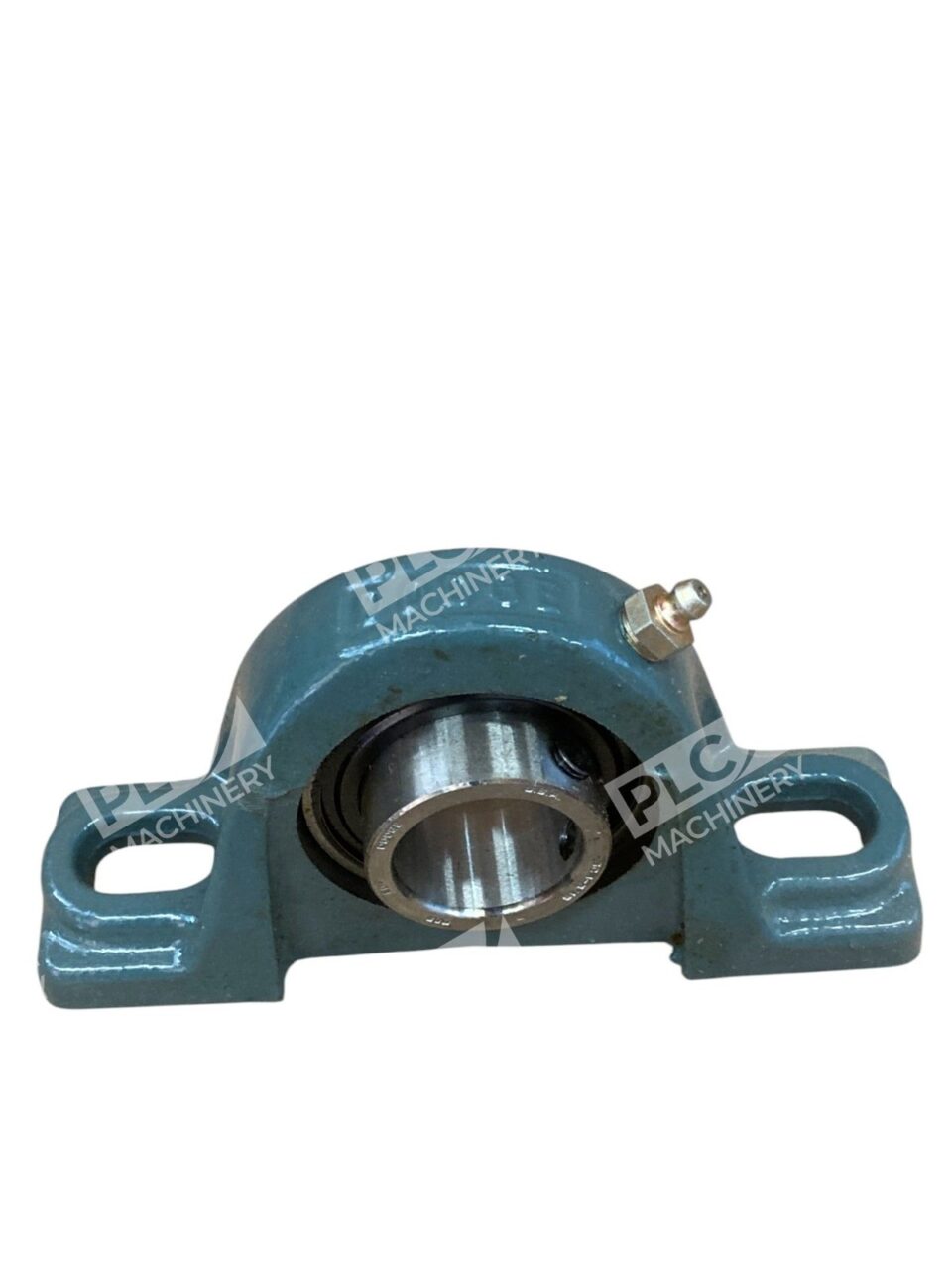

The Dodge 123809 P2B-SC-103 is a robust 1-3/16 inch bore pillow block ball bearing unit, engineered for reliable performance in various industrial applications.
Key Features
- Bore Diameter: 1-3/16 inches (1.1875 inches)
- Housing Material: Durable cast iron
- Locking Mechanism: Set screw for secure shaft attachment
- Seal Type: Single lip contact seal to protect against contaminants

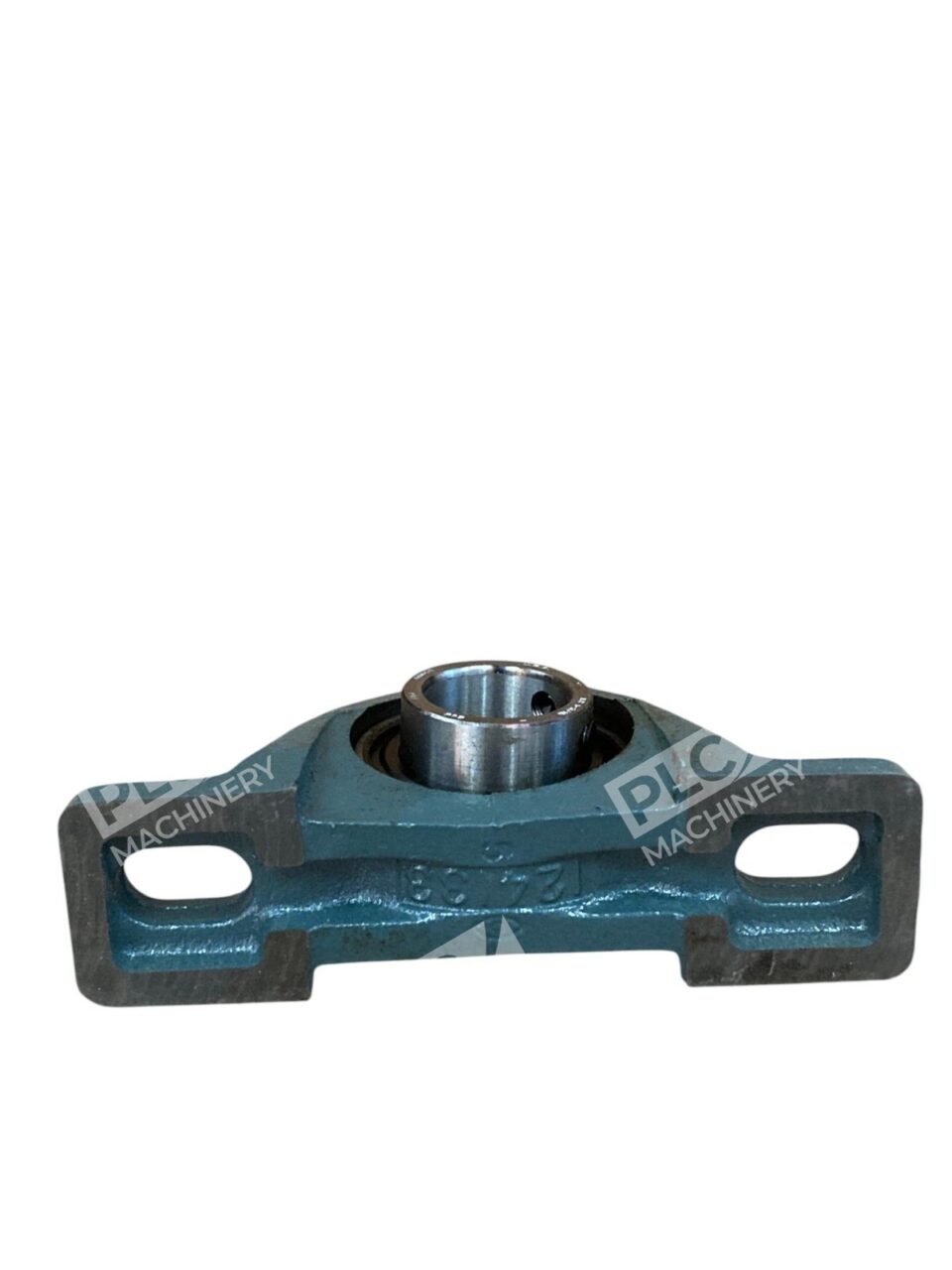

- Mounting Configuration: Two-bolt base for easy installation
- Load Capacity: Dynamic load of 4,368 lbs and static load of 2,538 lbs
- Maximum Speed: Up to 6,500 RPM
Design and Construction
This pillow block bearing unit features a wide inner ring design, providing enhanced stability and support. The cast iron housing ensures durability and resistance to wear, while the set screw locking mechanism offers a secure fit on the shaft. The single lip contact seal effectively prevents contamination, extending the bearing’s operational life.
Applications
The Dodge P2B-SC-103 is suitable for a wide range of industries, including:
- Air Handling
- Food and Beverage
- Chemical Processing
- Paper and Forest Products
- Unit and Baggage Handling
Its versatile design makes it ideal for applications such as conveyors, mechanical drives, and environments requiring reliable bearing performance.
Specifications
- Bore Diameter: 1-3/16 inches
- Base to Bore Centerline: 1-5/8 inches
- Overall Length: 6-1/4 inches
- Overall Height: 3-1/4 inches
- Bolt Center-to-Center Length: 4-1/4 to 5 inches
- Base Width: 1-3/4 inches
- Overall Width: 1.52 inches
The Dodge 123809 P2B-SC-103 pillow block bearing unit combines durability, ease of installation, and reliable performance, making it a valuable component in various industrial settings.
