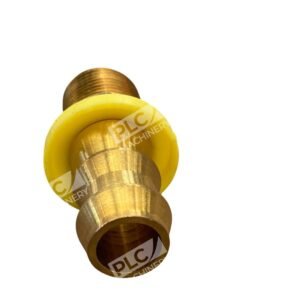

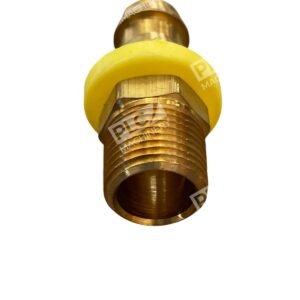

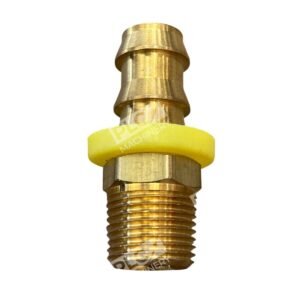

Dixon Brass Quick Connect Fittings MC2720806C Industrial Couplers

Dixon Brass Quick Connect Fittings MC2720806C Industrial Couplers

The Dixon Brass Quick Connect Fittings MC2720806C Industrial Couplers are engineered for efficient and reliable connections in pneumatic systems. These couplers are part of Dixon’s DF-Series, known for their durability and compatibility with various industrial applications.

Key Features

• Material Composition: Constructed with machined components from solid bar stock, ensuring strength and longevity. The coupler features a brass body, while the plug is made of steel, combining corrosion resistance with robust performance.
• Automatic Connection: Designed with an automatic push-to-connect mechanism, facilitating quick and secure connections without manual intervention.
• Sealing Mechanism: Equipped with Nitrile (Buna-N) seals as standard, providing effective sealing and resistance to various fluids.
• Corrosion Resistance: Incorporates stainless steel balls, retaining rings, and springs to maximize corrosion resistance and extend service life.
• Pressure Ratings: When connected with brass couplers and brass plugs, the assembly supports a maximum working pressure of 300 PSI (20 bar) and a burst pressure of 8,500 PSI (586 bar). With brass couplers and steel plugs, it supports up to 500 PSI (35 bar) working pressure and 9,000 PSI (620 bar) burst pressure.
• Temperature Range: Operates effectively within a temperature range of -40°F to 250°F (-40°C to 121°C), accommodating various environmental conditions.
• Interchangeability: Compatible with multiple manufacturers’ designs, including Foster 3, 4, 5, and 6 Series; Parker 30-Series Automatic Interchange and Parker 20-Series Manual Interchange; Hansen 3000, 4000, 5000, and 6000; and Hansen 1000, 400, and 500.

Applications

These industrial couplers are suitable for a wide range of pneumatic applications, including air service lines, tools, and equipment requiring quick and secure connections. Their robust construction and reliable performance make them ideal for use in manufacturing, automotive, and construction industries.

Safety Notice

WARNING: This product contains lead, a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

For optimal performance and safety, ensure compatibility with your system’s specifications and adhere to all applicable safety standards and regulations.
