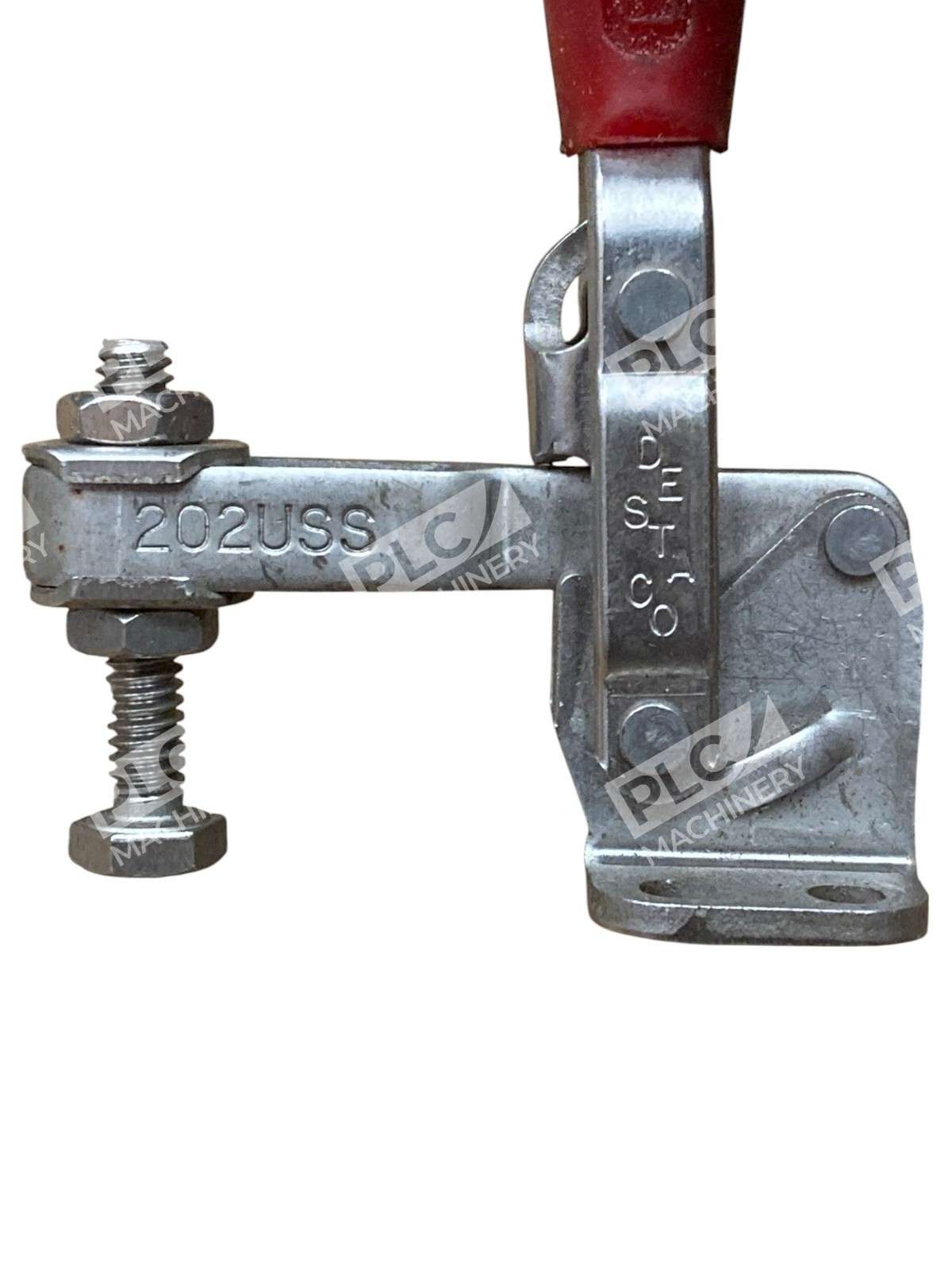

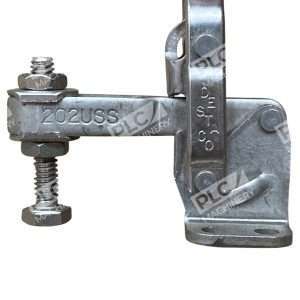

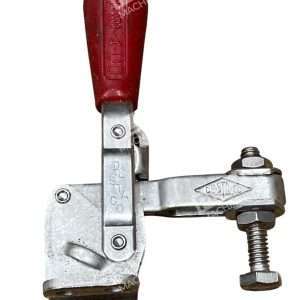

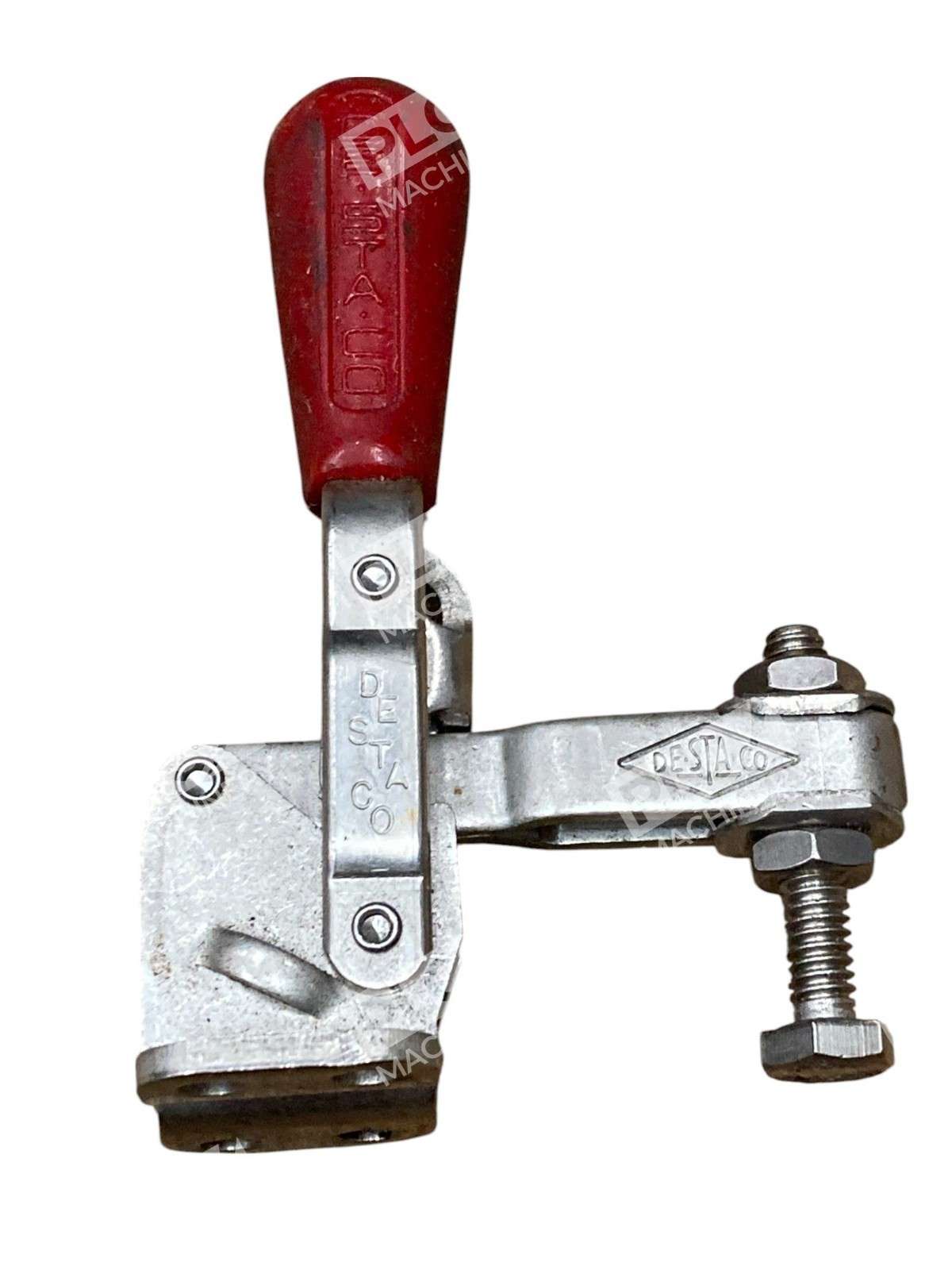

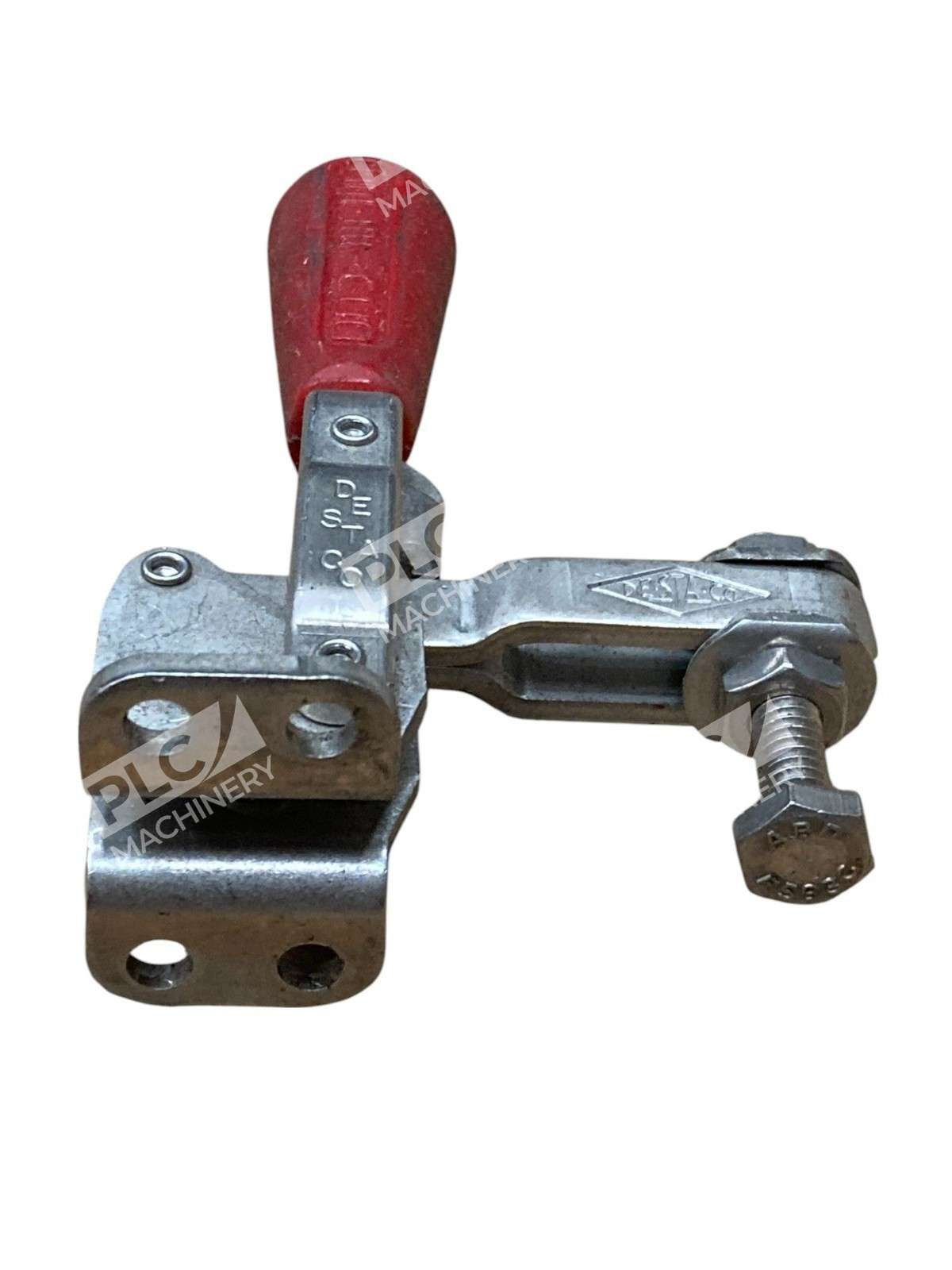

Destaco 202-USS Vertical Toggle Clamp

The Destaco 202-USS Vertical Toggle Clamp is a robust and versatile tool designed for secure and efficient clamping in various industrial applications.

Key Features

• Stainless Steel Construction: Crafted entirely from stainless steel, the 202-USS offers exceptional durability and resistance to corrosion, making it suitable for environments where cleanliness and material integrity are paramount.
• U-Bar Clamping Arm: Equipped with a U-bar clamping arm, this design allows for easy spindle adjustment and precise positioning of the clamping force.
• Hex Head Spindle: Supplied with a stainless steel hex head spindle, the clamp ensures a secure grip on workpieces, enhancing stability during operations.

Specifications

• Maximum Holding Capacity: 250 lbs (1110 N)
• Clamp Arm Length: 1.73 inches (43.9 mm)
• Height Under Clamp Arm: 0.92 inches (23.4 mm)
• Clamp Bar Opening Angle: 105°
• Handle Opening Angle: 65°
• Weight: 0.35 lbs (0.16 kg)

Applications

The 202-USS Vertical Toggle Clamp is ideal for a range of applications, including:

• Assembly Operations: Provides a reliable hold during assembly processes, ensuring components remain stationary.
• Checking Fixtures: Essential for securing parts in inspection fixtures, facilitating accurate measurements and quality control.
• Woodworking: Offers excellent performance in woodworking tasks, holding pieces firmly during cutting, sanding, or drilling.
• Closures: Effective in applications requiring secure closure mechanisms.
• Food Processing: With its stainless steel construction, it is suitable for environments where hygiene is critical.

Design and Usability

The vertical handle design of the 202-USS ensures ergonomic operation, reducing operator fatigue during repetitive tasks. The flanged base allows for easy mounting on various surfaces, providing stability and versatility in different setups. The clamp’s design accommodates a wide range of workpiece sizes and shapes, making it a valuable tool in diverse industrial settings.

Conclusion

The Destaco 202-USS Vertical Toggle Clamp combines strength, precision, and durability, making it an indispensable component in assembly, inspection, and processing operations. Its stainless steel construction and thoughtful design cater to the demanding needs of various industries, ensuring reliable performance and longevity.
