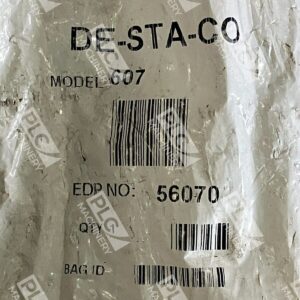

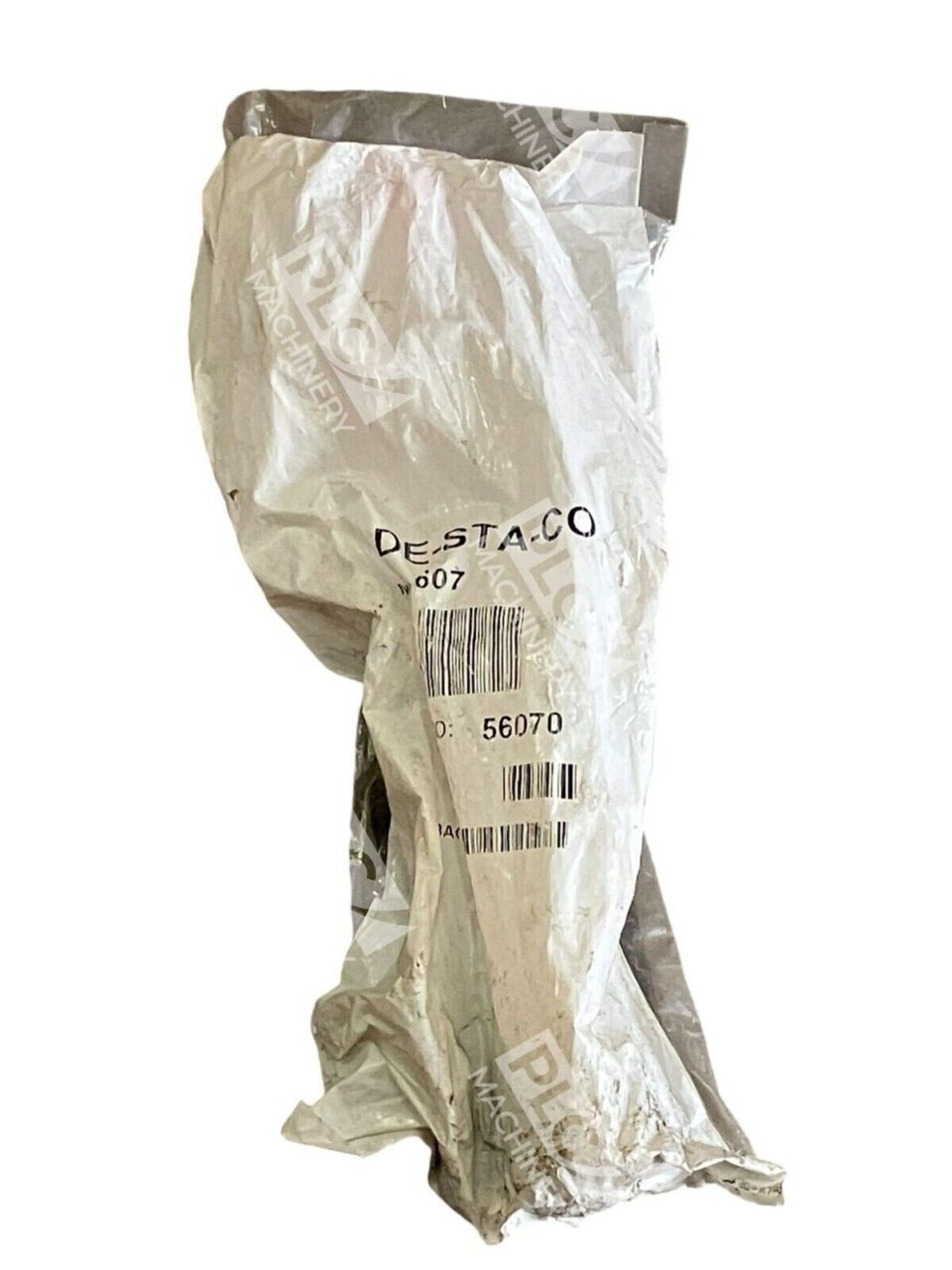

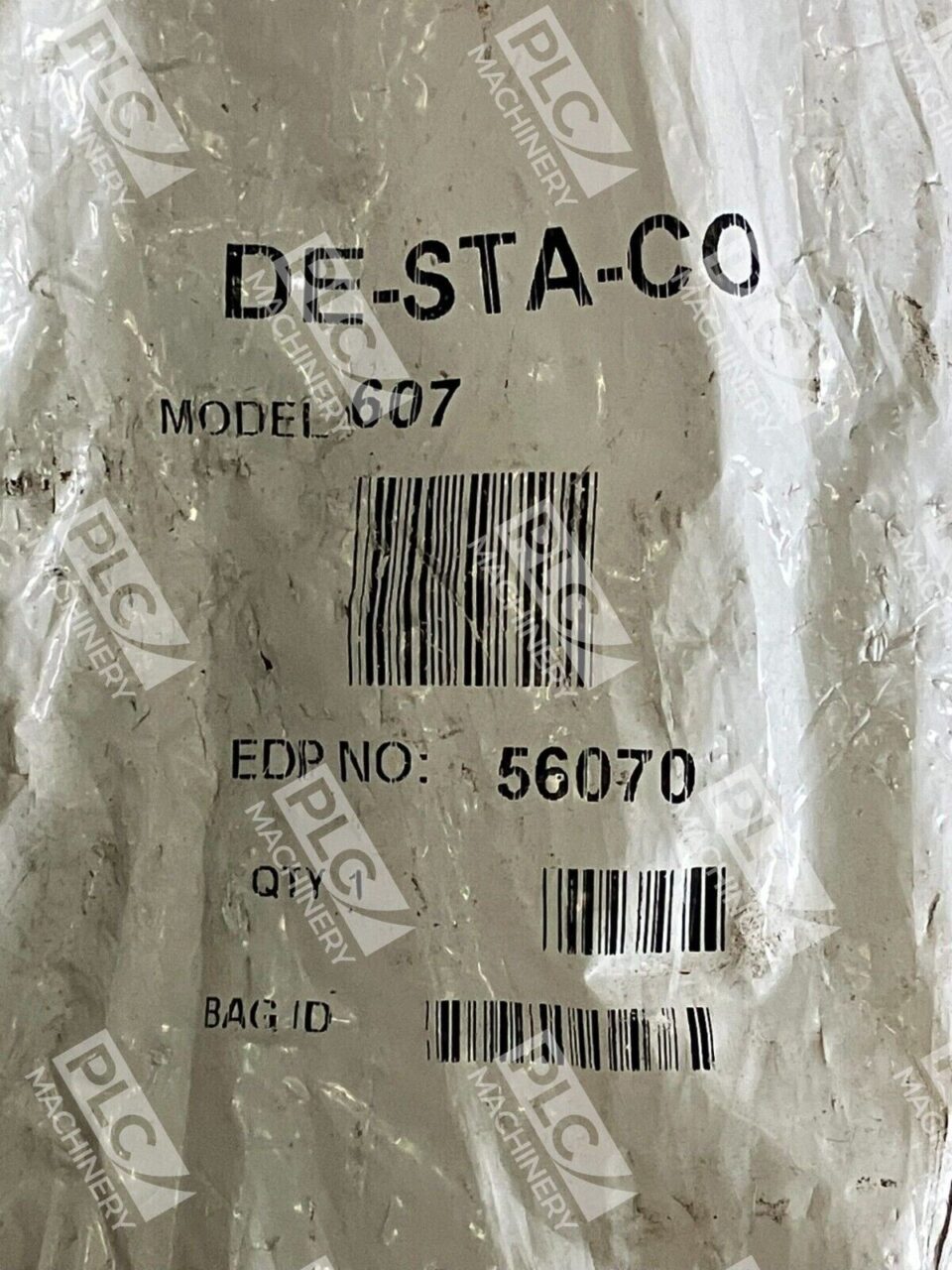

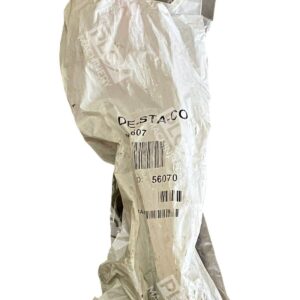

DE-STA-CO 56070 Clamp 607

DE-STA-CO 56070 Clamp 607

The DE-STA-CO 56070 Clamp 607 is a robust straight-line action clamp designed for applications requiring precise and secure clamping. Its low-profile design and high holding capacity make it ideal for assembly, testing, welding, and tensioning tasks.

Key Features

• Push/Pull Handle: The easy-to-operate handle allows the plunger to move in and out along its axis, facilitating straightforward operation.
• Plunger Locking: The plunger locks in the extended position, ensuring stability during use.
• Toggle Lock Plus®: Equipped with DESTACO’s innovative safety feature, this secondary lock helps maintain the over-center locking condition and protects against unintentional opening.
• Plunger Options: Available with either round or square plungers to resist torsional loads, catering to various application needs.

Specifications

• Maximum Holding Capacity: 800 lbf (3560 N)
• Plunger Travel: 1.63 inches (41.4 mm)
• Plunger Height: 0.69 inches (17.5 mm)
• Weight: 1.63 lbs (0.74 kg)
• Plunger Thread: 5/16-18
• Base Mounting Style: Flange
• Material: Steel

Applications

The DE-STA-CO 56070 Clamp 607 is well-suited for various industries and applications, including:

• Industrial: General manufacturing and production processes.
• Automotive: Assembly lines and component testing.
• Food and Packaging: Secure clamping during packaging operations.
• Aerospace: Precision assembly and testing of components.
• Consumer Goods: Manufacturing and assembly of consumer products.

Common applications encompass fixturing and testing, CNC machining, and plastic injection molding, where reliable and precise clamping is essential.

Accessories

For enhanced functionality, the following accessories are recommended:

• Spindle: Model 207203 (sold separately)
• Spindle with Hex Nut: Model 509207 (includes two 207115 hex nuts)

These accessories provide additional versatility and adaptability to meet specific application requirements.
