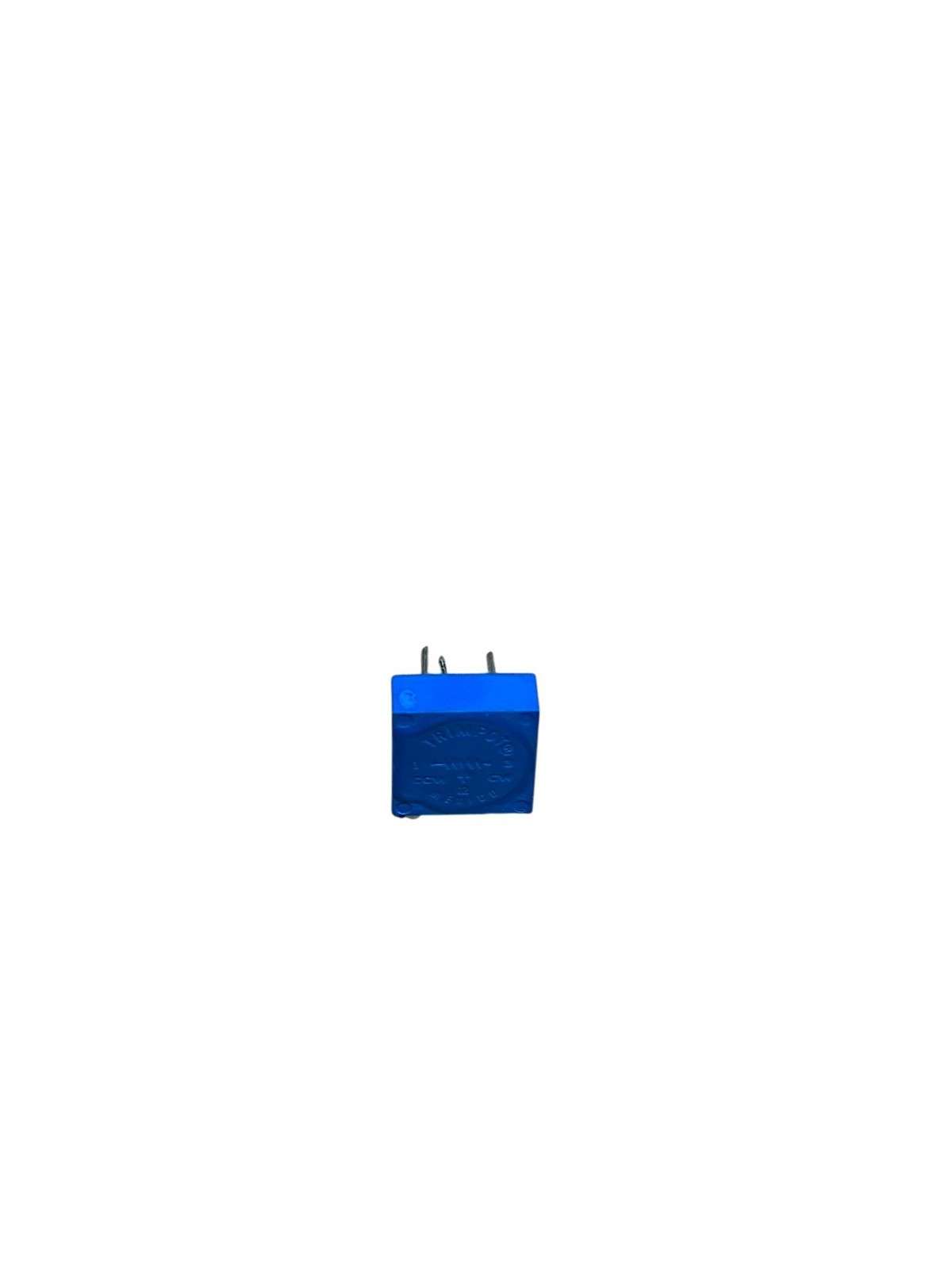

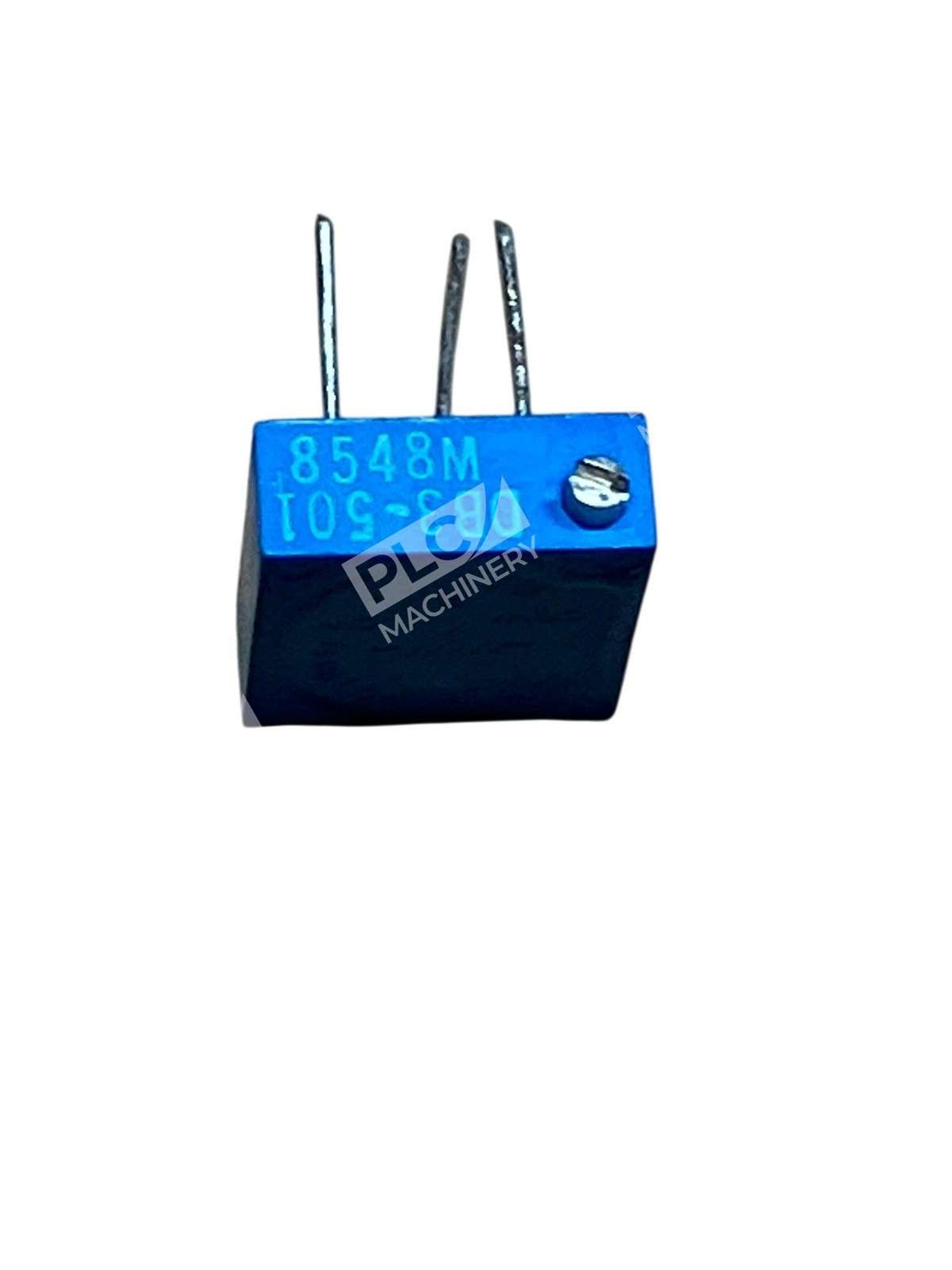

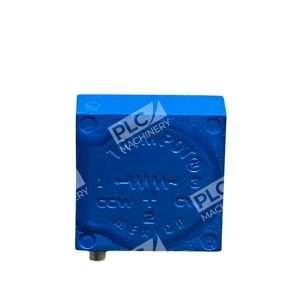

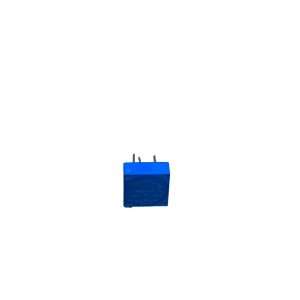

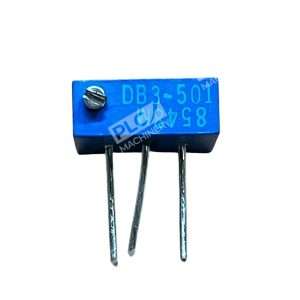

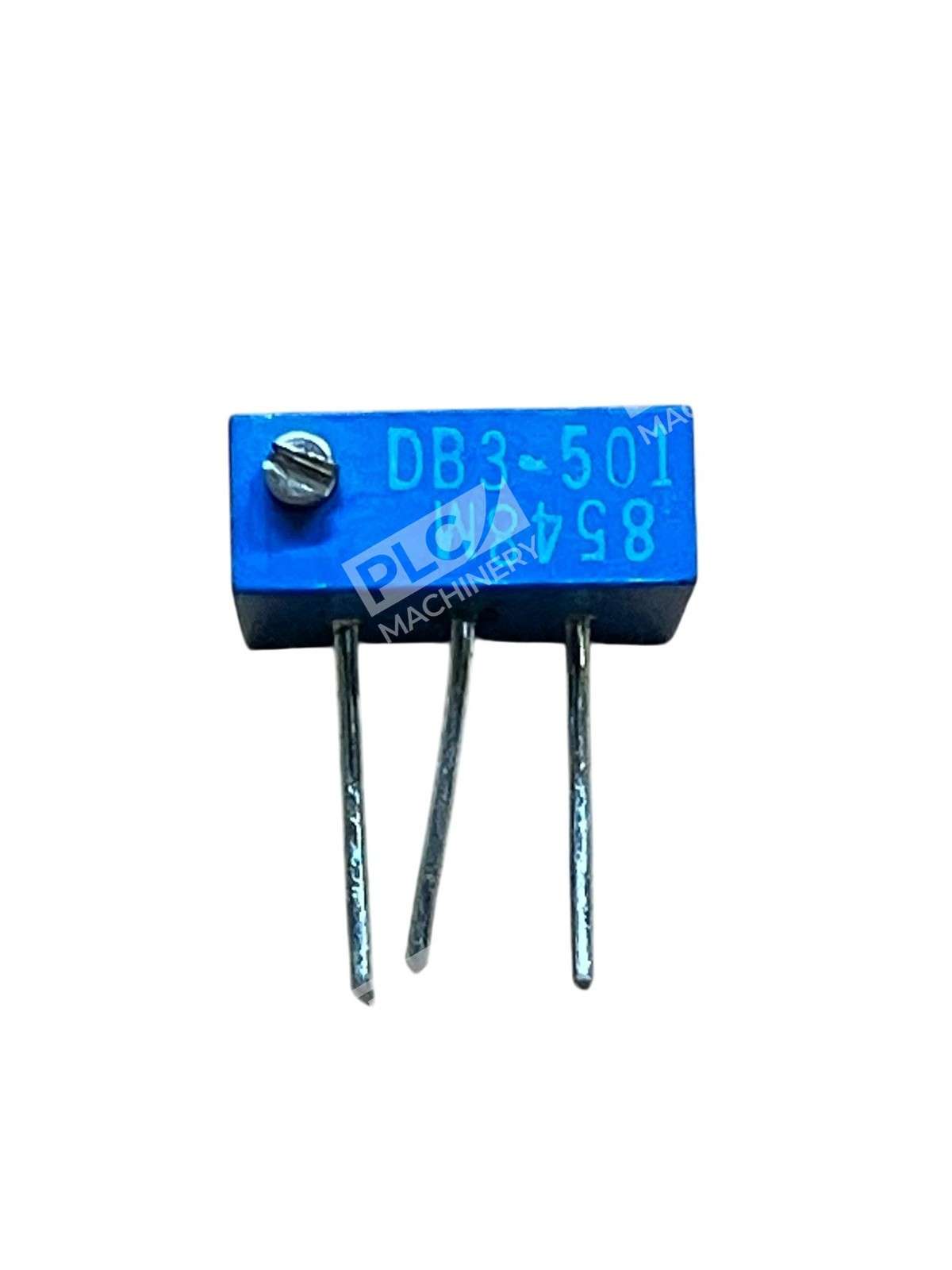

The **DB3-501 Trimmer Potentiometer Resistor 8548M** is a precision component designed for applications requiring accurate resistance adjustments.
Key Features
- Resistance Value: 500 ohms
- Resistance Tolerance: ±10%
- Power Rating: 0.5 Watt at 70°C
- Temperature Coefficient: ±100 ppm/°C
- Adjustment Angle: 22 turns minimum
- Insulation Resistance: 500V DC, 1000MΩ minimum
- Dielectric Strength: 600V AC at sea level
Environmental Characteristics
- Operating Temperature Range: -55°C to +125°C
- Load Life: 1,000 hours at 0.5 Watt and 70°C
- Rotational Life: 200 cycles
Physical Characteristics
- Torque: 15 nN-m maximum
- Dimensions: 3/4 inches rectangular form factor
- Mounting: Panel mount with bushing
This trimmer potentiometer is ideal for applications requiring precise resistance adjustments, such as calibration equipment, instrumentation, and control systems. Its robust design ensures reliable performance in various environmental conditions.
