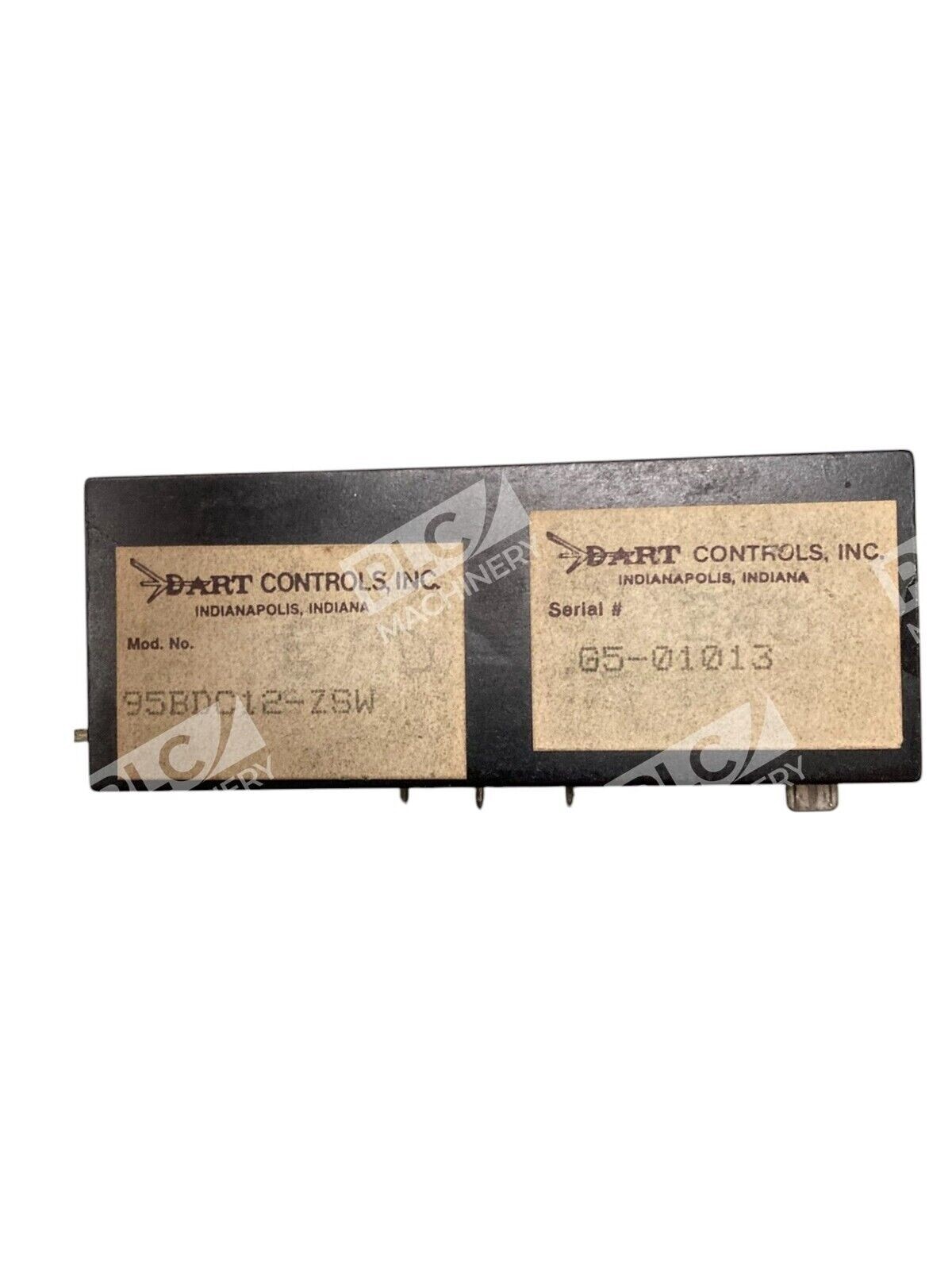

Dart Controls A40195 DC Drive 95BDC12-ZSW

Dart Controls A40195 DC Drive 95BDC12-ZSW

The Dart Controls A40195 DC Drive, model 95BDC12-ZSW, is a reliable and efficient solution for controlling DC motors in various industrial applications. Designed to convert single-phase AC line voltage into full-wave rectified DC, this drive is suitable for use with both permanent magnet and shunt-wound DC motors.

Key Features

• Input Voltage: Compatible with 120/240 VAC, 50/60Hz, allowing flexibility in different power environments.
• Output Voltage: Provides 0-90/0-180 VDC, accommodating a range of motor voltage requirements.
• Adjustable Horsepower Settings: Offers adjustable horsepower settings to match specific motor requirements.
• Speed Regulation: Achieves 1% speed regulation over a 50:1 speed range, ensuring precise motor control.
• Adjustable Parameters: Features adjustable minimum and maximum speed limits, IR compensation, current limit, acceleration, and deceleration settings for tailored performance.
• Inhibit Circuit: Includes an inhibit circuit for start-stop operation, enhancing safety and control.
• Overload Capacity: Capable of handling 200% overload for one minute, providing robustness in demanding applications.
• Transient Voltage Protection: Equipped with MOV transient protection to safeguard against voltage spikes.
• Voltage Following Mode: Supports voltage following mode for integration with external control signals.

Applications

The 95BDC12-ZSW is ideal for a wide range of applications, including conveyor systems, fans, pumps, and other machinery requiring precise speed control. Its versatile design and adjustable settings make it suitable for both simple and complex motor control tasks.

Installation and Support

Installation is facilitated through a barrier-type terminal strip and easily adjustable trimpots, allowing for straightforward setup and field adjustments. Dart Controls provides comprehensive support and resources, including detailed manuals and technical assistance, to ensure optimal performance and integration into your system.

For more information or to discuss your specific application needs, please contact Dart Controls directly.
