Cutler Hammer Eaton 20A 690V 3 Phase Continuous Motor Ratings CE15CNS3

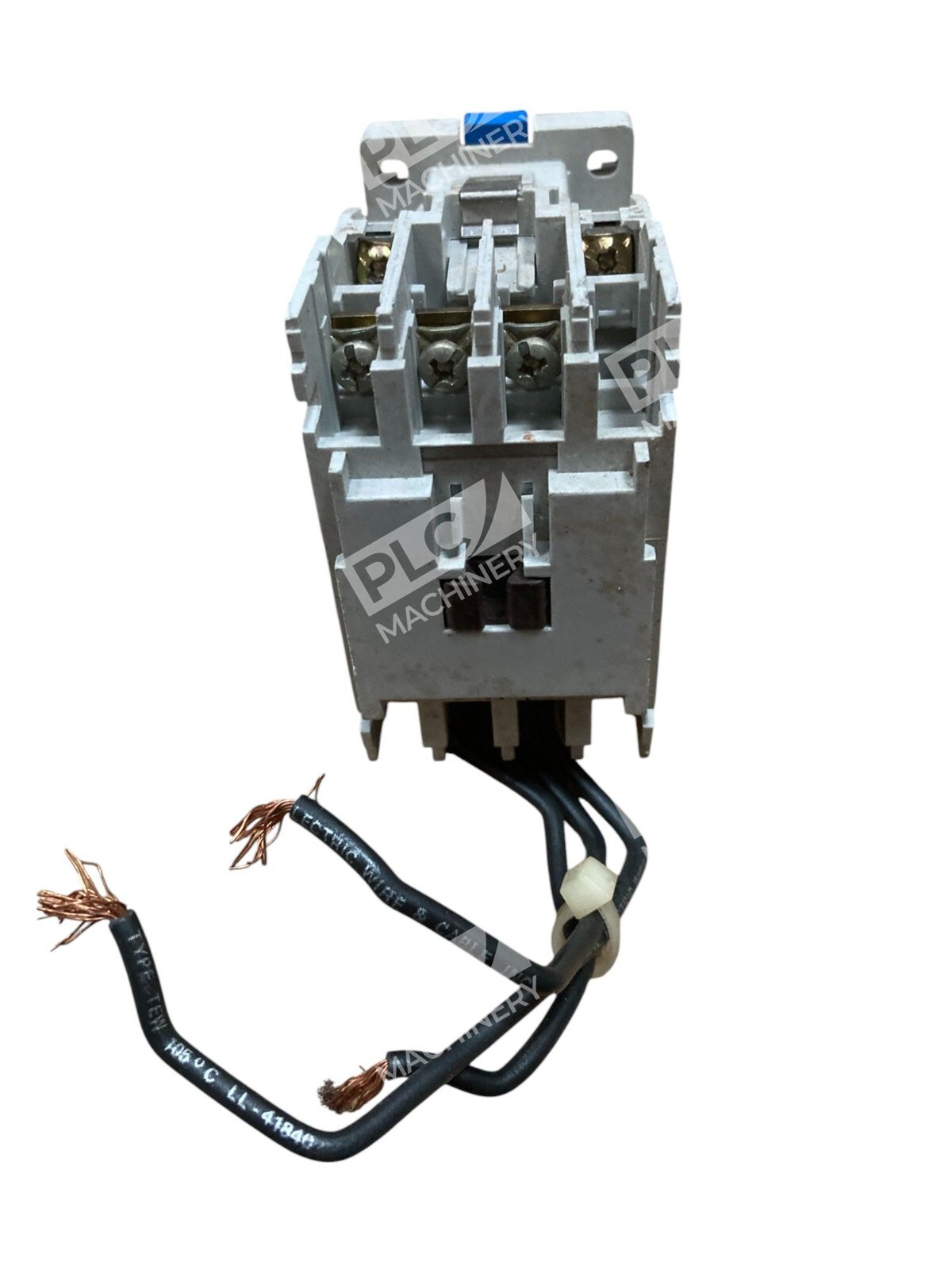

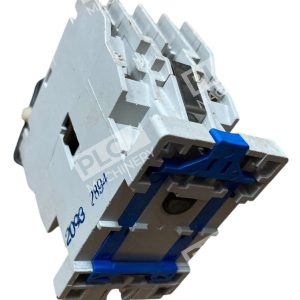

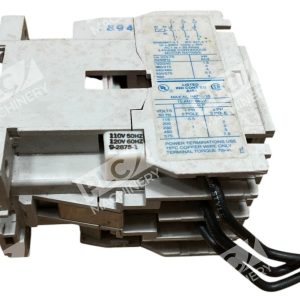

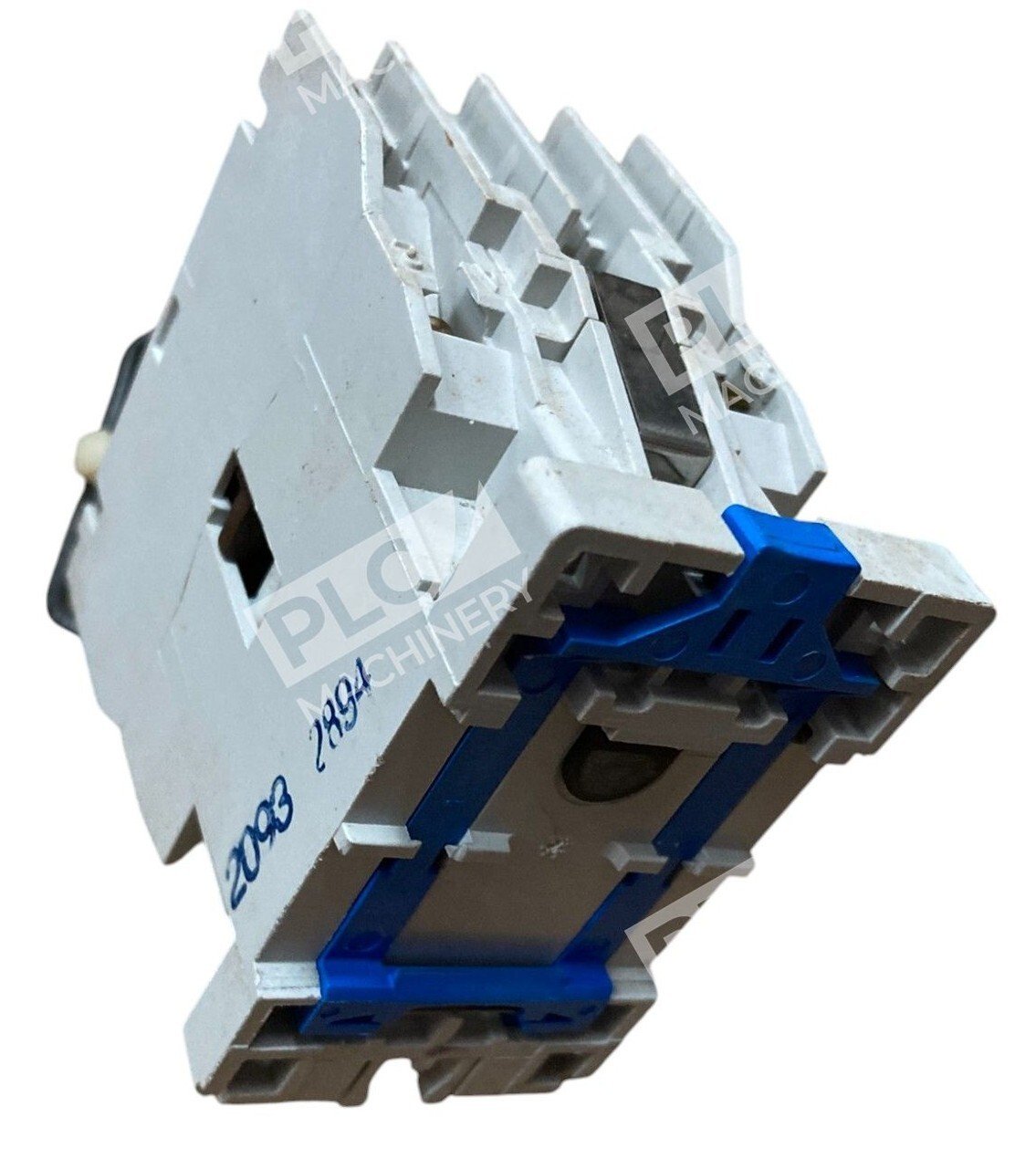

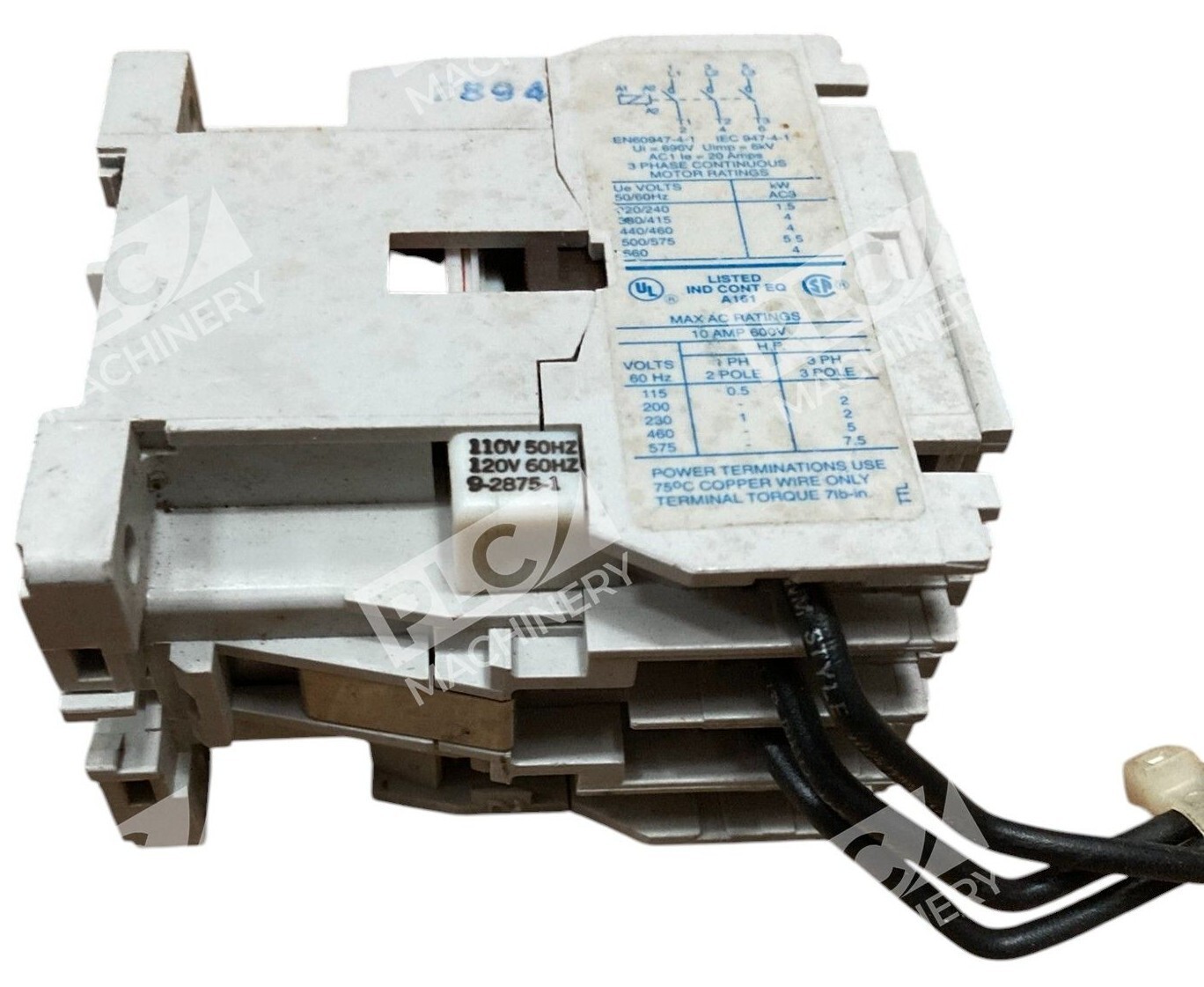

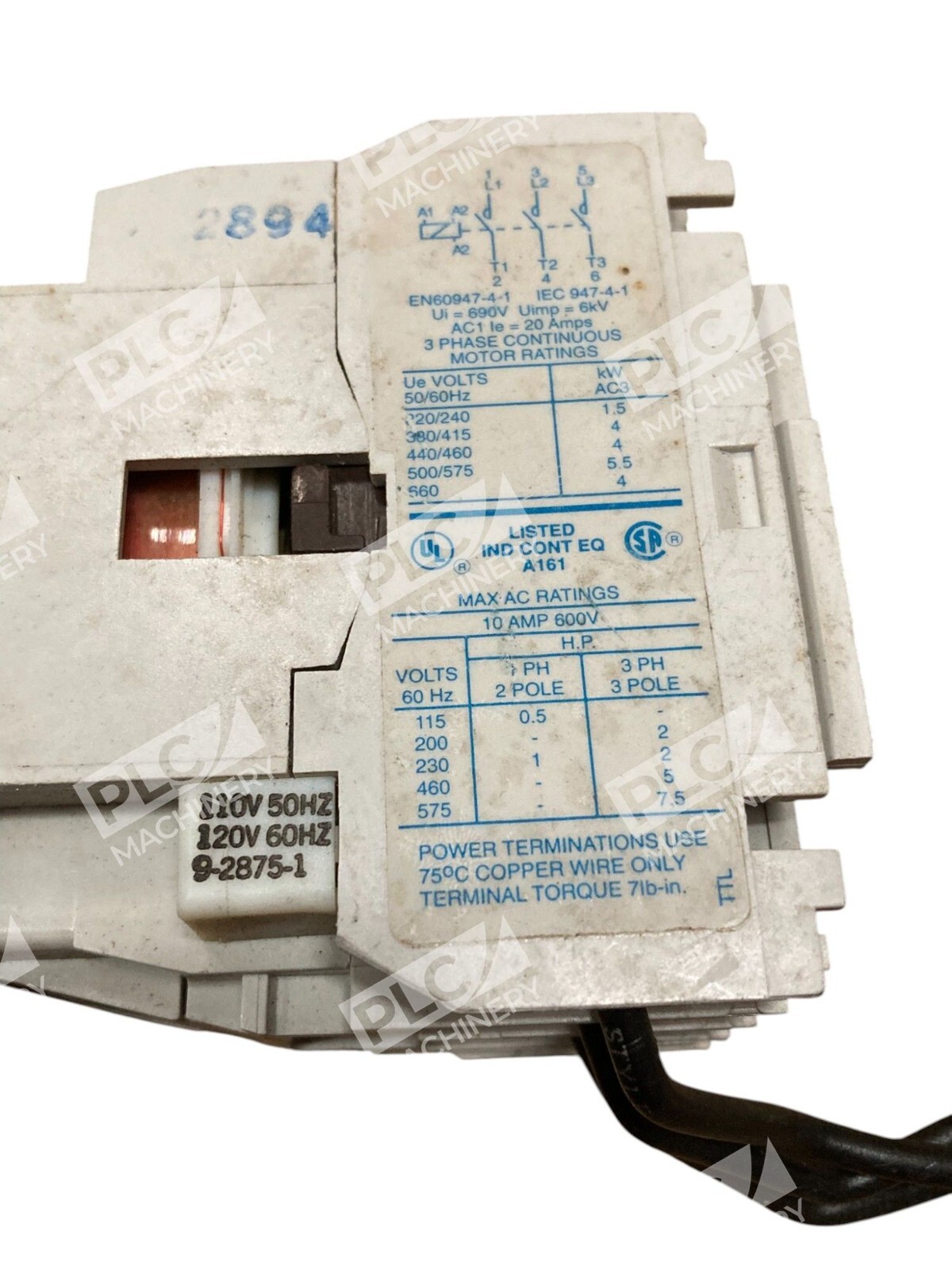

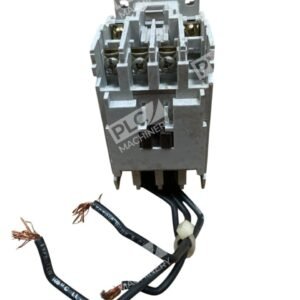

Cutler-Hammer Eaton CE15CNS3 Contactor

The Cutler-Hammer Eaton CE15CNS3 is a robust and efficient 3-pole contactor designed for diverse industrial motor control applications. Engineered for reliability, this contactor ensures consistent performance in demanding environments.

Key Features

• Amperage Rating: 12 Amps (UL Continuous), 20 Amps (IEC Thermal Current)
• Voltage Rating: Up to 600V
• Coil Voltage: 110-120V AC at 50/60 Hz
• Horsepower Ratings:
  • 0.5 HP at 115V (Single-Phase)
  • 2 HP at 230V (Single-Phase)
  • 3 HP at 200/230V (Three-Phase)
  • 7.5 HP at 460V (Three-Phase)
  • 10 HP at 575V (Three-Phase)
• Auxiliary Contact: 1 Normally Open (NO) Side Mounted
• Mounting: DIN Rail with Steel Mounting Plate
• Dimensions: 2.96″ (Height) x 1.8″ (Width) x 3.25″ (Depth)
• Weight: 0.95 lbs

Design and Construction

The CE15CNS3 features a compact design, optimizing space utilization without compromising functionality. Its screw-type power terminals with captive, backed-out self-lifting pressure plates facilitate reduced wiring time and ease of installation. The contactor’s robust construction ensures durability, even in harsh industrial settings.

Performance and Efficiency

Equipped with advanced technology, the CE15CNS3 minimizes power loss, enhancing overall system performance and reducing operational costs. Its superior electrical conductivity ensures a reliable and consistent connection in electrical circuits.

Safety and Compliance

Safety is paramount with the CE15CNS3, which complies with industry standards and regulations, including UL and CSA approvals. Fingerproof shields are available to prevent electrical shock, and the contactor comes with a 1-year warranty from the date of installation or an 18-month warranty from the date of shipment.

Applications

Ideal for various industrial applications, the CE15CNS3 is suitable for controlling motors in manufacturing plants, processing facilities, and other environments requiring reliable motor control solutions.

Invest in the Cutler-Hammer Eaton CE15CNS3 contactor for a dependable, efficient, and safe motor control solution tailored to meet the demands of modern industrial applications.
