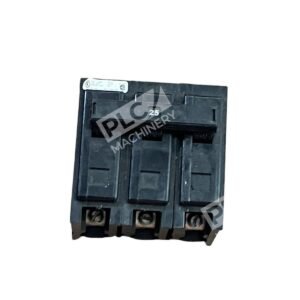

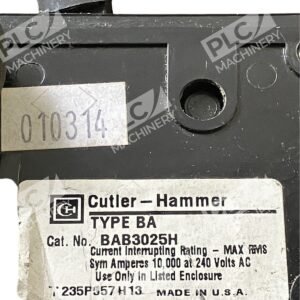

Cutler Hammer BAB3025H Type BA Circuit Breaker 3 Pole

Cutler Hammer BAB3025H Type BA Circuit Breaker 3 Pole

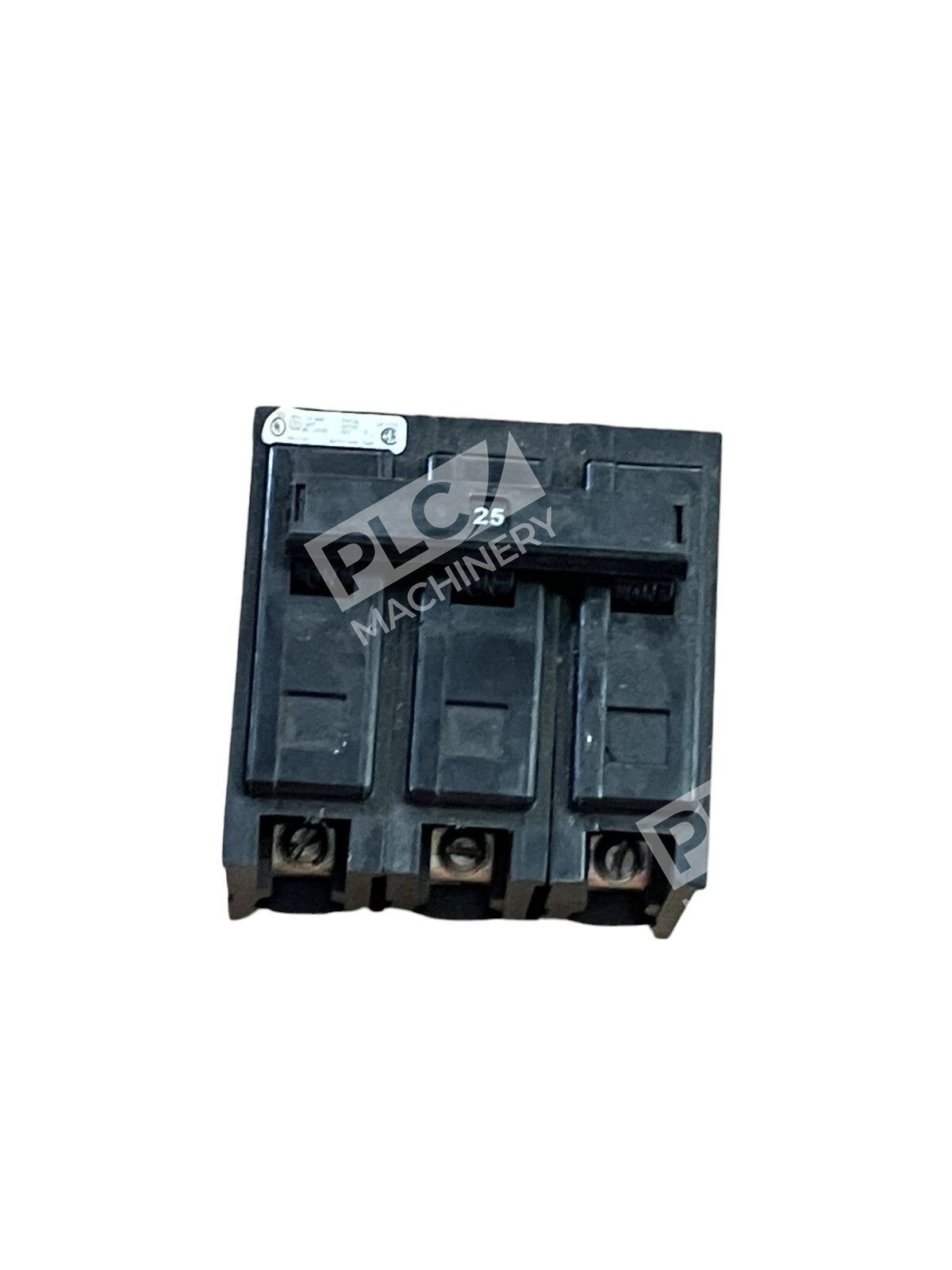

The Cutler Hammer BAB3025H is a three-pole, 25-amp thermal magnetic circuit breaker designed for industrial applications. Part of Eaton’s Quicklag® series, this breaker offers reliable protection for electrical systems operating at 240 volts AC. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BAB3025H.html?utm_source=openai))

Key Features

• Amperage Rating: 25 Amps
• Voltage Rating: 240 VAC

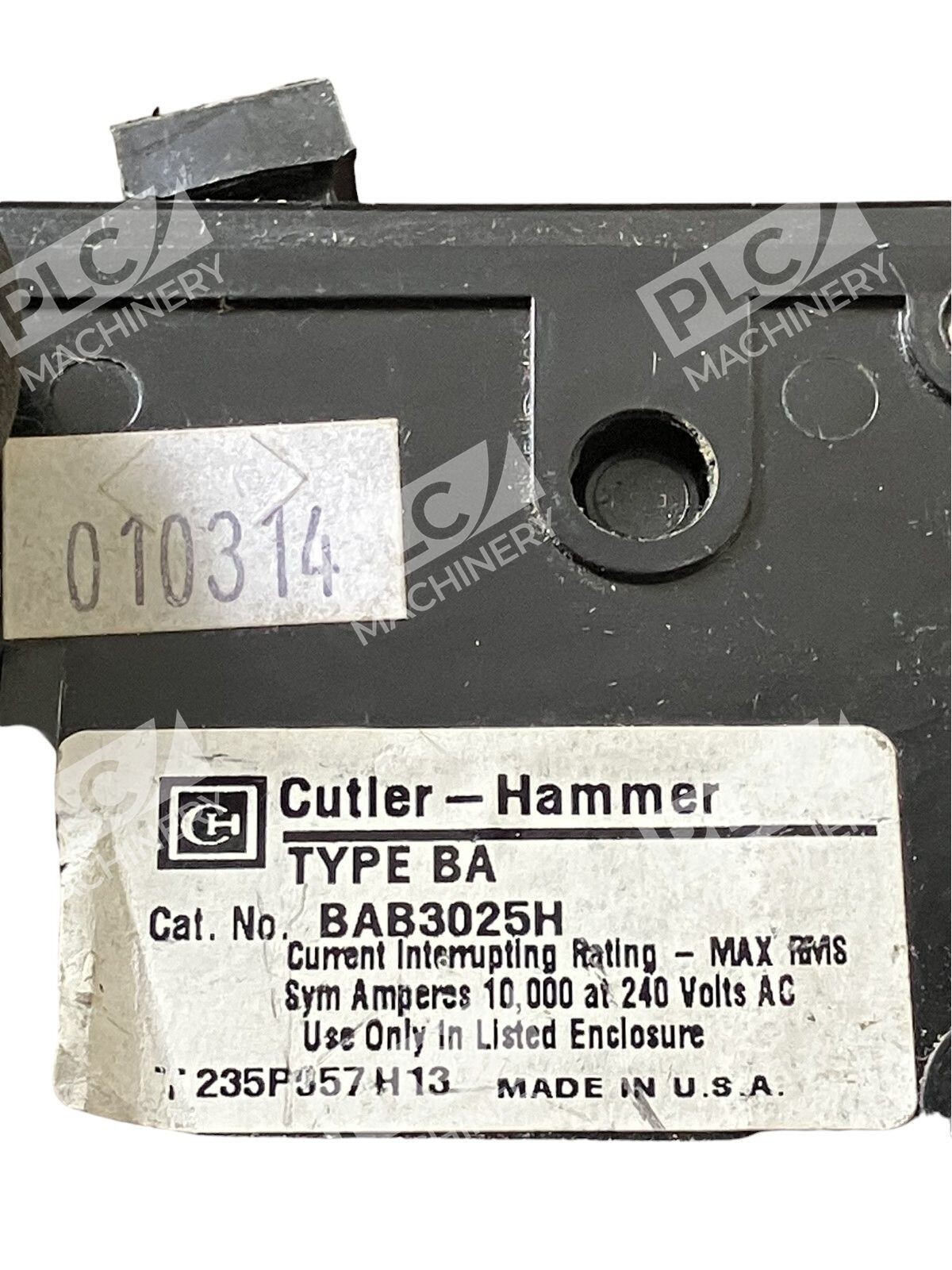

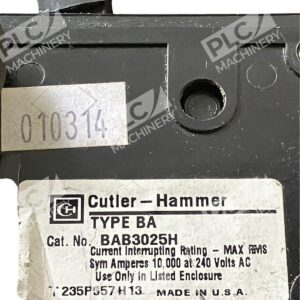

• Interrupting Capacity: 10 kAIC
• Number of Poles: Three
• Mounting Type: Bolt-On
• Trip Type: Non-Interchangeable Thermal Magnetic
• Certifications: UL Listed, CSA Certified

Design and Installation

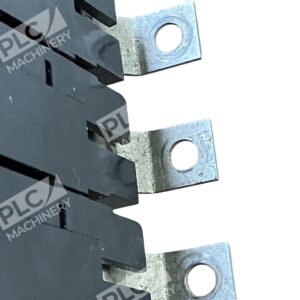

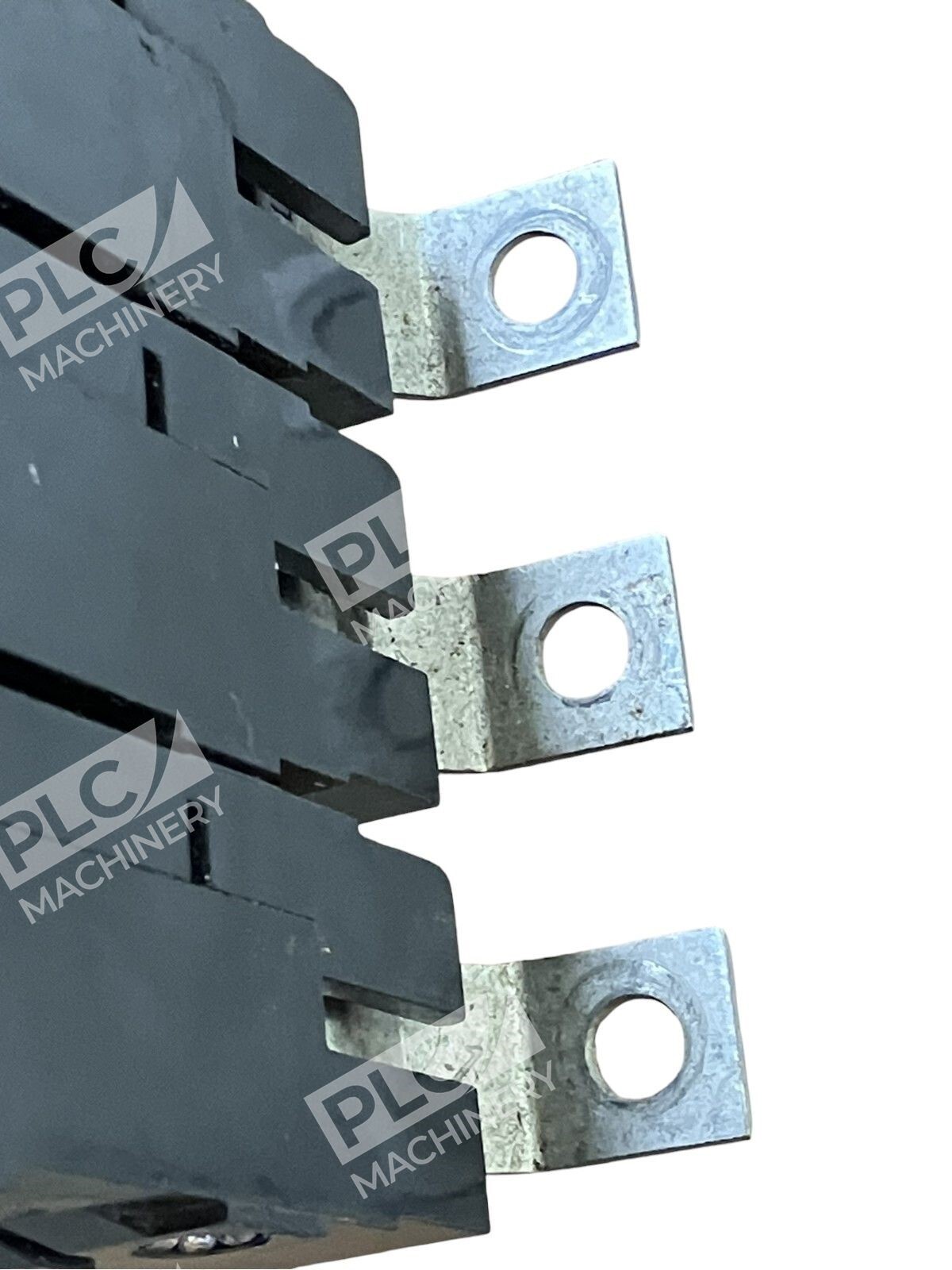

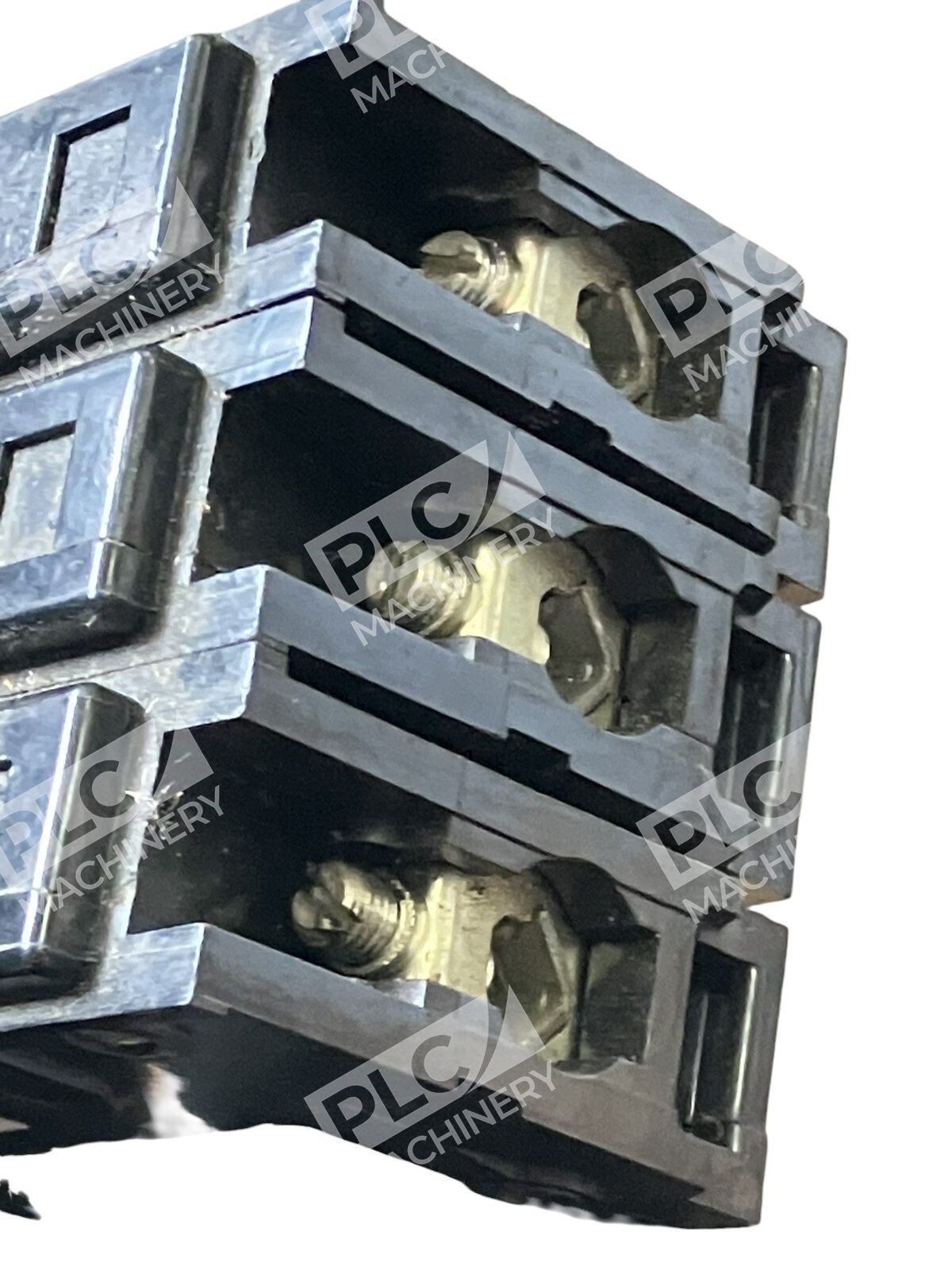

The BAB3025H features a compact design, measuring approximately 3.5 inches in length, 3 inches in height, and 3.2 inches in width, with a weight of 0.9 pounds. Its bolt-on mounting system ensures secure installation in panelboards, making it suitable for various industrial settings. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BAB3025H.html?utm_source=openai))

Performance and Reliability

Equipped with a non-interchangeable thermal magnetic trip mechanism, the BAB3025H provides consistent protection against overloads and short circuits. Its 10 kAIC interrupting capacity ensures the breaker can handle significant fault currents, enhancing system safety. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BAB3025H.html?utm_source=openai))

Applications

This circuit breaker is ideal for use in datacenters, IT spaces, conventional and renewable energy generation, marine vessels, and residential buildings. Its HACR rating also makes it suitable for heating, air conditioning, and refrigeration applications. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BAB3025H.html?utm_source=openai))

Certifications and Compliance

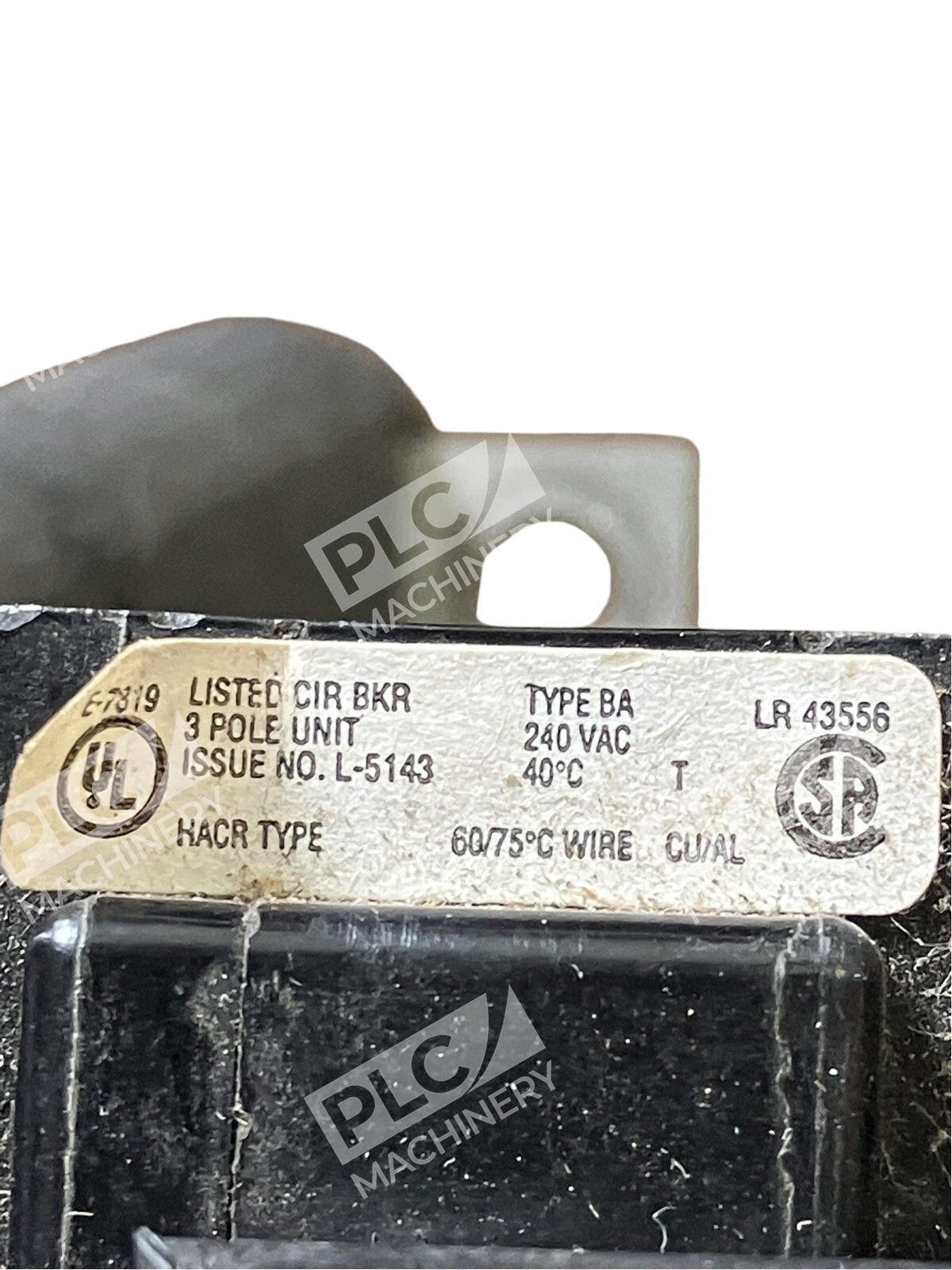

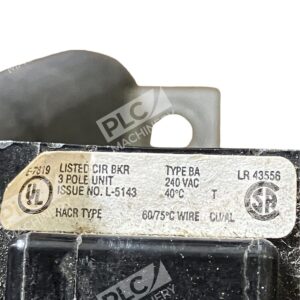

The BAB3025H is UL Listed and CSA Certified, ensuring compliance with industry standards for safety and performance. Its HACR rating further attests to its suitability for heating, air conditioning, and refrigeration applications. ([eaton.com](https://www.eaton.com/us/en-us/skuPage.BAB3025H.html?utm_source=openai))

Conclusion

The Cutler Hammer BAB3025H Type BA Circuit Breaker combines robust design, reliable performance, and versatile application, making it a dependable choice for protecting electrical systems in various industrial and commercial environments.
