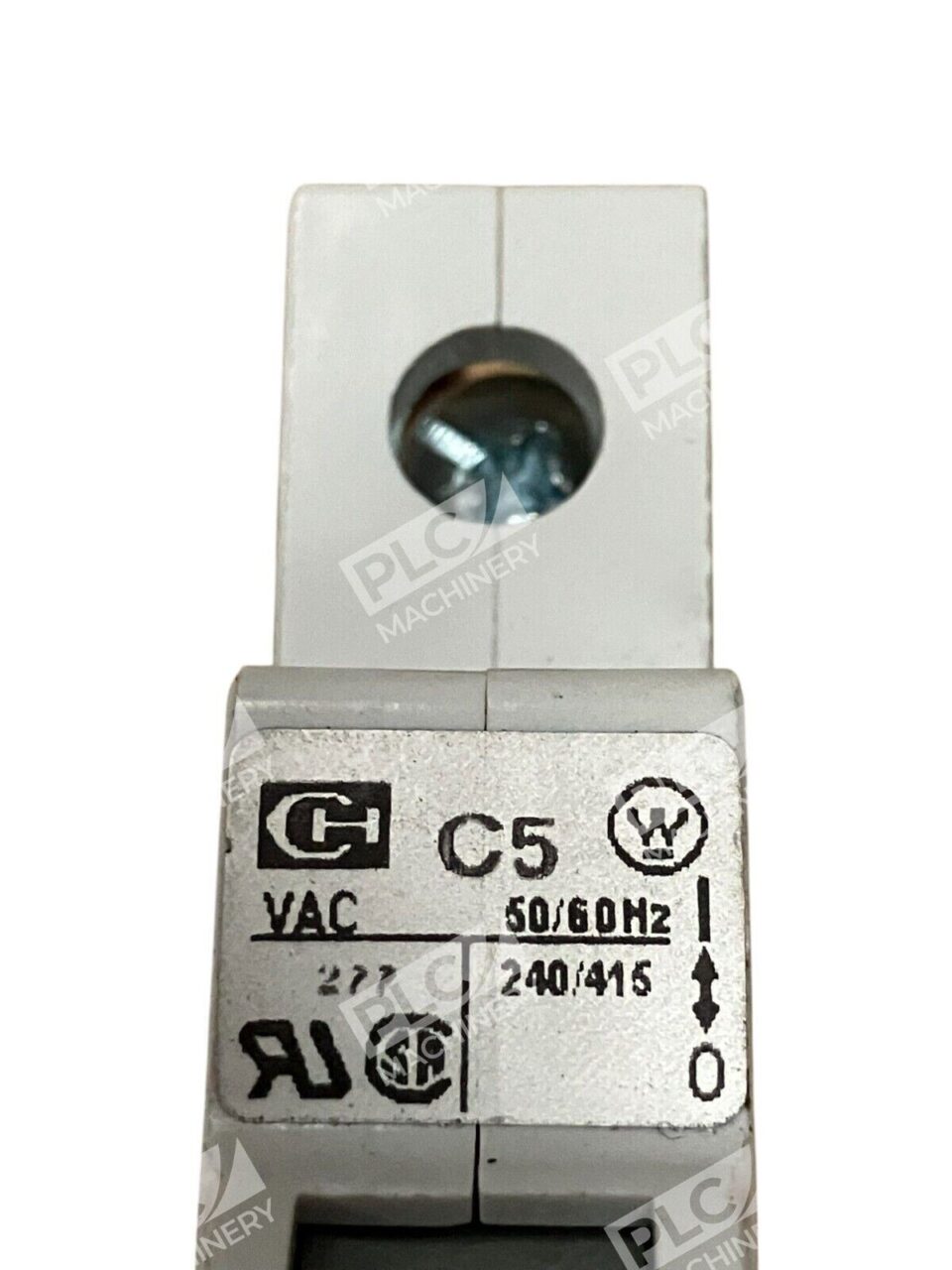

Cutler-Hammer SPCL1C05 5A 1-Pole Circuit Breaker
The Cutler-Hammer SPCL1C05 is a high-quality 5-ampere, single-pole circuit breaker designed to provide reliable overcurrent protection in various electrical applications. Its compact design and robust features make it an ideal choice for both residential and commercial installations.
Key Features
- Amperage Rating: 5 Amperes
- Number of Poles: 1
- Voltage Rating: 120 VAC / 12 to 65 VDC
- Interrupting Capacity: 10 kA
- Trip Curve: C-Curve
- Mounting Type: DIN Rail
- Terminal Type: Box Clamp or Ring Tongue

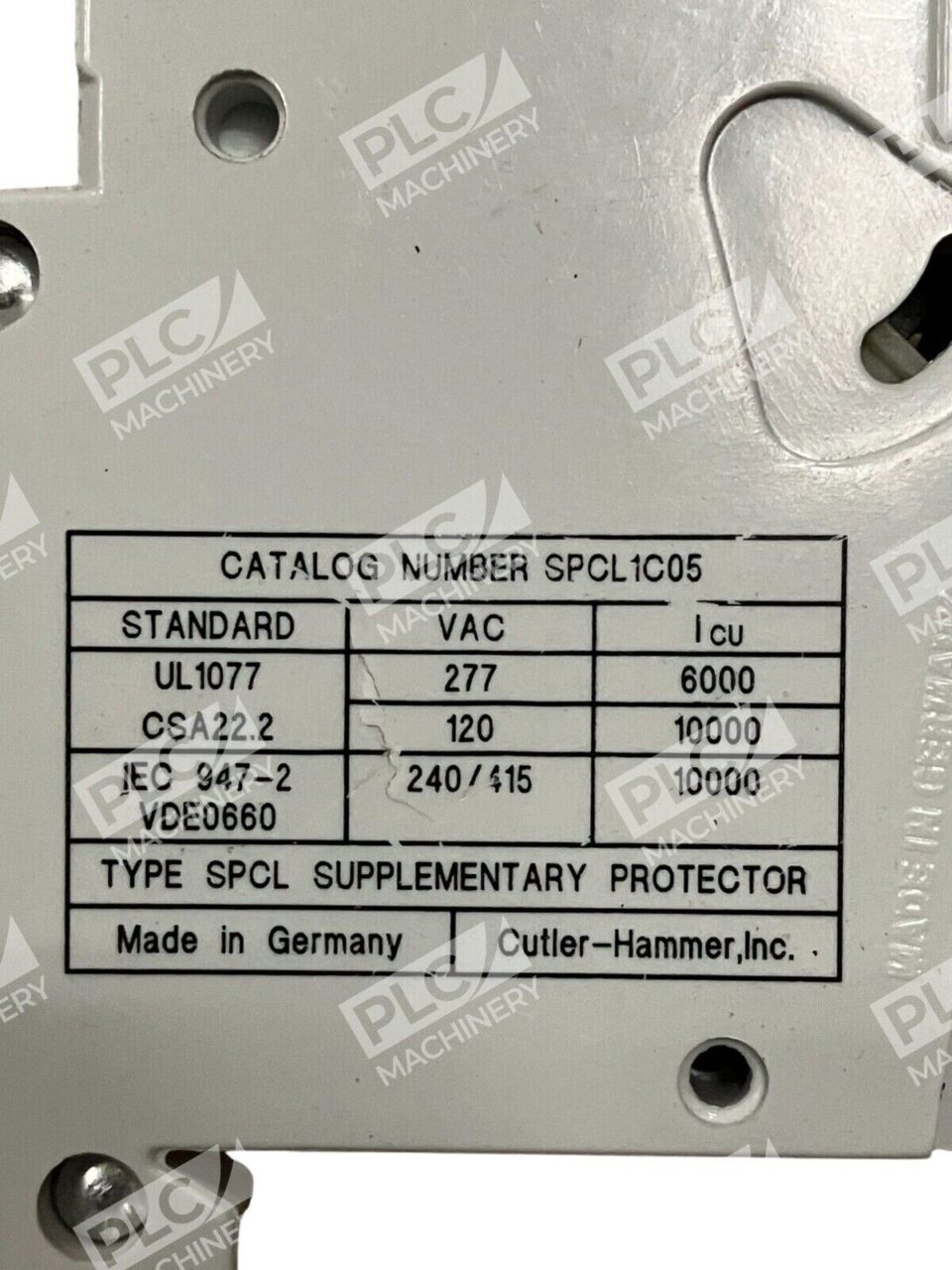

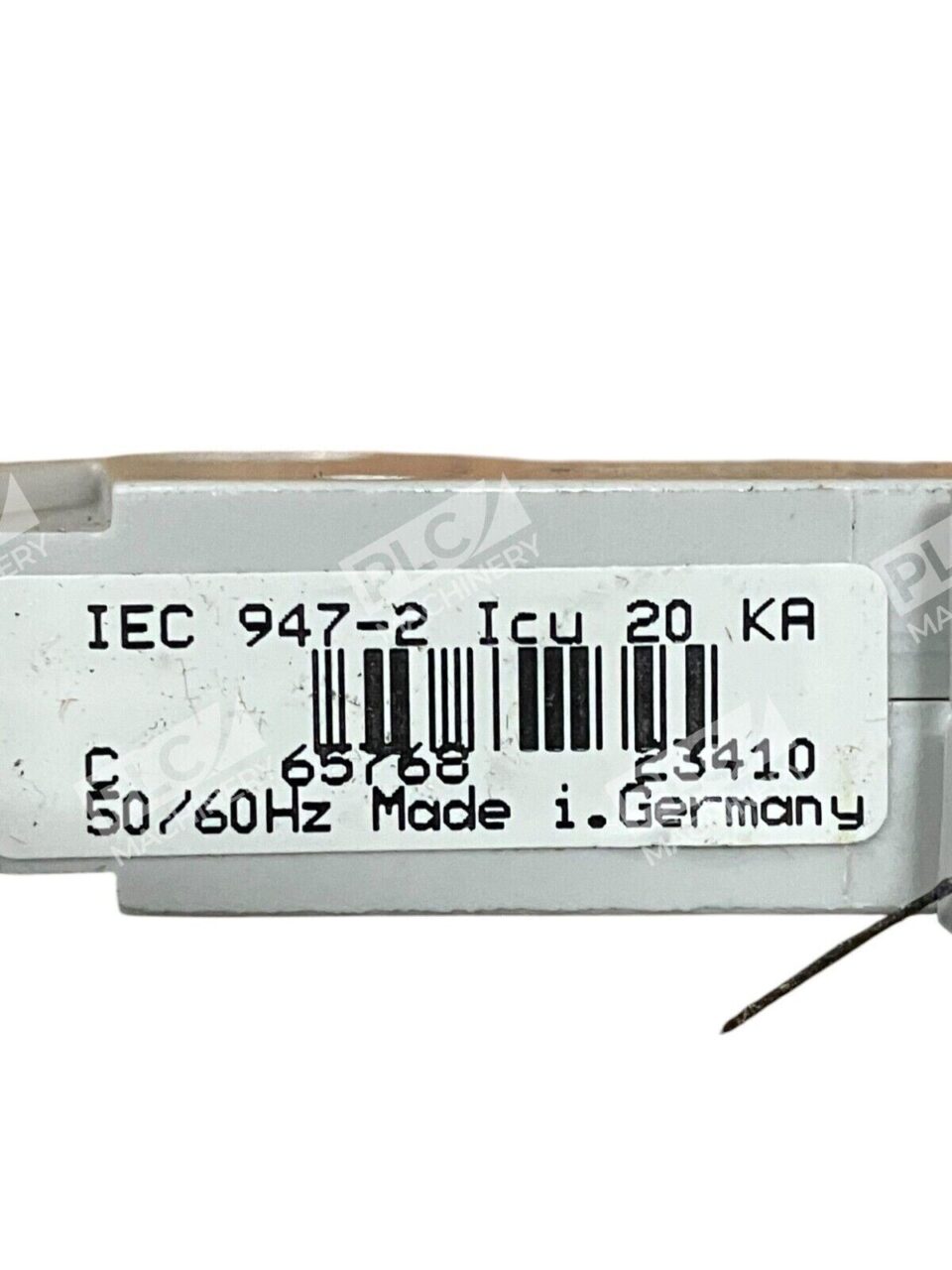

- Standards Compliance: UL 1077 Recognized, IEC 60947-2, CSA Std. C22.2 No. 235
Applications
The SPCL1C05 is suitable for a wide range of applications, including:
- Branch circuit device protection
- Low inrush motors
- Resistive loads
- Wiring protection
- Receptacles
- Lighting
- Control circuit applications
Design and Construction

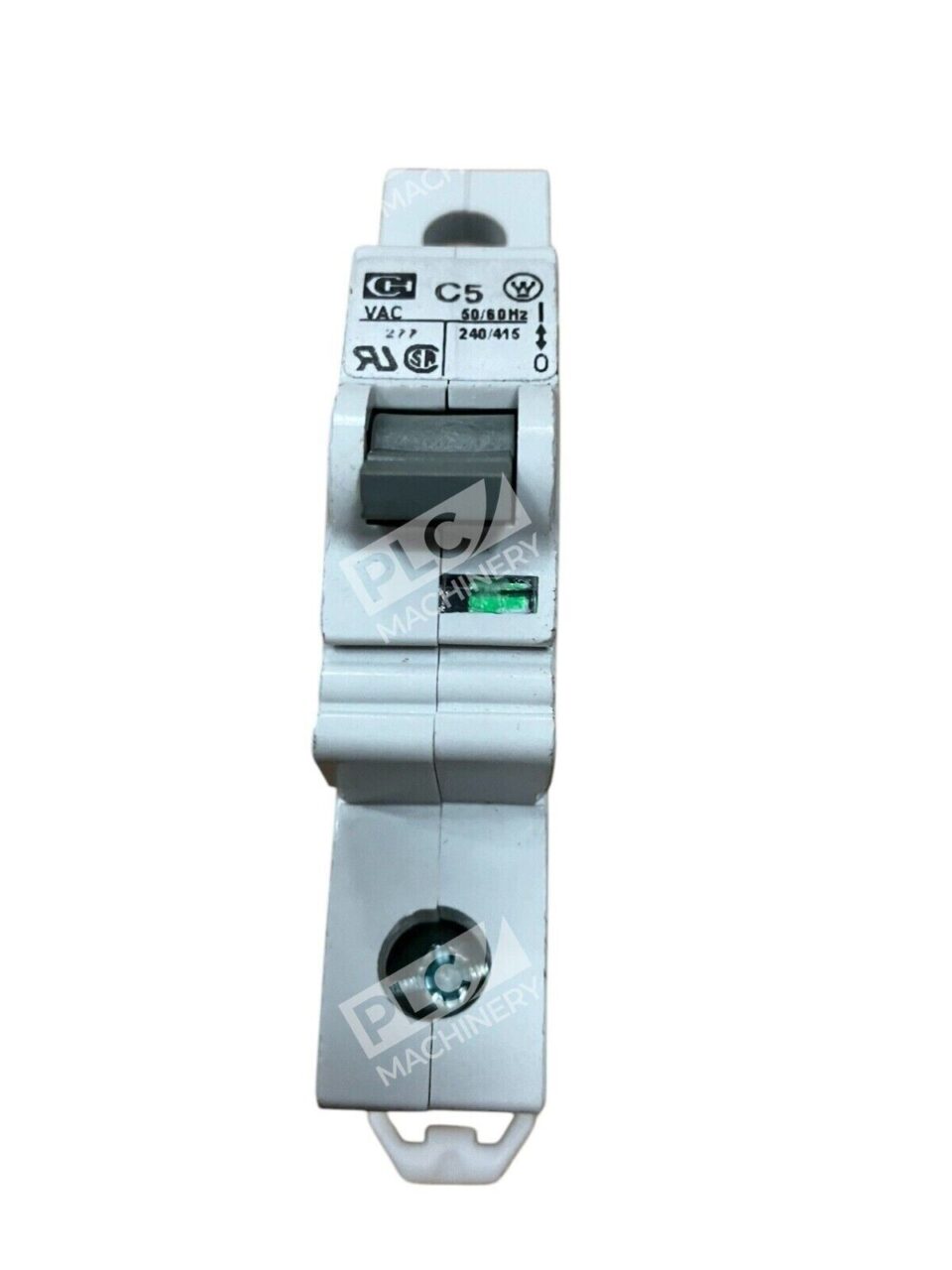

Featuring a quick snap-on clip design, the SPCL1C05 allows for easy installation on 35 mm DIN rails. Its current-limiting design provides fast short-circuit interruption, reducing let-through energy that can damage the circuit. The breaker handle includes a unique center trip “reset” position that indicates an overcurrent trip, with “OFF” (O) and “ON” (I) positions visually indicated by red and green flags.
Specifications
- Terminal Configuration: Box Clamp or Ring Tongue
- Interrupting Capacity: 10 kA at 277 VAC
- Rated Frequency: 50/60 Hz
- Service Life: 6,000 Electrical Cycles / 10,000 Mechanical Cycles
- Protection Degree: IP20
The Cutler-Hammer SPCL1C05 circuit breaker combines safety, reliability, and ease of installation, making it a dependable choice for protecting electrical circuits from overloads and short circuits.
