Crane Dorray 120V 2A Nema1 Emergency Stop Safety Pull Switch PSLO-4000

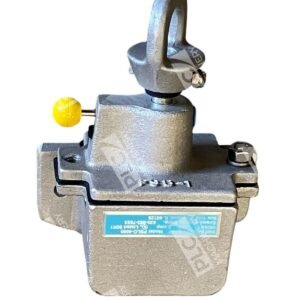

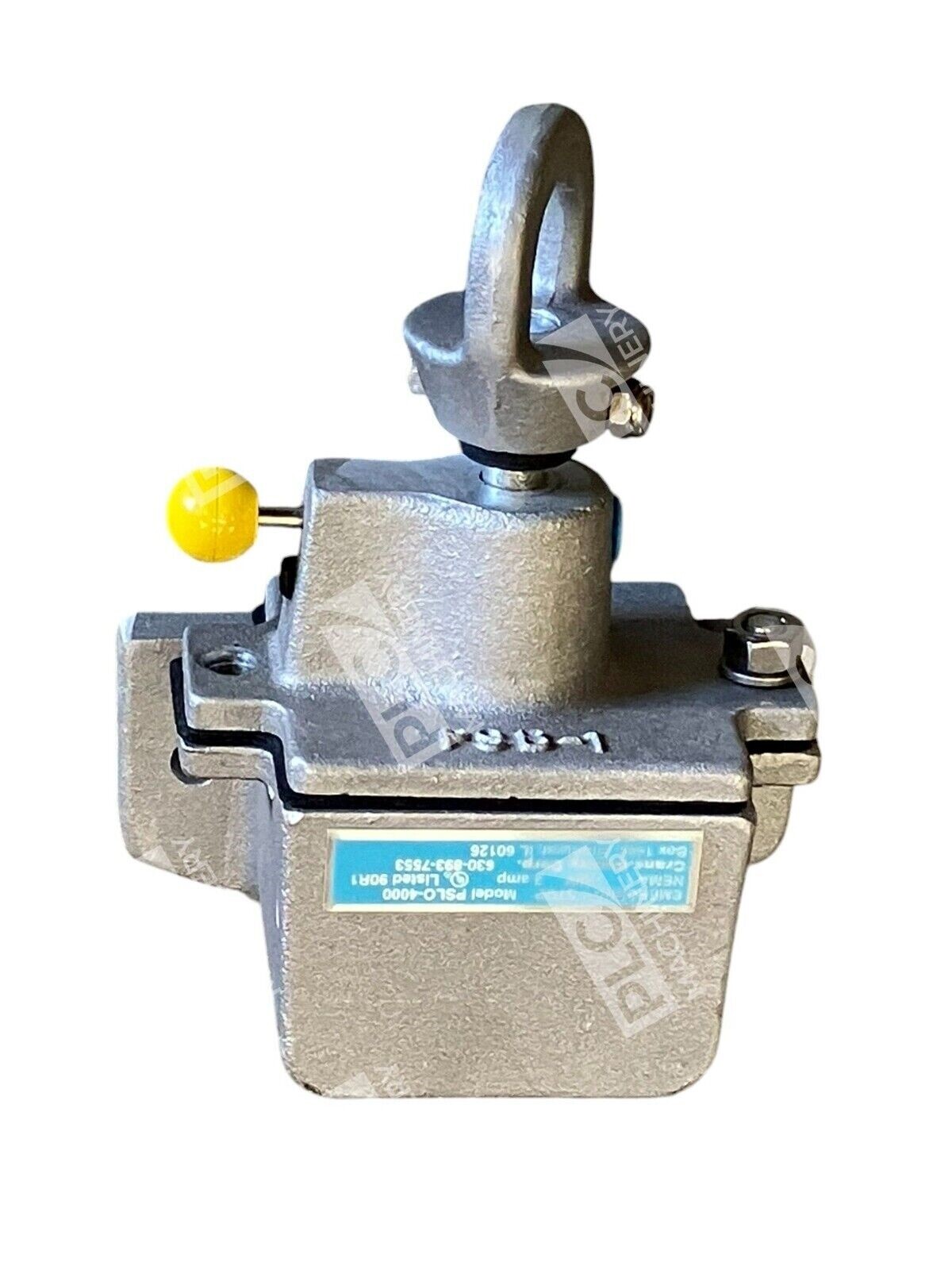

Crane Dorray PSLO-4000 Emergency Stop Safety Pull Switch

The Crane Dorray PSLO-4000 is a robust cable-pull stop switch designed for emergency stopping applications in industrial environments. It is ideal for use on conveyors, robotic systems, and assembly lines, providing a reliable means to halt operations swiftly when necessary.

Key Features

• Versatile Mounting: The PSLO-4000 can be mounted in any position, offering flexibility to suit various installation requirements.
• Adjustable Actuation Force: The force required to actuate the switch is adjustable using the supplied hex wrench, allowing customization based on specific operational needs.
• Manual Reset Lever: For enhanced safety, the switch includes a manual reset lever that must be pulled out before the switch can be reset, preventing accidental reactivation.
• Contact Configuration: Supplied with a normally closed contact (SPST-NC), with options for additional contacts available upon request.
• Durable Construction: Housed in a cast aluminum enclosure, the PSLO-4000 is built to withstand demanding industrial conditions.
• Conduit Compatibility: Tapped for 1/2″ NPT conduit, facilitating straightforward integration into existing systems.
• UL Listed: The switch is UL Listed under 90RI, ensuring compliance with recognized safety standards.

Specifications

• Dimensions: 5″ Length x 6.5″ Width x 3.25″ Depth
• Electrical Rating: 120V, 2A
• Enclosure Rating: NEMA 1

The Crane Dorray PSLO-4000 Emergency Stop Safety Pull Switch is a dependable solution for enhancing safety in industrial operations, offering customizable features and durable construction to meet the demands of various applications.
